Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 5,080,107
ssj_ops@100% per Host = 127,003
ssj_ops@100% per JVM = 63,501
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,019,617
Calibration 2     5,095,281
Calibration 3     5,100,024
ssj_ops@calibrated=5,097,653
100% 99.7% 5,097,653 5,080,107
90% 90.0% 4,587,887 4,586,116
80% 80.0% 4,078,122 4,080,270
70% 69.9% 3,568,357 3,564,055
60% 60.2% 3,058,592 3,067,051
50% 50.0% 2,548,826 2,548,141
40% 40.1% 2,039,061 2,043,695
30% 30.0% 1,529,296 1,527,625
20% 20.0% 1,019,531 1,019,564
10% 10.0% 509,765 509,952
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
40 40 80 160 320 40 80
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HA8000-bd 5U Base Unit
Form Factor: 5U
Power Supply Quantity and Rating (W): 5 x 770
Power Supply Details: DELTA DPS-770CB
Network Switch: 2
Network Switch Details: Hitachi GR-BEX101GL
KVM Switch: N/A
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware per Node
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
HITACHI1 128,931
HITACHI10 126,829
HITACHI11 128,931
HITACHI12 127,697
HITACHI13 127,578
HITACHI14 126,986
HITACHI15 126,425
HITACHI16 126,736
HITACHI17 127,371
HITACHI18 127,800
HITACHI19 127,274
HITACHI2 126,091
HITACHI20 125,682
HITACHI21 128,237
HITACHI22 127,422
HITACHI23 126,647
HITACHI24 125,535
HITACHI25 127,810
HITACHI26 127,873
HITACHI27 126,631
HITACHI28 124,977
HITACHI29 126,091
HITACHI3 125,574
HITACHI30 127,420
HITACHI31 127,148
HITACHI32 125,237
HITACHI33 126,842
HITACHI34 128,000
HITACHI35 127,288
HITACHI36 127,408
HITACHI37 128,322
HITACHI38 125,574
HITACHI39 127,597
HITACHI4 125,840
HITACHI40 126,473
HITACHI5 127,328
HITACHI6 125,760
HITACHI7 127,516
HITACHI8 127,169
HITACHI9 128,055
ssj_ops@100% 5,080,107
ssj_ops@100% per Host 127,003
ssj_ops@100% per JVM 63,501
Graph of per-host results
Host 'HITACHI1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,432
Calibration 2     129,188
Calibration 3     129,282
ssj_ops@calibrated=129,235
100% 99.8% 129,235 128,931
90% 89.0% 116,312 114,995
80% 79.8% 103,388 103,114
70% 70.1% 90,465 90,572
60% 60.1% 77,541 77,616
50% 50.0% 64,618 64,664
40% 40.1% 51,694 51,857
30% 30.0% 38,771 38,723
20% 19.9% 25,847 25,660
10% 10.0% 12,924 12,983
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,192
Calibration 2     126,727
Calibration 3     126,955
ssj_ops@calibrated=126,841
100% 100.0% 126,841 126,829
90% 90.6% 114,157 114,883
80% 79.9% 101,473 101,358
70% 69.6% 88,789 88,257
60% 60.3% 76,105 76,475
50% 50.1% 63,421 63,551
40% 40.1% 50,736 50,844
30% 29.8% 38,052 37,861
20% 20.0% 25,368 25,342
10% 10.0% 12,684 12,662
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,432
Calibration 2     129,188
Calibration 3     129,282
ssj_ops@calibrated=129,235
100% 99.8% 129,235 128,931
90% 89.0% 116,312 114,995
80% 79.8% 103,388 103,114
70% 70.1% 90,465 90,572
60% 60.1% 77,541 77,616
50% 50.0% 64,618 64,664
40% 40.1% 51,694 51,857
30% 30.0% 38,771 38,723
20% 19.9% 25,847 25,660
10% 10.0% 12,924 12,983
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,698
Calibration 2     128,203
Calibration 3     128,071
ssj_ops@calibrated=128,137
100% 99.7% 128,137 127,697
90% 90.9% 115,323 116,493
80% 79.9% 102,510 102,331
70% 71.1% 89,696 91,042
60% 59.8% 76,882 76,675
50% 49.3% 64,068 63,226
40% 40.3% 51,255 51,699
30% 30.2% 38,441 38,657
20% 20.0% 25,627 25,640
10% 10.0% 12,814 12,804
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,843
Calibration 2     128,253
Calibration 3     128,570
ssj_ops@calibrated=128,411
100% 99.4% 128,411 127,578
90% 90.1% 115,570 115,690
80% 79.4% 102,729 101,902
70% 69.1% 89,888 88,720
60% 60.6% 77,047 77,807
50% 50.4% 64,206 64,720
40% 39.5% 51,365 50,738
30% 29.5% 38,523 37,831
20% 20.3% 25,682 26,131
10% 9.9% 12,841 12,729
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,969
Calibration 2     127,276
Calibration 3     127,207
ssj_ops@calibrated=127,241
100% 99.8% 127,241 126,986
90% 90.4% 114,517 114,966
80% 79.1% 101,793 100,601
70% 70.1% 89,069 89,226
60% 60.8% 76,345 77,312
50% 49.5% 63,621 62,942
40% 39.7% 50,897 50,563
30% 30.1% 38,172 38,359
20% 20.3% 25,448 25,870
10% 9.9% 12,724 12,618
Active Idle   0 0

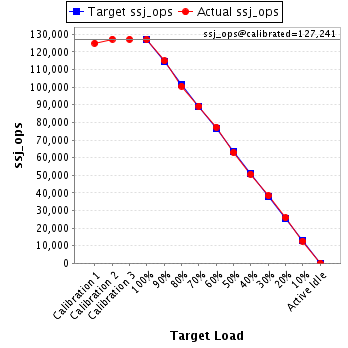

Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI15' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,786
Calibration 2     126,573
Calibration 3     126,676
ssj_ops@calibrated=126,625
100% 99.8% 126,625 126,425
90% 89.2% 113,962 112,887
80% 80.0% 101,300 101,247
70% 69.8% 88,637 88,378
60% 60.4% 75,975 76,486
50% 50.1% 63,312 63,407
40% 39.8% 50,650 50,387
30% 29.6% 37,987 37,432
20% 20.7% 25,325 26,220
10% 9.7% 12,662 12,329
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI16' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,653
Calibration 2     127,470
Calibration 3     126,979
ssj_ops@calibrated=127,224
100% 99.6% 127,224 126,736
90% 90.4% 114,502 114,995
80% 79.2% 101,779 100,716
70% 70.0% 89,057 89,063
60% 59.8% 76,335 76,128
50% 50.5% 63,612 64,232
40% 40.0% 50,890 50,946
30% 30.1% 38,167 38,323
20% 19.6% 25,445 24,995
10% 10.0% 12,722 12,770
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI17' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,301
Calibration 2     127,891
Calibration 3     127,887
ssj_ops@calibrated=127,889
100% 99.6% 127,889 127,371
90% 90.5% 115,100 115,747
80% 80.5% 102,311 102,950
70% 69.8% 89,522 89,253
60% 60.0% 76,733 76,698
50% 49.7% 63,944 63,614
40% 39.8% 51,155 50,899
30% 30.6% 38,367 39,072
20% 20.2% 25,578 25,873
10% 9.8% 12,789 12,486
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI18' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,245
Calibration 2     128,795
Calibration 3     128,545
ssj_ops@calibrated=128,670
100% 99.3% 128,670 127,800
90% 90.3% 115,803 116,226
80% 79.7% 102,936 102,592
70% 70.5% 90,069 90,690
60% 60.4% 77,202 77,697
50% 50.3% 64,335 64,724
40% 40.2% 51,468 51,690
30% 30.0% 38,601 38,658
20% 19.9% 25,734 25,663
10% 9.8% 12,867 12,670
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI19' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,512
Calibration 2     127,700
Calibration 3     127,344
ssj_ops@calibrated=127,522
100% 99.8% 127,522 127,274
90% 89.4% 114,770 114,044
80% 80.2% 102,018 102,335
70% 68.9% 89,265 87,903
60% 60.2% 76,513 76,772
50% 49.9% 63,761 63,639
40% 40.1% 51,009 51,120
30% 29.7% 38,257 37,869
20% 20.0% 25,504 25,552
10% 10.1% 12,752 12,902
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,929
Calibration 2     126,367
Calibration 3     126,724
ssj_ops@calibrated=126,546
100% 99.6% 126,546 126,091
90% 89.6% 113,891 113,383
80% 79.9% 101,236 101,137
70% 69.4% 88,582 87,786
60% 60.1% 75,927 76,032
50% 49.8% 63,273 62,965
40% 40.0% 50,618 50,574
30% 30.0% 37,964 38,013
20% 20.0% 25,309 25,294
10% 10.2% 12,655 12,925
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI20' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,612
Calibration 2     126,417
Calibration 3     126,496
ssj_ops@calibrated=126,457
100% 99.4% 126,457 125,682
90% 89.7% 113,811 113,392
80% 80.5% 101,165 101,775
70% 69.5% 88,520 87,885
60% 59.2% 75,874 74,903
50% 50.1% 63,228 63,353
40% 40.5% 50,583 51,216
30% 30.4% 37,937 38,427
20% 19.8% 25,291 24,980
10% 10.2% 12,646 12,858
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI21' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,343
Calibration 2     128,017
Calibration 3     128,495
ssj_ops@calibrated=128,256
100% 100.0% 128,256 128,237
90% 90.2% 115,430 115,747
80% 80.1% 102,605 102,721
70% 70.5% 89,779 90,395
60% 60.4% 76,954 77,442
50% 50.3% 64,128 64,572
40% 40.1% 51,302 51,444
30% 29.8% 38,477 38,203
20% 20.3% 25,651 26,074
10% 9.8% 12,826 12,618
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI22' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,822
Calibration 2     128,085
Calibration 3     127,834
ssj_ops@calibrated=127,959
100% 99.6% 127,959 127,422
90% 90.1% 115,163 115,319
80% 80.2% 102,368 102,678
70% 70.1% 89,572 89,636
60% 60.2% 76,776 77,020
50% 49.8% 63,980 63,775
40% 39.6% 51,184 50,634
30% 29.9% 38,388 38,240
20% 20.0% 25,592 25,622
10% 10.2% 12,796 13,025
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI23' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,609
Calibration 2     127,015
Calibration 3     126,282
ssj_ops@calibrated=126,648
100% 100.0% 126,648 126,647
90% 90.2% 113,984 114,235
80% 79.2% 101,319 100,331
70% 69.9% 88,654 88,497
60% 59.8% 75,989 75,720
50% 50.6% 63,324 64,037
40% 40.3% 50,659 51,012
30% 30.0% 37,995 37,944
20% 19.9% 25,330 25,219
10% 10.1% 12,665 12,837
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI24' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,421
Calibration 2     126,236
Calibration 3     126,568
ssj_ops@calibrated=126,402
100% 99.3% 126,402 125,535
90% 89.7% 113,762 113,332
80% 80.0% 101,121 101,150
70% 69.8% 88,481 88,181
60% 59.8% 75,841 75,599
50% 50.3% 63,201 63,533
40% 40.0% 50,561 50,617
30% 30.2% 37,921 38,206
20% 19.9% 25,280 25,109
10% 9.7% 12,640 12,223
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI25' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,044
Calibration 2     127,122
Calibration 3     127,583
ssj_ops@calibrated=127,352
100% 100.4% 127,352 127,810
90% 90.4% 114,617 115,114
80% 80.9% 101,882 103,090
70% 69.8% 89,147 88,940
60% 59.8% 76,411 76,158
50% 50.4% 63,676 64,218
40% 40.0% 50,941 50,965
30% 29.6% 38,206 37,757
20% 20.5% 25,470 26,055
10% 10.2% 12,735 12,996
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI26' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,225
Calibration 2     128,400
Calibration 3     128,270
ssj_ops@calibrated=128,335
100% 99.6% 128,335 127,873
90% 88.5% 115,502 113,550
80% 79.4% 102,668 101,897
70% 70.8% 89,835 90,845
60% 59.7% 77,001 76,664
50% 49.7% 64,168 63,778
40% 40.6% 51,334 52,109
30% 29.8% 38,501 38,209
20% 20.2% 25,667 25,961
10% 9.9% 12,834 12,718
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI27' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,969
Calibration 2     127,314
Calibration 3     127,420
ssj_ops@calibrated=127,367
100% 99.4% 127,367 126,631
90% 89.1% 114,630 113,450
80% 79.9% 101,893 101,739
70% 70.4% 89,157 89,646
60% 60.8% 76,420 77,378
50% 49.2% 63,683 62,639
40% 40.5% 50,947 51,610
30% 30.0% 38,210 38,216
20% 20.0% 25,473 25,504
10% 10.0% 12,737 12,783
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI28' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,252
Calibration 2     126,202
Calibration 3     125,530
ssj_ops@calibrated=125,866
100% 99.3% 125,866 124,977
90% 90.0% 113,280 113,309
80% 80.8% 100,693 101,745
70% 70.2% 88,106 88,402
60% 60.5% 75,520 76,148
50% 51.1% 62,933 64,331
40% 40.3% 50,347 50,697
30% 29.8% 37,760 37,467
20% 20.0% 25,173 25,129
10% 10.0% 12,587 12,627
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI29' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,929
Calibration 2     126,367
Calibration 3     126,724
ssj_ops@calibrated=126,546
100% 99.6% 126,546 126,091
90% 89.6% 113,891 113,383
80% 79.9% 101,236 101,137
70% 69.4% 88,582 87,786
60% 60.1% 75,927 76,032
50% 49.8% 63,273 62,965
40% 40.0% 50,618 50,574
30% 30.0% 37,964 38,013
20% 20.0% 25,309 25,294
10% 10.2% 12,655 12,925
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,372
Calibration 2     125,774
Calibration 3     126,274
ssj_ops@calibrated=126,024
100% 99.6% 126,024 125,574
90% 90.6% 113,422 114,119
80% 80.4% 100,819 101,364
70% 69.9% 88,217 88,113
60% 60.5% 75,614 76,195
50% 49.8% 63,012 62,784
40% 40.3% 50,410 50,733
30% 29.9% 37,807 37,641
20% 19.8% 25,205 24,920
10% 10.0% 12,602 12,621
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI30' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,516
Calibration 2     127,901
Calibration 3     128,090
ssj_ops@calibrated=127,995
100% 99.6% 127,995 127,420
90% 90.4% 115,196 115,741
80% 79.8% 102,396 102,089
70% 69.5% 89,597 89,002
60% 60.1% 76,797 76,907
50% 50.1% 63,998 64,107
40% 40.3% 51,198 51,591
30% 30.2% 38,399 38,617
20% 20.0% 25,599 25,606
10% 10.2% 12,800 13,012
Active Idle   0 0

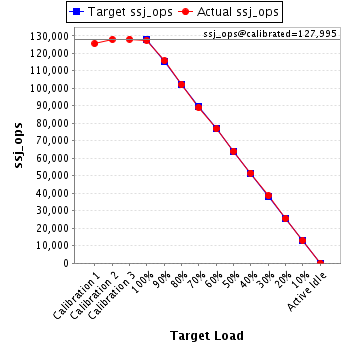

Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI31' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,851
Calibration 2     127,175
Calibration 3     127,612
ssj_ops@calibrated=127,393
100% 99.8% 127,393 127,148
90% 89.5% 114,654 114,046
80% 80.3% 101,915 102,244
70% 70.3% 89,175 89,520
60% 59.6% 76,436 75,950
50% 49.5% 63,697 63,115
40% 40.5% 50,957 51,554
30% 30.3% 38,218 38,581
20% 20.0% 25,479 25,504
10% 10.1% 12,739 12,825
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI32' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,398
Calibration 2     125,932
Calibration 3     126,242
ssj_ops@calibrated=126,087
100% 99.3% 126,087 125,237
90% 90.1% 113,478 113,582
80% 79.8% 100,870 100,617
70% 69.7% 88,261 87,864
60% 59.9% 75,652 75,534
50% 49.5% 63,043 62,422
40% 40.4% 50,435 50,945
30% 30.1% 37,826 37,927
20% 20.0% 25,217 25,257
10% 9.8% 12,609 12,356
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI33' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,153
Calibration 2     127,453
Calibration 3     127,905
ssj_ops@calibrated=127,679
100% 99.3% 127,679 126,842
90% 89.7% 114,911 114,555
80% 79.8% 102,143 101,947
70% 69.6% 89,375 88,894
60% 60.4% 76,607 77,056
50% 49.2% 63,839 62,867
40% 39.9% 51,072 51,000
30% 29.9% 38,304 38,123
20% 20.3% 25,536 25,881
10% 9.9% 12,768 12,611
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI34' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,366
Calibration 2     128,019
Calibration 3     128,333
ssj_ops@calibrated=128,176
100% 99.9% 128,176 128,000
90% 90.3% 115,358 115,760
80% 80.7% 102,541 103,495
70% 69.7% 89,723 89,345
60% 59.9% 76,905 76,775
50% 48.8% 64,088 62,542
40% 40.1% 51,270 51,402
30% 29.5% 38,453 37,832
20% 19.5% 25,635 24,966
10% 10.0% 12,818 12,816
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI35' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,122
Calibration 2     127,128
Calibration 3     127,289
ssj_ops@calibrated=127,209
100% 100.1% 127,209 127,288
90% 89.3% 114,488 113,650
80% 80.5% 101,767 102,422
70% 70.1% 89,046 89,201
60% 60.5% 76,325 76,983
50% 49.8% 63,604 63,289
40% 40.7% 50,883 51,742
30% 29.6% 38,163 37,628
20% 20.3% 25,442 25,770
10% 9.8% 12,721 12,434
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI36' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,523
Calibration 2     127,347
Calibration 3     127,700
ssj_ops@calibrated=127,523
100% 99.9% 127,523 127,408
90% 90.6% 114,771 115,474
80% 79.3% 102,019 101,119
70% 70.3% 89,266 89,675
60% 60.4% 76,514 76,971
50% 50.1% 63,762 63,905
40% 39.7% 51,009 50,679
30% 30.0% 38,257 38,216
20% 19.8% 25,505 25,289
10% 10.0% 12,752 12,781
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI37' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,184
Calibration 2     128,401
Calibration 3     128,365
ssj_ops@calibrated=128,383
100% 100.0% 128,383 128,322
90% 90.8% 115,545 116,570
80% 81.1% 102,706 104,168
70% 69.3% 89,868 89,007
60% 60.6% 77,030 77,781
50% 50.4% 64,192 64,676
40% 40.0% 51,353 51,393
30% 30.1% 38,515 38,634
20% 19.8% 25,677 25,479
10% 10.2% 12,838 13,087
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI38' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,372
Calibration 2     125,774
Calibration 3     126,274
ssj_ops@calibrated=126,024
100% 99.6% 126,024 125,574
90% 90.6% 113,422 114,119
80% 80.4% 100,819 101,364
70% 69.9% 88,217 88,113
60% 60.5% 75,614 76,195
50% 49.8% 63,012 62,784
40% 40.3% 50,410 50,733
30% 29.9% 37,807 37,641
20% 19.8% 25,205 24,920
10% 10.0% 12,602 12,621
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI39' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,520
Calibration 2     128,088
Calibration 3     128,233
ssj_ops@calibrated=128,161
100% 99.6% 128,161 127,597
90% 90.8% 115,345 116,320
80% 80.1% 102,528 102,646
70% 70.2% 89,712 89,916
60% 59.7% 76,896 76,512
50% 50.2% 64,080 64,300
40% 40.1% 51,264 51,398
30% 29.8% 38,448 38,214
20% 19.9% 25,632 25,524
10% 10.4% 12,816 13,271
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,263
Calibration 2     126,205
Calibration 3     126,393
ssj_ops@calibrated=126,299
100% 99.6% 126,299 125,840
90% 89.8% 113,669 113,372
80% 80.3% 101,039 101,413
70% 69.8% 88,409 88,146
60% 60.7% 75,779 76,601
50% 50.4% 63,150 63,702
40% 39.9% 50,520 50,421
30% 30.0% 37,890 37,844
20% 20.3% 25,260 25,686
10% 10.0% 12,630 12,583
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI40' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,786
Calibration 2     126,635
Calibration 3     126,824
ssj_ops@calibrated=126,730
100% 99.8% 126,730 126,473
90% 90.1% 114,057 114,226
80% 80.8% 101,384 102,424
70% 70.0% 88,711 88,721
60% 60.3% 76,038 76,411
50% 50.1% 63,365 63,497
40% 39.6% 50,692 50,145
30% 30.0% 38,019 38,024
20% 19.6% 25,346 24,891
10% 10.1% 12,673 12,766
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,214
Calibration 2     127,934
Calibration 3     128,172
ssj_ops@calibrated=128,053
100% 99.4% 128,053 127,328
90% 89.5% 115,248 114,661
80% 80.8% 102,443 103,439
70% 69.7% 89,637 89,200
60% 60.0% 76,832 76,862
50% 49.8% 64,027 63,771
40% 40.0% 51,221 51,187
30% 29.9% 38,416 38,315
20% 19.7% 25,611 25,270
10% 9.8% 12,805 12,488
Active Idle   0 0

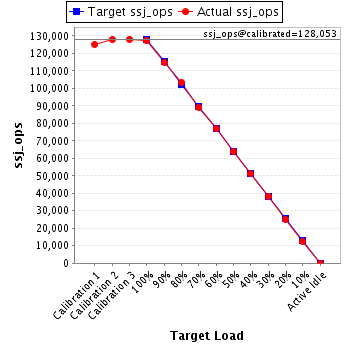

Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,590
Calibration 2     126,984
Calibration 3     126,960
ssj_ops@calibrated=126,972
100% 99.0% 126,972 125,760
90% 89.6% 114,275 113,788
80% 80.4% 101,578 102,076
70% 70.5% 88,880 89,544
60% 60.4% 76,183 76,719
50% 50.7% 63,486 64,335
40% 39.9% 50,789 50,629
30% 30.4% 38,092 38,615
20% 19.8% 25,394 25,166
10% 9.8% 12,697 12,504
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,925
Calibration 2     127,692
Calibration 3     127,916
ssj_ops@calibrated=127,804
100% 99.8% 127,804 127,516
90% 89.8% 115,024 114,742
80% 79.7% 102,243 101,796
70% 69.9% 89,463 89,279
60% 60.3% 76,682 77,075
50% 49.9% 63,902 63,829
40% 40.0% 51,122 51,095
30% 30.3% 38,341 38,674
20% 19.9% 25,561 25,401
10% 10.2% 12,780 12,999
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI8' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,321
Calibration 2     127,862
Calibration 3     128,013
ssj_ops@calibrated=127,938
100% 99.4% 127,938 127,169
90% 89.8% 115,144 114,889
80% 79.9% 102,350 102,170
70% 69.9% 89,556 89,416
60% 60.4% 76,763 77,226
50% 50.0% 63,969 64,006
40% 40.3% 51,175 51,610
30% 30.2% 38,381 38,684
20% 20.1% 25,588 25,672
10% 10.2% 12,794 13,100
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'HITACHI9' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,922
Calibration 2     128,168
Calibration 3     128,709
ssj_ops@calibrated=128,438
100% 99.7% 128,438 128,055
90% 90.6% 115,595 116,371
80% 79.3% 102,751 101,816
70% 69.6% 89,907 89,426
60% 59.9% 77,063 76,920
50% 50.3% 64,219 64,660
40% 40.0% 51,375 51,387
30% 29.8% 38,532 38,213
20% 19.9% 25,688 25,512
10% 9.8% 12,844 12,609
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
