Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,288
ssj_ops@100% per JVM = 63,644
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,122
Calibration 2     127,128
Calibration 3     127,289
ssj_ops@calibrated=127,209
100% 100.1% 127,209 127,288
90% 89.3% 114,488 113,650
80% 80.5% 101,767 102,422
70% 70.1% 89,046 89,201
60% 60.5% 76,325 76,983
50% 49.8% 63,604 63,289
40% 40.7% 50,883 51,742
30% 29.6% 38,163 37,628
20% 20.3% 25,442 25,770
10% 9.8% 12,721 12,434
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI35.001 63,449
HITACHI35.002 63,840
ssj_ops@100% 127,288
ssj_ops@100% per JVM 63,644

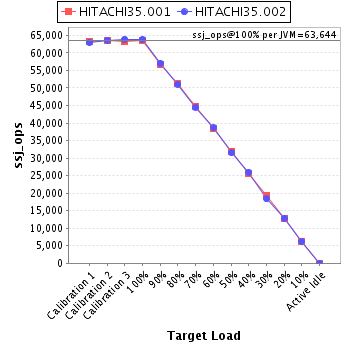

Graph of per-instance results
JVM 'HITACHI35.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,140
Calibration 2     63,460
Calibration 3     63,359
ssj_ops@calibrated=63,410
100% 100.1% 63,410 63,449
90% 89.3% 57,069 56,614
80% 80.9% 50,728 51,311
70% 70.4% 44,387 44,645
60% 60.5% 38,046 38,347
50% 50.1% 31,705 31,764
40% 40.6% 25,364 25,733
30% 30.4% 19,023 19,290
20% 20.3% 12,682 12,866
10% 9.8% 6,341 6,234
Active Idle   0 0

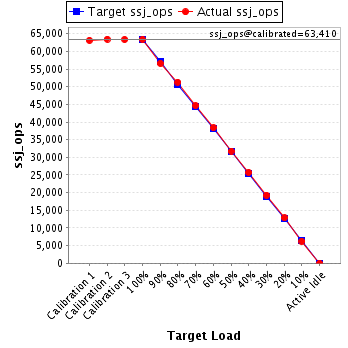

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI35.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,981
Calibration 2     63,668
Calibration 3     63,930
ssj_ops@calibrated=63,799
100% 100.1% 63,799 63,840
90% 89.4% 57,419 57,036
80% 80.1% 51,039 51,111
70% 69.8% 44,659 44,556
60% 60.6% 38,279 38,636
50% 49.4% 31,899 31,525
40% 40.8% 25,520 26,009
30% 28.7% 19,140 18,337
20% 20.2% 12,760 12,904
10% 9.7% 6,380 6,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
