Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,800
ssj_ops@100% per JVM = 63,900
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,245
Calibration 2     128,795
Calibration 3     128,545
ssj_ops@calibrated=128,670
100% 99.3% 128,670 127,800
90% 90.3% 115,803 116,226
80% 79.7% 102,936 102,592
70% 70.5% 90,069 90,690
60% 60.4% 77,202 77,697
50% 50.3% 64,335 64,724
40% 40.2% 51,468 51,690
30% 30.0% 38,601 38,658
20% 19.9% 25,734 25,663
10% 9.8% 12,867 12,670
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI18.001 64,275
HITACHI18.002 63,525
ssj_ops@100% 127,800
ssj_ops@100% per JVM 63,900

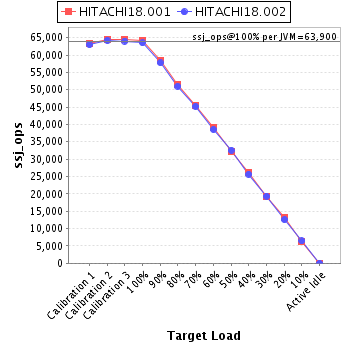

Graph of per-instance results
JVM 'HITACHI18.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,262
Calibration 2     64,582
Calibration 3     64,493
ssj_ops@calibrated=64,538
100% 99.6% 64,538 64,275
90% 90.6% 58,084 58,453
80% 79.9% 51,630 51,589
70% 70.5% 45,176 45,480
60% 60.6% 38,723 39,141
50% 49.8% 32,269 32,153
40% 40.4% 25,815 26,043
30% 29.9% 19,361 19,296
20% 20.3% 12,908 13,089
10% 9.7% 6,454 6,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI18.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,983
Calibration 2     64,213
Calibration 3     64,052
ssj_ops@calibrated=64,132
100% 99.1% 64,132 63,525
90% 90.1% 57,719 57,772
80% 79.5% 51,306 51,003
70% 70.5% 44,893 45,210
60% 60.1% 38,479 38,556
50% 50.8% 32,066 32,571
40% 40.0% 25,653 25,646
30% 30.2% 19,240 19,362
20% 19.6% 12,826 12,573
10% 10.0% 6,413 6,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
