Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 126,829
ssj_ops@100% per JVM = 63,414
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,192
Calibration 2     126,727
Calibration 3     126,955
ssj_ops@calibrated=126,841
100% 100.0% 126,841 126,829
90% 90.6% 114,157 114,883
80% 79.9% 101,473 101,358
70% 69.6% 88,789 88,257
60% 60.3% 76,105 76,475
50% 50.1% 63,421 63,551
40% 40.1% 50,736 50,844
30% 29.8% 38,052 37,861
20% 20.0% 25,368 25,342
10% 10.0% 12,684 12,662
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI10.001 62,788
HITACHI10.002 64,041
ssj_ops@100% 126,829
ssj_ops@100% per JVM 63,414

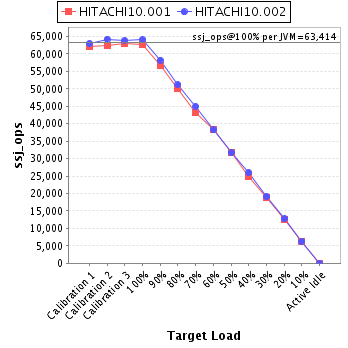

Graph of per-instance results
JVM 'HITACHI10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,211
Calibration 2     62,493
Calibration 3     63,132
ssj_ops@calibrated=62,813
100% 100.0% 62,813 62,788
90% 90.2% 56,531 56,687
80% 79.9% 50,250 50,189
70% 69.0% 43,969 43,325
60% 60.9% 37,688 38,243
50% 50.7% 31,406 31,865
40% 39.6% 25,125 24,892
30% 29.8% 18,844 18,732
20% 20.1% 12,563 12,646
10% 10.2% 6,281 6,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,981
Calibration 2     64,234
Calibration 3     63,823
ssj_ops@calibrated=64,028
100% 100.0% 64,028 64,041
90% 90.9% 57,625 58,196
80% 79.9% 51,223 51,169
70% 70.2% 44,820 44,931
60% 59.7% 38,417 38,232
50% 49.5% 32,014 31,687
40% 40.5% 25,611 25,952
30% 29.9% 19,208 19,129
20% 19.8% 12,806 12,697
10% 9.8% 6,403 6,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
