Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 125,535
ssj_ops@100% per JVM = 62,767
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,421
Calibration 2     126,236
Calibration 3     126,568
ssj_ops@calibrated=126,402
100% 99.3% 126,402 125,535
90% 89.7% 113,762 113,332
80% 80.0% 101,121 101,150
70% 69.8% 88,481 88,181
60% 59.8% 75,841 75,599
50% 50.3% 63,201 63,533
40% 40.0% 50,561 50,617
30% 30.2% 37,921 38,206
20% 19.9% 25,280 25,109
10% 9.7% 12,640 12,223
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI24.001 62,826
HITACHI24.002 62,709
ssj_ops@100% 125,535
ssj_ops@100% per JVM 62,767

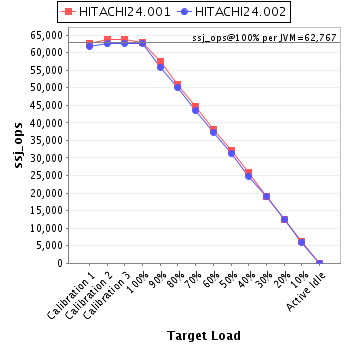

Graph of per-instance results
JVM 'HITACHI24.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,657
Calibration 2     63,688
Calibration 3     63,856
ssj_ops@calibrated=63,772
100% 98.5% 63,772 62,826
90% 90.0% 57,395 57,415
80% 80.1% 51,018 51,062
70% 70.1% 44,640 44,723
60% 59.9% 38,263 38,201
50% 50.4% 31,886 32,137
40% 40.4% 25,509 25,769
30% 30.0% 19,132 19,141
20% 19.7% 12,754 12,568
10% 9.7% 6,377 6,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI24.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     61,764
Calibration 2     62,547
Calibration 3     62,712
ssj_ops@calibrated=62,630
100% 100.1% 62,630 62,709
90% 89.3% 56,367 55,917
80% 80.0% 50,104 50,088
70% 69.4% 43,841 43,458
60% 59.7% 37,578 37,398
50% 50.1% 31,315 31,395
40% 39.7% 25,052 24,848
30% 30.4% 18,789 19,065
20% 20.0% 12,526 12,541
10% 9.6% 6,263 6,043
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
