Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,148
ssj_ops@100% per JVM = 63,574
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,851
Calibration 2     127,175
Calibration 3     127,612
ssj_ops@calibrated=127,393
100% 99.8% 127,393 127,148
90% 89.5% 114,654 114,046
80% 80.3% 101,915 102,244
70% 70.3% 89,175 89,520
60% 59.6% 76,436 75,950
50% 49.5% 63,697 63,115
40% 40.5% 50,957 51,554
30% 30.3% 38,218 38,581
20% 20.0% 25,479 25,504
10% 10.1% 12,739 12,825
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI31.001 63,679
HITACHI31.002 63,469
ssj_ops@100% 127,148
ssj_ops@100% per JVM 63,574

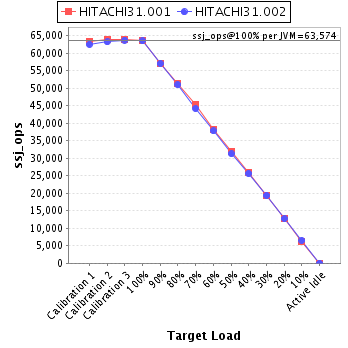

Graph of per-instance results
JVM 'HITACHI31.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,336
Calibration 2     63,987
Calibration 3     63,874
ssj_ops@calibrated=63,930
100% 99.6% 63,930 63,679
90% 89.3% 57,537 57,061
80% 80.2% 51,144 51,268
70% 71.0% 44,751 45,364
60% 59.7% 38,358 38,183
50% 49.8% 31,965 31,844
40% 40.6% 25,572 25,969
30% 30.1% 19,179 19,272
20% 20.0% 12,786 12,802
10% 9.8% 6,393 6,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI31.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,515
Calibration 2     63,188
Calibration 3     63,738
ssj_ops@calibrated=63,463
100% 100.0% 63,463 63,469
90% 89.8% 57,117 56,985
80% 80.3% 50,770 50,976
70% 69.6% 44,424 44,156
60% 59.5% 38,078 37,767
50% 49.3% 31,731 31,271
40% 40.3% 25,385 25,584
30% 30.4% 19,039 19,309
20% 20.0% 12,693 12,702
10% 10.3% 6,346 6,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
