Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,371
ssj_ops@100% per JVM = 63,685
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,301
Calibration 2     127,891
Calibration 3     127,887
ssj_ops@calibrated=127,889
100% 99.6% 127,889 127,371
90% 90.5% 115,100 115,747
80% 80.5% 102,311 102,950
70% 69.8% 89,522 89,253
60% 60.0% 76,733 76,698
50% 49.7% 63,944 63,614
40% 39.8% 51,155 50,899
30% 30.6% 38,367 39,072
20% 20.2% 25,578 25,873
10% 9.8% 12,789 12,486
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI17.001 63,301
HITACHI17.002 64,070
ssj_ops@100% 127,371
ssj_ops@100% per JVM 63,685

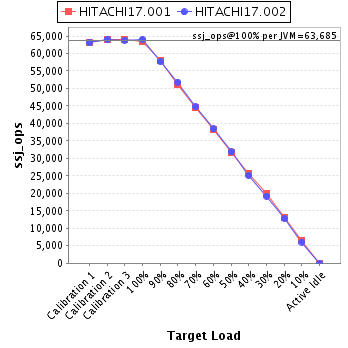

Graph of per-instance results

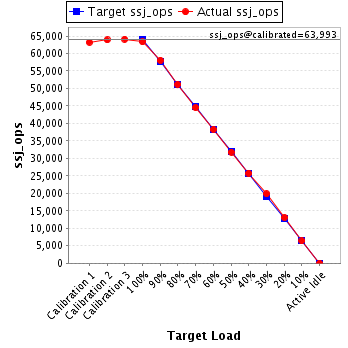

JVM 'HITACHI17.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,242
Calibration 2     63,882
Calibration 3     64,104
ssj_ops@calibrated=63,993
100% 98.9% 63,993 63,301
90% 90.7% 57,593 58,058
80% 79.9% 51,194 51,149
70% 69.6% 44,795 44,509
60% 59.8% 38,396 38,290
50% 49.7% 31,996 31,784
40% 40.2% 25,597 25,749
30% 31.0% 19,198 19,854
20% 20.5% 12,799 13,098
10% 10.0% 6,399 6,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI17.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,059
Calibration 2     64,009
Calibration 3     63,783
ssj_ops@calibrated=63,896
100% 100.3% 63,896 64,070
90% 90.3% 57,506 57,689
80% 81.1% 51,117 51,802
70% 70.0% 44,727 44,744
60% 60.1% 38,338 38,407
50% 49.8% 31,948 31,829
40% 39.4% 25,558 25,150
30% 30.1% 19,169 19,218
20% 20.0% 12,779 12,775
10% 9.5% 6,390 6,082
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
