Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 126,631
ssj_ops@100% per JVM = 63,316
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,969
Calibration 2     127,314
Calibration 3     127,420
ssj_ops@calibrated=127,367
100% 99.4% 127,367 126,631
90% 89.1% 114,630 113,450
80% 79.9% 101,893 101,739
70% 70.4% 89,157 89,646
60% 60.8% 76,420 77,378
50% 49.2% 63,683 62,639
40% 40.5% 50,947 51,610
30% 30.0% 38,210 38,216
20% 20.0% 25,473 25,504
10% 10.0% 12,737 12,783
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI27.001 63,352
HITACHI27.002 63,279
ssj_ops@100% 126,631
ssj_ops@100% per JVM 63,316

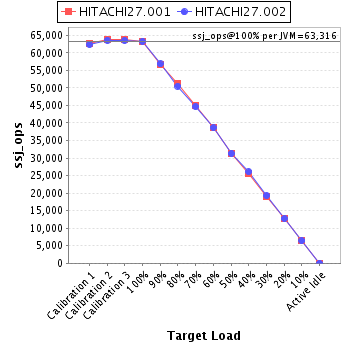

Graph of per-instance results
JVM 'HITACHI27.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,592
Calibration 2     63,745
Calibration 3     63,898
ssj_ops@calibrated=63,821
100% 99.3% 63,821 63,352
90% 88.7% 57,439 56,622
80% 80.3% 51,057 51,232
70% 70.5% 44,675 44,995
60% 60.8% 38,293 38,775
50% 49.1% 31,911 31,357
40% 40.1% 25,529 25,566
30% 29.7% 19,146 18,962
20% 20.0% 12,764 12,784
10% 10.0% 6,382 6,354
Active Idle   0 0

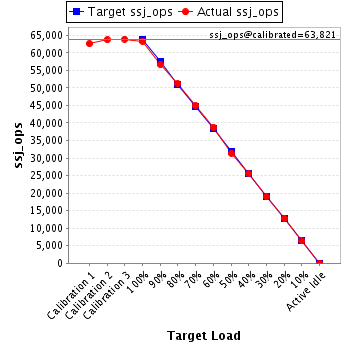

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI27.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,377
Calibration 2     63,569
Calibration 3     63,522
ssj_ops@calibrated=63,545
100% 99.6% 63,545 63,279
90% 89.4% 57,191 56,828
80% 79.5% 50,836 50,507
70% 70.3% 44,482 44,651
60% 60.7% 38,127 38,603
50% 49.2% 31,773 31,282
40% 41.0% 25,418 26,044
30% 30.3% 19,064 19,254
20% 20.0% 12,709 12,721
10% 10.1% 6,355 6,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
