Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 124,977
ssj_ops@100% per JVM = 62,489
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,252
Calibration 2     126,202
Calibration 3     125,530
ssj_ops@calibrated=125,866
100% 99.3% 125,866 124,977
90% 90.0% 113,280 113,309
80% 80.8% 100,693 101,745
70% 70.2% 88,106 88,402
60% 60.5% 75,520 76,148
50% 51.1% 62,933 64,331
40% 40.3% 50,347 50,697
30% 29.8% 37,760 37,467
20% 20.0% 25,173 25,129
10% 10.0% 12,587 12,627
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI28.001 62,168
HITACHI28.002 62,809
ssj_ops@100% 124,977
ssj_ops@100% per JVM 62,489

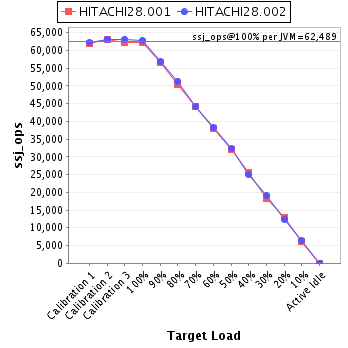

Graph of per-instance results
JVM 'HITACHI28.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,024
Calibration 2     63,000
Calibration 3     62,329
ssj_ops@calibrated=62,665
100% 99.2% 62,665 62,168
90% 90.2% 56,398 56,522
80% 80.4% 50,132 50,373
70% 70.7% 43,865 44,274
60% 60.5% 37,599 37,929
50% 51.1% 31,332 32,047
40% 41.0% 25,066 25,663
30% 29.3% 18,799 18,348
20% 20.5% 12,533 12,829
10% 9.9% 6,266 6,192
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI28.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,228
Calibration 2     63,202
Calibration 3     63,201
ssj_ops@calibrated=63,202
100% 99.4% 63,202 62,809
90% 89.9% 56,881 56,787
80% 81.3% 50,561 51,372
70% 69.8% 44,241 44,128
60% 60.5% 37,921 38,219
50% 51.1% 31,601 32,284
40% 39.6% 25,281 25,034
30% 30.3% 18,960 19,119
20% 19.5% 12,640 12,300
10% 10.2% 6,320 6,435
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
