Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 125,574
ssj_ops@100% per JVM = 62,787
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,372
Calibration 2     125,774
Calibration 3     126,274
ssj_ops@calibrated=126,024
100% 99.6% 126,024 125,574
90% 90.6% 113,422 114,119
80% 80.4% 100,819 101,364
70% 69.9% 88,217 88,113
60% 60.5% 75,614 76,195
50% 49.8% 63,012 62,784
40% 40.3% 50,410 50,733
30% 29.9% 37,807 37,641
20% 19.8% 25,205 24,920
10% 10.0% 12,602 12,621
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI38.001 62,566
HITACHI38.002 63,008
ssj_ops@100% 125,574
ssj_ops@100% per JVM 62,787
Graph of per-instance results
JVM 'HITACHI38.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,121
Calibration 2     62,714
Calibration 3     63,136
ssj_ops@calibrated=62,925
100% 99.4% 62,925 62,566
90% 90.5% 56,633 56,972
80% 80.9% 50,340 50,881
70% 70.0% 44,048 44,044
60% 60.8% 37,755 38,266
50% 49.4% 31,463 31,066
40% 40.0% 25,170 25,188
30% 29.7% 18,878 18,720
20% 20.2% 12,585 12,733
10% 10.2% 6,293 6,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI38.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,251
Calibration 2     63,060
Calibration 3     63,138
ssj_ops@calibrated=63,099
100% 99.9% 63,099 63,008
90% 90.6% 56,789 57,147
80% 80.0% 50,479 50,483
70% 69.8% 44,169 44,068
60% 60.1% 37,859 37,929
50% 50.3% 31,549 31,718
40% 40.5% 25,239 25,545
30% 30.0% 18,930 18,922
20% 19.3% 12,620 12,187
10% 9.8% 6,310 6,204
Active Idle   0 0

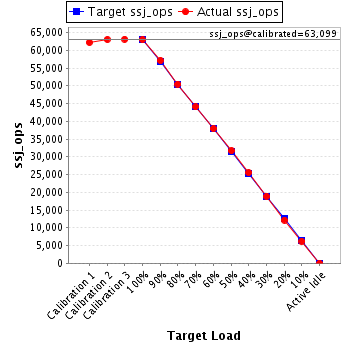

Graph of results
See the JVM Instance Performance Report for additional details.
