Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,422
ssj_ops@100% per JVM = 63,711
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,822
Calibration 2     128,085
Calibration 3     127,834
ssj_ops@calibrated=127,959
100% 99.6% 127,959 127,422
90% 90.1% 115,163 115,319
80% 80.2% 102,368 102,678
70% 70.1% 89,572 89,636
60% 60.2% 76,776 77,020
50% 49.8% 63,980 63,775
40% 39.6% 51,184 50,634
30% 29.9% 38,388 38,240
20% 20.0% 25,592 25,622
10% 10.2% 12,796 13,025
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI22.001 64,593
HITACHI22.002 62,829
ssj_ops@100% 127,422
ssj_ops@100% per JVM 63,711

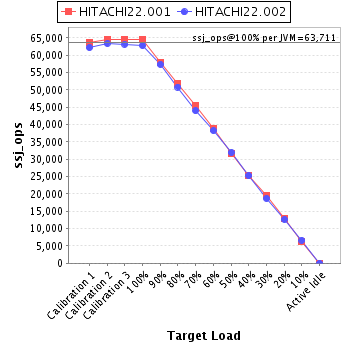

Graph of per-instance results
JVM 'HITACHI22.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,594
Calibration 2     64,660
Calibration 3     64,613
ssj_ops@calibrated=64,636
100% 99.9% 64,636 64,593
90% 89.6% 58,173 57,944
80% 80.2% 51,709 51,836
70% 70.6% 45,246 45,618
60% 60.0% 38,782 38,751
50% 49.2% 32,318 31,798
40% 39.3% 25,855 25,395
30% 30.2% 19,391 19,500
20% 20.1% 12,927 12,968
10% 9.9% 6,464 6,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI22.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,228
Calibration 2     63,425
Calibration 3     63,221
ssj_ops@calibrated=63,323
100% 99.2% 63,323 62,829
90% 90.6% 56,991 57,375
80% 80.3% 50,658 50,842
70% 69.5% 44,326 44,019
60% 60.4% 37,994 38,269
50% 50.5% 31,661 31,977
40% 39.9% 25,329 25,238
30% 29.6% 18,997 18,740
20% 20.0% 12,665 12,654
10% 10.5% 6,332 6,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
