Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,873
ssj_ops@100% per JVM = 63,937
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,225
Calibration 2     128,400
Calibration 3     128,270
ssj_ops@calibrated=128,335
100% 99.6% 128,335 127,873
90% 88.5% 115,502 113,550
80% 79.4% 102,668 101,897
70% 70.8% 89,835 90,845
60% 59.7% 77,001 76,664
50% 49.7% 64,168 63,778
40% 40.6% 51,334 52,109
30% 29.8% 38,501 38,209
20% 20.2% 25,667 25,961
10% 9.9% 12,834 12,718
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI26.001 64,851
HITACHI26.002 63,023
ssj_ops@100% 127,873
ssj_ops@100% per JVM 63,937

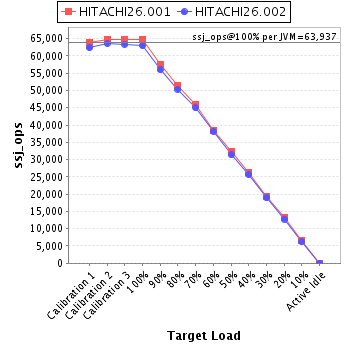

Graph of per-instance results
JVM 'HITACHI26.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,852
Calibration 2     64,785
Calibration 3     64,849
ssj_ops@calibrated=64,817
100% 100.1% 64,817 64,851
90% 88.8% 58,335 57,541
80% 79.5% 51,854 51,531
70% 70.8% 45,372 45,890
60% 59.4% 38,890 38,494
50% 50.0% 32,409 32,424
40% 40.7% 25,927 26,371
30% 29.8% 19,445 19,288
20% 20.3% 12,963 13,166
10% 10.0% 6,482 6,485
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI26.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,373
Calibration 2     63,615
Calibration 3     63,421
ssj_ops@calibrated=63,518
100% 99.2% 63,518 63,023
90% 88.2% 57,166 56,009
80% 79.3% 50,814 50,366
70% 70.8% 44,463 44,954
60% 60.1% 38,111 38,170
50% 49.4% 31,759 31,354
40% 40.5% 25,407 25,738
30% 29.8% 19,055 18,921
20% 20.1% 12,704 12,795
10% 9.8% 6,352 6,233
Active Idle   0 0

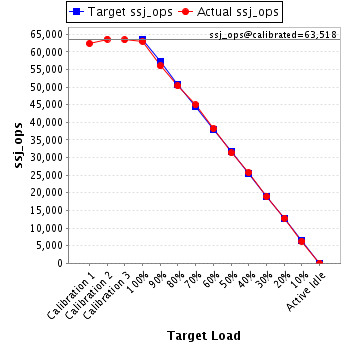

Graph of results
See the JVM Instance Performance Report for additional details.
