Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,420
ssj_ops@100% per JVM = 63,710
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,516
Calibration 2     127,901
Calibration 3     128,090
ssj_ops@calibrated=127,995
100% 99.6% 127,995 127,420
90% 90.4% 115,196 115,741
80% 79.8% 102,396 102,089
70% 69.5% 89,597 89,002
60% 60.1% 76,797 76,907
50% 50.1% 63,998 64,107
40% 40.3% 51,198 51,591
30% 30.2% 38,399 38,617
20% 20.0% 25,599 25,606
10% 10.2% 12,800 13,012
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI30.001 64,074
HITACHI30.002 63,346
ssj_ops@100% 127,420
ssj_ops@100% per JVM 63,710
Graph of per-instance results
JVM 'HITACHI30.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,033
Calibration 2     64,072
Calibration 3     64,268
ssj_ops@calibrated=64,170
100% 99.8% 64,170 64,074
90% 90.3% 57,753 57,971
80% 79.0% 51,336 50,722
70% 70.3% 44,919 45,093
60% 60.4% 38,502 38,746
50% 50.1% 32,085 32,117
40% 40.6% 25,668 26,055
30% 30.3% 19,251 19,422
20% 20.6% 12,834 13,208
10% 10.0% 6,417 6,408
Active Idle   0 0

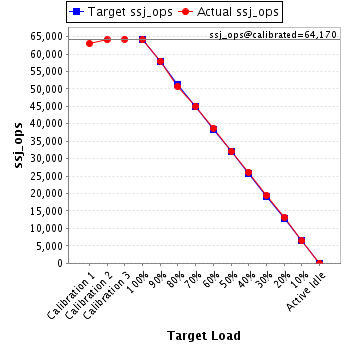

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI30.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,483
Calibration 2     63,829
Calibration 3     63,821
ssj_ops@calibrated=63,825
100% 99.2% 63,825 63,346
90% 90.5% 57,443 57,770
80% 80.5% 51,060 51,367
70% 68.8% 44,678 43,908
60% 59.8% 38,295 38,162
50% 50.1% 31,913 31,990
40% 40.0% 25,530 25,536
30% 30.1% 19,148 19,194
20% 19.4% 12,765 12,399
10% 10.3% 6,383 6,604
Active Idle   0 0

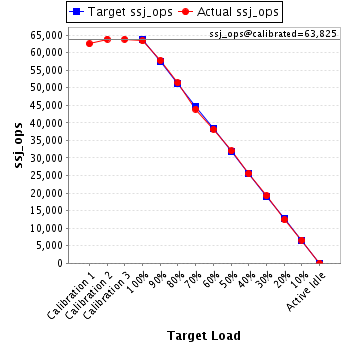

Graph of results
See the JVM Instance Performance Report for additional details.
