Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 125,840
ssj_ops@100% per JVM = 62,920
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,263
Calibration 2     126,205
Calibration 3     126,393
ssj_ops@calibrated=126,299
100% 99.6% 126,299 125,840
90% 89.8% 113,669 113,372
80% 80.3% 101,039 101,413
70% 69.8% 88,409 88,146
60% 60.7% 75,779 76,601
50% 50.4% 63,150 63,702
40% 39.9% 50,520 50,421
30% 30.0% 37,890 37,844
20% 20.3% 25,260 25,686
10% 10.0% 12,630 12,583
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI4.001 63,230
HITACHI4.002 62,610
ssj_ops@100% 125,840
ssj_ops@100% per JVM 62,920

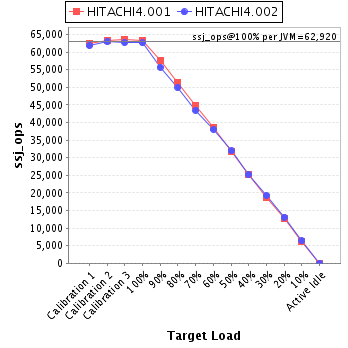

Graph of per-instance results
JVM 'HITACHI4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,448
Calibration 2     63,274
Calibration 3     63,665
ssj_ops@calibrated=63,469
100% 99.6% 63,469 63,230
90% 90.9% 57,122 57,696
80% 81.1% 50,776 51,491
70% 70.4% 44,429 44,688
60% 60.7% 38,082 38,555
50% 50.1% 31,735 31,785
40% 39.8% 25,388 25,256
30% 29.3% 19,041 18,624
20% 19.8% 12,694 12,587
10% 9.7% 6,347 6,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     61,815
Calibration 2     62,931
Calibration 3     62,729
ssj_ops@calibrated=62,830
100% 99.7% 62,830 62,610
90% 88.6% 56,547 55,676
80% 79.5% 50,264 49,923
70% 69.2% 43,981 43,457
60% 60.6% 37,698 38,046
50% 50.8% 31,415 31,917
40% 40.1% 25,132 25,164
30% 30.6% 18,849 19,220
20% 20.8% 12,566 13,098
10% 10.2% 6,283 6,404
Active Idle   0 0

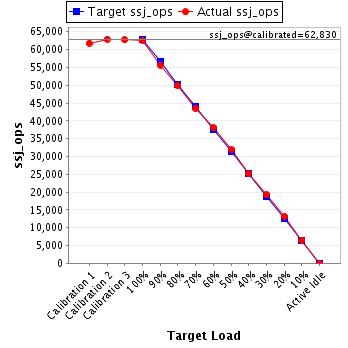

Graph of results
See the JVM Instance Performance Report for additional details.
