Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 126,986
ssj_ops@100% per JVM = 63,493
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,969
Calibration 2     127,276
Calibration 3     127,207
ssj_ops@calibrated=127,241
100% 99.8% 127,241 126,986
90% 90.4% 114,517 114,966
80% 79.1% 101,793 100,601
70% 70.1% 89,069 89,226
60% 60.8% 76,345 77,312
50% 49.5% 63,621 62,942
40% 39.7% 50,897 50,563
30% 30.1% 38,172 38,359
20% 20.3% 25,448 25,870
10% 9.9% 12,724 12,618
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI14.001 63,869
HITACHI14.002 63,117
ssj_ops@100% 126,986
ssj_ops@100% per JVM 63,493

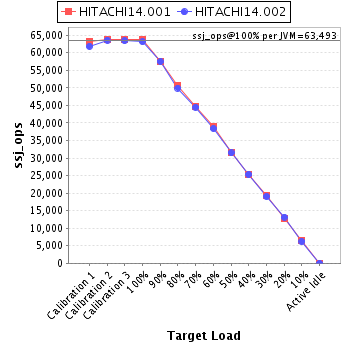

Graph of per-instance results
JVM 'HITACHI14.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,118
Calibration 2     63,715
Calibration 3     63,789
ssj_ops@calibrated=63,752
100% 100.2% 63,752 63,869
90% 90.1% 57,377 57,453
80% 79.5% 51,002 50,655
70% 70.1% 44,627 44,713
60% 61.0% 38,251 38,909
50% 49.4% 31,876 31,470
40% 39.6% 25,501 25,244
30% 30.3% 19,126 19,304
20% 19.9% 12,750 12,716
10% 10.1% 6,375 6,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI14.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     61,850
Calibration 2     63,561
Calibration 3     63,418
ssj_ops@calibrated=63,489
100% 99.4% 63,489 63,117
90% 90.6% 57,140 57,513
80% 78.7% 50,791 49,946
70% 70.1% 44,442 44,513
60% 60.5% 38,094 38,403
50% 49.6% 31,745 31,471
40% 39.9% 25,396 25,319
30% 30.0% 19,047 19,055
20% 20.7% 12,698 13,154
10% 9.7% 6,349 6,189
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
