Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 126,842
ssj_ops@100% per JVM = 63,421
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,153
Calibration 2     127,453
Calibration 3     127,905
ssj_ops@calibrated=127,679
100% 99.3% 127,679 126,842
90% 89.7% 114,911 114,555
80% 79.8% 102,143 101,947
70% 69.6% 89,375 88,894
60% 60.4% 76,607 77,056
50% 49.2% 63,839 62,867
40% 39.9% 51,072 51,000
30% 29.9% 38,304 38,123
20% 20.3% 25,536 25,881
10% 9.9% 12,768 12,611
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI33.001 63,584
HITACHI33.002 63,259
ssj_ops@100% 126,842
ssj_ops@100% per JVM 63,421

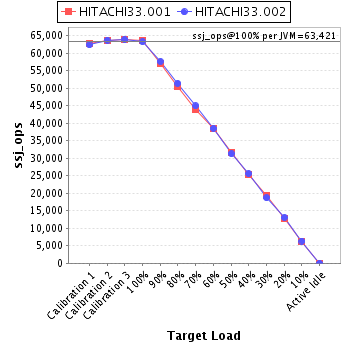

Graph of per-instance results

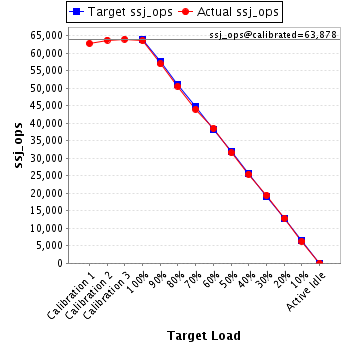

JVM 'HITACHI33.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,812
Calibration 2     63,751
Calibration 3     64,004
ssj_ops@calibrated=63,878
100% 99.5% 63,878 63,584
90% 89.1% 57,490 56,936
80% 79.1% 51,102 50,552
70% 68.8% 44,714 43,973
60% 60.3% 38,327 38,520
50% 49.4% 31,939 31,577
40% 39.8% 25,551 25,415
30% 30.4% 19,163 19,435
20% 20.1% 12,776 12,841
10% 9.8% 6,388 6,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI33.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,342
Calibration 2     63,702
Calibration 3     63,901
ssj_ops@calibrated=63,801
100% 99.1% 63,801 63,259
90% 90.3% 57,421 57,619
80% 80.6% 51,041 51,396
70% 70.4% 44,661 44,921
60% 60.4% 38,281 38,536
50% 49.0% 31,901 31,291
40% 40.1% 25,520 25,585
30% 29.3% 19,140 18,688
20% 20.4% 12,760 13,040
10% 10.0% 6,380 6,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
