Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 128,322
ssj_ops@100% per JVM = 64,161
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,184
Calibration 2     128,401
Calibration 3     128,365
ssj_ops@calibrated=128,383
100% 100.0% 128,383 128,322
90% 90.8% 115,545 116,570
80% 81.1% 102,706 104,168
70% 69.3% 89,868 89,007
60% 60.6% 77,030 77,781
50% 50.4% 64,192 64,676
40% 40.0% 51,353 51,393
30% 30.1% 38,515 38,634
20% 19.8% 25,677 25,479
10% 10.2% 12,838 13,087
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI37.001 64,239
HITACHI37.002 64,083
ssj_ops@100% 128,322
ssj_ops@100% per JVM 64,161

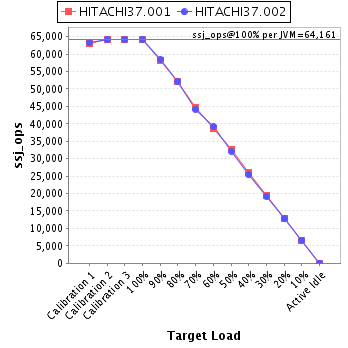

Graph of per-instance results
JVM 'HITACHI37.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,981
Calibration 2     64,289
Calibration 3     64,223
ssj_ops@calibrated=64,256
100% 100.0% 64,256 64,239
90% 90.5% 57,830 58,152
80% 81.0% 51,405 52,064
70% 69.8% 44,979 44,826
60% 60.0% 38,554 38,543
50% 50.6% 32,128 32,544
40% 40.5% 25,702 25,994
30% 30.4% 19,277 19,528
20% 19.8% 12,851 12,701
10% 10.1% 6,426 6,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI37.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,203
Calibration 2     64,113
Calibration 3     64,141
ssj_ops@calibrated=64,127
100% 99.9% 64,127 64,083
90% 91.1% 57,714 58,418
80% 81.3% 51,302 52,104
70% 68.9% 44,889 44,181
60% 61.2% 38,476 39,237
50% 50.1% 32,064 32,132
40% 39.6% 25,651 25,399
30% 29.8% 19,238 19,106
20% 19.9% 12,825 12,778
10% 10.3% 6,413 6,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
