Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 125,682
ssj_ops@100% per JVM = 62,841
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,612
Calibration 2     126,417
Calibration 3     126,496
ssj_ops@calibrated=126,457
100% 99.4% 126,457 125,682
90% 89.7% 113,811 113,392
80% 80.5% 101,165 101,775
70% 69.5% 88,520 87,885
60% 59.2% 75,874 74,903
50% 50.1% 63,228 63,353
40% 40.5% 50,583 51,216
30% 30.4% 37,937 38,427
20% 19.8% 25,291 24,980
10% 10.2% 12,646 12,858
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI20.001 62,080
HITACHI20.002 63,602
ssj_ops@100% 125,682
ssj_ops@100% per JVM 62,841

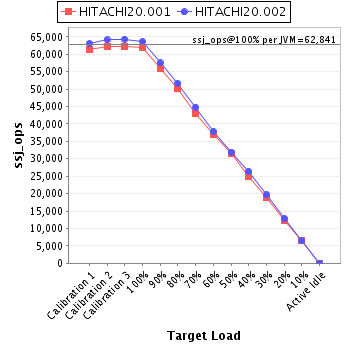

Graph of per-instance results
JVM 'HITACHI20.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     61,532
Calibration 2     62,287
Calibration 3     62,134
ssj_ops@calibrated=62,211
100% 99.8% 62,211 62,080
90% 89.8% 55,990 55,869
80% 80.5% 49,768 50,068
70% 69.2% 43,547 43,048
60% 59.6% 37,326 37,095
50% 50.5% 31,105 31,434
40% 39.9% 24,884 24,850
30% 30.2% 18,663 18,777
20% 19.6% 12,442 12,171
10% 10.3% 6,221 6,417
Active Idle   0 0

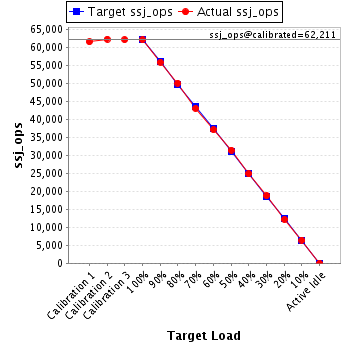

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI20.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,081
Calibration 2     64,131
Calibration 3     64,362
ssj_ops@calibrated=64,246
100% 99.0% 64,246 63,602
90% 89.5% 57,822 57,522
80% 80.5% 51,397 51,706
70% 69.8% 44,972 44,836
60% 58.8% 38,548 37,809
50% 49.7% 32,123 31,920
40% 41.0% 25,698 26,366
30% 30.6% 19,274 19,650
20% 19.9% 12,849 12,809
10% 10.0% 6,425 6,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
