Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,597
ssj_ops@100% per JVM = 63,798
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,520
Calibration 2     128,088
Calibration 3     128,233
ssj_ops@calibrated=128,161
100% 99.6% 128,161 127,597
90% 90.8% 115,345 116,320
80% 80.1% 102,528 102,646
70% 70.2% 89,712 89,916
60% 59.7% 76,896 76,512
50% 50.2% 64,080 64,300
40% 40.1% 51,264 51,398
30% 29.8% 38,448 38,214
20% 19.9% 25,632 25,524
10% 10.4% 12,816 13,271
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI39.001 63,714
HITACHI39.002 63,883
ssj_ops@100% 127,597
ssj_ops@100% per JVM 63,798

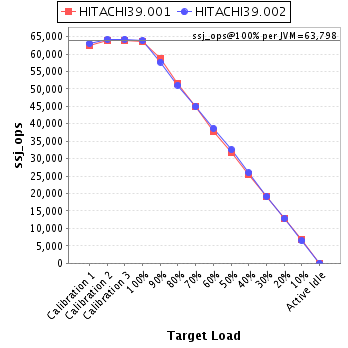

Graph of per-instance results
JVM 'HITACHI39.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,526
Calibration 2     63,876
Calibration 3     63,977
ssj_ops@calibrated=63,927
100% 99.7% 63,927 63,714
90% 91.7% 57,534 58,623
80% 80.7% 51,141 51,593
70% 70.4% 44,749 44,983
60% 59.2% 38,356 37,846
50% 49.5% 31,963 31,670
40% 39.8% 25,571 25,467
30% 29.9% 19,178 19,100
20% 19.9% 12,785 12,704
10% 10.6% 6,393 6,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI39.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,994
Calibration 2     64,212
Calibration 3     64,256
ssj_ops@calibrated=64,234
100% 99.5% 64,234 63,883
90% 89.8% 57,811 57,697
80% 79.5% 51,387 51,053
70% 70.0% 44,964 44,933
60% 60.2% 38,540 38,666
50% 50.8% 32,117 32,630
40% 40.4% 25,694 25,931
30% 29.8% 19,270 19,115
20% 20.0% 12,847 12,820
10% 10.1% 6,423 6,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
