Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,408
ssj_ops@100% per JVM = 63,704
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,523
Calibration 2     127,347
Calibration 3     127,700
ssj_ops@calibrated=127,523
100% 99.9% 127,523 127,408
90% 90.6% 114,771 115,474
80% 79.3% 102,019 101,119
70% 70.3% 89,266 89,675
60% 60.4% 76,514 76,971
50% 50.1% 63,762 63,905
40% 39.7% 51,009 50,679
30% 30.0% 38,257 38,216
20% 19.8% 25,505 25,289
10% 10.0% 12,752 12,781
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI36.001 64,077
HITACHI36.002 63,331
ssj_ops@100% 127,408
ssj_ops@100% per JVM 63,704

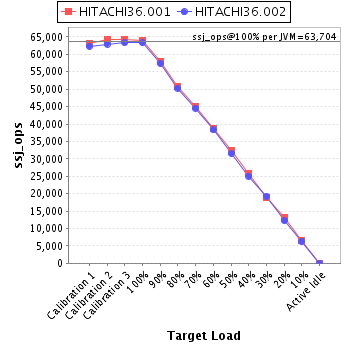

Graph of per-instance results
JVM 'HITACHI36.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,148
Calibration 2     64,374
Calibration 3     64,326
ssj_ops@calibrated=64,350
100% 99.6% 64,350 64,077
90% 90.2% 57,915 58,028
80% 79.0% 51,480 50,807
70% 70.1% 45,045 45,100
60% 60.1% 38,610 38,682
50% 50.3% 32,175 32,366
40% 39.9% 25,740 25,667
30% 29.5% 19,305 18,964
20% 20.2% 12,870 13,004
10% 10.0% 6,435 6,458
Active Idle   0 0

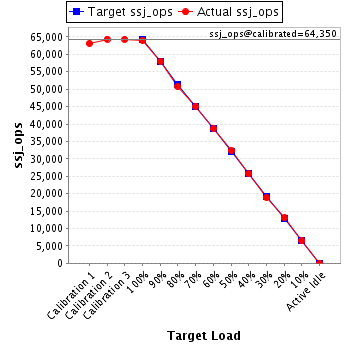

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI36.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,376
Calibration 2     62,972
Calibration 3     63,373
ssj_ops@calibrated=63,173
100% 100.3% 63,173 63,331
90% 90.9% 56,856 57,447
80% 79.6% 50,538 50,311
70% 70.6% 44,221 44,574
60% 60.6% 37,904 38,289
50% 49.9% 31,586 31,538
40% 39.6% 25,269 25,011
30% 30.5% 18,952 19,252
20% 19.4% 12,635 12,285
10% 10.0% 6,317 6,323
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
