Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 128,237
ssj_ops@100% per JVM = 64,118
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,343
Calibration 2     128,017
Calibration 3     128,495
ssj_ops@calibrated=128,256
100% 100.0% 128,256 128,237
90% 90.2% 115,430 115,747
80% 80.1% 102,605 102,721
70% 70.5% 89,779 90,395
60% 60.4% 76,954 77,442
50% 50.3% 64,128 64,572
40% 40.1% 51,302 51,444
30% 29.8% 38,477 38,203
20% 20.3% 25,651 26,074
10% 9.8% 12,826 12,618
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI21.001 64,394
HITACHI21.002 63,843
ssj_ops@100% 128,237
ssj_ops@100% per JVM 64,118

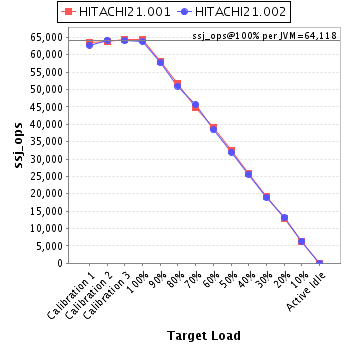

Graph of per-instance results
JVM 'HITACHI21.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,621
Calibration 2     63,806
Calibration 3     64,485
ssj_ops@calibrated=64,146
100% 100.4% 64,146 64,394
90% 90.5% 57,731 58,063
80% 80.6% 51,317 51,729
70% 69.7% 44,902 44,739
60% 60.8% 38,487 39,029
50% 50.8% 32,073 32,580
40% 40.3% 25,658 25,842
30% 30.0% 19,244 19,245
20% 20.3% 12,829 13,000
10% 9.8% 6,415 6,264
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI21.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,722
Calibration 2     64,211
Calibration 3     64,010
ssj_ops@calibrated=64,110
100% 99.6% 64,110 63,843
90% 90.0% 57,699 57,684
80% 79.5% 51,288 50,992
70% 71.2% 44,877 45,656
60% 59.9% 38,466 38,412
50% 49.9% 32,055 31,992
40% 39.9% 25,644 25,602
30% 29.6% 19,233 18,958
20% 20.4% 12,822 13,075
10% 9.9% 6,411 6,354
Active Idle   0 0

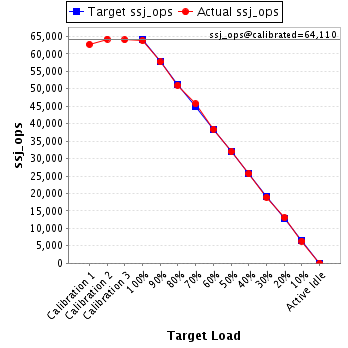

Graph of results
See the JVM Instance Performance Report for additional details.
