Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,328
ssj_ops@100% per JVM = 63,664
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,214
Calibration 2     127,934
Calibration 3     128,172
ssj_ops@calibrated=128,053
100% 99.4% 128,053 127,328
90% 89.5% 115,248 114,661
80% 80.8% 102,443 103,439
70% 69.7% 89,637 89,200
60% 60.0% 76,832 76,862
50% 49.8% 64,027 63,771
40% 40.0% 51,221 51,187
30% 29.9% 38,416 38,315
20% 19.7% 25,611 25,270
10% 9.8% 12,805 12,488
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI5.001 63,063
HITACHI5.002 64,265
ssj_ops@100% 127,328
ssj_ops@100% per JVM 63,664

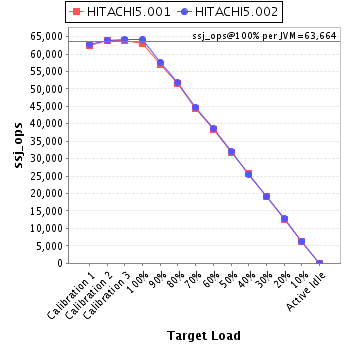

Graph of per-instance results
JVM 'HITACHI5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,354
Calibration 2     63,924
Calibration 3     63,945
ssj_ops@calibrated=63,934
100% 98.6% 63,934 63,063
90% 89.1% 57,541 56,964
80% 80.7% 51,148 51,611
70% 69.5% 44,754 44,451
60% 59.9% 38,361 38,269
50% 49.6% 31,967 31,718
40% 40.3% 25,574 25,763
30% 30.1% 19,180 19,236
20% 19.6% 12,787 12,521
10% 9.9% 6,393 6,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,860
Calibration 2     64,010
Calibration 3     64,227
ssj_ops@calibrated=64,119
100% 100.2% 64,119 64,265
90% 90.0% 57,707 57,696
80% 80.8% 51,295 51,828
70% 69.8% 44,883 44,749
60% 60.2% 38,471 38,593
50% 50.0% 32,059 32,053
40% 39.7% 25,648 25,424
30% 29.8% 19,236 19,079
20% 19.9% 12,824 12,750
10% 9.6% 6,412 6,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
