Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,516
ssj_ops@100% per JVM = 63,758
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,925
Calibration 2     127,692
Calibration 3     127,916
ssj_ops@calibrated=127,804
100% 99.8% 127,804 127,516
90% 89.8% 115,024 114,742
80% 79.7% 102,243 101,796
70% 69.9% 89,463 89,279
60% 60.3% 76,682 77,075
50% 49.9% 63,902 63,829
40% 40.0% 51,122 51,095
30% 30.3% 38,341 38,674
20% 19.9% 25,561 25,401
10% 10.2% 12,780 12,999
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI7.001 64,375
HITACHI7.002 63,141
ssj_ops@100% 127,516
ssj_ops@100% per JVM 63,758
Graph of per-instance results

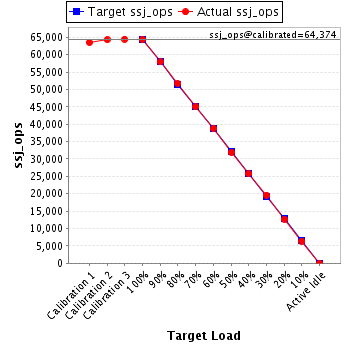

JVM 'HITACHI7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,519
Calibration 2     64,289
Calibration 3     64,459
ssj_ops@calibrated=64,374
100% 100.0% 64,374 64,375
90% 89.9% 57,936 57,893
80% 80.3% 51,499 51,702
70% 69.9% 45,062 44,973
60% 60.3% 38,624 38,813
50% 49.6% 32,187 31,910
40% 40.1% 25,750 25,804
30% 30.5% 19,312 19,631
20% 19.7% 12,875 12,695
10% 9.9% 6,437 6,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,406
Calibration 2     63,403
Calibration 3     63,457
ssj_ops@calibrated=63,430
100% 99.5% 63,430 63,141
90% 89.6% 57,087 56,849
80% 79.0% 50,744 50,094
70% 69.9% 44,401 44,306
60% 60.3% 38,058 38,262
50% 50.3% 31,715 31,919
40% 39.9% 25,372 25,291
30% 30.0% 19,029 19,044
20% 20.0% 12,686 12,706
10% 10.4% 6,343 6,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
