Hitachi, Ltd. HA8000-bd/BD10X1 | ssj_ops@100% = 127,578 ssj_ops@100% per JVM = 63,789 |
||||
Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Multi Node |
Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Mar 22, 2011 |
Hardware Availability: | Jul-2010 | Software Availability: | Jun-2010 | Publication: | Apr 12, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 125,843 | ||
Calibration 2 | 128,253 | ||
Calibration 3 | 128,570 | ||
ssj_ops@calibrated=128,411 | |||
100% | 99.4% | 128,411 | 127,578 |
90% | 90.1% | 115,570 | 115,690 |
80% | 79.4% | 102,729 | 101,902 |
70% | 69.1% | 89,888 | 88,720 |
60% | 60.6% | 77,047 | 77,807 |
50% | 50.4% | 64,206 | 64,720 |
40% | 39.5% | 51,365 | 50,738 |
30% | 29.5% | 38,523 | 37,831 |
20% | 20.3% | 25,682 | 26,131 |
10% | 9.9% | 12,841 | 12,729 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 40 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Hitachi, Ltd. |
Model: | HA8000-bd/BD10X1 |
Form Factor: | Blade |
CPU Name: | Intel Core i7 610E |
CPU Characteristics: | Dual-Core,2.53GHz, 4MB L3 Cache |
CPU Frequency (MHz): | 2533 |
CPU(s) Enabled: | 2 cores, 1 chip, 2 cores/chip |
Hardware Threads: | 4 (2 / core) |
CPU(s) Orderable: | 1 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 2 x 4 GB |
Memory Details: | 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 500GB 7200rpm SATA2 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82576 Gigabit Network Connection (onboard) |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (Power saver) |
Operating System (OS): | Microsoft Windows Server 2008 R2 Standard |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [03,0c] |
JVM Instances: | 2 |
JVM Initial Heap (MB): | 1050 |
JVM Maximum Heap (MB): | 1200 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 1000.023W |
Management Firmware Version: | 20-17-01 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
JVM Instance | ssj_ops@100% |
---|---|
HITACHI13.001 | 63,783 |
HITACHI13.002 | 63,795 |
ssj_ops@100% | 127,578 |
ssj_ops@100% per JVM | 63,789 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 62,660 | ||
Calibration 2 | 64,197 | ||
Calibration 3 | 64,153 | ||
ssj_ops@calibrated=64,175 | |||
100% | 99.4% | 64,175 | 63,783 |
90% | 89.9% | 57,757 | 57,670 |
80% | 79.4% | 51,340 | 50,952 |
70% | 68.6% | 44,922 | 44,016 |
60% | 60.9% | 38,505 | 39,067 |
50% | 50.9% | 32,087 | 32,635 |
40% | 38.9% | 25,670 | 24,940 |
30% | 29.5% | 19,252 | 18,937 |
20% | 20.4% | 12,835 | 13,075 |
10% | 10.0% | 6,417 | 6,412 |
Active Idle | 0 | 0 |

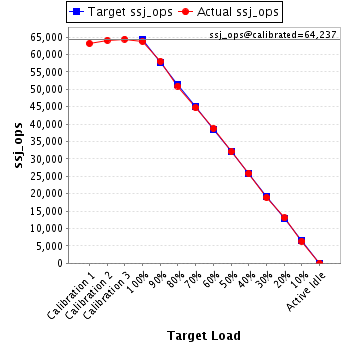

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 63,183 | ||
Calibration 2 | 64,056 | ||
Calibration 3 | 64,417 | ||
ssj_ops@calibrated=64,237 | |||
100% | 99.3% | 64,237 | 63,795 |
90% | 90.3% | 57,813 | 58,020 |
80% | 79.3% | 51,389 | 50,951 |
70% | 69.6% | 44,966 | 44,704 |
60% | 60.3% | 38,542 | 38,740 |
50% | 49.9% | 32,118 | 32,085 |
40% | 40.2% | 25,695 | 25,798 |
30% | 29.4% | 19,271 | 18,894 |
20% | 20.3% | 12,847 | 13,056 |
10% | 9.8% | 6,424 | 6,316 |
Active Idle | 0 | 0 |
