Lenovo Global Technology ThinkSystem SR850 | ssj_ops@100% = 10,349,524 ssj_ops@100% per JVM = 92,406 |
||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Taipei, Taiwan | Test Date: | May 7, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Jun-2019 | Publication: | Jun 5, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

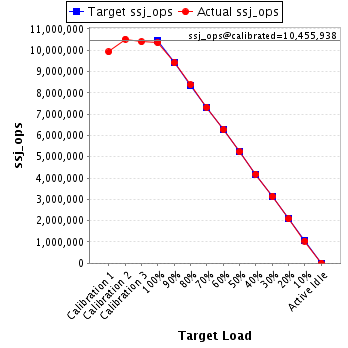

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 9,921,243 | ||
Calibration 2 | 10,520,916 | ||
Calibration 3 | 10,390,961 | ||
ssj_ops@calibrated=10,455,938 | |||
100% | 99.0% | 10,455,938 | 10,349,524 |
90% | 90.0% | 9,410,345 | 9,411,360 |
80% | 80.1% | 8,364,751 | 8,373,597 |
70% | 70.0% | 7,319,157 | 7,321,064 |
60% | 60.0% | 6,273,563 | 6,275,220 |
50% | 50.0% | 5,227,969 | 5,229,828 |
40% | 40.0% | 4,182,375 | 4,181,458 |
30% | 30.0% | 3,136,782 | 3,139,103 |
20% | 19.9% | 2,091,188 | 2,085,830 |
10% | 10.0% | 1,045,594 | 1,044,063 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | The machine type of the SUT is 7X19. |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | ThinkSystem SR850 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8276L CPU 2.20 GHz |
CPU Characteristics: | 28 core, 2.20GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 112 cores, 4 chips, 28 cores/chip |
Hardware Threads: | 224 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 24 x 16GB 2Rx8 PC4-2933Y-RE2-12-MH1; Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, and 48 populated. |
Power Supply Quantity and Rating (W): | 1 x 1600 |
Power Supply Details: | Lenovo P/N:7N67A00886 |
Disk Drive: | 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130) |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544) |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | 1 x ThinkSystem M.2 Enablement Kit (Lenovo P/N 7Y37A01092) |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 12 SP4 |
OS Version: | Kernel 4.12.14-94.41-default |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 112 } |
JVM Instances: | 112 |
JVM Initial Heap (MB): | 1550 |
JVM Maximum Heap (MB): | 1550 |
JVM Address Bits: | 64 |
Boot Firmware Version: | TEE136S (2019/3/08) |
Management Firmware Version: | TEI342S (2019/3/08) |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Lenovo Power Plan V1.0 for SuSE Linux Enterprise Server 12 SP4 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,783 | ||
Calibration 2 | 93,639 | ||
Calibration 3 | 92,544 | ||
ssj_ops@calibrated=93,092 | |||
100% | 98.9% | 93,092 | 92,086 |
90% | 91.1% | 83,783 | 84,778 |
80% | 79.6% | 74,473 | 74,088 |
70% | 70.2% | 65,164 | 65,311 |
60% | 59.4% | 55,855 | 55,332 |
50% | 50.3% | 46,546 | 46,834 |
40% | 39.9% | 37,237 | 37,150 |
30% | 30.3% | 27,928 | 28,185 |
20% | 19.5% | 18,618 | 18,192 |
10% | 10.5% | 9,309 | 9,800 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,170 | ||
Calibration 2 | 94,225 | ||
Calibration 3 | 93,026 | ||
ssj_ops@calibrated=93,625 | |||
100% | 99.3% | 93,625 | 92,943 |
90% | 90.4% | 84,263 | 84,660 |
80% | 78.9% | 74,900 | 73,907 |
70% | 70.2% | 65,538 | 65,741 |
60% | 60.3% | 56,175 | 56,437 |
50% | 50.3% | 46,813 | 47,071 |
40% | 40.3% | 37,450 | 37,687 |
30% | 29.7% | 28,088 | 27,831 |
20% | 19.9% | 18,725 | 18,650 |
10% | 9.7% | 9,363 | 9,125 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,110 | ||
Calibration 2 | 93,749 | ||
Calibration 3 | 92,237 | ||
ssj_ops@calibrated=92,993 | |||
100% | 99.5% | 92,993 | 92,504 |
90% | 90.0% | 83,694 | 83,702 |
80% | 79.8% | 74,394 | 74,193 |
70% | 70.0% | 65,095 | 65,111 |
60% | 60.4% | 55,796 | 56,194 |
50% | 49.8% | 46,496 | 46,339 |
40% | 39.8% | 37,197 | 37,034 |
30% | 30.3% | 27,898 | 28,139 |
20% | 20.3% | 18,599 | 18,883 |
10% | 9.9% | 9,299 | 9,233 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,615 | ||
Calibration 2 | 94,117 | ||
Calibration 3 | 92,148 | ||
ssj_ops@calibrated=93,133 | |||
100% | 99.1% | 93,133 | 92,306 |
90% | 89.5% | 83,820 | 83,357 |
80% | 81.3% | 74,506 | 75,726 |
70% | 70.2% | 65,193 | 65,376 |
60% | 60.1% | 55,880 | 55,990 |
50% | 49.8% | 46,566 | 46,335 |
40% | 40.0% | 37,253 | 37,284 |
30% | 29.5% | 27,940 | 27,496 |
20% | 20.5% | 18,627 | 19,055 |
10% | 9.8% | 9,313 | 9,158 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,803 | ||
Calibration 2 | 93,810 | ||
Calibration 3 | 92,026 | ||
ssj_ops@calibrated=92,918 | |||
100% | 99.1% | 92,918 | 92,064 |
90% | 90.9% | 83,626 | 84,420 |
80% | 79.2% | 74,334 | 73,561 |
70% | 70.2% | 65,043 | 65,250 |
60% | 60.2% | 55,751 | 55,912 |
50% | 50.1% | 46,459 | 46,564 |
40% | 40.0% | 37,167 | 37,174 |
30% | 29.5% | 27,875 | 27,442 |
20% | 19.9% | 18,584 | 18,527 |
10% | 9.7% | 9,292 | 8,989 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,143 | ||
Calibration 2 | 94,388 | ||
Calibration 3 | 92,868 | ||
ssj_ops@calibrated=93,628 | |||
100% | 99.0% | 93,628 | 92,721 |
90% | 89.3% | 84,265 | 83,611 |
80% | 79.8% | 74,902 | 74,679 |
70% | 69.7% | 65,540 | 65,288 |
60% | 59.8% | 56,177 | 55,985 |
50% | 50.1% | 46,814 | 46,870 |
40% | 40.2% | 37,451 | 37,636 |
30% | 30.2% | 28,088 | 28,275 |
20% | 19.6% | 18,726 | 18,306 |
10% | 10.2% | 9,363 | 9,548 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,259 | ||
Calibration 2 | 94,039 | ||
Calibration 3 | 92,835 | ||
ssj_ops@calibrated=93,437 | |||
100% | 98.9% | 93,437 | 92,405 |
90% | 89.4% | 84,094 | 83,538 |
80% | 80.5% | 74,750 | 75,231 |
70% | 69.8% | 65,406 | 65,183 |
60% | 60.4% | 56,062 | 56,460 |
50% | 50.6% | 46,719 | 47,236 |
40% | 38.6% | 37,375 | 36,103 |
30% | 29.2% | 28,031 | 27,328 |
20% | 19.9% | 18,687 | 18,640 |
10% | 10.2% | 9,344 | 9,537 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,964 | ||
Calibration 2 | 94,864 | ||
Calibration 3 | 93,255 | ||
ssj_ops@calibrated=94,059 | |||
100% | 99.1% | 94,059 | 93,233 |
90% | 89.0% | 84,653 | 83,721 |
80% | 79.5% | 75,247 | 74,786 |
70% | 69.7% | 65,841 | 65,576 |
60% | 60.5% | 56,435 | 56,951 |
50% | 49.8% | 47,030 | 46,843 |
40% | 40.5% | 37,624 | 38,125 |
30% | 29.8% | 28,218 | 28,025 |
20% | 19.9% | 18,812 | 18,721 |
10% | 10.2% | 9,406 | 9,562 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,146 | ||
Calibration 2 | 94,206 | ||
Calibration 3 | 92,745 | ||
ssj_ops@calibrated=93,476 | |||
100% | 99.2% | 93,476 | 92,725 |
90% | 91.0% | 84,128 | 85,041 |
80% | 80.5% | 74,780 | 75,209 |
70% | 69.4% | 65,433 | 64,841 |
60% | 60.2% | 56,085 | 56,299 |
50% | 50.6% | 46,738 | 47,305 |
40% | 39.3% | 37,390 | 36,734 |
30% | 29.7% | 28,043 | 27,800 |
20% | 20.0% | 18,695 | 18,710 |
10% | 10.0% | 9,348 | 9,313 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,306 | ||
Calibration 2 | 93,318 | ||
Calibration 3 | 91,812 | ||
ssj_ops@calibrated=92,565 | |||
100% | 99.1% | 92,565 | 91,766 |
90% | 90.8% | 83,309 | 84,087 |
80% | 79.5% | 74,052 | 73,591 |
70% | 69.3% | 64,796 | 64,133 |
60% | 60.3% | 55,539 | 55,804 |
50% | 49.7% | 46,283 | 45,973 |
40% | 40.1% | 37,026 | 37,127 |
30% | 30.2% | 27,770 | 27,989 |
20% | 20.4% | 18,513 | 18,839 |
10% | 9.7% | 9,257 | 9,015 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,039 | ||
Calibration 2 | 93,279 | ||
Calibration 3 | 91,961 | ||
ssj_ops@calibrated=92,620 | |||
100% | 99.1% | 92,620 | 91,766 |
90% | 90.0% | 83,358 | 83,402 |
80% | 81.2% | 74,096 | 75,201 |
70% | 70.6% | 64,834 | 65,393 |
60% | 59.6% | 55,572 | 55,179 |
50% | 51.3% | 46,310 | 47,478 |
40% | 40.3% | 37,048 | 37,302 |
30% | 29.9% | 27,786 | 27,706 |
20% | 20.3% | 18,524 | 18,846 |
10% | 9.9% | 9,262 | 9,155 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,081 | ||
Calibration 2 | 93,357 | ||
Calibration 3 | 92,190 | ||
ssj_ops@calibrated=92,774 | |||
100% | 99.0% | 92,774 | 91,855 |
90% | 90.3% | 83,496 | 83,748 |
80% | 80.0% | 74,219 | 74,173 |
70% | 70.8% | 64,942 | 65,665 |
60% | 59.6% | 55,664 | 55,310 |
50% | 50.5% | 46,387 | 46,812 |
40% | 40.1% | 37,109 | 37,172 |
30% | 30.5% | 27,832 | 28,304 |
20% | 20.3% | 18,555 | 18,787 |
10% | 10.0% | 9,277 | 9,283 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,251 | ||
Calibration 2 | 94,005 | ||
Calibration 3 | 92,926 | ||
ssj_ops@calibrated=93,466 | |||
100% | 99.3% | 93,466 | 92,800 |
90% | 90.8% | 84,119 | 84,902 |
80% | 79.1% | 74,773 | 73,962 |
70% | 70.7% | 65,426 | 66,069 |
60% | 59.9% | 56,079 | 55,962 |
50% | 49.5% | 46,733 | 46,220 |
40% | 39.6% | 37,386 | 37,035 |
30% | 29.2% | 28,040 | 27,265 |
20% | 20.1% | 18,693 | 18,769 |
10% | 9.9% | 9,347 | 9,225 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,573 | ||
Calibration 2 | 94,254 | ||
Calibration 3 | 92,964 | ||
ssj_ops@calibrated=93,609 | |||
100% | 99.0% | 93,609 | 92,667 |
90% | 89.9% | 84,248 | 84,132 |
80% | 80.2% | 74,887 | 75,095 |
70% | 70.2% | 65,527 | 65,716 |
60% | 61.0% | 56,166 | 57,094 |
50% | 49.9% | 46,805 | 46,707 |
40% | 40.5% | 37,444 | 37,891 |
30% | 30.0% | 28,083 | 28,073 |
20% | 19.6% | 18,722 | 18,331 |
10% | 10.4% | 9,361 | 9,750 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,479 | ||
Calibration 2 | 93,841 | ||
Calibration 3 | 92,554 | ||
ssj_ops@calibrated=93,198 | |||
100% | 98.9% | 93,198 | 92,165 |
90% | 90.5% | 83,878 | 84,322 |
80% | 79.8% | 74,558 | 74,396 |
70% | 70.8% | 65,238 | 65,988 |
60% | 59.8% | 55,919 | 55,755 |
50% | 49.4% | 46,599 | 46,072 |
40% | 39.7% | 37,279 | 37,016 |
30% | 29.2% | 27,959 | 27,218 |
20% | 20.0% | 18,640 | 18,677 |
10% | 9.8% | 9,320 | 9,137 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,270 | ||
Calibration 2 | 94,546 | ||
Calibration 3 | 93,812 | ||
ssj_ops@calibrated=94,179 | |||
100% | 98.8% | 94,179 | 93,064 |
90% | 90.1% | 84,761 | 84,816 |
80% | 79.1% | 75,343 | 74,500 |
70% | 70.0% | 65,925 | 65,899 |
60% | 60.9% | 56,507 | 57,328 |
50% | 51.1% | 47,090 | 48,099 |
40% | 40.3% | 37,672 | 37,943 |
30% | 29.5% | 28,254 | 27,776 |
20% | 19.9% | 18,836 | 18,778 |
10% | 9.9% | 9,418 | 9,333 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 86,145 | ||
Calibration 2 | 92,966 | ||
Calibration 3 | 91,360 | ||
ssj_ops@calibrated=92,163 | |||
100% | 99.1% | 92,163 | 91,289 |
90% | 90.2% | 82,947 | 83,101 |
80% | 80.6% | 73,730 | 74,319 |
70% | 70.8% | 64,514 | 65,217 |
60% | 60.0% | 55,298 | 55,295 |
50% | 49.1% | 46,081 | 45,288 |
40% | 39.4% | 36,865 | 36,335 |
30% | 30.7% | 27,649 | 28,254 |
20% | 19.8% | 18,433 | 18,293 |
10% | 10.1% | 9,216 | 9,312 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 85,620 | ||
Calibration 2 | 91,589 | ||
Calibration 3 | 90,654 | ||
ssj_ops@calibrated=91,121 | |||
100% | 99.4% | 91,121 | 90,582 |
90% | 89.8% | 82,009 | 81,783 |
80% | 79.4% | 72,897 | 72,387 |
70% | 69.6% | 63,785 | 63,450 |
60% | 59.8% | 54,673 | 54,445 |
50% | 50.8% | 45,561 | 46,319 |
40% | 39.8% | 36,449 | 36,267 |
30% | 30.5% | 27,336 | 27,823 |
20% | 19.8% | 18,224 | 18,018 |
10% | 10.0% | 9,112 | 9,112 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,257 | ||
Calibration 2 | 93,539 | ||
Calibration 3 | 92,100 | ||
ssj_ops@calibrated=92,820 | |||
100% | 98.7% | 92,820 | 91,609 |
90% | 89.1% | 83,538 | 82,674 |
80% | 79.0% | 74,256 | 73,314 |
70% | 69.9% | 64,974 | 64,903 |
60% | 59.6% | 55,692 | 55,348 |
50% | 49.6% | 46,410 | 46,044 |
40% | 39.6% | 37,128 | 36,742 |
30% | 30.0% | 27,846 | 27,807 |
20% | 19.9% | 18,564 | 18,514 |
10% | 9.5% | 9,282 | 8,858 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,815 | ||
Calibration 2 | 94,411 | ||
Calibration 3 | 92,942 | ||

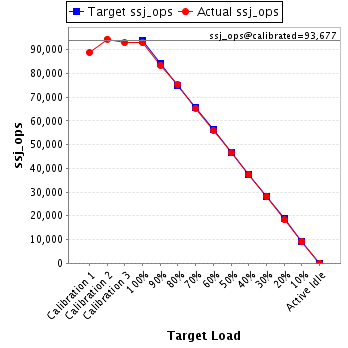

ssj_ops@calibrated=93,677 | |||
100% | 99.2% | 93,677 | 92,924 |
90% | 89.0% | 84,309 | 83,417 |
80% | 80.5% | 74,941 | 75,368 |
70% | 69.6% | 65,574 | 65,239 |
60% | 59.7% | 56,206 | 55,912 |
50% | 49.6% | 46,838 | 46,479 |
40% | 39.8% | 37,471 | 37,276 |
30% | 30.0% | 28,103 | 28,145 |
20% | 19.5% | 18,735 | 18,307 |
10% | 9.7% | 9,368 | 9,062 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,196 | ||
Calibration 2 | 94,480 | ||
Calibration 3 | 93,398 | ||
ssj_ops@calibrated=93,939 | |||
100% | 99.6% | 93,939 | 93,610 |
90% | 90.6% | 84,545 | 85,104 |
80% | 79.9% | 75,151 | 75,099 |
70% | 69.4% | 65,757 | 65,218 |
60% | 58.6% | 56,364 | 55,092 |
50% | 49.9% | 46,970 | 46,846 |
40% | 39.5% | 37,576 | 37,113 |
30% | 29.9% | 28,182 | 28,079 |
20% | 19.1% | 18,788 | 17,955 |
10% | 10.1% | 9,394 | 9,517 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,290 | ||
Calibration 2 | 93,423 | ||
Calibration 3 | 92,534 | ||
ssj_ops@calibrated=92,979 | |||
100% | 99.4% | 92,979 | 92,463 |
90% | 90.7% | 83,681 | 84,287 |
80% | 80.3% | 74,383 | 74,679 |
70% | 69.7% | 65,085 | 64,837 |
60% | 59.5% | 55,787 | 55,359 |
50% | 50.1% | 46,489 | 46,591 |
40% | 39.5% | 37,191 | 36,757 |
30% | 29.9% | 27,894 | 27,840 |
20% | 19.9% | 18,596 | 18,530 |
10% | 10.2% | 9,298 | 9,521 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,994 | ||
Calibration 2 | 94,150 | ||
Calibration 3 | 92,963 | ||
ssj_ops@calibrated=93,556 | |||
100% | 99.4% | 93,556 | 93,019 |
90% | 90.1% | 84,201 | 84,309 |
80% | 80.2% | 74,845 | 75,003 |
70% | 69.5% | 65,489 | 65,034 |
60% | 59.7% | 56,134 | 55,837 |
50% | 50.8% | 46,778 | 47,553 |
40% | 40.2% | 37,423 | 37,595 |
30% | 30.4% | 28,067 | 28,417 |
20% | 19.8% | 18,711 | 18,543 |
10% | 9.9% | 9,356 | 9,250 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,432 | ||
Calibration 2 | 93,929 | ||
Calibration 3 | 92,889 | ||
ssj_ops@calibrated=93,409 | |||
100% | 99.1% | 93,409 | 92,548 |
90% | 90.8% | 84,068 | 84,823 |
80% | 79.6% | 74,727 | 74,391 |
70% | 70.7% | 65,386 | 66,022 |
60% | 60.9% | 56,046 | 56,898 |
50% | 50.5% | 46,705 | 47,149 |
40% | 39.3% | 37,364 | 36,704 |
30% | 30.1% | 28,023 | 28,071 |
20% | 20.2% | 18,682 | 18,871 |
10% | 10.2% | 9,341 | 9,508 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,537 | ||
Calibration 2 | 94,620 | ||
Calibration 3 | 93,826 | ||
ssj_ops@calibrated=94,223 | |||
100% | 98.9% | 94,223 | 93,147 |
90% | 90.8% | 84,801 | 85,584 |
80% | 81.1% | 75,378 | 76,417 |
70% | 70.3% | 65,956 | 66,283 |
60% | 59.0% | 56,534 | 55,584 |
50% | 50.4% | 47,111 | 47,513 |
40% | 39.8% | 37,689 | 37,484 |
30% | 29.8% | 28,267 | 28,078 |
20% | 19.5% | 18,845 | 18,350 |
10% | 9.7% | 9,422 | 9,104 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,146 | ||
Calibration 2 | 93,884 | ||
Calibration 3 | 92,786 | ||
ssj_ops@calibrated=93,335 | |||
100% | 99.4% | 93,335 | 92,731 |
90% | 90.3% | 84,001 | 84,295 |
80% | 80.1% | 74,668 | 74,761 |
70% | 70.5% | 65,334 | 65,789 |
60% | 60.3% | 56,001 | 56,283 |
50% | 49.9% | 46,667 | 46,608 |
40% | 39.6% | 37,334 | 36,918 |
30% | 29.8% | 28,000 | 27,806 |
20% | 19.8% | 18,667 | 18,487 |
10% | 9.7% | 9,333 | 9,044 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,621 | ||
Calibration 2 | 93,615 | ||
Calibration 3 | 92,548 | ||
ssj_ops@calibrated=93,082 | |||
100% | 99.5% | 93,082 | 92,649 |
90% | 90.4% | 83,773 | 84,189 |
80% | 78.0% | 74,465 | 72,638 |
70% | 69.4% | 65,157 | 64,574 |
60% | 59.7% | 55,849 | 55,588 |
50% | 50.6% | 46,541 | 47,116 |
40% | 40.1% | 37,233 | 37,360 |
30% | 29.9% | 27,924 | 27,793 |
20% | 20.1% | 18,616 | 18,749 |
10% | 9.7% | 9,308 | 9,054 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,489 | ||
Calibration 2 | 92,150 | ||
Calibration 3 | 91,796 | ||
ssj_ops@calibrated=91,973 | |||
100% | 99.4% | 91,973 | 91,424 |
90% | 90.0% | 82,776 | 82,753 |
80% | 80.4% | 73,578 | 73,902 |
70% | 70.2% | 64,381 | 64,540 |
60% | 59.9% | 55,184 | 55,048 |
50% | 50.1% | 45,987 | 46,096 |
40% | 40.6% | 36,789 | 37,366 |
30% | 29.8% | 27,592 | 27,382 |
20% | 20.0% | 18,395 | 18,350 |
10% | 9.9% | 9,197 | 9,081 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,723 | ||
Calibration 2 | 95,225 | ||
Calibration 3 | 94,232 | ||
ssj_ops@calibrated=94,728 | |||
100% | 98.4% | 94,728 | 93,199 |
90% | 90.3% | 85,255 | 85,553 |
80% | 79.5% | 75,782 | 75,318 |
70% | 69.9% | 66,310 | 66,239 |
60% | 60.4% | 56,837 | 57,252 |
50% | 49.1% | 47,364 | 46,536 |
40% | 40.4% | 37,891 | 38,289 |
30% | 30.5% | 28,418 | 28,896 |
20% | 20.0% | 18,946 | 18,904 |
10% | 10.0% | 9,473 | 9,512 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,600 | ||
Calibration 2 | 95,163 | ||
Calibration 3 | 93,936 | ||

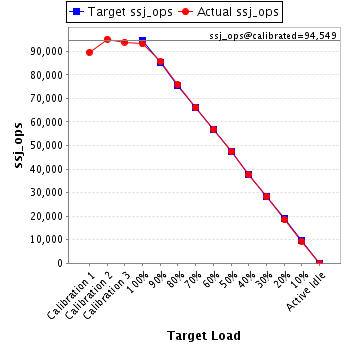

ssj_ops@calibrated=94,549 | |||
100% | 98.5% | 94,549 | 93,133 |
90% | 90.7% | 85,094 | 85,744 |
80% | 80.2% | 75,640 | 75,867 |
70% | 70.1% | 66,185 | 66,302 |
60% | 60.2% | 56,730 | 56,938 |
50% | 50.3% | 47,275 | 47,582 |
40% | 39.7% | 37,820 | 37,570 |
30% | 29.8% | 28,365 | 28,180 |
20% | 19.6% | 18,910 | 18,525 |
10% | 9.9% | 9,455 | 9,387 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,649 | ||
Calibration 2 | 93,395 | ||
Calibration 3 | 92,333 | ||
ssj_ops@calibrated=92,864 | |||
100% | 98.6% | 92,864 | 91,520 |
90% | 89.6% | 83,578 | 83,222 |
80% | 79.6% | 74,291 | 73,881 |
70% | 69.7% | 65,005 | 64,731 |
60% | 60.5% | 55,719 | 56,192 |
50% | 50.3% | 46,432 | 46,706 |
40% | 40.4% | 37,146 | 37,504 |
30% | 30.4% | 27,859 | 28,233 |
20% | 19.8% | 18,573 | 18,362 |
10% | 10.2% | 9,286 | 9,433 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,218 | ||
Calibration 2 | 94,839 | ||
Calibration 3 | 93,842 | ||
ssj_ops@calibrated=94,340 | |||
100% | 98.5% | 94,340 | 92,939 |
90% | 90.1% | 84,906 | 85,010 |
80% | 80.8% | 75,472 | 76,251 |
70% | 69.4% | 66,038 | 65,442 |
60% | 59.2% | 56,604 | 55,872 |
50% | 50.0% | 47,170 | 47,165 |
40% | 39.8% | 37,736 | 37,538 |
30% | 30.5% | 28,302 | 28,762 |
20% | 20.2% | 18,868 | 19,065 |
10% | 10.4% | 9,434 | 9,808 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,903 | ||
Calibration 2 | 93,876 | ||
Calibration 3 | 92,246 | ||
ssj_ops@calibrated=93,061 | |||
100% | 98.3% | 93,061 | 91,487 |
90% | 89.0% | 83,755 | 82,846 |
80% | 79.8% | 74,449 | 74,247 |
70% | 70.3% | 65,143 | 65,379 |
60% | 58.8% | 55,837 | 54,746 |
50% | 49.7% | 46,530 | 46,256 |
40% | 39.6% | 37,224 | 36,844 |
30% | 29.6% | 27,918 | 27,507 |
20% | 19.7% | 18,612 | 18,369 |
10% | 10.3% | 9,306 | 9,558 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,802 | ||
Calibration 2 | 95,109 | ||
Calibration 3 | 93,113 | ||
ssj_ops@calibrated=94,111 | |||
100% | 99.3% | 94,111 | 93,475 |
90% | 89.6% | 84,700 | 84,361 |
80% | 79.7% | 75,289 | 74,989 |
70% | 70.4% | 65,878 | 66,226 |
60% | 60.0% | 56,467 | 56,420 |
50% | 50.1% | 47,056 | 47,176 |
40% | 39.3% | 37,644 | 36,981 |
30% | 30.1% | 28,233 | 28,300 |
20% | 20.2% | 18,822 | 19,029 |
10% | 9.3% | 9,411 | 8,787 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,720 | ||
Calibration 2 | 92,652 | ||
Calibration 3 | 91,343 | ||
ssj_ops@calibrated=91,998 | |||
100% | 98.6% | 91,998 | 90,734 |
90% | 90.5% | 82,798 | 83,245 |
80% | 80.2% | 73,598 | 73,786 |
70% | 71.0% | 64,398 | 65,362 |
60% | 59.7% | 55,199 | 54,891 |
50% | 50.9% | 45,999 | 46,797 |
40% | 40.0% | 36,799 | 36,774 |
30% | 29.7% | 27,599 | 27,337 |
20% | 19.8% | 18,400 | 18,217 |
10% | 9.9% | 9,200 | 9,083 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,337 | ||
Calibration 2 | 95,242 | ||
Calibration 3 | 94,026 | ||
ssj_ops@calibrated=94,634 | |||
100% | 99.0% | 94,634 | 93,698 |
90% | 89.9% | 85,171 | 85,043 |
80% | 79.2% | 75,707 | 74,916 |
70% | 70.4% | 66,244 | 66,629 |
60% | 60.6% | 56,780 | 57,338 |
50% | 49.5% | 47,317 | 46,816 |
40% | 40.1% | 37,854 | 37,989 |
30% | 29.6% | 28,390 | 27,996 |
20% | 19.4% | 18,927 | 18,371 |
10% | 10.1% | 9,463 | 9,587 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,646 | ||
Calibration 2 | 95,258 | ||
Calibration 3 | 93,440 | ||
ssj_ops@calibrated=94,349 | |||
100% | 98.7% | 94,349 | 93,086 |
90% | 90.3% | 84,914 | 85,243 |
80% | 79.7% | 75,479 | 75,237 |
70% | 70.2% | 66,044 | 66,207 |
60% | 59.7% | 56,610 | 56,355 |
50% | 50.1% | 47,175 | 47,296 |
40% | 40.0% | 37,740 | 37,747 |
30% | 30.0% | 28,305 | 28,304 |
20% | 20.2% | 18,870 | 19,079 |
10% | 9.9% | 9,435 | 9,329 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,743 | ||
Calibration 2 | 93,792 | ||
Calibration 3 | 92,403 | ||
ssj_ops@calibrated=93,098 | |||
100% | 98.3% | 93,098 | 91,552 |
90% | 89.6% | 83,788 | 83,372 |
80% | 79.7% | 74,478 | 74,202 |
70% | 70.4% | 65,168 | 65,578 |
60% | 60.6% | 55,859 | 56,420 |
50% | 49.9% | 46,549 | 46,500 |
40% | 39.7% | 37,239 | 36,993 |
30% | 30.7% | 27,929 | 28,602 |
20% | 20.3% | 18,620 | 18,867 |
10% | 10.6% | 9,310 | 9,825 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,717 | ||
Calibration 2 | 94,170 | ||
Calibration 3 | 92,891 | ||
ssj_ops@calibrated=93,530 | |||
100% | 98.6% | 93,530 | 92,189 |
90% | 89.3% | 84,177 | 83,522 |
80% | 80.5% | 74,824 | 75,262 |
70% | 70.2% | 65,471 | 65,625 |
60% | 60.1% | 56,118 | 56,222 |
50% | 48.9% | 46,765 | 45,734 |
40% | 40.3% | 37,412 | 37,716 |
30% | 29.7% | 28,059 | 27,768 |
20% | 19.9% | 18,706 | 18,566 |
10% | 9.8% | 9,353 | 9,133 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,949 | ||
Calibration 2 | 93,301 | ||
Calibration 3 | 91,554 | ||
ssj_ops@calibrated=92,427 | |||
100% | 98.7% | 92,427 | 91,204 |
90% | 90.3% | 83,185 | 83,503 |
80% | 80.7% | 73,942 | 74,559 |
70% | 71.3% | 64,699 | 65,883 |
60% | 60.8% | 55,456 | 56,232 |
50% | 49.8% | 46,214 | 46,066 |
40% | 39.8% | 36,971 | 36,817 |
30% | 29.3% | 27,728 | 27,112 |
20% | 20.1% | 18,485 | 18,539 |
10% | 9.6% | 9,243 | 8,915 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,670 | ||
Calibration 2 | 94,759 | ||
Calibration 3 | 93,196 | ||
ssj_ops@calibrated=93,977 | |||
100% | 98.7% | 93,977 | 92,787 |
90% | 90.1% | 84,580 | 84,639 |
80% | 79.5% | 75,182 | 74,683 |
70% | 69.8% | 65,784 | 65,603 |
60% | 59.8% | 56,386 | 56,215 |
50% | 50.2% | 46,989 | 47,205 |
40% | 39.9% | 37,591 | 37,538 |
30% | 30.5% | 28,193 | 28,621 |
20% | 20.0% | 18,795 | 18,813 |
10% | 10.3% | 9,398 | 9,658 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,192 | ||
Calibration 2 | 93,516 | ||
Calibration 3 | 91,380 | ||
ssj_ops@calibrated=92,448 | |||
100% | 98.6% | 92,448 | 91,155 |
90% | 89.4% | 83,203 | 82,637 |
80% | 79.6% | 73,958 | 73,557 |
70% | 70.2% | 64,714 | 64,937 |
60% | 60.8% | 55,469 | 56,222 |
50% | 50.1% | 46,224 | 46,312 |
40% | 40.6% | 36,979 | 37,506 |
30% | 30.2% | 27,734 | 27,944 |
20% | 19.5% | 18,490 | 17,987 |
10% | 9.8% | 9,245 | 9,097 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,025 | ||
Calibration 2 | 94,814 | ||
Calibration 3 | 93,311 | ||
ssj_ops@calibrated=94,063 | |||
100% | 98.5% | 94,063 | 92,619 |
90% | 90.9% | 84,656 | 85,514 |
80% | 79.7% | 75,250 | 74,978 |
70% | 70.1% | 65,844 | 65,945 |
60% | 60.6% | 56,438 | 57,036 |
50% | 49.8% | 47,031 | 46,832 |
40% | 40.2% | 37,625 | 37,792 |
30% | 30.3% | 28,219 | 28,466 |
20% | 20.0% | 18,813 | 18,821 |
10% | 9.8% | 9,406 | 9,179 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,945 | ||
Calibration 2 | 95,066 | ||
Calibration 3 | 94,203 | ||
ssj_ops@calibrated=94,635 | |||
100% | 98.1% | 94,635 | 92,789 |
90% | 89.3% | 85,171 | 84,476 |
80% | 80.7% | 75,708 | 76,357 |
70% | 70.3% | 66,244 | 66,535 |
60% | 59.7% | 56,781 | 56,491 |
50% | 49.7% | 47,317 | 46,987 |
40% | 40.2% | 37,854 | 38,005 |
30% | 30.0% | 28,390 | 28,351 |
20% | 19.9% | 18,927 | 18,800 |
10% | 9.7% | 9,463 | 9,167 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,039 | ||
Calibration 2 | 93,954 | ||
Calibration 3 | 92,841 | ||

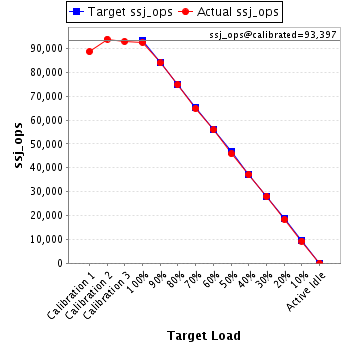

ssj_ops@calibrated=93,397 | |||
100% | 97.8% | 93,397 | 91,367 |
90% | 89.3% | 84,058 | 83,405 |
80% | 80.4% | 74,718 | 75,075 |
70% | 69.7% | 65,378 | 65,116 |
60% | 59.3% | 56,038 | 55,425 |
50% | 49.9% | 46,699 | 46,621 |
40% | 39.8% | 37,359 | 37,168 |
30% | 29.9% | 28,019 | 27,964 |
20% | 20.2% | 18,679 | 18,896 |
10% | 10.1% | 9,340 | 9,387 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,616 | ||
Calibration 2 | 93,997 | ||
Calibration 3 | 92,310 | ||

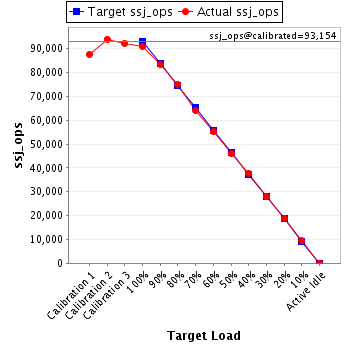

ssj_ops@calibrated=93,154 | |||
100% | 97.7% | 93,154 | 90,998 |
90% | 89.5% | 83,838 | 83,356 |
80% | 80.5% | 74,523 | 75,017 |
70% | 68.7% | 65,208 | 64,036 |
60% | 59.3% | 55,892 | 55,194 |
50% | 49.4% | 46,577 | 45,990 |
40% | 40.4% | 37,261 | 37,628 |
30% | 29.9% | 27,946 | 27,890 |
20% | 20.1% | 18,631 | 18,729 |
10% | 10.0% | 9,315 | 9,350 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,022 | ||
Calibration 2 | 94,011 | ||
Calibration 3 | 92,662 | ||
ssj_ops@calibrated=93,337 | |||
100% | 98.6% | 93,337 | 91,995 |
90% | 89.9% | 84,003 | 83,950 |
80% | 81.1% | 74,669 | 75,654 |
70% | 70.1% | 65,336 | 65,424 |
60% | 60.3% | 56,002 | 56,323 |
50% | 50.5% | 46,668 | 47,119 |
40% | 39.9% | 37,335 | 37,280 |
30% | 29.3% | 28,001 | 27,317 |
20% | 19.8% | 18,667 | 18,496 |
10% | 10.4% | 9,334 | 9,729 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,098 | ||
Calibration 2 | 95,023 | ||
Calibration 3 | 93,554 | ||

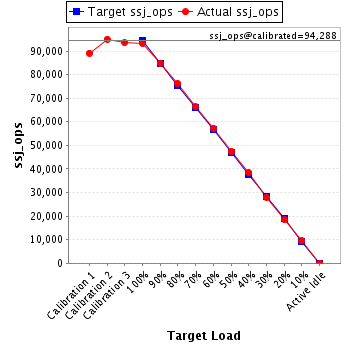

ssj_ops@calibrated=94,288 | |||
100% | 98.9% | 94,288 | 93,213 |
90% | 90.0% | 84,860 | 84,905 |
80% | 80.9% | 75,431 | 76,291 |
70% | 70.4% | 66,002 | 66,339 |
60% | 60.8% | 56,573 | 57,283 |
50% | 50.2% | 47,144 | 47,361 |
40% | 40.7% | 37,715 | 38,392 |
30% | 29.7% | 28,287 | 28,050 |
20% | 19.6% | 18,858 | 18,441 |
10% | 10.1% | 9,429 | 9,529 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,077 | ||
Calibration 2 | 93,472 | ||
Calibration 3 | 92,225 | ||
ssj_ops@calibrated=92,848 | |||
100% | 98.5% | 92,848 | 91,488 |
90% | 90.6% | 83,563 | 84,122 |
80% | 80.5% | 74,279 | 74,706 |
70% | 69.7% | 64,994 | 64,693 |
60% | 59.6% | 55,709 | 55,349 |
50% | 50.3% | 46,424 | 46,724 |
40% | 40.2% | 37,139 | 37,280 |
30% | 30.6% | 27,854 | 28,392 |
20% | 19.8% | 18,570 | 18,407 |
10% | 10.1% | 9,285 | 9,338 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,167 | ||
Calibration 2 | 94,166 | ||
Calibration 3 | 92,305 | ||
ssj_ops@calibrated=93,235 | |||
100% | 98.4% | 93,235 | 91,761 |
90% | 90.1% | 83,912 | 83,988 |
80% | 80.1% | 74,588 | 74,638 |
70% | 70.1% | 65,265 | 65,375 |
60% | 60.4% | 55,941 | 56,289 |
50% | 50.6% | 46,618 | 47,136 |
40% | 39.8% | 37,294 | 37,094 |
30% | 30.0% | 27,971 | 27,964 |
20% | 19.9% | 18,647 | 18,558 |
10% | 10.1% | 9,324 | 9,400 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,190 | ||
Calibration 2 | 95,811 | ||
Calibration 3 | 94,079 | ||

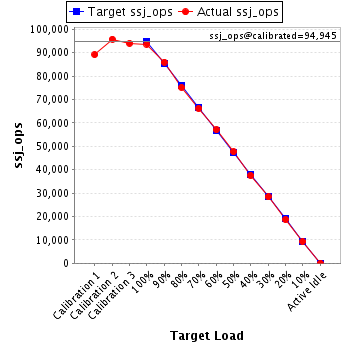

ssj_ops@calibrated=94,945 | |||
100% | 98.7% | 94,945 | 93,712 |
90% | 90.6% | 85,451 | 85,992 |
80% | 79.2% | 75,956 | 75,181 |
70% | 69.8% | 66,462 | 66,242 |
60% | 60.2% | 56,967 | 57,151 |
50% | 50.2% | 47,473 | 47,677 |
40% | 39.5% | 37,978 | 37,464 |
30% | 29.9% | 28,484 | 28,361 |
20% | 19.7% | 18,989 | 18,677 |
10% | 9.8% | 9,495 | 9,317 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,426 | ||
Calibration 2 | 94,112 | ||
Calibration 3 | 93,146 | ||
ssj_ops@calibrated=93,629 | |||
100% | 98.8% | 93,629 | 92,545 |
90% | 90.3% | 84,266 | 84,505 |
80% | 81.0% | 74,903 | 75,848 |
70% | 70.2% | 65,540 | 65,750 |
60% | 60.4% | 56,178 | 56,505 |
50% | 49.5% | 46,815 | 46,369 |
40% | 39.9% | 37,452 | 37,324 |
30% | 29.8% | 28,089 | 27,911 |
20% | 20.3% | 18,726 | 19,012 |
10% | 10.1% | 9,363 | 9,425 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,907 | ||
Calibration 2 | 94,403 | ||
Calibration 3 | 92,829 | ||
ssj_ops@calibrated=93,616 | |||
100% | 98.3% | 93,616 | 92,053 |
90% | 89.2% | 84,254 | 83,550 |
80% | 80.4% | 74,893 | 75,222 |
70% | 69.4% | 65,531 | 64,968 |
60% | 59.8% | 56,169 | 55,982 |
50% | 49.9% | 46,808 | 46,751 |
40% | 39.3% | 37,446 | 36,775 |
30% | 29.6% | 28,085 | 27,732 |
20% | 20.1% | 18,723 | 18,783 |
10% | 9.7% | 9,362 | 9,101 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,620 | ||
Calibration 2 | 94,903 | ||
Calibration 3 | 93,472 | ||
ssj_ops@calibrated=94,188 | |||
100% | 98.8% | 94,188 | 93,022 |
90% | 89.9% | 84,769 | 84,641 |
80% | 80.1% | 75,350 | 75,489 |
70% | 70.5% | 65,931 | 66,387 |
60% | 60.0% | 56,513 | 56,476 |
50% | 50.3% | 47,094 | 47,366 |
40% | 39.9% | 37,675 | 37,626 |
30% | 30.1% | 28,256 | 28,352 |
20% | 19.9% | 18,838 | 18,716 |
10% | 9.9% | 9,419 | 9,370 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,401 | ||
Calibration 2 | 94,560 | ||
Calibration 3 | 93,389 | ||
ssj_ops@calibrated=93,974 | |||
100% | 98.4% | 93,974 | 92,459 |
90% | 90.2% | 84,577 | 84,791 |
80% | 79.9% | 75,180 | 75,040 |
70% | 68.8% | 65,782 | 64,688 |
60% | 60.2% | 56,385 | 56,537 |
50% | 49.6% | 46,987 | 46,625 |
40% | 39.8% | 37,590 | 37,398 |
30% | 30.4% | 28,192 | 28,564 |
20% | 19.8% | 18,795 | 18,567 |
10% | 10.0% | 9,397 | 9,387 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,747 | ||
Calibration 2 | 95,707 | ||
Calibration 3 | 94,009 | ||

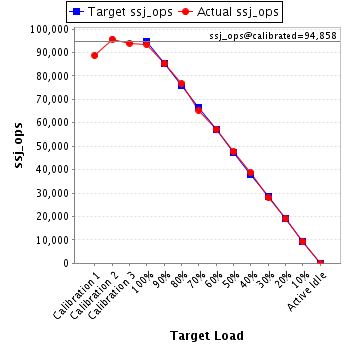

ssj_ops@calibrated=94,858 | |||
100% | 98.6% | 94,858 | 93,537 |
90% | 90.0% | 85,372 | 85,331 |
80% | 80.8% | 75,886 | 76,687 |
70% | 68.9% | 66,401 | 65,366 |
60% | 60.3% | 56,915 | 57,225 |
50% | 50.2% | 47,429 | 47,573 |
40% | 40.7% | 37,943 | 38,640 |
30% | 29.6% | 28,457 | 28,070 |
20% | 20.0% | 18,972 | 18,953 |
10% | 9.7% | 9,486 | 9,237 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,851 | ||
Calibration 2 | 92,969 | ||
Calibration 3 | 92,151 | ||
ssj_ops@calibrated=92,560 | |||
100% | 99.4% | 92,560 | 91,984 |
90% | 90.5% | 83,304 | 83,730 |
80% | 80.0% | 74,048 | 74,013 |
70% | 70.9% | 64,792 | 65,626 |
60% | 59.8% | 55,536 | 55,308 |
50% | 49.2% | 46,280 | 45,553 |
40% | 40.5% | 37,024 | 37,446 |
30% | 29.7% | 27,768 | 27,493 |
20% | 20.4% | 18,512 | 18,884 |
10% | 10.2% | 9,256 | 9,462 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,078 | ||
Calibration 2 | 95,151 | ||
Calibration 3 | 93,735 | ||
ssj_ops@calibrated=94,443 | |||
100% | 99.0% | 94,443 | 93,496 |
90% | 88.7% | 84,999 | 83,747 |
80% | 80.2% | 75,554 | 75,772 |
70% | 69.7% | 66,110 | 65,852 |
60% | 59.8% | 56,666 | 56,499 |
50% | 50.6% | 47,222 | 47,814 |
40% | 40.8% | 37,777 | 38,538 |
30% | 29.9% | 28,333 | 28,221 |
20% | 20.1% | 18,889 | 18,973 |
10% | 10.2% | 9,444 | 9,608 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,395 | ||
Calibration 2 | 93,646 | ||
Calibration 3 | 93,355 | ||

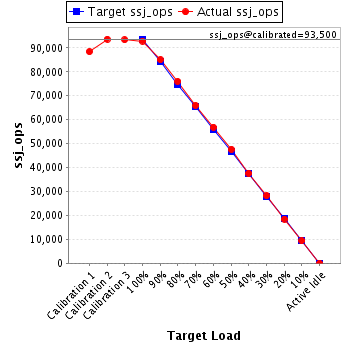

ssj_ops@calibrated=93,500 | |||
100% | 99.3% | 93,500 | 92,855 |
90% | 91.0% | 84,150 | 85,089 |
80% | 81.3% | 74,800 | 76,024 |
70% | 70.6% | 65,450 | 65,966 |
60% | 60.8% | 56,100 | 56,865 |
50% | 50.9% | 46,750 | 47,621 |
40% | 40.2% | 37,400 | 37,618 |
30% | 30.2% | 28,050 | 28,195 |
20% | 19.8% | 18,700 | 18,476 |
10% | 10.1% | 9,350 | 9,421 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,612 | ||
Calibration 2 | 94,133 | ||
Calibration 3 | 93,141 | ||
ssj_ops@calibrated=93,637 | |||
100% | 99.3% | 93,637 | 92,990 |
90% | 90.2% | 84,273 | 84,456 |
80% | 80.1% | 74,909 | 75,014 |
70% | 69.6% | 65,546 | 65,199 |
60% | 60.3% | 56,182 | 56,493 |
50% | 49.7% | 46,818 | 46,572 |
40% | 40.4% | 37,455 | 37,830 |
30% | 30.8% | 28,091 | 28,862 |
20% | 19.6% | 18,727 | 18,321 |
10% | 10.2% | 9,364 | 9,529 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 86,372 | ||
Calibration 2 | 91,912 | ||
Calibration 3 | 91,608 | ||
ssj_ops@calibrated=91,760 | |||
100% | 98.7% | 91,760 | 90,584 |
90% | 90.2% | 82,584 | 82,792 |
80% | 79.8% | 73,408 | 73,243 |
70% | 68.8% | 64,232 | 63,133 |
60% | 59.6% | 55,056 | 54,725 |
50% | 49.4% | 45,880 | 45,359 |
40% | 40.4% | 36,704 | 37,090 |
30% | 30.4% | 27,528 | 27,931 |
20% | 19.6% | 18,352 | 18,029 |
10% | 9.9% | 9,176 | 9,092 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,039 | ||
Calibration 2 | 95,044 | ||
Calibration 3 | 94,184 | ||
ssj_ops@calibrated=94,614 | |||
100% | 99.2% | 94,614 | 93,815 |
90% | 90.8% | 85,153 | 85,912 |
80% | 80.1% | 75,691 | 75,803 |
70% | 71.3% | 66,230 | 67,422 |
60% | 59.9% | 56,769 | 56,667 |
50% | 49.4% | 47,307 | 46,763 |
40% | 39.8% | 37,846 | 37,657 |
30% | 29.4% | 28,384 | 27,831 |
20% | 20.2% | 18,923 | 19,121 |
10% | 9.9% | 9,461 | 9,367 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,323 | ||
Calibration 2 | 93,776 | ||
Calibration 3 | 92,995 | ||
ssj_ops@calibrated=93,386 | |||
100% | 99.8% | 93,386 | 93,217 |
90% | 90.0% | 84,047 | 84,077 |
80% | 81.1% | 74,709 | 75,745 |
70% | 68.4% | 65,370 | 63,894 |
60% | 59.4% | 56,032 | 55,437 |
50% | 49.2% | 46,693 | 45,926 |
40% | 39.1% | 37,354 | 36,472 |
30% | 29.7% | 28,016 | 27,695 |
20% | 19.8% | 18,677 | 18,491 |
10% | 9.8% | 9,339 | 9,133 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,798 | ||
Calibration 2 | 93,802 | ||
Calibration 3 | 92,767 | ||

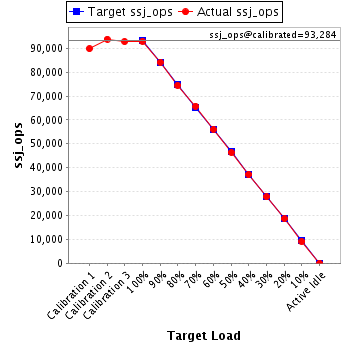

ssj_ops@calibrated=93,284 | |||
100% | 99.6% | 93,284 | 92,940 |
90% | 90.3% | 83,956 | 84,208 |
80% | 79.8% | 74,627 | 74,460 |
70% | 70.5% | 65,299 | 65,769 |
60% | 60.1% | 55,971 | 56,105 |
50% | 49.7% | 46,642 | 46,357 |
40% | 39.9% | 37,314 | 37,177 |
30% | 29.8% | 27,985 | 27,801 |
20% | 20.0% | 18,657 | 18,624 |
10% | 9.7% | 9,328 | 9,088 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,695 | ||
Calibration 2 | 93,737 | ||
Calibration 3 | 92,605 | ||
ssj_ops@calibrated=93,171 | |||
100% | 99.2% | 93,171 | 92,452 |
90% | 88.7% | 83,854 | 82,656 |
80% | 81.0% | 74,537 | 75,438 |
70% | 68.8% | 65,220 | 64,111 |
60% | 60.0% | 55,903 | 55,932 |
50% | 49.5% | 46,586 | 46,125 |
40% | 39.9% | 37,268 | 37,134 |
30% | 29.8% | 27,951 | 27,775 |
20% | 20.1% | 18,634 | 18,754 |
10% | 10.0% | 9,317 | 9,301 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,144 | ||
Calibration 2 | 94,125 | ||
Calibration 3 | 92,659 | ||
ssj_ops@calibrated=93,392 | |||
100% | 99.8% | 93,392 | 93,206 |
90% | 90.2% | 84,053 | 84,216 |
80% | 79.8% | 74,714 | 74,527 |
70% | 69.7% | 65,375 | 65,109 |
60% | 60.3% | 56,035 | 56,278 |
50% | 50.8% | 46,696 | 47,473 |
40% | 39.8% | 37,357 | 37,163 |
30% | 30.5% | 28,018 | 28,460 |
20% | 20.2% | 18,678 | 18,842 |
10% | 10.1% | 9,339 | 9,417 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,636 | ||
Calibration 2 | 93,422 | ||
Calibration 3 | 92,809 | ||
ssj_ops@calibrated=93,115 | |||
100% | 99.0% | 93,115 | 92,208 |
90% | 90.0% | 83,804 | 83,801 |
80% | 79.9% | 74,492 | 74,405 |
70% | 71.4% | 65,181 | 66,473 |
60% | 60.1% | 55,869 | 55,922 |
50% | 50.3% | 46,558 | 46,865 |
40% | 40.3% | 37,246 | 37,548 |
30% | 29.8% | 27,935 | 27,743 |
20% | 20.2% | 18,623 | 18,835 |
10% | 9.9% | 9,312 | 9,250 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,994 | ||
Calibration 2 | 93,711 | ||
Calibration 3 | 92,801 | ||
ssj_ops@calibrated=93,256 | |||
100% | 99.1% | 93,256 | 92,402 |
90% | 88.8% | 83,930 | 82,845 |
80% | 80.1% | 74,605 | 74,719 |
70% | 70.4% | 65,279 | 65,671 |
60% | 60.0% | 55,953 | 55,932 |
50% | 50.0% | 46,628 | 46,591 |
40% | 39.7% | 37,302 | 37,044 |
30% | 29.5% | 27,977 | 27,555 |
20% | 20.3% | 18,651 | 18,891 |
10% | 9.8% | 9,326 | 9,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,860 | ||
Calibration 2 | 94,670 | ||
Calibration 3 | 93,673 | ||
ssj_ops@calibrated=94,172 | |||
100% | 99.0% | 94,172 | 93,205 |
90% | 89.9% | 84,754 | 84,659 |
80% | 80.1% | 75,337 | 75,391 |
70% | 70.4% | 65,920 | 66,326 |
60% | 59.9% | 56,503 | 56,451 |
50% | 50.3% | 47,086 | 47,395 |
40% | 39.8% | 37,669 | 37,454 |
30% | 30.1% | 28,251 | 28,383 |
20% | 20.3% | 18,834 | 19,139 |
10% | 10.2% | 9,417 | 9,642 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,324 | ||
Calibration 2 | 93,145 | ||
Calibration 3 | 92,582 | ||
ssj_ops@calibrated=92,864 | |||
100% | 99.6% | 92,864 | 92,510 |
90% | 89.9% | 83,577 | 83,477 |
80% | 80.5% | 74,291 | 74,764 |
70% | 70.4% | 65,004 | 65,343 |
60% | 60.5% | 55,718 | 56,162 |
50% | 50.8% | 46,432 | 47,166 |
40% | 39.9% | 37,145 | 37,031 |
30% | 30.4% | 27,859 | 28,224 |
20% | 19.9% | 18,573 | 18,438 |
10% | 9.8% | 9,286 | 9,125 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,541 | ||
Calibration 2 | 94,953 | ||
Calibration 3 | 94,122 | ||
ssj_ops@calibrated=94,537 | |||
100% | 99.5% | 94,537 | 94,055 |
90% | 89.5% | 85,084 | 84,656 |
80% | 78.9% | 75,630 | 74,606 |
70% | 70.0% | 66,176 | 66,152 |
60% | 59.3% | 56,722 | 56,106 |
50% | 50.0% | 47,269 | 47,260 |
40% | 40.1% | 37,815 | 37,952 |
30% | 30.2% | 28,361 | 28,565 |
20% | 20.1% | 18,907 | 19,028 |
10% | 9.7% | 9,454 | 9,204 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,630 | ||
Calibration 2 | 94,977 | ||
Calibration 3 | 94,313 | ||

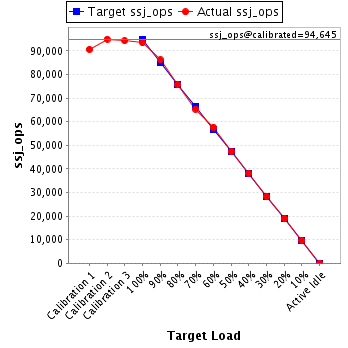

ssj_ops@calibrated=94,645 | |||
100% | 98.7% | 94,645 | 93,391 |
90% | 91.1% | 85,180 | 86,259 |
80% | 80.1% | 75,716 | 75,781 |
70% | 69.0% | 66,251 | 65,342 |
60% | 61.0% | 56,787 | 57,724 |
50% | 50.1% | 47,322 | 47,394 |
40% | 40.4% | 37,858 | 38,211 |
30% | 29.9% | 28,393 | 28,276 |
20% | 19.9% | 18,929 | 18,879 |
10% | 10.3% | 9,464 | 9,712 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,972 | ||
Calibration 2 | 92,932 | ||
Calibration 3 | 92,261 | ||
ssj_ops@calibrated=92,596 | |||
100% | 99.5% | 92,596 | 92,156 |
90% | 90.6% | 83,337 | 83,855 |
80% | 80.6% | 74,077 | 74,658 |
70% | 69.9% | 64,818 | 64,766 |
60% | 59.6% | 55,558 | 55,149 |
50% | 50.2% | 46,298 | 46,519 |
40% | 40.2% | 37,039 | 37,206 |
30% | 30.1% | 27,779 | 27,906 |
20% | 19.8% | 18,519 | 18,318 |
10% | 9.8% | 9,260 | 9,033 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,693 | ||
Calibration 2 | 93,297 | ||
Calibration 3 | 92,056 | ||
ssj_ops@calibrated=92,677 | |||
100% | 99.2% | 92,677 | 91,914 |
90% | 90.6% | 83,409 | 83,958 |
80% | 80.8% | 74,141 | 74,903 |
70% | 70.7% | 64,874 | 65,492 |
60% | 59.7% | 55,606 | 55,339 |
50% | 50.3% | 46,338 | 46,630 |
40% | 39.7% | 37,071 | 36,813 |
30% | 29.6% | 27,803 | 27,423 |
20% | 19.9% | 18,535 | 18,457 |
10% | 9.9% | 9,268 | 9,151 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,710 | ||
Calibration 2 | 94,181 | ||
Calibration 3 | 93,432 | ||

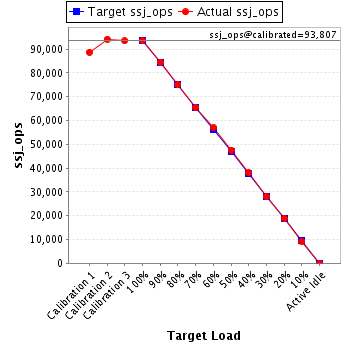

ssj_ops@calibrated=93,807 | |||
100% | 99.6% | 93,807 | 93,433 |
90% | 90.1% | 84,426 | 84,478 |
80% | 80.0% | 75,045 | 75,089 |
70% | 69.8% | 65,665 | 65,463 |
60% | 60.7% | 56,284 | 56,945 |
50% | 50.7% | 46,903 | 47,546 |
40% | 40.5% | 37,523 | 38,025 |
30% | 29.8% | 28,142 | 27,992 |
20% | 20.1% | 18,761 | 18,825 |
10% | 9.8% | 9,381 | 9,213 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,966 | ||
Calibration 2 | 94,208 | ||
Calibration 3 | 94,159 | ||

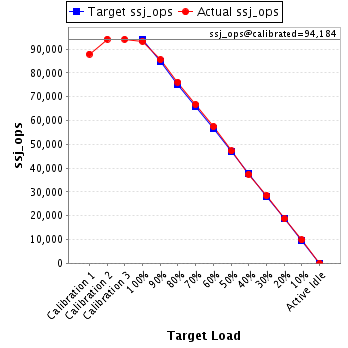

ssj_ops@calibrated=94,184 | |||
100% | 99.1% | 94,184 | 93,351 |
90% | 90.9% | 84,765 | 85,594 |
80% | 80.9% | 75,347 | 76,174 |
70% | 70.9% | 65,928 | 66,819 |
60% | 61.1% | 56,510 | 57,544 |
50% | 50.1% | 47,092 | 47,206 |
40% | 39.7% | 37,673 | 37,394 |
30% | 30.2% | 28,255 | 28,417 |
20% | 19.8% | 18,837 | 18,687 |
10% | 10.4% | 9,418 | 9,820 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,022 | ||
Calibration 2 | 95,068 | ||
Calibration 3 | 93,866 | ||
ssj_ops@calibrated=94,467 | |||
100% | 99.2% | 94,467 | 93,730 |
90% | 89.5% | 85,020 | 84,570 |
80% | 79.8% | 75,574 | 75,369 |
70% | 69.3% | 66,127 | 65,423 |
60% | 59.7% | 56,680 | 56,437 |
50% | 50.1% | 47,233 | 47,375 |
40% | 39.4% | 37,787 | 37,225 |
30% | 30.4% | 28,340 | 28,727 |
20% | 20.1% | 18,893 | 18,991 |
10% | 10.0% | 9,447 | 9,479 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,472 | ||
Calibration 2 | 93,470 | ||
Calibration 3 | 92,358 | ||
ssj_ops@calibrated=92,914 | |||
100% | 98.6% | 92,914 | 91,639 |
90% | 89.2% | 83,622 | 82,879 |
80% | 81.0% | 74,331 | 75,277 |
70% | 69.7% | 65,040 | 64,771 |
60% | 59.5% | 55,748 | 55,269 |
50% | 50.2% | 46,457 | 46,609 |
40% | 40.0% | 37,165 | 37,123 |
30% | 30.3% | 27,874 | 28,167 |
20% | 20.3% | 18,583 | 18,816 |
10% | 9.9% | 9,291 | 9,204 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,775 | ||
Calibration 2 | 94,623 | ||
Calibration 3 | 93,878 | ||
ssj_ops@calibrated=94,251 | |||
100% | 99.5% | 94,251 | 93,751 |
90% | 90.6% | 84,826 | 85,379 |
80% | 80.5% | 75,401 | 75,826 |
70% | 69.7% | 65,975 | 65,670 |
60% | 59.9% | 56,550 | 56,502 |
50% | 50.3% | 47,125 | 47,410 |
40% | 40.5% | 37,700 | 38,191 |
30% | 30.7% | 28,275 | 28,903 |
20% | 19.6% | 18,850 | 18,515 |
10% | 10.1% | 9,425 | 9,558 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,789 | ||
Calibration 2 | 93,708 | ||
Calibration 3 | 93,200 | ||
ssj_ops@calibrated=93,454 | |||
100% | 99.1% | 93,454 | 92,633 |
90% | 90.4% | 84,108 | 84,445 |
80% | 79.7% | 74,763 | 74,495 |
70% | 70.4% | 65,418 | 65,782 |
60% | 60.8% | 56,072 | 56,846 |
50% | 49.6% | 46,727 | 46,342 |
40% | 40.0% | 37,381 | 37,409 |
30% | 30.0% | 28,036 | 28,026 |
20% | 20.0% | 18,691 | 18,687 |
10% | 9.8% | 9,345 | 9,204 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,332 | ||
Calibration 2 | 94,220 | ||
Calibration 3 | 93,190 | ||
ssj_ops@calibrated=93,705 | |||
100% | 99.0% | 93,705 | 92,786 |
90% | 90.3% | 84,335 | 84,593 |
80% | 81.8% | 74,964 | 76,638 |
70% | 70.2% | 65,594 | 65,818 |
60% | 60.6% | 56,223 | 56,825 |
50% | 49.1% | 46,853 | 46,030 |
40% | 40.5% | 37,482 | 37,925 |
30% | 30.7% | 28,112 | 28,742 |
20% | 20.1% | 18,741 | 18,879 |
10% | 10.0% | 9,371 | 9,337 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,743 | ||
Calibration 2 | 93,568 | ||
Calibration 3 | 92,772 | ||
ssj_ops@calibrated=93,170 | |||
100% | 99.0% | 93,170 | 92,211 |
90% | 89.6% | 83,853 | 83,490 |
80% | 79.3% | 74,536 | 73,884 |
70% | 68.4% | 65,219 | 63,755 |
60% | 60.2% | 55,902 | 56,073 |
50% | 49.3% | 46,585 | 45,951 |
40% | 40.2% | 37,268 | 37,438 |
30% | 30.1% | 27,951 | 28,042 |
20% | 19.6% | 18,634 | 18,307 |
10% | 9.8% | 9,317 | 9,104 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,308 | ||
Calibration 2 | 93,290 | ||
Calibration 3 | 92,061 | ||
ssj_ops@calibrated=92,676 | |||
100% | 99.1% | 92,676 | 91,844 |
90% | 90.0% | 83,408 | 83,451 |
80% | 78.7% | 74,141 | 72,962 |
70% | 70.1% | 64,873 | 64,919 |
60% | 60.1% | 55,605 | 55,724 |
50% | 50.1% | 46,338 | 46,396 |
40% | 40.1% | 37,070 | 37,127 |
30% | 29.6% | 27,803 | 27,474 |
20% | 20.3% | 18,535 | 18,832 |
10% | 10.1% | 9,268 | 9,346 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,812 | ||
Calibration 2 | 93,471 | ||
Calibration 3 | 92,349 | ||
ssj_ops@calibrated=92,910 | |||
100% | 99.0% | 92,910 | 92,023 |
90% | 89.7% | 83,619 | 83,339 |
80% | 79.8% | 74,328 | 74,169 |
70% | 70.2% | 65,037 | 65,234 |
60% | 59.5% | 55,746 | 55,296 |
50% | 50.1% | 46,455 | 46,545 |
40% | 40.8% | 37,164 | 37,911 |
30% | 30.8% | 27,873 | 28,605 |
20% | 20.1% | 18,582 | 18,666 |
10% | 9.6% | 9,291 | 8,891 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,167 | ||
Calibration 2 | 94,045 | ||
Calibration 3 | 92,277 | ||
ssj_ops@calibrated=93,161 | |||
100% | 99.2% | 93,161 | 92,413 |
90% | 89.7% | 83,845 | 83,595 |
80% | 80.4% | 74,529 | 74,876 |
70% | 69.9% | 65,213 | 65,130 |
60% | 59.9% | 55,897 | 55,792 |
50% | 49.5% | 46,580 | 46,133 |
40% | 40.5% | 37,264 | 37,737 |
30% | 30.8% | 27,948 | 28,647 |
20% | 20.2% | 18,632 | 18,860 |
10% | 9.9% | 9,316 | 9,188 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,695 | ||
Calibration 2 | 93,491 | ||
Calibration 3 | 91,734 | ||
ssj_ops@calibrated=92,613 | |||
100% | 99.2% | 92,613 | 91,871 |
90% | 90.4% | 83,351 | 83,719 |
80% | 80.3% | 74,090 | 74,381 |
70% | 70.6% | 64,829 | 65,360 |
60% | 58.3% | 55,568 | 53,955 |
50% | 50.0% | 46,306 | 46,347 |
40% | 40.0% | 37,045 | 37,000 |
30% | 30.1% | 27,784 | 27,870 |
20% | 19.9% | 18,523 | 18,436 |
10% | 10.1% | 9,261 | 9,358 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,015 | ||
Calibration 2 | 93,497 | ||
Calibration 3 | 91,745 | ||
ssj_ops@calibrated=92,621 | |||
100% | 99.0% | 92,621 | 91,650 |
90% | 89.1% | 83,359 | 82,515 |
80% | 80.6% | 74,097 | 74,664 |
70% | 70.4% | 64,835 | 65,214 |
60% | 60.6% | 55,573 | 56,138 |
50% | 49.3% | 46,310 | 45,672 |
40% | 39.6% | 37,048 | 36,650 |
30% | 29.8% | 27,786 | 27,583 |
20% | 19.9% | 18,524 | 18,418 |
10% | 9.7% | 9,262 | 9,021 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 86,916 | ||
Calibration 2 | 92,374 | ||
Calibration 3 | 90,999 | ||
ssj_ops@calibrated=91,687 | |||
100% | 99.1% | 91,687 | 90,870 |
90% | 89.3% | 82,518 | 81,911 |
80% | 80.6% | 73,349 | 73,899 |
70% | 70.0% | 64,181 | 64,226 |
60% | 59.0% | 55,012 | 54,081 |
50% | 50.0% | 45,843 | 45,881 |
40% | 40.3% | 36,675 | 36,971 |
30% | 30.2% | 27,506 | 27,719 |
20% | 20.3% | 18,337 | 18,608 |
10% | 9.9% | 9,169 | 9,121 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,868 | ||
Calibration 2 | 92,927 | ||
Calibration 3 | 92,971 | ||
ssj_ops@calibrated=92,949 | |||
100% | 99.9% | 92,949 | 92,843 |
90% | 89.8% | 83,654 | 83,426 |
80% | 79.1% | 74,359 | 73,477 |
70% | 69.8% | 65,065 | 64,866 |
60% | 59.7% | 55,770 | 55,457 |
50% | 49.4% | 46,475 | 45,954 |
40% | 40.8% | 37,180 | 37,953 |
30% | 30.3% | 27,885 | 28,139 |
20% | 20.1% | 18,590 | 18,671 |
10% | 10.0% | 9,295 | 9,281 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,518 | ||
Calibration 2 | 94,414 | ||
Calibration 3 | 94,271 | ||
ssj_ops@calibrated=94,343 | |||
100% | 100.0% | 94,343 | 94,374 |
90% | 89.3% | 84,909 | 84,279 |
80% | 80.2% | 75,474 | 75,656 |
70% | 70.4% | 66,040 | 66,408 |
60% | 60.1% | 56,606 | 56,660 |
50% | 50.1% | 47,171 | 47,277 |
40% | 39.7% | 37,737 | 37,426 |
30% | 29.8% | 28,303 | 28,111 |
20% | 20.2% | 18,869 | 19,065 |
10% | 10.3% | 9,434 | 9,737 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,212 | ||
Calibration 2 | 92,380 | ||
Calibration 3 | 91,572 | ||
ssj_ops@calibrated=91,976 | |||
100% | 99.3% | 91,976 | 91,356 |
90% | 90.4% | 82,779 | 83,160 |
80% | 80.8% | 73,581 | 74,347 |
70% | 71.0% | 64,383 | 65,340 |
60% | 59.9% | 55,186 | 55,124 |
50% | 50.0% | 45,988 | 45,961 |
40% | 40.2% | 36,790 | 36,937 |
30% | 29.3% | 27,593 | 26,909 |
20% | 19.9% | 18,395 | 18,316 |
10% | 10.3% | 9,198 | 9,500 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,278 | ||
Calibration 2 | 94,208 | ||
Calibration 3 | 92,963 | ||
ssj_ops@calibrated=93,585 | |||
100% | 98.7% | 93,585 | 92,407 |
90% | 89.8% | 84,227 | 84,040 |
80% | 79.4% | 74,868 | 74,326 |
70% | 70.5% | 65,510 | 65,977 |
60% | 60.1% | 56,151 | 56,219 |
50% | 50.6% | 46,793 | 47,334 |
40% | 40.3% | 37,434 | 37,668 |
30% | 30.4% | 28,076 | 28,451 |
20% | 19.9% | 18,717 | 18,655 |
10% | 10.1% | 9,359 | 9,458 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,135 | ||
Calibration 2 | 94,700 | ||
Calibration 3 | 93,552 | ||
ssj_ops@calibrated=94,126 | |||
100% | 98.4% | 94,126 | 92,660 |
90% | 90.1% | 84,713 | 84,849 |
80% | 80.0% | 75,301 | 75,262 |
70% | 70.4% | 65,888 | 66,241 |
60% | 59.8% | 56,475 | 56,283 |
50% | 51.1% | 47,063 | 48,071 |
40% | 40.3% | 37,650 | 37,911 |
30% | 30.2% | 28,238 | 28,455 |
20% | 20.2% | 18,825 | 19,026 |
10% | 10.1% | 9,413 | 9,475 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,306 | ||
Calibration 2 | 93,905 | ||
Calibration 3 | 92,639 | ||
ssj_ops@calibrated=93,272 | |||
100% | 98.7% | 93,272 | 92,094 |
90% | 90.4% | 83,945 | 84,278 |
80% | 80.7% | 74,618 | 75,297 |
70% | 70.4% | 65,290 | 65,658 |
60% | 60.8% | 55,963 | 56,703 |
50% | 50.6% | 46,636 | 47,172 |
40% | 40.0% | 37,309 | 37,271 |
30% | 29.4% | 27,982 | 27,454 |
20% | 19.9% | 18,654 | 18,600 |
10% | 9.7% | 9,327 | 9,025 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,846 | ||
Calibration 2 | 92,301 | ||
Calibration 3 | 92,254 | ||
ssj_ops@calibrated=92,277 | |||
100% | 99.4% | 92,277 | 91,752 |
90% | 89.7% | 83,050 | 82,730 |
80% | 79.3% | 73,822 | 73,218 |
70% | 69.8% | 64,594 | 64,396 |
60% | 60.3% | 55,366 | 55,624 |
50% | 49.8% | 46,139 | 45,968 |
40% | 39.7% | 36,911 | 36,678 |
30% | 30.6% | 27,683 | 28,215 |
20% | 20.1% | 18,455 | 18,554 |
10% | 10.2% | 9,228 | 9,442 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,459 | ||
Calibration 2 | 93,675 | ||
Calibration 3 | 92,485 | ||
ssj_ops@calibrated=93,080 | |||
100% | 98.7% | 93,080 | 91,910 |
90% | 89.8% | 83,772 | 83,570 |
80% | 79.3% | 74,464 | 73,806 |
70% | 69.7% | 65,156 | 64,864 |
60% | 60.0% | 55,848 | 55,863 |
50% | 49.7% | 46,540 | 46,270 |
40% | 40.4% | 37,232 | 37,562 |
30% | 30.0% | 27,924 | 27,902 |
20% | 19.8% | 18,616 | 18,463 |
10% | 9.9% | 9,308 | 9,254 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,517 | ||
Calibration 2 | 94,683 | ||
Calibration 3 | 93,880 | ||
ssj_ops@calibrated=94,282 | |||
100% | 98.7% | 94,282 | 93,070 |
90% | 89.1% | 84,853 | 84,001 |
80% | 79.7% | 75,425 | 75,156 |
70% | 69.7% | 65,997 | 65,733 |
60% | 59.8% | 56,569 | 56,415 |
50% | 50.2% | 47,141 | 47,339 |
40% | 39.9% | 37,713 | 37,604 |
30% | 30.2% | 28,284 | 28,486 |
20% | 19.3% | 18,856 | 18,184 |
10% | 10.1% | 9,428 | 9,537 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,078 | ||
Calibration 2 | 93,107 | ||
Calibration 3 | 92,467 | ||
ssj_ops@calibrated=92,787 | |||
100% | 99.1% | 92,787 | 91,971 |
90% | 89.9% | 83,508 | 83,395 |
80% | 80.0% | 74,229 | 74,207 |
70% | 68.2% | 64,951 | 63,295 |
60% | 59.6% | 55,672 | 55,331 |
50% | 50.5% | 46,393 | 46,873 |
40% | 39.7% | 37,115 | 36,808 |
30% | 29.8% | 27,836 | 27,631 |
20% | 19.7% | 18,557 | 18,300 |
10% | 10.1% | 9,279 | 9,334 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,620 | ||
Calibration 2 | 93,889 | ||
Calibration 3 | 92,905 | ||
ssj_ops@calibrated=93,397 | |||
100% | 99.1% | 93,397 | 92,534 |
90% | 89.9% | 84,057 | 83,920 |
80% | 80.1% | 74,718 | 74,808 |
70% | 69.5% | 65,378 | 64,867 |
60% | 59.8% | 56,038 | 55,890 |
50% | 49.1% | 46,699 | 45,876 |
40% | 39.8% | 37,359 | 37,150 |
30% | 30.0% | 28,019 | 28,049 |
20% | 19.6% | 18,679 | 18,317 |
10% | 9.9% | 9,340 | 9,261 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,674 | ||
Calibration 2 | 94,979 | ||
Calibration 3 | 93,969 | ||
ssj_ops@calibrated=94,474 | |||
100% | 98.9% | 94,474 | 93,451 |
90% | 89.7% | 85,027 | 84,788 |
80% | 80.1% | 75,579 | 75,707 |
70% | 70.1% | 66,132 | 66,215 |
60% | 60.7% | 56,684 | 57,336 |
50% | 50.7% | 47,237 | 47,934 |
40% | 40.1% | 37,790 | 37,921 |
30% | 30.8% | 28,342 | 29,100 |
20% | 20.2% | 18,895 | 19,037 |
10% | 10.1% | 9,447 | 9,526 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,819 | ||
Calibration 2 | 93,230 | ||
Calibration 3 | 91,677 | ||
ssj_ops@calibrated=92,454 | |||
100% | 99.1% | 92,454 | 91,618 |
90% | 89.6% | 83,208 | 82,822 |
80% | 79.5% | 73,963 | 73,545 |
70% | 69.7% | 64,717 | 64,411 |
60% | 60.2% | 55,472 | 55,643 |
50% | 49.9% | 46,227 | 46,111 |
40% | 39.6% | 36,981 | 36,566 |
30% | 30.2% | 27,736 | 27,945 |
20% | 19.8% | 18,491 | 18,295 |
10% | 10.1% | 9,245 | 9,371 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,536 | ||
Calibration 2 | 93,058 | ||
Calibration 3 | 91,527 | ||
ssj_ops@calibrated=92,292 | |||
100% | 98.6% | 92,292 | 91,000 |
90% | 89.2% | 83,063 | 82,286 |
80% | 80.6% | 73,834 | 74,431 |
70% | 69.0% | 64,605 | 63,715 |
60% | 60.2% | 55,375 | 55,530 |
50% | 49.8% | 46,146 | 45,984 |
40% | 40.3% | 36,917 | 37,154 |
30% | 30.3% | 27,688 | 27,975 |
20% | 19.8% | 18,458 | 18,316 |
10% | 9.6% | 9,229 | 8,858 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,745 | ||
Calibration 2 | 93,175 | ||
Calibration 3 | 92,522 | ||
ssj_ops@calibrated=92,849 | |||
100% | 99.0% | 92,849 | 91,908 |
90% | 90.6% | 83,564 | 84,147 |
80% | 79.5% | 74,279 | 73,796 |
70% | 70.2% | 64,994 | 65,215 |
60% | 59.4% | 55,709 | 55,129 |
50% | 49.1% | 46,424 | 45,596 |
40% | 40.1% | 37,140 | 37,236 |
30% | 30.2% | 27,855 | 28,059 |
20% | 20.2% | 18,570 | 18,775 |
10% | 10.0% | 9,285 | 9,269 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,415 | ||
Calibration 2 | 92,317 | ||
Calibration 3 | 91,855 | ||
ssj_ops@calibrated=92,086 | |||
100% | 99.3% | 92,086 | 91,429 |
90% | 89.9% | 82,877 | 82,811 |
80% | 81.1% | 73,669 | 74,669 |
70% | 69.8% | 64,460 | 64,238 |
60% | 60.7% | 55,251 | 55,933 |
50% | 49.5% | 46,043 | 45,580 |
40% | 39.8% | 36,834 | 36,655 |
30% | 29.7% | 27,626 | 27,323 |
20% | 20.0% | 18,417 | 18,449 |
10% | 10.3% | 9,209 | 9,471 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,403 | ||
Calibration 2 | 94,282 | ||
Calibration 3 | 93,214 | ||
ssj_ops@calibrated=93,748 | |||
100% | 98.7% | 93,748 | 92,570 |
90% | 90.7% | 84,374 | 85,035 |
80% | 81.0% | 74,999 | 75,963 |
70% | 70.1% | 65,624 | 65,698 |
60% | 60.4% | 56,249 | 56,654 |
50% | 50.2% | 46,874 | 47,060 |
40% | 38.6% | 37,499 | 36,154 |
30% | 30.0% | 28,125 | 28,168 |
20% | 20.1% | 18,750 | 18,812 |
10% | 10.4% | 9,375 | 9,728 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,524 | ||
Calibration 2 | 93,758 | ||
Calibration 3 | 91,726 | ||
ssj_ops@calibrated=92,742 | |||
100% | 98.8% | 92,742 | 91,626 |
90% | 91.0% | 83,468 | 84,364 |
80% | 81.0% | 74,194 | 75,156 |
70% | 70.5% | 64,919 | 65,393 |
60% | 59.9% | 55,645 | 55,583 |
50% | 50.0% | 46,371 | 46,343 |
40% | 40.8% | 37,097 | 37,805 |
30% | 30.4% | 27,823 | 28,218 |
20% | 20.2% | 18,548 | 18,701 |
10% | 10.0% | 9,274 | 9,281 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,922 | ||
Calibration 2 | 94,795 | ||
Calibration 3 | 93,037 | ||
ssj_ops@calibrated=93,916 | |||
100% | 98.4% | 93,916 | 92,449 |
90% | 90.4% | 84,524 | 84,873 |
80% | 80.1% | 75,133 | 75,206 |
70% | 70.0% | 65,741 | 65,786 |
60% | 59.9% | 56,349 | 56,254 |
50% | 50.0% | 46,958 | 46,926 |
40% | 39.4% | 37,566 | 37,014 |
30% | 30.1% | 28,175 | 28,290 |
20% | 20.2% | 18,783 | 18,928 |
10% | 10.0% | 9,392 | 9,358 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 88,156 | ||
Calibration 2 | 94,396 | ||
Calibration 3 | 92,905 | ||
ssj_ops@calibrated=93,651 | |||
100% | 98.9% | 93,651 | 92,658 |
90% | 90.4% | 84,286 | 84,622 |
80% | 79.4% | 74,920 | 74,317 |
70% | 69.7% | 65,555 | 65,252 |
60% | 59.5% | 56,190 | 55,679 |
50% | 49.6% | 46,825 | 46,471 |
40% | 39.9% | 37,460 | 37,326 |
30% | 30.1% | 28,095 | 28,200 |
20% | 19.8% | 18,730 | 18,533 |
10% | 10.2% | 9,365 | 9,567 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,638 | ||
Calibration 2 | 93,821 | ||
Calibration 3 | 92,367 | ||
ssj_ops@calibrated=93,094 | |||
100% | 99.1% | 93,094 | 92,282 |
90% | 89.6% | 83,785 | 83,437 |
80% | 80.8% | 74,475 | 75,188 |
70% | 71.1% | 65,166 | 66,204 |
60% | 59.4% | 55,856 | 55,336 |
50% | 50.4% | 46,547 | 46,933 |
40% | 40.2% | 37,238 | 37,413 |
30% | 30.2% | 27,928 | 28,094 |
20% | 20.0% | 18,619 | 18,587 |
10% | 9.8% | 9,309 | 9,143 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,254 | ||
Calibration 2 | 93,093 | ||
Calibration 3 | 91,959 | ||
ssj_ops@calibrated=92,526 | |||
100% | 98.8% | 92,526 | 91,444 |
90% | 89.6% | 83,274 | 82,866 |
80% | 80.1% | 74,021 | 74,082 |
70% | 70.4% | 64,768 | 65,099 |
60% | 60.1% | 55,516 | 55,640 |
50% | 50.1% | 46,263 | 46,333 |
40% | 39.9% | 37,010 | 36,959 |
30% | 29.9% | 27,758 | 27,629 |
20% | 19.7% | 18,505 | 18,242 |
10% | 10.2% | 9,253 | 9,463 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,491 | ||
Calibration 2 | 93,405 | ||
Calibration 3 | 92,053 | ||
ssj_ops@calibrated=92,729 | |||
100% | 99.0% | 92,729 | 91,776 |
90% | 89.1% | 83,456 | 82,637 |
80% | 79.3% | 74,183 | 73,495 |
70% | 70.0% | 64,910 | 64,939 |
60% | 59.3% | 55,637 | 55,022 |
50% | 49.4% | 46,365 | 45,823 |
40% | 40.3% | 37,092 | 37,352 |
30% | 30.1% | 27,819 | 27,879 |
20% | 19.7% | 18,546 | 18,266 |
10% | 10.0% | 9,273 | 9,258 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,468 | ||
Calibration 2 | 93,111 | ||
Calibration 3 | 92,384 | ||
ssj_ops@calibrated=92,747 | |||
100% | 99.2% | 92,747 | 91,977 |
90% | 90.2% | 83,472 | 83,657 |
80% | 79.8% | 74,198 | 73,999 |
70% | 70.5% | 64,923 | 65,365 |
60% | 60.5% | 55,648 | 56,129 |
50% | 49.8% | 46,374 | 46,172 |
40% | 40.3% | 37,099 | 37,421 |
30% | 30.1% | 27,824 | 27,883 |
20% | 19.9% | 18,549 | 18,483 |
10% | 10.0% | 9,275 | 9,295 |
Active Idle | 0 | 0 |
