SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module			ssj_ops@100% = 50,162,414 ssj_ops@100% per Host = 8,360,402 ssj_ops@100% per JVM = 104,505
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Jan 13, 2022
Hardware Availability:	Apr-2021	Software Availability:	Apr-2021	Publication:	Feb 16, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			40,057,735
Calibration 2			50,219,876
Calibration 3			50,330,593
ssj_ops@calibrated=50,275,235
100%	99.8%	50,275,235	50,162,414
90%	89.9%	45,247,711	45,213,226
80%	80.0%	40,220,188	40,227,274
70%	70.0%	35,192,664	35,202,946
60%	60.0%	30,165,141	30,152,221
50%	50.0%	25,137,617	25,116,898
40%	40.0%	20,110,094	20,093,356
30%	30.0%	15,082,570	15,071,407
20%	20.0%	10,055,047	10,049,332
10%	10.0%	5,027,523	5,030,221
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
6	12	480	960	1,536	6	480

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Plus Compute Module
Form Factor:	Blade
CPU Name:	Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics:	40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	80 cores, 2 chips, 40 cores/chip
Hardware Threads:	160 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances:	80
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	I44 v1.40 (03/05/2021)
Management Firmware Version:	2.40 pass 31 Jan 05 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

BIOS Platform Configuration (RBSU):

USB Support: All USB Ports Disabled
Internal SD Card Slot: Disabled
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Intel Virtualization (Intel VT): Disabled
Access Control Service: Disabled
Power Regulator: OS Control
Intel Turbo Boost Technology: Disabled
Energy Performance Bias: Balanced Power
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled SNC2 (2-clusters)
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Disabled
Intel UPI Link Enablement: Single Link Operation
Intel UPI Link Frequency: Min UPI Speed
Processor PMAX Power Adjustment: 20
Maximum PCI Express Speed: PCIe Generation 1.0
Synergy 4820C PCIe Link Speed: PCIe Generation 1.0
Synergy 4820C PCIe Power Management: L1 Enabled

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 160 due to a known inconsistency in processor reporting with this Java version
Kernel Parameter: intel_pstate=passive
OS tunes:

modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
echo 100000 > /proc/sys/vm/nr_hugepages

Applied protection against speculative execution

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

Host Instance Summary

Host	ssj_ops@100%
sy480-01	8,380,313
sy480-02	8,349,631
sy480-03	8,375,368
sy480-04	8,321,934
sy480-05	8,358,657
sy480-06	8,376,510
ssj_ops@100%	50,162,414
ssj_ops@100% per Host	8,360,402
ssj_ops@100% per JVM	104,505

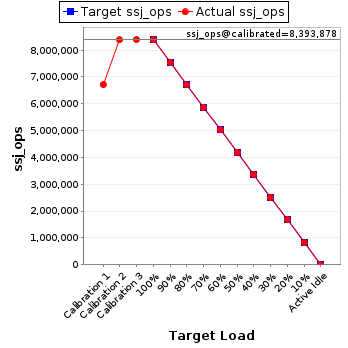

Host 'sy480-01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,718,109
Calibration 2			8,383,456
Calibration 3			8,404,300
ssj_ops@calibrated=8,393,878
100%	99.8%	8,393,878	8,380,313
90%	89.9%	7,554,490	7,547,950
80%	79.9%	6,715,102	6,708,585
70%	70.0%	5,875,715	5,874,818
60%	60.0%	5,036,327	5,040,474
50%	50.0%	4,196,939	4,193,047
40%	39.9%	3,357,551	3,352,664
30%	30.0%	2,518,163	2,514,531
20%	20.0%	1,678,776	1,679,508
10%	10.0%	839,388	836,361
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,692,539
Calibration 2			8,353,998
Calibration 3			8,375,642
ssj_ops@calibrated=8,364,820
100%	99.8%	8,364,820	8,349,631
90%	89.9%	7,528,338	7,523,792
80%	80.0%	6,691,856	6,691,447
70%	70.1%	5,855,374	5,861,782
60%	60.0%	5,018,892	5,017,089
50%	50.0%	4,182,410	4,186,109
40%	39.9%	3,345,928	3,339,418
30%	30.0%	2,509,446	2,507,461
20%	20.0%	1,672,964	1,669,715
10%	10.0%	836,482	837,335
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,665,610
Calibration 2			8,390,469
Calibration 3			8,402,044
ssj_ops@calibrated=8,396,257
100%	99.8%	8,396,257	8,375,368
90%	89.9%	7,556,631	7,548,217
80%	80.1%	6,717,005	6,722,959
70%	70.0%	5,877,380	5,876,337
60%	59.9%	5,037,754	5,030,323
50%	49.9%	4,198,128	4,189,223
40%	40.0%	3,358,503	3,358,644
30%	30.0%	2,518,877	2,519,083
20%	20.0%	1,679,251	1,677,989
10%	10.0%	839,626	839,965
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,601,753
Calibration 2			8,336,247
Calibration 3			8,352,035
ssj_ops@calibrated=8,344,141
100%	99.7%	8,344,141	8,321,934
90%	90.0%	7,509,727	7,506,653
80%	80.2%	6,675,313	6,688,254
70%	70.1%	5,840,899	5,848,122
60%	60.0%	5,006,485	5,004,297
50%	50.0%	4,172,071	4,168,108
40%	39.9%	3,337,656	3,332,898
30%	30.0%	2,503,242	2,500,100
20%	20.0%	1,668,828	1,670,068
10%	10.0%	834,414	835,630
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,711,300
Calibration 2			8,365,426
Calibration 3			8,385,087
ssj_ops@calibrated=8,375,257
100%	99.8%	8,375,257	8,358,657
90%	89.9%	7,537,731	7,531,163
80%	80.0%	6,700,205	6,697,766
70%	70.0%	5,862,680	5,859,057
60%	60.0%	5,025,154	5,028,416
50%	49.9%	4,187,628	4,181,082
40%	39.9%	3,350,103	3,344,843
30%	30.0%	2,512,577	2,511,604
20%	20.0%	1,675,051	1,673,968
10%	10.0%	837,526	840,316
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,668,424
Calibration 2			8,390,282
Calibration 3			8,411,483
ssj_ops@calibrated=8,400,882
100%	99.7%	8,400,882	8,376,510
90%	89.9%	7,560,794	7,555,451
80%	80.0%	6,720,706	6,718,262
70%	70.0%	5,880,618	5,882,829
60%	59.9%	5,040,529	5,031,624
50%	50.0%	4,200,441	4,199,330
40%	40.1%	3,360,353	3,364,890
30%	30.0%	2,520,265	2,518,628
20%	20.0%	1,680,176	1,678,083
10%	10.0%	840,088	840,614
Active Idle		0	0

See the Host Performance Report for additional details.
