Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,376,510
ssj_ops@100% per JVM = 104,706
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 13, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,668,424
Calibration 2     8,390,282
Calibration 3     8,411,483
ssj_ops@calibrated=8,400,882
100% 99.7% 8,400,882 8,376,510
90% 89.9% 7,560,794 7,555,451
80% 80.0% 6,720,706 6,718,262
70% 70.0% 5,880,618 5,882,829
60% 59.9% 5,040,529 5,031,624
50% 50.0% 4,200,441 4,199,330
40% 40.1% 3,360,353 3,364,890
30% 30.0% 2,520,265 2,518,628
20% 20.0% 1,680,176 1,678,083
10% 10.0% 840,088 840,614
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 6
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-06.001 100,019
sy480-06.002 104,307
sy480-06.003 106,998
sy480-06.004 104,926
sy480-06.005 105,660
sy480-06.006 108,396
sy480-06.007 104,871
sy480-06.008 105,910
sy480-06.009 106,206
sy480-06.010 106,572
sy480-06.011 106,543
sy480-06.012 106,450
sy480-06.013 100,466
sy480-06.014 106,701
sy480-06.015 108,530
sy480-06.016 105,760
sy480-06.017 105,229
sy480-06.018 99,814
sy480-06.019 103,331
sy480-06.020 104,008
sy480-06.021 105,705
sy480-06.022 101,465
sy480-06.023 105,784
sy480-06.024 97,349
sy480-06.025 106,059
sy480-06.026 102,642
sy480-06.027 103,149
sy480-06.028 106,888
sy480-06.029 106,855
sy480-06.030 106,884
sy480-06.031 106,519
sy480-06.032 106,137
sy480-06.033 105,681
sy480-06.034 105,454
sy480-06.035 97,892
sy480-06.036 104,600
sy480-06.037 107,123
sy480-06.038 105,950
sy480-06.039 105,874
sy480-06.040 101,823
sy480-06.041 106,239
sy480-06.042 99,196
sy480-06.043 105,914
sy480-06.044 106,748
sy480-06.045 105,808
sy480-06.046 107,504
sy480-06.047 104,929
sy480-06.048 104,484
sy480-06.049 105,715
sy480-06.050 99,068
sy480-06.051 98,516
sy480-06.052 105,010
sy480-06.053 106,267
sy480-06.054 100,064
sy480-06.055 106,661
sy480-06.056 102,310
sy480-06.057 105,501
sy480-06.058 106,231
sy480-06.059 104,289
sy480-06.060 103,561
sy480-06.061 105,162
sy480-06.062 105,299
sy480-06.063 101,981
sy480-06.064 101,701
sy480-06.065 105,156
sy480-06.066 106,572
sy480-06.067 98,773
sy480-06.068 107,558
sy480-06.069 104,315
sy480-06.070 106,216
sy480-06.071 105,696
sy480-06.072 105,850
sy480-06.073 106,814
sy480-06.074 107,223
sy480-06.075 105,415
sy480-06.076 103,955
sy480-06.077 106,930
sy480-06.078 104,992
sy480-06.079 104,373
sy480-06.080 107,986
ssj_ops@100% 8,376,510
ssj_ops@100% per JVM 104,706

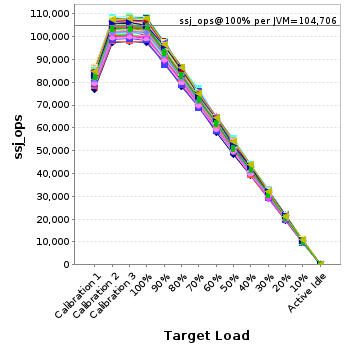

Graph of per-instance results
JVM 'sy480-06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,284
Calibration 2     100,366
Calibration 3     100,632
ssj_ops@calibrated=100,499
100% 99.5% 100,499 100,019
90% 89.7% 90,449 90,197
80% 80.2% 80,399 80,613
70% 70.3% 70,349 70,682
60% 59.0% 60,299 59,334
50% 49.2% 50,250 49,492
40% 39.8% 40,200 39,971
30% 29.6% 30,150 29,751
20% 19.8% 20,100 19,896
10% 10.2% 10,050 10,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,721
Calibration 2     103,685
Calibration 3     103,943
ssj_ops@calibrated=103,814
100% 100.5% 103,814 104,307
90% 89.9% 93,433 93,291
80% 80.1% 83,051 83,144
70% 70.9% 72,670 73,602
60% 60.1% 62,288 62,359
50% 49.8% 51,907 51,667
40% 40.4% 41,526 41,894
30% 29.9% 31,144 30,994
20% 20.3% 20,763 21,041
10% 9.9% 10,381 10,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,206
Calibration 2     107,008
Calibration 3     107,331
ssj_ops@calibrated=107,170
100% 99.8% 107,170 106,998
90% 89.3% 96,453 95,687
80% 80.3% 85,736 86,075
70% 70.3% 75,019 75,321
60% 59.6% 64,302 63,868
50% 49.9% 53,585 53,428
40% 40.2% 42,868 43,048
30% 30.2% 32,151 32,381
20% 20.5% 21,434 21,943
10% 10.3% 10,717 10,992
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,037
Calibration 2     105,359
Calibration 3     104,945
ssj_ops@calibrated=105,152
100% 99.8% 105,152 104,926
90% 90.6% 94,637 95,282
80% 78.9% 84,122 82,924
70% 69.8% 73,607 73,435
60% 59.7% 63,091 62,737
50% 50.6% 52,576 53,225
40% 40.6% 42,061 42,686
30% 30.1% 31,546 31,629
20% 20.4% 21,030 21,485
10% 10.0% 10,515 10,492
Active Idle   0 0

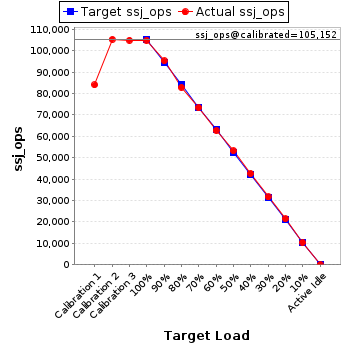

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,658
Calibration 2     105,430
Calibration 3     105,701
ssj_ops@calibrated=105,565
100% 100.1% 105,565 105,660
90% 89.5% 95,009 94,452
80% 80.0% 84,452 84,408
70% 70.5% 73,896 74,376
60% 59.8% 63,339 63,170
50% 50.5% 52,783 53,262
40% 40.0% 42,226 42,240
30% 30.1% 31,670 31,738
20% 19.9% 21,113 21,020
10% 10.1% 10,557 10,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,476
Calibration 2     108,566
Calibration 3     108,858
ssj_ops@calibrated=108,712
100% 99.7% 108,712 108,396
90% 90.1% 97,841 97,935
80% 79.6% 86,970 86,545
70% 71.0% 76,098 77,166
60% 59.3% 65,227 64,475
50% 50.8% 54,356 55,175
40% 40.4% 43,485 43,945
30% 30.5% 32,614 33,140
20% 19.7% 21,742 21,469
10% 10.0% 10,871 10,877
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,685
Calibration 2     105,836
Calibration 3     106,167
ssj_ops@calibrated=106,001
100% 98.9% 106,001 104,871
90% 89.7% 95,401 95,130
80% 78.8% 84,801 83,539
70% 70.9% 74,201 75,203
60% 59.0% 63,601 62,500
50% 49.0% 53,001 51,932
40% 40.3% 42,401 42,745
30% 29.9% 31,800 31,657
20% 20.2% 21,200 21,447
10% 10.0% 10,600 10,584
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,358
Calibration 2     105,744
Calibration 3     105,955
ssj_ops@calibrated=105,850
100% 100.1% 105,850 105,910
90% 89.7% 95,265 94,904
80% 80.3% 84,680 85,004
70% 70.5% 74,095 74,634
60% 59.7% 63,510 63,237
50% 49.5% 52,925 52,361
40% 40.1% 42,340 42,409
30% 30.1% 31,755 31,878
20% 20.3% 21,170 21,513
10% 9.9% 10,585 10,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,759
Calibration 2     107,506
Calibration 3     107,611
ssj_ops@calibrated=107,558
100% 98.7% 107,558 106,206
90% 90.8% 96,802 97,704
80% 79.4% 86,047 85,417
70% 70.0% 75,291 75,262
60% 59.8% 64,535 64,311
50% 50.3% 53,779 54,054
40% 39.4% 43,023 42,379
30% 30.3% 32,267 32,548
20% 20.0% 21,512 21,467
10% 10.0% 10,756 10,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,229
Calibration 2     106,968
Calibration 3     107,202
ssj_ops@calibrated=107,085
100% 99.5% 107,085 106,572
90% 89.9% 96,377 96,266
80% 80.4% 85,668 86,071
70% 70.7% 74,960 75,715
60% 59.6% 64,251 63,798
50% 50.3% 53,543 53,878
40% 40.5% 42,834 43,320
30% 30.3% 32,126 32,449
20% 20.0% 21,417 21,393
10% 10.4% 10,709 11,152
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,664
Calibration 2     106,424
Calibration 3     106,488
ssj_ops@calibrated=106,456
100% 100.1% 106,456 106,543
90% 89.2% 95,810 94,994
80% 80.0% 85,165 85,193
70% 69.9% 74,519 74,416
60% 60.1% 63,874 64,013
50% 49.8% 53,228 52,964
40% 40.0% 42,582 42,635
30% 29.6% 31,937 31,476
20% 20.3% 21,291 21,590
10% 9.9% 10,646 10,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,039
Calibration 2     106,676
Calibration 3     106,822
ssj_ops@calibrated=106,749
100% 99.7% 106,749 106,450
90% 90.5% 96,074 96,562
80% 80.7% 85,399 86,143
70% 70.3% 74,724 75,009
60% 59.9% 64,049 63,962
50% 51.1% 53,375 54,545
40% 40.2% 42,700 42,934
30% 30.3% 32,025 32,311
20% 20.0% 21,350 21,304
10% 10.0% 10,675 10,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,866
Calibration 2     101,744
Calibration 3     102,064
ssj_ops@calibrated=101,904
100% 98.6% 101,904 100,466
90% 90.9% 91,714 92,589
80% 79.9% 81,523 81,467
70% 70.2% 71,333 71,524
60% 59.4% 61,142 60,553
50% 50.1% 50,952 51,017
40% 40.0% 40,762 40,724
30% 30.1% 30,571 30,688
20% 20.0% 20,381 20,388
10% 10.1% 10,190 10,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,671
Calibration 2     106,277
Calibration 3     106,340
ssj_ops@calibrated=106,309
100% 100.4% 106,309 106,701
90% 90.4% 95,678 96,091
80% 79.7% 85,047 84,718
70% 69.6% 74,416 74,004
60% 60.7% 63,785 64,534
50% 49.8% 53,154 52,894
40% 40.0% 42,523 42,512
30% 29.8% 31,893 31,633
20% 19.7% 21,262 20,910
10% 10.2% 10,631 10,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,617
Calibration 2     107,853
Calibration 3     108,147
ssj_ops@calibrated=108,000
100% 100.5% 108,000 108,530
90% 89.8% 97,200 96,961
80% 80.3% 86,400 86,683
70% 69.2% 75,600 74,698
60% 60.3% 64,800 65,164
50% 50.4% 54,000 54,386
40% 40.6% 43,200 43,888
30% 29.8% 32,400 32,207
20% 20.0% 21,600 21,617
10% 10.0% 10,800 10,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,734
Calibration 2     106,445
Calibration 3     106,641
ssj_ops@calibrated=106,543
100% 99.3% 106,543 105,760
90% 90.9% 95,889 96,823
80% 79.9% 85,235 85,104
70% 69.4% 74,580 73,900
60% 60.3% 63,926 64,223
50% 49.7% 53,272 52,926
40% 39.9% 42,617 42,541
30% 30.3% 31,963 32,244
20% 19.7% 21,309 21,013
10% 9.9% 10,654 10,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,491
Calibration 2     105,061
Calibration 3     105,401
ssj_ops@calibrated=105,231
100% 100.0% 105,231 105,229
90% 90.1% 94,708 94,854
80% 80.4% 84,185 84,564
70% 71.1% 73,662 74,843
60% 60.0% 63,139 63,099
50% 50.1% 52,616 52,675
40% 39.6% 42,093 41,698
30% 30.2% 31,569 31,751
20% 20.0% 21,046 21,029
10% 9.8% 10,523 10,272
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,854
Calibration 2     101,107
Calibration 3     101,071
ssj_ops@calibrated=101,089
100% 98.7% 101,089 99,814
90% 89.5% 90,980 90,464
80% 79.5% 80,871 80,379
70% 70.0% 70,762 70,731
60% 60.3% 60,653 60,935
50% 50.5% 50,544 51,048
40% 39.6% 40,436 40,019
30% 30.1% 30,327 30,402
20% 19.8% 20,218 20,006
10% 10.0% 10,109 10,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,278
Calibration 2     103,448
Calibration 3     103,524
ssj_ops@calibrated=103,486
100% 99.9% 103,486 103,331
90% 90.5% 93,137 93,607
80% 79.4% 82,789 82,146
70% 70.4% 72,440 72,897
60% 60.6% 62,092 62,714
50% 50.0% 51,743 51,755
40% 40.3% 41,394 41,668
30% 30.4% 31,046 31,492
20% 20.2% 20,697 20,937
10% 9.5% 10,349 9,790
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,992
Calibration 2     104,386
Calibration 3     104,421
ssj_ops@calibrated=104,403
100% 99.6% 104,403 104,008
90% 89.9% 93,963 93,842
80% 79.0% 83,523 82,507
70% 69.9% 73,082 73,017
60% 60.0% 62,642 62,639
50% 50.4% 52,202 52,569
40% 40.7% 41,761 42,535
30% 29.9% 31,321 31,190
20% 19.7% 20,881 20,564
10% 9.8% 10,440 10,190
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,557
Calibration 2     105,905
Calibration 3     106,026
ssj_ops@calibrated=105,965
100% 99.8% 105,965 105,705
90% 90.2% 95,369 95,588
80% 79.8% 84,772 84,608
70% 69.6% 74,176 73,801
60% 59.5% 63,579 63,062
50% 50.6% 52,983 53,603
40% 39.9% 42,386 42,274
30% 30.2% 31,790 32,039
20% 20.2% 21,193 21,358
10% 10.1% 10,597 10,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,161
Calibration 2     101,648
Calibration 3     101,846
ssj_ops@calibrated=101,747
100% 99.7% 101,747 101,465
90% 89.8% 91,572 91,414
80% 80.0% 81,397 81,403
70% 69.9% 71,223 71,104
60% 60.7% 61,048 61,759
50% 49.9% 50,873 50,765
40% 40.3% 40,699 40,985
30% 30.3% 30,524 30,838
20% 20.1% 20,349 20,442
10% 10.4% 10,175 10,595
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,345
Calibration 2     106,325
Calibration 3     106,314
ssj_ops@calibrated=106,319
100% 99.5% 106,319 105,784
90% 91.0% 95,688 96,716
80% 79.3% 85,056 84,291
70% 70.6% 74,424 75,024
60% 60.2% 63,792 64,021
50% 50.1% 53,160 53,282
40% 39.0% 42,528 41,489
30% 30.1% 31,896 32,011
20% 20.1% 21,264 21,358
10% 10.0% 10,632 10,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,769
Calibration 2     97,498
Calibration 3     97,666
ssj_ops@calibrated=97,582
100% 99.8% 97,582 97,349
90% 91.0% 87,824 88,847
80% 79.8% 78,066 77,907
70% 70.9% 68,308 69,187
60% 59.4% 58,549 57,950
50% 49.6% 48,791 48,359
40% 40.3% 39,033 39,311
30% 30.0% 29,275 29,232
20% 20.0% 19,516 19,525
10% 10.2% 9,758 9,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,022
Calibration 2     105,589
Calibration 3     105,860
ssj_ops@calibrated=105,725
100% 100.3% 105,725 106,059
90% 90.1% 95,152 95,250
80% 80.4% 84,580 84,967
70% 70.0% 74,007 73,988
60% 59.8% 63,435 63,172
50% 49.5% 52,862 52,300
40% 39.8% 42,290 42,040
30% 29.6% 31,717 31,262
20% 20.1% 21,145 21,246
10% 10.0% 10,572 10,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,034
Calibration 2     103,049
Calibration 3     103,577
ssj_ops@calibrated=103,313
100% 99.4% 103,313 102,642
90% 90.3% 92,982 93,326
80% 80.9% 82,650 83,604
70% 69.7% 72,319 72,039
60% 59.7% 61,988 61,723
50% 50.1% 51,657 51,741
40% 39.8% 41,325 41,075
30% 30.3% 30,994 31,262
20% 19.9% 20,663 20,562
10% 10.1% 10,331 10,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,125
Calibration 2     104,242
Calibration 3     104,497
ssj_ops@calibrated=104,370
100% 98.8% 104,370 103,149
90% 89.9% 93,933 93,782
80% 79.3% 83,496 82,814
70% 69.4% 73,059 72,442
60% 59.9% 62,622 62,538
50% 50.3% 52,185 52,505
40% 39.1% 41,748 40,798
30% 30.0% 31,311 31,302
20% 19.9% 20,874 20,764
10% 9.8% 10,437 10,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,446
Calibration 2     106,721
Calibration 3     107,048
ssj_ops@calibrated=106,885
100% 100.0% 106,885 106,888
90% 89.7% 96,196 95,914
80% 80.9% 85,508 86,439
70% 68.8% 74,819 73,490
60% 59.5% 64,131 63,589
50% 50.4% 53,442 53,840
40% 39.9% 42,754 42,619
30% 30.5% 32,065 32,605
20% 19.7% 21,377 21,075
10% 10.0% 10,688 10,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,595
Calibration 2     106,909
Calibration 3     107,295
ssj_ops@calibrated=107,102
100% 99.8% 107,102 106,855
90% 89.2% 96,392 95,517
80% 79.9% 85,682 85,555
70% 70.2% 74,971 75,181
60% 59.9% 64,261 64,132
50% 50.3% 53,551 53,895
40% 39.7% 42,841 42,560
30% 29.8% 32,131 31,912
20% 20.0% 21,420 21,379
10% 10.3% 10,710 10,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,571
Calibration 2     106,804
Calibration 3     106,946
ssj_ops@calibrated=106,875
100% 100.0% 106,875 106,884
90% 90.4% 96,188 96,570
80% 80.9% 85,500 86,446
70% 69.0% 74,813 73,775
60% 59.8% 64,125 63,958
50% 49.1% 53,438 52,467
40% 39.5% 42,750 42,187
30% 29.9% 32,063 31,935
20% 20.4% 21,375 21,789
10% 9.8% 10,688 10,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,653
Calibration 2     106,568
Calibration 3     106,760
ssj_ops@calibrated=106,664
100% 99.9% 106,664 106,519
90% 89.8% 95,998 95,820
80% 80.1% 85,331 85,469
70% 70.2% 74,665 74,835
60% 60.2% 63,999 64,260
50% 49.7% 53,332 53,009
40% 40.0% 42,666 42,656
30% 29.5% 31,999 31,436
20% 20.0% 21,333 21,384
10% 10.2% 10,666 10,889
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,702
Calibration 2     107,021
Calibration 3     107,391
ssj_ops@calibrated=107,206
100% 99.0% 107,206 106,137
90% 88.9% 96,485 95,276
80% 80.2% 85,765 86,006
70% 70.2% 75,044 75,214
60% 59.8% 64,324 64,059
50% 49.1% 53,603 52,598
40% 39.9% 42,882 42,724
30% 30.2% 32,162 32,398
20% 19.9% 21,441 21,341
10% 9.8% 10,721 10,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,771
Calibration 2     104,800
Calibration 3     105,966
ssj_ops@calibrated=105,383
100% 100.3% 105,383 105,681
90% 89.1% 94,845 93,858
80% 78.8% 84,306 83,037
70% 69.9% 73,768 73,620
60% 60.0% 63,230 63,200
50% 50.0% 52,691 52,742
40% 40.0% 42,153 42,183
30% 30.5% 31,615 32,104
20% 20.0% 21,077 21,100
10% 9.9% 10,538 10,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,004
Calibration 2     106,578
Calibration 3     106,655
ssj_ops@calibrated=106,616
100% 98.9% 106,616 105,454
90% 90.2% 95,955 96,187
80% 80.1% 85,293 85,436
70% 68.9% 74,632 73,504
60% 60.3% 63,970 64,241
50% 50.1% 53,308 53,445
40% 40.1% 42,647 42,750
30% 29.9% 31,985 31,930
20% 19.7% 21,323 20,995
10% 10.3% 10,662 10,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,762
Calibration 2     97,759
Calibration 3     97,850
ssj_ops@calibrated=97,804
100% 100.1% 97,804 97,892
90% 90.3% 88,024 88,291
80% 80.4% 78,243 78,603
70% 70.9% 68,463 69,344
60% 60.1% 58,683 58,783
50% 50.6% 48,902 49,478
40% 39.8% 39,122 38,930
30% 29.9% 29,341 29,219
20% 20.0% 19,561 19,540
10% 10.1% 9,780 9,865
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,451
Calibration 2     105,223
Calibration 3     105,381
ssj_ops@calibrated=105,302
100% 99.3% 105,302 104,600
90% 89.5% 94,772 94,255
80% 79.5% 84,241 83,690
70% 70.6% 73,711 74,320
60% 59.5% 63,181 62,653
50% 49.8% 52,651 52,434
40% 40.1% 42,121 42,228
30% 30.1% 31,591 31,695
20% 19.8% 21,060 20,878
10% 9.6% 10,530 10,147
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,968
Calibration 2     106,702
Calibration 3     107,008
ssj_ops@calibrated=106,855
100% 100.3% 106,855 107,123
90% 90.2% 96,169 96,332
80% 80.2% 85,484 85,731
70% 69.2% 74,798 73,970
60% 60.2% 64,113 64,283
50% 50.1% 53,427 53,542
40% 39.8% 42,742 42,482
30% 30.0% 32,056 32,096
20% 20.0% 21,371 21,350
10% 10.3% 10,685 11,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,353
Calibration 2     106,315
Calibration 3     106,441
ssj_ops@calibrated=106,378
100% 99.6% 106,378 105,950
90% 89.7% 95,740 95,455
80% 80.6% 85,102 85,704
70% 69.2% 74,464 73,579
60% 60.0% 63,827 63,871
50% 50.1% 53,189 53,295
40% 39.9% 42,551 42,479
30% 29.9% 31,913 31,775
20% 19.8% 21,276 21,096
10% 10.3% 10,638 10,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,150
Calibration 2     105,830
Calibration 3     106,140
ssj_ops@calibrated=105,985
100% 99.9% 105,985 105,874
90% 89.5% 95,387 94,874
80% 79.6% 84,788 84,324
70% 70.2% 74,190 74,364
60% 58.8% 63,591 62,332
50% 49.0% 52,993 51,958
40% 39.5% 42,394 41,903
30% 30.0% 31,796 31,769
20% 19.7% 21,197 20,890
10% 10.0% 10,599 10,639
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,668
Calibration 2     101,220
Calibration 3     101,544
ssj_ops@calibrated=101,382
100% 100.4% 101,382 101,823
90% 89.2% 91,244 90,385
80% 80.5% 81,105 81,566
70% 70.4% 70,967 71,410
60% 60.1% 60,829 60,884
50% 50.0% 50,691 50,680
40% 39.9% 40,553 40,403
30% 30.0% 30,415 30,387
20% 20.3% 20,276 20,606
10% 9.7% 10,138 9,838
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,102
Calibration 2     107,278
Calibration 3     107,644
ssj_ops@calibrated=107,461
100% 98.9% 107,461 106,239
90% 89.6% 96,715 96,291
80% 80.1% 85,969 86,076
70% 68.6% 75,223 73,756
60% 60.2% 64,477 64,656
50% 49.4% 53,731 53,108
40% 39.7% 42,984 42,629
30% 30.3% 32,238 32,512
20% 19.8% 21,492 21,296
10% 10.1% 10,746 10,802
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,468
Calibration 2     100,002
Calibration 3     100,502
ssj_ops@calibrated=100,252
100% 98.9% 100,252 99,196
90% 89.9% 90,226 90,117
80% 80.1% 80,201 80,274
70% 69.6% 70,176 69,766
60% 60.0% 60,151 60,169
50% 49.6% 50,126 49,766
40% 40.3% 40,101 40,423
30% 29.5% 30,075 29,624
20% 20.3% 20,050 20,309
10% 10.0% 10,025 10,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,123
Calibration 2     105,657
Calibration 3     105,778
ssj_ops@calibrated=105,717
100% 100.2% 105,717 105,914
90% 89.5% 95,146 94,601
80% 80.5% 84,574 85,098
70% 69.6% 74,002 73,573
60% 60.5% 63,430 63,924
50% 49.8% 52,859 52,595
40% 39.9% 42,287 42,192
30% 29.6% 31,715 31,287
20% 19.5% 21,143 20,621
10% 10.1% 10,572 10,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,455
Calibration 2     106,113
Calibration 3     106,597
ssj_ops@calibrated=106,355
100% 100.4% 106,355 106,748
90% 89.5% 95,719 95,188
80% 79.3% 85,084 84,392
70% 70.3% 74,448 74,739
60% 59.7% 63,813 63,492
50% 50.5% 53,177 53,736
40% 40.1% 42,542 42,678
30% 30.0% 31,906 31,915
20% 20.2% 21,271 21,525
10% 9.7% 10,635 10,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,178
Calibration 2     105,660
Calibration 3     105,915
ssj_ops@calibrated=105,788
100% 100.0% 105,788 105,808
90% 89.8% 95,209 95,045
80% 79.3% 84,630 83,896
70% 69.7% 74,051 73,784
60% 59.8% 63,473 63,298
50% 49.7% 52,894 52,565
40% 40.0% 42,315 42,296
30% 30.0% 31,736 31,784
20% 20.0% 21,158 21,189
10% 10.0% 10,579 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,570
Calibration 2     107,519
Calibration 3     108,105
ssj_ops@calibrated=107,812
100% 99.7% 107,812 107,504
90% 89.1% 97,031 96,113
80% 80.4% 86,249 86,668
70% 70.3% 75,468 75,743
60% 59.7% 64,687 64,321
50% 50.1% 53,906 53,976
40% 40.2% 43,125 43,289
30% 29.9% 32,344 32,215
20% 20.1% 21,562 21,698
10% 9.2% 10,781 9,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,578
Calibration 2     104,923
Calibration 3     105,304
ssj_ops@calibrated=105,114
100% 99.8% 105,114 104,929
90% 90.6% 94,602 95,218
80% 80.5% 84,091 84,644
70% 70.4% 73,579 73,953
60% 59.5% 63,068 62,580
50% 50.0% 52,557 52,553
40% 40.9% 42,045 42,979
30% 30.4% 31,534 31,940
20% 20.0% 21,023 20,996
10% 10.0% 10,511 10,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,415
Calibration 2     105,288
Calibration 3     105,385
ssj_ops@calibrated=105,337
100% 99.2% 105,337 104,484
90% 90.2% 94,803 94,973
80% 80.7% 84,269 84,987
70% 70.1% 73,736 73,866
60% 60.1% 63,202 63,290
50% 50.5% 52,668 53,209
40% 40.6% 42,135 42,753
30% 30.0% 31,601 31,548
20% 20.4% 21,067 21,485
10% 10.4% 10,534 10,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,815
Calibration 2     106,658
Calibration 3     107,063
ssj_ops@calibrated=106,861
100% 98.9% 106,861 105,715
90% 90.6% 96,175 96,814
80% 79.8% 85,488 85,298
70% 71.0% 74,802 75,895
60% 59.7% 64,116 63,812
50% 50.4% 53,430 53,830
40% 40.3% 42,744 43,114
30% 30.1% 32,058 32,140
20% 19.9% 21,372 21,308
10% 9.9% 10,686 10,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,025
Calibration 2     99,968
Calibration 3     100,106
ssj_ops@calibrated=100,037
100% 99.0% 100,037 99,068
90% 90.0% 90,033 90,010
80% 80.7% 80,030 80,712
70% 70.1% 70,026 70,113
60% 60.0% 60,022 59,980
50% 49.8% 50,018 49,815
40% 40.1% 40,015 40,124
30% 30.2% 30,011 30,175
20% 20.2% 20,007 20,162
10% 10.3% 10,004 10,330
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,494
Calibration 2     98,753
Calibration 3     99,074
ssj_ops@calibrated=98,914
100% 99.6% 98,914 98,516
90% 88.9% 89,022 87,917
80% 79.9% 79,131 79,027
70% 69.9% 69,240 69,121
60% 59.7% 59,348 59,033
50% 50.4% 49,457 49,856
40% 40.7% 39,566 40,259
30% 29.9% 29,674 29,607
20% 20.1% 19,783 19,871
10% 9.7% 9,891 9,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,192
Calibration 2     105,561
Calibration 3     105,873
ssj_ops@calibrated=105,717
100% 99.3% 105,717 105,010
90% 89.7% 95,145 94,841
80% 79.9% 84,574 84,467
70% 69.5% 74,002 73,438
60% 60.3% 63,430 63,790
50% 49.0% 52,859 51,759
40% 39.9% 42,287 42,135
30% 29.5% 31,715 31,149
20% 20.4% 21,143 21,567
10% 10.3% 10,572 10,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,775
Calibration 2     106,236
Calibration 3     106,634
ssj_ops@calibrated=106,435
100% 99.8% 106,435 106,267
90% 90.6% 95,791 96,482
80% 78.7% 85,148 83,777
70% 69.9% 74,504 74,374
60% 59.3% 63,861 63,146
50% 50.3% 53,217 53,516
40% 40.2% 42,574 42,768
30% 29.7% 31,930 31,583
20% 19.8% 21,287 21,096
10% 10.0% 10,643 10,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,986
Calibration 2     99,719
Calibration 3     100,163
ssj_ops@calibrated=99,941
100% 100.1% 99,941 100,064
90% 89.6% 89,947 89,578
80% 80.4% 79,953 80,334
70% 69.6% 69,959 69,599
60% 60.0% 59,964 59,996
50% 50.1% 49,970 50,029
40% 40.3% 39,976 40,245
30% 29.0% 29,982 29,014
20% 19.9% 19,988 19,876
10% 9.8% 9,994 9,755
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,303
Calibration 2     106,249
Calibration 3     106,423
ssj_ops@calibrated=106,336
100% 100.3% 106,336 106,661
90% 89.1% 95,702 94,698
80% 80.4% 85,069 85,497
70% 69.3% 74,435 73,731
60% 59.8% 63,801 63,636
50% 50.1% 53,168 53,224
40% 39.7% 42,534 42,244
30% 29.6% 31,901 31,506
20% 20.0% 21,267 21,261
10% 10.1% 10,634 10,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,812
Calibration 2     102,312
Calibration 3     102,751
ssj_ops@calibrated=102,532
100% 99.8% 102,532 102,310
90% 90.4% 92,278 92,650
80% 80.3% 82,025 82,293
70% 70.8% 71,772 72,585
60% 59.7% 61,519 61,184
50% 50.5% 51,266 51,817
40% 40.2% 41,013 41,218
30% 30.0% 30,759 30,766
20% 19.8% 20,506 20,271
10% 10.0% 10,253 10,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,241
Calibration 2     105,680
Calibration 3     105,880
ssj_ops@calibrated=105,780
100% 99.7% 105,780 105,501
90% 89.6% 95,202 94,744
80% 80.0% 84,624 84,580
70% 69.3% 74,046 73,329
60% 59.4% 63,468 62,786
50% 50.7% 52,890 53,606
40% 40.1% 42,312 42,470
30% 30.1% 31,734 31,828
20% 20.1% 21,156 21,265
10% 9.8% 10,578 10,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,157
Calibration 2     106,411
Calibration 3     106,684
ssj_ops@calibrated=106,548
100% 99.7% 106,548 106,231
90% 89.2% 95,893 95,074
80% 80.1% 85,238 85,300
70% 69.4% 74,583 73,956
60% 59.7% 63,929 63,625
50% 50.0% 53,274 53,230
40% 40.5% 42,619 43,130
30% 29.6% 31,964 31,577
20% 19.5% 21,310 20,820
10% 10.0% 10,655 10,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,270
Calibration 2     104,331
Calibration 3     104,604
ssj_ops@calibrated=104,467
100% 99.8% 104,467 104,289
90% 90.2% 94,021 94,254
80% 80.1% 83,574 83,714
70% 70.0% 73,127 73,090
60% 60.6% 62,680 63,297
50% 50.0% 52,234 52,205
40% 39.8% 41,787 41,621
30% 29.9% 31,340 31,237
20% 20.1% 20,893 21,000
10% 10.5% 10,447 10,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,932
Calibration 2     103,442
Calibration 3     103,713
ssj_ops@calibrated=103,577
100% 100.0% 103,577 103,561
90% 90.3% 93,220 93,497
80% 79.9% 82,862 82,793
70% 70.4% 72,504 72,945
60% 60.4% 62,146 62,531
50% 49.9% 51,789 51,682
40% 40.3% 41,431 41,772
30% 30.3% 31,073 31,424
20% 19.8% 20,715 20,502
10% 10.4% 10,358 10,744
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,716
Calibration 2     104,963
Calibration 3     105,289
ssj_ops@calibrated=105,126
100% 100.0% 105,126 105,162
90% 91.0% 94,614 95,622
80% 79.6% 84,101 83,676
70% 70.4% 73,588 73,988
60% 60.1% 63,076 63,207
50% 50.8% 52,563 53,374
40% 40.3% 42,051 42,314
30% 30.7% 31,538 32,271
20% 20.0% 21,025 20,992
10% 9.9% 10,513 10,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,008
Calibration 2     105,117
Calibration 3     105,349
ssj_ops@calibrated=105,233
100% 100.1% 105,233 105,299
90% 89.8% 94,710 94,461
80% 80.4% 84,187 84,646
70% 69.5% 73,663 73,188
60% 59.3% 63,140 62,443
50% 50.0% 52,617 52,661
40% 40.2% 42,093 42,267
30% 29.5% 31,570 31,057
20% 20.0% 21,047 21,031
10% 10.4% 10,523 10,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,432
Calibration 2     102,121
Calibration 3     102,571
ssj_ops@calibrated=102,346
100% 99.6% 102,346 101,981
90% 90.5% 92,111 92,616
80% 79.5% 81,877 81,334
70% 69.7% 71,642 71,289
60% 59.8% 61,407 61,159
50% 49.7% 51,173 50,865
40% 39.7% 40,938 40,634
30% 30.3% 30,704 30,992
20% 20.1% 20,469 20,543
10% 9.9% 10,235 10,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,669
Calibration 2     101,798
Calibration 3     102,061
ssj_ops@calibrated=101,929
100% 99.8% 101,929 101,701
90% 89.8% 91,736 91,504
80% 80.1% 81,543 81,603
70% 70.0% 71,350 71,338
60% 60.7% 61,157 61,827
50% 50.0% 50,965 50,970
40% 39.7% 40,772 40,448
30% 29.7% 30,579 30,223
20% 19.7% 20,386 20,087
10% 10.2% 10,193 10,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,371
Calibration 2     105,134
Calibration 3     105,333
ssj_ops@calibrated=105,233
100% 99.9% 105,233 105,156
90% 90.0% 94,710 94,688
80% 79.5% 84,187 83,655
70% 70.7% 73,663 74,357
60% 59.3% 63,140 62,375
50% 49.6% 52,617 52,207
40% 40.7% 42,093 42,834
30% 29.8% 31,570 31,382
20% 19.8% 21,047 20,838
10% 9.9% 10,523 10,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,620
Calibration 2     107,300
Calibration 3     107,488
ssj_ops@calibrated=107,394
100% 99.2% 107,394 106,572
90% 90.7% 96,654 97,459
80% 80.2% 85,915 86,137
70% 70.0% 75,176 75,164
60% 59.6% 64,436 64,027
50% 50.1% 53,697 53,785
40% 39.3% 42,958 42,179
30% 30.0% 32,218 32,197
20% 20.0% 21,479 21,529
10% 10.3% 10,739 11,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,293
Calibration 2     99,302
Calibration 3     99,621
ssj_ops@calibrated=99,462
100% 99.3% 99,462 98,773
90% 90.2% 89,516 89,686
80% 79.9% 79,570 79,513
70% 70.0% 69,623 69,579
60% 59.5% 59,677 59,133
50% 49.7% 49,731 49,416
40% 39.8% 39,785 39,629
30% 30.5% 29,839 30,287
20% 20.2% 19,892 20,096
10% 10.2% 9,946 10,117
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,574
Calibration 2     107,257
Calibration 3     107,362
ssj_ops@calibrated=107,310
100% 100.2% 107,310 107,558
90% 89.8% 96,579 96,400
80% 79.1% 85,848 84,933
70% 70.8% 75,117 75,934
60% 60.0% 64,386 64,417
50% 49.6% 53,655 53,189
40% 39.5% 42,924 42,364
30% 30.0% 32,193 32,157
20% 19.8% 21,462 21,243
10% 10.0% 10,731 10,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,979
Calibration 2     104,361
Calibration 3     104,610
ssj_ops@calibrated=104,486
100% 99.8% 104,486 104,315
90% 89.7% 94,037 93,690
80% 80.1% 83,589 83,690
70% 69.8% 73,140 72,969
60% 59.5% 62,692 62,176
50% 49.1% 52,243 51,284
40% 39.8% 41,794 41,562
30% 30.1% 31,346 31,466
20% 19.7% 20,897 20,570
10% 10.0% 10,449 10,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,087
Calibration 2     106,784
Calibration 3     106,950
ssj_ops@calibrated=106,867
100% 99.4% 106,867 106,216
90% 91.1% 96,180 97,358
80% 79.0% 85,494 84,463
70% 70.9% 74,807 75,763
60% 60.4% 64,120 64,587
50% 50.0% 53,433 53,477
40% 40.3% 42,747 43,112
30% 29.9% 32,060 31,926
20% 20.0% 21,373 21,368
10% 9.8% 10,687 10,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,916
Calibration 2     105,684
Calibration 3     106,581
ssj_ops@calibrated=106,132
100% 99.6% 106,132 105,696
90% 88.9% 95,519 94,328
80% 80.4% 84,906 85,299
70% 70.9% 74,293 75,223
60% 60.2% 63,679 63,850
50% 50.1% 53,066 53,128
40% 40.0% 42,453 42,496
30% 29.8% 31,840 31,624
20% 19.8% 21,226 20,998
10% 9.8% 10,613 10,377
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,309
Calibration 2     106,361
Calibration 3     106,496
ssj_ops@calibrated=106,428
100% 99.5% 106,428 105,850
90% 89.6% 95,785 95,324
80% 79.5% 85,142 84,592
70% 69.9% 74,500 74,346
60% 60.0% 63,857 63,862
50% 50.0% 53,214 53,196
40% 40.5% 42,571 43,052
30% 30.0% 31,928 31,885
20% 19.9% 21,286 21,196
10% 10.2% 10,643 10,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,716
Calibration 2     107,156
Calibration 3     107,316
ssj_ops@calibrated=107,236
100% 99.6% 107,236 106,814
90% 89.6% 96,513 96,126
80% 79.5% 85,789 85,270
70% 70.5% 75,065 75,604
60% 60.8% 64,342 65,190
50% 49.5% 53,618 53,065
40% 39.9% 42,895 42,788
30% 29.6% 32,171 31,794
20% 19.7% 21,447 21,114
10% 9.7% 10,724 10,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,449
Calibration 2     106,687
Calibration 3     107,026
ssj_ops@calibrated=106,856
100% 100.3% 106,856 107,223
90% 89.6% 96,171 95,700
80% 79.6% 85,485 85,079
70% 69.7% 74,799 74,516
60% 60.0% 64,114 64,120
50% 50.7% 53,428 54,132
40% 39.8% 42,743 42,482
30% 29.6% 32,057 31,658
20% 20.0% 21,371 21,357
10% 9.7% 10,686 10,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,993
Calibration 2     106,524
Calibration 3     106,834
ssj_ops@calibrated=106,679
100% 98.8% 106,679 105,415
90% 90.5% 96,011 96,567
80% 80.5% 85,343 85,864
70% 69.6% 74,675 74,216
60% 59.8% 64,007 63,811
50% 51.3% 53,339 54,718
40% 40.2% 42,672 42,936
30% 29.9% 32,004 31,933
20% 19.7% 21,336 20,982
10% 9.7% 10,668 10,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,817
Calibration 2     103,797
Calibration 3     104,188
ssj_ops@calibrated=103,992
100% 100.0% 103,992 103,955
90% 89.2% 93,593 92,768
80% 80.3% 83,194 83,520
70% 70.1% 72,795 72,907
60% 59.5% 62,395 61,833
50% 49.6% 51,996 51,609
40% 40.5% 41,597 42,086
30% 30.3% 31,198 31,556
20% 19.6% 20,798 20,400
10% 10.2% 10,399 10,652
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,139
Calibration 2     106,722
Calibration 3     107,000
ssj_ops@calibrated=106,861
100% 100.1% 106,861 106,930
90% 89.8% 96,175 95,989
80% 79.7% 85,489 85,154
70% 70.3% 74,803 75,174
60% 60.6% 64,117 64,723
50% 50.3% 53,431 53,804
40% 40.1% 42,744 42,821
30% 29.7% 32,058 31,713
20% 20.2% 21,372 21,599
10% 9.9% 10,686 10,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,161
Calibration 2     105,923
Calibration 3     106,329
ssj_ops@calibrated=106,126
100% 98.9% 106,126 104,992
90% 90.3% 95,513 95,883
80% 81.5% 84,901 86,504
70% 69.7% 74,288 73,982
60% 60.2% 63,676 63,893
50% 49.3% 53,063 52,302
40% 40.7% 42,450 43,191
30% 30.3% 31,838 32,124
20% 20.2% 21,225 21,387
10% 10.0% 10,613 10,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,651
Calibration 2     103,357
Calibration 3     103,672
ssj_ops@calibrated=103,514
100% 100.8% 103,514 104,373
90% 90.0% 93,163 93,192
80% 80.0% 82,812 82,795
70% 70.0% 72,460 72,438
60% 59.9% 62,109 61,971
50% 49.2% 51,757 50,944
40% 40.3% 41,406 41,693
30% 29.5% 31,054 30,586
20% 19.9% 20,703 20,630
10% 9.6% 10,351 9,980
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-06.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,906
Calibration 2     107,577
Calibration 3     107,737
ssj_ops@calibrated=107,657
100% 100.3% 107,657 107,986
90% 89.8% 96,891 96,692
80% 80.3% 86,126 86,466
70% 69.5% 75,360 74,872
60% 59.8% 64,594 64,379
50% 50.1% 53,828 53,931
40% 40.7% 43,063 43,794
30% 29.9% 32,297 32,200
20% 19.8% 21,531 21,296
10% 10.1% 10,766 10,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
