Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,321,934
ssj_ops@100% per JVM = 104,024
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 13, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,601,753
Calibration 2     8,336,247
Calibration 3     8,352,035
ssj_ops@calibrated=8,344,141
100% 99.7% 8,344,141 8,321,934
90% 90.0% 7,509,727 7,506,653
80% 80.2% 6,675,313 6,688,254
70% 70.1% 5,840,899 5,848,122
60% 60.0% 5,006,485 5,004,297
50% 50.0% 4,172,071 4,168,108
40% 39.9% 3,337,656 3,332,898
30% 30.0% 2,503,242 2,500,100
20% 20.0% 1,668,828 1,670,068
10% 10.0% 834,414 835,630
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 6
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-04.001 104,970
sy480-04.002 105,811
sy480-04.003 100,565
sy480-04.004 101,635
sy480-04.005 106,310
sy480-04.006 104,391
sy480-04.007 104,910
sy480-04.008 104,130
sy480-04.009 106,548
sy480-04.010 106,399
sy480-04.011 93,750
sy480-04.012 104,053
sy480-04.013 102,930
sy480-04.014 108,476
sy480-04.015 105,965
sy480-04.016 104,133
sy480-04.017 101,294
sy480-04.018 104,488
sy480-04.019 103,889
sy480-04.020 102,021
sy480-04.021 106,220
sy480-04.022 107,436
sy480-04.023 105,412
sy480-04.024 104,941
sy480-04.025 103,139
sy480-04.026 107,581
sy480-04.027 100,571
sy480-04.028 103,657
sy480-04.029 104,601
sy480-04.030 106,287
sy480-04.031 104,406
sy480-04.032 106,415
sy480-04.033 104,332
sy480-04.034 105,770
sy480-04.035 105,910
sy480-04.036 104,555
sy480-04.037 105,501
sy480-04.038 94,869
sy480-04.039 106,388
sy480-04.040 106,827
sy480-04.041 100,220
sy480-04.042 100,755
sy480-04.043 105,880
sy480-04.044 104,168
sy480-04.045 107,151
sy480-04.046 106,506
sy480-04.047 99,653
sy480-04.048 102,491
sy480-04.049 105,918
sy480-04.050 99,069
sy480-04.051 106,004
sy480-04.052 105,830
sy480-04.053 98,814
sy480-04.054 103,186
sy480-04.055 100,814
sy480-04.056 103,047
sy480-04.057 106,272
sy480-04.058 106,321
sy480-04.059 103,366
sy480-04.060 104,718
sy480-04.061 105,519
sy480-04.062 105,923
sy480-04.063 105,558
sy480-04.064 105,811
sy480-04.065 100,662
sy480-04.066 104,665
sy480-04.067 104,740
sy480-04.068 100,700
sy480-04.069 99,737
sy480-04.070 105,342
sy480-04.071 104,609
sy480-04.072 105,055
sy480-04.073 105,625
sy480-04.074 105,276
sy480-04.075 102,485
sy480-04.076 103,042
sy480-04.077 104,569
sy480-04.078 103,869
sy480-04.079 105,633
sy480-04.080 101,442
ssj_ops@100% 8,321,934
ssj_ops@100% per JVM 104,024

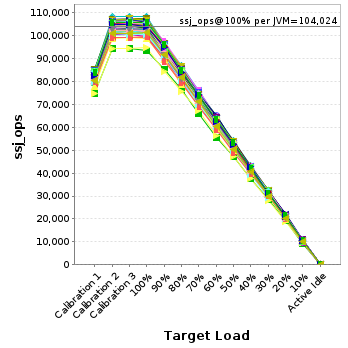

Graph of per-instance results
JVM 'sy480-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,035
Calibration 2     105,220
Calibration 3     105,160
ssj_ops@calibrated=105,190
100% 99.8% 105,190 104,970
90% 90.2% 94,671 94,846
80% 81.0% 84,152 85,173
70% 69.4% 73,633 73,043
60% 60.3% 63,114 63,472
50% 50.2% 52,595 52,851
40% 40.3% 42,076 42,406
30% 30.0% 31,557 31,568
20% 20.0% 21,038 20,997
10% 10.2% 10,519 10,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,573
Calibration 2     106,463
Calibration 3     106,408
ssj_ops@calibrated=106,435
100% 99.4% 106,435 105,811
90% 90.1% 95,792 95,884
80% 80.5% 85,148 85,645
70% 69.2% 74,505 73,666
60% 61.2% 63,861 65,155
50% 50.2% 53,218 53,465
40% 39.7% 42,574 42,230
30% 30.2% 31,931 32,154
20% 19.9% 21,287 21,151
10% 10.2% 10,644 10,831
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,751
Calibration 2     100,601
Calibration 3     100,904
ssj_ops@calibrated=100,752
100% 99.8% 100,752 100,565
90% 89.2% 90,677 89,832
80% 80.2% 80,602 80,813
70% 70.4% 70,527 70,927
60% 60.5% 60,451 60,971
50% 49.8% 50,376 50,144
40% 39.9% 40,301 40,250
30% 30.8% 30,226 31,016
20% 20.1% 20,150 20,249
10% 9.8% 10,075 9,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,248
Calibration 2     102,327
Calibration 3     102,539
ssj_ops@calibrated=102,433
100% 99.2% 102,433 101,635
90% 89.7% 92,190 91,832
80% 79.6% 81,946 81,513
70% 70.7% 71,703 72,461
60% 59.3% 61,460 60,771
50% 50.1% 51,216 51,294
40% 39.8% 40,973 40,786
30% 30.0% 30,730 30,752
20% 19.7% 20,487 20,194
10% 10.4% 10,243 10,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,892
Calibration 2     106,982
Calibration 3     107,018
ssj_ops@calibrated=107,000
100% 99.4% 107,000 106,310
90% 90.3% 96,300 96,571
80% 80.2% 85,600 85,815
70% 70.3% 74,900 75,195
60% 59.5% 64,200 63,659
50% 49.3% 53,500 52,778
40% 40.7% 42,800 43,578
30% 30.2% 32,100 32,316
20% 20.4% 21,400 21,829
10% 10.2% 10,700 10,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,862
Calibration 2     104,869
Calibration 3     105,324
ssj_ops@calibrated=105,097
100% 99.3% 105,097 104,391
90% 89.5% 94,587 94,042
80% 80.1% 84,077 84,165
70% 69.7% 73,568 73,269
60% 59.7% 63,058 62,766
50% 49.7% 52,548 52,275
40% 39.8% 42,039 41,806
30% 29.3% 31,529 30,805
20% 20.0% 21,019 20,990
10% 10.1% 10,510 10,636
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,143
Calibration 2     104,567
Calibration 3     104,673
ssj_ops@calibrated=104,620
100% 100.3% 104,620 104,910
90% 88.5% 94,158 92,541
80% 81.0% 83,696 84,783
70% 70.0% 73,234 73,191
60% 59.9% 62,772 62,640
50% 50.7% 52,310 52,994
40% 40.3% 41,848 42,181
30% 30.2% 31,386 31,584
20% 20.1% 20,924 21,033
10% 9.9% 10,462 10,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,875
Calibration 2     103,694
Calibration 3     103,905
ssj_ops@calibrated=103,800
100% 100.3% 103,800 104,130
90% 91.2% 93,420 94,665
80% 80.5% 83,040 83,555
70% 70.0% 72,660 72,657
60% 59.9% 62,280 62,214
50% 49.9% 51,900 51,770
40% 39.8% 41,520 41,332
30% 29.6% 31,140 30,714
20% 20.4% 20,760 21,171
10% 9.9% 10,380 10,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,319
Calibration 2     106,050
Calibration 3     106,272
ssj_ops@calibrated=106,161
100% 100.4% 106,161 106,548
90% 90.2% 95,545 95,740
80% 80.7% 84,929 85,691
70% 69.8% 74,313 74,107
60% 60.4% 63,697 64,071
50% 49.3% 53,081 52,386
40% 39.7% 42,465 42,180
30% 30.1% 31,848 31,958
20% 20.2% 21,232 21,472
10% 9.9% 10,616 10,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,656
Calibration 2     106,468
Calibration 3     106,709
ssj_ops@calibrated=106,588
100% 99.8% 106,588 106,399
90% 89.1% 95,930 95,006
80% 80.2% 85,271 85,503
70% 70.8% 74,612 75,452
60% 60.3% 63,953 64,258
50% 50.2% 53,294 53,504
40% 39.8% 42,635 42,461
30% 30.3% 31,977 32,252
20% 20.5% 21,318 21,831
10% 10.0% 10,659 10,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,784
Calibration 2     94,635
Calibration 3     94,564
ssj_ops@calibrated=94,600
100% 99.1% 94,600 93,750
90% 90.0% 85,140 85,146
80% 80.9% 75,680 76,575
70% 69.8% 66,220 66,058
60% 59.0% 56,760 55,778
50% 50.0% 47,300 47,321
40% 39.9% 37,840 37,734
30% 30.1% 28,380 28,457
20% 20.4% 18,920 19,335
10% 9.8% 9,460 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,104
Calibration 2     103,793
Calibration 3     103,990
ssj_ops@calibrated=103,891
100% 100.2% 103,891 104,053
90% 89.2% 93,502 92,643
80% 80.6% 83,113 83,762
70% 70.1% 72,724 72,800
60% 60.2% 62,335 62,503
50% 49.8% 51,946 51,704
40% 38.9% 41,557 40,420
30% 30.1% 31,167 31,283
20% 19.9% 20,778 20,661
10% 10.0% 10,389 10,434
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,085
Calibration 2     102,887
Calibration 3     103,326
ssj_ops@calibrated=103,107
100% 99.8% 103,107 102,930
90% 89.8% 92,796 92,595
80% 79.6% 82,485 82,039
70% 71.8% 72,175 74,001
60% 59.9% 61,864 61,764
50% 49.3% 51,553 50,863
40% 40.4% 41,243 41,617
30% 29.9% 30,932 30,863
20% 20.5% 20,621 21,138
10% 9.6% 10,311 9,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,885
Calibration 2     108,231
Calibration 3     108,419
ssj_ops@calibrated=108,325
100% 100.1% 108,325 108,476
90% 89.4% 97,493 96,834
80% 80.5% 86,660 87,173
70% 70.1% 75,828 75,904
60% 59.9% 64,995 64,924
50% 50.1% 54,163 54,308
40% 39.9% 43,330 43,265
30% 29.5% 32,498 31,928
20% 19.6% 21,665 21,285
10% 9.8% 10,833 10,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,942
Calibration 2     106,277
Calibration 3     106,403
ssj_ops@calibrated=106,340
100% 99.6% 106,340 105,965
90% 90.3% 95,706 96,070
80% 79.8% 85,072 84,826
70% 70.5% 74,438 74,967
60% 60.1% 63,804 63,894
50% 49.8% 53,170 52,994
40% 40.1% 42,536 42,623
30% 30.3% 31,902 32,217
20% 20.5% 21,268 21,788
10% 9.9% 10,634 10,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,111
Calibration 2     104,781
Calibration 3     104,985
ssj_ops@calibrated=104,883
100% 99.3% 104,883 104,133
90% 90.8% 94,395 95,274
80% 80.0% 83,906 83,877
70% 70.8% 73,418 74,240
60% 59.5% 62,930 62,435
50% 50.0% 52,441 52,411
40% 39.9% 41,953 41,877
30% 29.6% 31,465 31,033
20% 19.8% 20,977 20,777
10% 9.8% 10,488 10,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,116
Calibration 2     101,525
Calibration 3     101,744
ssj_ops@calibrated=101,635
100% 99.7% 101,635 101,294
90% 89.2% 91,471 90,672
80% 80.3% 81,308 81,634
70% 70.5% 71,144 71,681
60% 59.9% 60,981 60,886
50% 50.2% 50,817 51,050
40% 39.5% 40,654 40,130
30% 30.7% 30,490 31,164
20% 19.9% 20,327 20,255
10% 9.9% 10,163 10,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,374
Calibration 2     104,266
Calibration 3     104,216
ssj_ops@calibrated=104,241
100% 100.2% 104,241 104,488
90% 90.1% 93,817 93,925
80% 81.2% 83,393 84,691
70% 69.8% 72,969 72,714
60% 59.7% 62,545 62,280
50% 49.7% 52,121 51,770
40% 40.0% 41,696 41,659
30% 29.8% 31,272 31,066
20% 19.7% 20,848 20,517
10% 9.7% 10,424 10,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,882
Calibration 2     104,073
Calibration 3     104,426
ssj_ops@calibrated=104,249
100% 99.7% 104,249 103,889
90% 91.0% 93,825 94,823
80% 79.1% 83,400 82,429
70% 70.5% 72,975 73,482
60% 60.5% 62,550 63,075
50% 49.8% 52,125 51,935
40% 40.2% 41,700 41,951
30% 30.1% 31,275 31,378
20% 20.3% 20,850 21,148
10% 9.9% 10,425 10,290
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,098
Calibration 2     102,789
Calibration 3     103,107
ssj_ops@calibrated=102,948
100% 99.1% 102,948 102,021
90% 89.7% 92,653 92,368
80% 80.1% 82,358 82,505
70% 70.0% 72,064 72,013
60% 60.0% 61,769 61,738
50% 51.0% 51,474 52,498
40% 40.2% 41,179 41,343
30% 29.6% 30,884 30,461
20% 20.2% 20,590 20,842
10% 10.1% 10,295 10,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,281
Calibration 2     105,982
Calibration 3     106,060
ssj_ops@calibrated=106,021
100% 100.2% 106,021 106,220
90% 90.0% 95,419 95,438
80% 80.1% 84,816 84,918
70% 69.5% 74,214 73,706
60% 60.2% 63,612 63,791
50% 50.3% 53,010 53,290
40% 40.0% 42,408 42,437
30% 29.8% 31,806 31,618
20% 19.5% 21,204 20,652
10% 10.0% 10,602 10,621
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,565
Calibration 2     107,013
Calibration 3     106,985
ssj_ops@calibrated=106,999
100% 100.4% 106,999 107,436
90% 90.8% 96,299 97,172
80% 79.7% 85,599 85,255
70% 70.3% 74,899 75,171
60% 59.8% 64,199 63,943
50% 49.7% 53,500 53,209
40% 40.0% 42,800 42,798
30% 30.2% 32,100 32,362
20% 19.9% 21,400 21,268
10% 10.1% 10,700 10,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,718
Calibration 2     105,083
Calibration 3     105,142
ssj_ops@calibrated=105,112
100% 100.3% 105,112 105,412
90% 89.7% 94,601 94,262
80% 79.3% 84,090 83,338
70% 69.6% 73,579 73,187
60% 60.2% 63,067 63,328
50% 49.5% 52,556 52,065
40% 40.3% 42,045 42,404
30% 29.3% 31,534 30,831
20% 20.0% 21,022 21,020
10% 9.8% 10,511 10,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,811
Calibration 2     105,665
Calibration 3     105,809
ssj_ops@calibrated=105,737
100% 99.2% 105,737 104,941
90% 90.2% 95,163 95,389
80% 80.6% 84,590 85,259
70% 69.5% 74,016 73,497
60% 59.9% 63,442 63,369
50% 49.4% 52,869 52,236
40% 39.7% 42,295 41,969
30% 29.4% 31,721 31,139
20% 20.5% 21,147 21,701
10% 10.1% 10,574 10,634
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,930
Calibration 2     103,231
Calibration 3     103,365
ssj_ops@calibrated=103,298
100% 99.8% 103,298 103,139
90% 90.6% 92,968 93,541
80% 80.0% 82,638 82,643
70% 70.4% 72,308 72,739
60% 61.2% 61,979 63,182
50% 50.2% 51,649 51,832
40% 39.5% 41,319 40,759
30% 29.1% 30,989 30,054
20% 19.7% 20,660 20,363
10% 10.1% 10,330 10,482
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,238
Calibration 2     107,140
Calibration 3     107,574
ssj_ops@calibrated=107,357
100% 100.2% 107,357 107,581
90% 90.2% 96,621 96,815
80% 78.9% 85,886 84,713
70% 69.2% 75,150 74,262
60% 59.4% 64,414 63,757
50% 49.2% 53,679 52,776
40% 40.0% 42,943 42,953
30% 30.2% 32,207 32,448
20% 19.7% 21,471 21,172
10% 10.0% 10,736 10,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,709
Calibration 2     100,773
Calibration 3     100,779
ssj_ops@calibrated=100,776
100% 99.8% 100,776 100,571
90% 88.8% 90,698 89,529
80% 80.8% 80,621 81,454
70% 71.2% 70,543 71,769
60% 59.6% 60,466 60,074
50% 50.1% 50,388 50,522
40% 40.1% 40,310 40,446
30% 30.4% 30,233 30,653
20% 19.7% 20,155 19,844
10% 10.0% 10,078 10,123
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,305
Calibration 2     103,371
Calibration 3     103,742
ssj_ops@calibrated=103,556
100% 100.1% 103,556 103,657
90% 89.8% 93,201 93,002
80% 80.2% 82,845 83,063
70% 69.6% 72,489 72,108
60% 59.7% 62,134 61,780
50% 50.5% 51,778 52,292
40% 39.7% 41,423 41,082
30% 29.5% 31,067 30,509
20% 19.9% 20,711 20,604
10% 10.0% 10,356 10,338
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,949
Calibration 2     104,484
Calibration 3     104,643
ssj_ops@calibrated=104,564
100% 100.0% 104,564 104,601
90% 90.4% 94,107 94,540
80% 80.9% 83,651 84,610
70% 70.9% 73,195 74,160
60% 59.6% 62,738 62,340
50% 49.7% 52,282 51,938
40% 39.9% 41,826 41,721
30% 30.1% 31,369 31,506
20% 20.2% 20,913 21,104
10% 10.1% 10,456 10,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,577
Calibration 2     107,258
Calibration 3     107,391
ssj_ops@calibrated=107,324
100% 99.0% 107,324 106,287
90% 89.6% 96,592 96,176
80% 79.8% 85,859 85,666
70% 70.7% 75,127 75,924
60% 60.0% 64,395 64,377
50% 50.0% 53,662 53,613
40% 39.4% 42,930 42,250
30% 29.7% 32,197 31,882
20% 19.7% 21,465 21,179
10% 10.0% 10,732 10,773
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,960
Calibration 2     105,059
Calibration 3     105,185
ssj_ops@calibrated=105,122
100% 99.3% 105,122 104,406
90% 90.2% 94,610 94,818
80% 81.0% 84,097 85,159
70% 70.4% 73,585 73,958
60% 60.4% 63,073 63,453
50% 48.8% 52,561 51,328
40% 39.4% 42,049 41,430
30% 29.7% 31,537 31,178
20% 19.8% 21,024 20,804
10% 9.8% 10,512 10,301
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,361
Calibration 2     106,244
Calibration 3     106,370
ssj_ops@calibrated=106,307
100% 100.1% 106,307 106,415
90% 90.6% 95,677 96,318
80% 80.0% 85,046 85,033
70% 70.1% 74,415 74,471
60% 59.9% 63,784 63,627
50% 50.7% 53,154 53,845
40% 39.7% 42,523 42,244
30% 30.3% 31,892 32,180
20% 20.1% 21,261 21,325
10% 10.0% 10,631 10,635
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,943
Calibration 2     104,553
Calibration 3     104,755
ssj_ops@calibrated=104,654
100% 99.7% 104,654 104,332
90% 90.4% 94,189 94,623
80% 80.1% 83,723 83,860
70% 69.3% 73,258 72,535
60% 59.7% 62,792 62,489
50% 49.2% 52,327 51,498
40% 39.1% 41,862 40,893
30% 30.1% 31,396 31,497
20% 19.7% 20,931 20,655
10% 9.9% 10,465 10,392
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,097
Calibration 2     105,433
Calibration 3     105,807
ssj_ops@calibrated=105,620
100% 100.1% 105,620 105,770
90% 90.0% 95,058 95,054
80% 80.3% 84,496 84,766
70% 70.5% 73,934 74,475
60% 59.8% 63,372 63,206
50% 50.2% 52,810 53,071
40% 40.4% 42,248 42,704
30% 30.3% 31,686 32,043
20% 20.1% 21,124 21,179
10% 9.8% 10,562 10,340
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,023
Calibration 2     106,172
Calibration 3     106,338
ssj_ops@calibrated=106,255
100% 99.7% 106,255 105,910
90% 89.4% 95,630 94,960
80% 79.1% 85,004 84,067
70% 70.3% 74,379 74,710
60% 60.2% 63,753 63,968
50% 49.9% 53,128 53,047
40% 40.0% 42,502 42,527
30% 30.0% 31,877 31,834
20% 19.9% 21,251 21,145
10% 10.0% 10,626 10,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,656
Calibration 2     105,416
Calibration 3     105,519
ssj_ops@calibrated=105,467
100% 99.1% 105,467 104,555
90% 89.9% 94,920 94,814
80% 80.3% 84,374 84,672
70% 70.2% 73,827 73,990
60% 60.4% 63,280 63,677
50% 50.2% 52,734 52,911
40% 39.7% 42,187 41,874
30% 29.9% 31,640 31,584
20% 19.7% 21,093 20,776
10% 9.8% 10,547 10,315
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,247
Calibration 2     105,020
Calibration 3     105,667
ssj_ops@calibrated=105,344
100% 100.1% 105,344 105,501
90% 90.1% 94,809 94,935
80% 79.7% 84,275 83,916
70% 70.3% 73,741 74,076
60% 60.5% 63,206 63,683
50% 49.7% 52,672 52,325
40% 39.7% 42,138 41,840
30% 29.9% 31,603 31,525
20% 20.6% 21,069 21,735
10% 10.1% 10,534 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

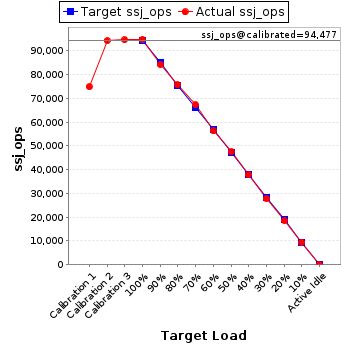

JVM 'sy480-04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,874
Calibration 2     94,322
Calibration 3     94,632
ssj_ops@calibrated=94,477
100% 100.4% 94,477 94,869
90% 89.2% 85,029 84,267
80% 80.2% 75,581 75,775
70% 71.3% 66,134 67,359
60% 59.6% 56,686 56,286
50% 50.2% 47,238 47,420
40% 40.0% 37,791 37,833
30% 29.6% 28,343 27,920
20% 19.7% 18,895 18,646
10% 10.1% 9,448 9,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

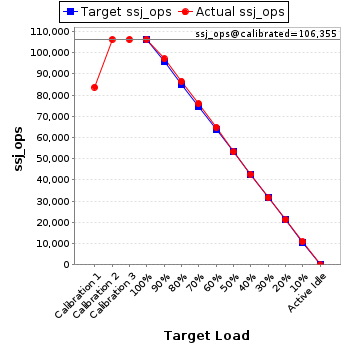

JVM 'sy480-04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,834
Calibration 2     106,338
Calibration 3     106,372
ssj_ops@calibrated=106,355
100% 100.0% 106,355 106,388
90% 91.5% 95,720 97,297
80% 81.5% 85,084 86,642
70% 71.5% 74,449 76,076
60% 61.1% 63,813 64,931
50% 50.1% 53,178 53,284
40% 40.2% 42,542 42,771
30% 29.8% 31,907 31,645
20% 20.0% 21,271 21,266
10% 10.3% 10,636 10,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,991
Calibration 2     106,582
Calibration 3     106,991
ssj_ops@calibrated=106,786
100% 100.0% 106,786 106,827
90% 89.9% 96,108 95,979
80% 80.0% 85,429 85,481
70% 68.8% 74,750 73,487
60% 59.9% 64,072 63,986
50% 49.4% 53,393 52,716
40% 40.2% 42,715 42,906
30% 30.0% 32,036 32,026
20% 20.3% 21,357 21,645
10% 10.0% 10,679 10,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,435
Calibration 2     100,240
Calibration 3     100,420
ssj_ops@calibrated=100,330
100% 99.9% 100,330 100,220
90% 89.6% 90,297 89,910
80% 80.0% 80,264 80,295
70% 70.9% 70,231 71,184
60% 59.6% 60,198 59,768
50% 50.1% 50,165 50,232
40% 39.8% 40,132 39,952
30% 30.0% 30,099 30,054
20% 20.4% 20,066 20,488
10% 10.1% 10,033 10,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,237
Calibration 2     101,695
Calibration 3     102,063
ssj_ops@calibrated=101,879
100% 98.9% 101,879 100,755
90% 89.5% 91,691 91,165
80% 80.7% 81,503 82,179
70% 69.8% 71,315 71,079
60% 60.8% 61,128 61,980
50% 50.1% 50,940 51,092
40% 40.1% 40,752 40,865
30% 30.5% 30,564 31,093
20% 19.9% 20,376 20,320
10% 9.8% 10,188 9,952
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,032
Calibration 2     106,101
Calibration 3     106,258
ssj_ops@calibrated=106,179
100% 99.7% 106,179 105,880
90% 89.5% 95,562 95,014
80% 80.0% 84,944 84,922
70% 69.3% 74,326 73,552
60% 59.9% 63,708 63,562
50% 49.5% 53,090 52,545
40% 40.5% 42,472 43,025
30% 30.5% 31,854 32,366
20% 20.2% 21,236 21,467
10% 10.0% 10,618 10,585
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,500
Calibration 2     103,985
Calibration 3     104,260
ssj_ops@calibrated=104,123
100% 100.0% 104,123 104,168
90% 90.5% 93,710 94,206
80% 79.9% 83,298 83,168
70% 69.6% 72,886 72,453
60% 58.4% 62,474 60,801
50% 50.4% 52,061 52,486
40% 40.0% 41,649 41,608
30% 30.0% 31,237 31,250
20% 19.4% 20,825 20,221
10% 10.1% 10,412 10,524
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,112
Calibration 2     106,787
Calibration 3     106,967
ssj_ops@calibrated=106,877
100% 100.3% 106,877 107,151
90% 90.1% 96,189 96,326
80% 80.2% 85,502 85,734
70% 70.0% 74,814 74,850
60% 60.9% 64,126 65,086
50% 50.0% 53,438 53,389
40% 40.5% 42,751 43,316
30% 30.4% 32,063 32,526
20% 19.8% 21,375 21,138
10% 9.9% 10,688 10,559
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,027
Calibration 2     106,717
Calibration 3     107,367
ssj_ops@calibrated=107,042
100% 99.5% 107,042 106,506
90% 89.8% 96,338 96,132
80% 80.8% 85,634 86,526
70% 69.0% 74,929 73,820
60% 59.9% 64,225 64,117
50% 50.2% 53,521 53,752
40% 39.5% 42,817 42,326
30% 30.1% 32,113 32,242
20% 20.2% 21,408 21,661
10% 10.0% 10,704 10,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,945
Calibration 2     100,376
Calibration 3     100,677
ssj_ops@calibrated=100,526
100% 99.1% 100,526 99,653
90% 90.1% 90,474 90,556
80% 79.9% 80,421 80,325
70% 69.2% 70,368 69,547
60% 59.3% 60,316 59,648
50% 50.5% 50,263 50,787
40% 40.4% 40,211 40,601
30% 29.9% 30,158 30,076
20% 20.0% 20,105 20,146
10% 10.3% 10,053 10,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,709
Calibration 2     103,600
Calibration 3     103,722
ssj_ops@calibrated=103,661
100% 98.9% 103,661 102,491
90% 89.2% 93,295 92,505
80% 80.0% 82,929 82,912
70% 70.1% 72,563 72,712
60% 59.7% 62,197 61,860
50% 49.9% 51,831 51,717
40% 39.9% 41,464 41,355
30% 29.8% 31,098 30,924
20% 20.1% 20,732 20,868
10% 10.1% 10,366 10,421
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,727
Calibration 2     105,476
Calibration 3     105,729
ssj_ops@calibrated=105,602
100% 100.3% 105,602 105,918
90% 89.3% 95,042 94,284
80% 78.8% 84,482 83,240
70% 69.5% 73,922 73,371
60% 59.6% 63,361 62,980
50% 50.2% 52,801 52,990
40% 39.9% 42,241 42,158
30% 30.2% 31,681 31,867
20% 20.2% 21,120 21,373
10% 9.7% 10,560 10,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,136
Calibration 2     99,233
Calibration 3     99,342
ssj_ops@calibrated=99,287
100% 99.8% 99,287 99,069
90% 90.6% 89,359 89,939
80% 79.2% 79,430 78,589
70% 70.8% 69,501 70,269
60% 60.1% 59,572 59,690
50% 49.7% 49,644 49,358
40% 40.3% 39,715 40,056
30% 29.7% 29,786 29,521
20% 20.2% 19,857 20,012
10% 10.0% 9,929 9,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,763
Calibration 2     106,213
Calibration 3     106,493
ssj_ops@calibrated=106,353
100% 99.7% 106,353 106,004
90% 90.5% 95,717 96,282
80% 79.4% 85,082 84,487
70% 70.6% 74,447 75,110
60% 60.5% 63,812 64,336
50% 49.9% 53,176 53,099
40% 39.8% 42,541 42,344
30% 29.6% 31,906 31,484
20% 19.7% 21,271 21,001
10% 10.0% 10,635 10,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,464
Calibration 2     106,373
Calibration 3     106,681
ssj_ops@calibrated=106,527
100% 99.3% 106,527 105,830
90% 90.4% 95,874 96,326
80% 79.2% 85,222 84,408
70% 70.1% 74,569 74,656
60% 60.2% 63,916 64,180
50% 49.1% 53,264 52,326
40% 39.9% 42,611 42,521
30% 30.5% 31,958 32,517
20% 19.5% 21,305 20,806
10% 10.3% 10,653 10,961
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,993
Calibration 2     98,917
Calibration 3     99,324
ssj_ops@calibrated=99,120
100% 99.7% 99,120 98,814
90% 90.4% 89,208 89,619
80% 79.5% 79,296 78,841
70% 70.8% 69,384 70,213
60% 59.8% 59,472 59,318
50% 50.4% 49,560 49,928
40% 40.6% 39,648 40,216
30% 29.7% 29,736 29,409
20% 20.0% 19,824 19,802
10% 10.1% 9,912 9,993
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,525
Calibration 2     103,220
Calibration 3     103,617
ssj_ops@calibrated=103,419
100% 99.8% 103,419 103,186
90% 89.7% 93,077 92,743
80% 80.6% 82,735 83,328
70% 69.7% 72,393 72,034
60% 60.4% 62,051 62,421
50% 50.2% 51,709 51,888
40% 40.0% 41,368 41,373
30% 30.2% 31,026 31,216
20% 20.0% 20,684 20,675
10% 10.0% 10,342 10,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,716
Calibration 2     102,062
Calibration 3     102,393
ssj_ops@calibrated=102,228
100% 98.6% 102,228 100,814
90% 90.0% 92,005 92,033
80% 80.3% 81,782 82,049
70% 71.6% 71,559 73,161
60% 59.3% 61,337 60,635
50% 49.6% 51,114 50,735
40% 40.2% 40,891 41,067
30% 30.0% 30,668 30,676
20% 19.7% 20,446 20,156
10% 10.2% 10,223 10,404
Active Idle   0 0

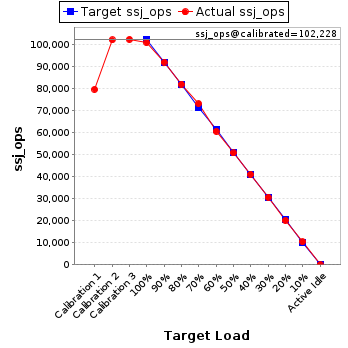

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,648
Calibration 2     103,612
Calibration 3     103,833
ssj_ops@calibrated=103,723
100% 99.3% 103,723 103,047
90% 89.1% 93,350 92,392
80% 80.7% 82,978 83,663
70% 69.4% 72,606 72,032
60% 60.6% 62,234 62,836
50% 50.3% 51,861 52,130
40% 40.6% 41,489 42,072
30% 30.0% 31,117 31,144
20% 20.0% 20,745 20,793
10% 9.9% 10,372 10,304
Active Idle   0 0

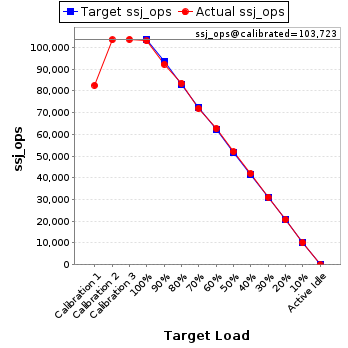

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,505
Calibration 2     105,908
Calibration 3     106,205
ssj_ops@calibrated=106,057
100% 100.2% 106,057 106,272
90% 90.1% 95,451 95,548
80% 80.4% 84,845 85,260
70% 69.1% 74,240 73,258
60% 59.9% 63,634 63,556
50% 51.0% 53,028 54,076
40% 40.3% 42,423 42,723
30% 30.0% 31,817 31,765
20% 19.6% 21,211 20,780
10% 10.3% 10,606 10,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,806
Calibration 2     106,093
Calibration 3     106,880
ssj_ops@calibrated=106,486
100% 99.8% 106,486 106,321
90% 89.0% 95,838 94,803
80% 80.3% 85,189 85,526
70% 69.8% 74,540 74,371
60% 61.1% 63,892 65,091
50% 50.0% 53,243 53,207
40% 39.6% 42,594 42,159
30% 30.0% 31,946 31,932
20% 20.9% 21,297 22,250
10% 10.2% 10,649 10,839
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,967
Calibration 2     103,898
Calibration 3     104,368
ssj_ops@calibrated=104,133
100% 99.3% 104,133 103,366
90% 90.0% 93,720 93,709
80% 79.9% 83,306 83,211
70% 70.0% 72,893 72,918
60% 59.3% 62,480 61,798
50% 49.7% 52,066 51,763
40% 40.3% 41,653 42,008
30% 29.8% 31,240 31,048
20% 20.2% 20,827 21,015
10% 10.3% 10,413 10,718
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,019
Calibration 2     105,634
Calibration 3     105,857
ssj_ops@calibrated=105,746
100% 99.0% 105,746 104,718
90% 89.1% 95,171 94,245
80% 81.1% 84,596 85,757
70% 70.5% 74,022 74,551
60% 59.2% 63,447 62,599
50% 49.9% 52,873 52,815
40% 39.3% 42,298 41,559
30% 30.2% 31,724 31,930
20% 20.2% 21,149 21,358
10% 9.8% 10,575 10,395
Active Idle   0 0

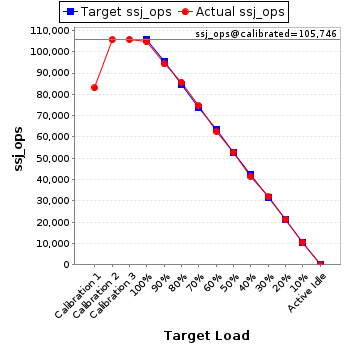

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,275
Calibration 2     105,752
Calibration 3     105,961
ssj_ops@calibrated=105,856
100% 99.7% 105,856 105,519
90% 90.1% 95,271 95,346
80% 80.5% 84,685 85,250
70% 69.8% 74,100 73,918
60% 60.7% 63,514 64,264
50% 50.1% 52,928 53,006
40% 39.1% 42,343 41,393
30% 30.0% 31,757 31,751
20% 20.5% 21,171 21,687
10% 10.2% 10,586 10,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,719
Calibration 2     106,168
Calibration 3     106,143
ssj_ops@calibrated=106,155
100% 99.8% 106,155 105,923
90% 90.1% 95,540 95,692
80% 80.4% 84,924 85,303
70% 69.8% 74,309 74,077
60% 60.0% 63,693 63,661
50% 50.0% 53,078 53,030
40% 39.9% 42,462 42,322
30% 29.6% 31,847 31,468
20% 20.0% 21,231 21,265
10% 10.1% 10,616 10,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,541
Calibration 2     106,443
Calibration 3     106,558
ssj_ops@calibrated=106,500
100% 99.1% 106,500 105,558
90% 90.4% 95,850 96,322
80% 80.2% 85,200 85,386
70% 69.8% 74,550 74,303
60% 59.4% 63,900 63,213
50% 50.2% 53,250 53,432
40% 39.6% 42,600 42,227
30% 29.6% 31,950 31,569
20% 20.0% 21,300 21,283
10% 10.0% 10,650 10,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,957
Calibration 2     105,966
Calibration 3     105,885
ssj_ops@calibrated=105,926
100% 99.9% 105,926 105,811
90% 90.1% 95,333 95,398
80% 80.4% 84,740 85,185
70% 70.0% 74,148 74,128
60% 60.2% 63,555 63,729
50% 50.2% 52,963 53,179
40% 39.8% 42,370 42,196
30% 29.8% 31,778 31,576
20% 20.3% 21,185 21,514
10% 10.3% 10,593 10,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,886
Calibration 2     101,469
Calibration 3     101,739
ssj_ops@calibrated=101,604
100% 99.1% 101,604 100,662
90% 89.4% 91,443 90,866
80% 80.5% 81,283 81,769
70% 70.2% 71,123 71,279
60% 60.4% 60,962 61,357
50% 49.6% 50,802 50,387
40% 40.1% 40,642 40,754
30% 29.9% 30,481 30,340
20% 19.5% 20,321 19,827
10% 10.0% 10,160 10,114
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,165
Calibration 2     104,116
Calibration 3     104,333
ssj_ops@calibrated=104,224
100% 100.4% 104,224 104,665
90% 89.2% 93,802 92,975
80% 80.7% 83,380 84,115
70% 70.3% 72,957 73,304
60% 59.6% 62,535 62,132
50% 50.2% 52,112 52,318
40% 40.0% 41,690 41,648
30% 29.8% 31,267 31,081
20% 20.0% 20,845 20,864
10% 10.3% 10,422 10,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,602
Calibration 2     105,651
Calibration 3     105,578
ssj_ops@calibrated=105,614
100% 99.2% 105,614 104,740
90% 89.9% 95,053 94,965
80% 79.5% 84,491 84,008
70% 69.8% 73,930 73,685
60% 59.8% 63,369 63,164
50% 49.6% 52,807 52,380
40% 39.8% 42,246 42,078
30% 30.1% 31,684 31,807
20% 20.3% 21,123 21,462
10% 10.1% 10,561 10,626
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,948
Calibration 2     100,233
Calibration 3     100,455
ssj_ops@calibrated=100,344
100% 100.4% 100,344 100,700
90% 90.7% 90,310 91,022
80% 80.4% 80,275 80,673
70% 69.8% 70,241 70,065
60% 60.1% 60,206 60,275
50% 49.6% 50,172 49,740
40% 39.3% 40,138 39,467
30% 29.3% 30,103 29,366
20% 20.3% 20,069 20,366
10% 10.0% 10,034 10,077
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,900
Calibration 2     99,424
Calibration 3     99,448
ssj_ops@calibrated=99,436
100% 100.3% 99,436 99,737
90% 89.1% 89,493 88,559
80% 80.1% 79,549 79,666
70% 69.6% 69,605 69,209
60% 59.3% 59,662 59,013
50% 49.4% 49,718 49,161
40% 39.9% 39,775 39,695
30% 30.2% 29,831 30,020
20% 20.1% 19,887 20,034
10% 10.3% 9,944 10,249
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,001
Calibration 2     105,431
Calibration 3     105,707
ssj_ops@calibrated=105,569
100% 99.8% 105,569 105,342
90% 89.5% 95,012 94,450
80% 80.4% 84,455 84,924
70% 69.8% 73,898 73,679
60% 59.3% 63,341 62,559
50% 50.0% 52,784 52,764
40% 40.5% 42,228 42,726
30% 30.0% 31,671 31,681
20% 19.9% 21,114 21,025
10% 10.1% 10,557 10,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,466
Calibration 2     105,254
Calibration 3     105,290
ssj_ops@calibrated=105,272
100% 99.4% 105,272 104,609
90% 90.3% 94,745 95,047
80% 80.4% 84,218 84,657
70% 68.8% 73,691 72,446
60% 60.4% 63,163 63,584
50% 49.5% 52,636 52,110
40% 40.2% 42,109 42,275
30% 29.9% 31,582 31,449
20% 19.7% 21,054 20,716
10% 9.8% 10,527 10,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,424
Calibration 2     105,338
Calibration 3     105,620
ssj_ops@calibrated=105,479
100% 99.6% 105,479 105,055
90% 90.9% 94,932 95,933
80% 79.9% 84,384 84,326
70% 70.7% 73,836 74,533
60% 60.1% 63,288 63,387
50% 50.6% 52,740 53,374
40% 39.6% 42,192 41,816
30% 30.0% 31,644 31,681
20% 19.8% 21,096 20,938
10% 10.0% 10,548 10,497
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,713
Calibration 2     105,289
Calibration 3     105,463
ssj_ops@calibrated=105,376
100% 100.2% 105,376 105,625
90% 88.9% 94,838 93,662
80% 79.5% 84,301 83,785
70% 71.1% 73,763 74,934
60% 59.9% 63,226 63,142
50% 49.9% 52,688 52,571
40% 40.3% 42,150 42,454
30% 30.2% 31,613 31,804
20% 20.2% 21,075 21,300
10% 9.8% 10,538 10,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,322
Calibration 2     106,003
Calibration 3     106,145
ssj_ops@calibrated=106,074
100% 99.2% 106,074 105,276
90% 90.8% 95,467 96,328
80% 79.5% 84,859 84,290
70% 69.9% 74,252 74,182
60% 59.5% 63,645 63,148
50% 50.1% 53,037 53,117
40% 40.1% 42,430 42,508
30% 30.2% 31,822 31,991
20% 19.6% 21,215 20,742
10% 10.0% 10,607 10,643
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,511
Calibration 2     102,304
Calibration 3     102,211
ssj_ops@calibrated=102,258
100% 100.2% 102,258 102,485
90% 90.4% 92,032 92,396
80% 80.6% 81,806 82,470
70% 69.6% 71,580 71,207
60% 60.2% 61,355 61,578
50% 50.3% 51,129 51,439
40% 39.8% 40,903 40,706
30% 30.5% 30,677 31,170
20% 19.7% 20,452 20,123
10% 9.8% 10,226 10,021
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,327
Calibration 2     102,581
Calibration 3     102,776
ssj_ops@calibrated=102,678
100% 100.4% 102,678 103,042
90% 88.9% 92,411 91,271
80% 79.1% 82,143 81,195
70% 69.4% 71,875 71,212
60% 60.4% 61,607 62,012
50% 50.5% 51,339 51,826
40% 39.7% 41,071 40,813
30% 30.3% 30,804 31,150
20% 19.9% 20,536 20,412
10% 10.2% 10,268 10,486
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,018
Calibration 2     105,194
Calibration 3     105,125
ssj_ops@calibrated=105,159
100% 99.4% 105,159 104,569
90% 90.8% 94,643 95,507
80% 79.7% 84,128 83,838
70% 70.2% 73,612 73,869
60% 59.8% 63,096 62,936
50% 49.9% 52,580 52,447
40% 39.6% 42,064 41,684
30% 30.0% 31,548 31,573
20% 19.5% 21,032 20,504
10% 9.9% 10,516 10,431
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,542
Calibration 2     104,793
Calibration 3     105,038
ssj_ops@calibrated=104,916
100% 99.0% 104,916 103,869
90% 90.6% 94,424 95,086
80% 80.1% 83,933 83,992
70% 71.0% 73,441 74,469
60% 59.4% 62,949 62,352
50% 49.9% 52,458 52,380
40% 40.7% 41,966 42,681
30% 29.8% 31,475 31,273
20% 20.2% 20,983 21,141
10% 10.0% 10,492 10,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,033
Calibration 2     105,830
Calibration 3     105,683
ssj_ops@calibrated=105,757
100% 99.9% 105,757 105,633
90% 91.0% 95,181 96,201
80% 80.3% 84,605 84,885
70% 69.8% 74,030 73,812
60% 60.1% 63,454 63,524
50% 50.4% 52,878 53,257
40% 39.7% 42,303 41,981
30% 29.5% 31,727 31,173
20% 20.3% 21,151 21,483
10% 10.1% 10,576 10,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,337
Calibration 2     101,227
Calibration 3     101,204
ssj_ops@calibrated=101,216
100% 100.2% 101,216 101,442
90% 90.6% 91,094 91,653
80% 80.7% 80,973 81,662
70% 70.3% 70,851 71,183
60% 59.8% 60,729 60,500
50% 49.7% 50,608 50,343
40% 40.0% 40,486 40,501
30% 29.4% 30,365 29,732
20% 20.1% 20,243 20,308
10% 10.1% 10,122 10,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
