SPECpower_ssj2008

Huawei Technologies Co., Ltd Fusion Server RH2288H V3			SPECpower_ssj2008 = 10,700 overall ssj_ops/watt
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Aug 25, 2015
Hardware Availability:	May-2015	Software Availability:	Jun-2013	Publication:	Sep 25, 2015
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	Fusion Server RH2288H V3
Form Factor:	2U
CPU Name:	Intel Xeon E5-2699 v3
CPU Characteristics:	18-Core, 2.3GHz, 45MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	36 cores, 2 chips, 18 cores/chip
Hardware Threads:	72 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	45 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	8 x 8 GB
Memory Details:	8GB 2Rx8 PC4-2133P ECC RDIMM; slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Huawei P/N 02131167
Disk Drive:	1 x 200GB SSD 2.5" SATA Huawei P/N 02310YCY
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel i350 Gigabit Ethernet controller Huawei P/N 03022CKQ
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver Mode enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version:	Version 6.1.7601 Service Pack 1 Build 7601
Filesystem:	NTFS
JVM Vendor:	IBM Corporation
JVM Version:	IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options:	-Xaggressive -Xcompressedrefs -Xmn1500m -Xms1775m -Xmx1775m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads4 -Xgc:preferredHeapBase=0x80000000
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [3F,FC0,3F000]
JVM Instances:	12
JVM Initial Heap (MB):	1775
JVM Maximum Heap (MB):	1775
JVM Address Bits:	64
Boot Firmware Version:	V138
Management Firmware Version:	1.51
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	IBM WebSphere Application Server V8.5 for Windows on x86-64bit

none

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to six logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Backplane with eight front 2.5” disk bays.
Microsoft Hotfix KB2510206 has been installed due to known problems of the group assignment algorithm which does not create a balanced group assignment. For more information see: http://support.microsoft.com/kb/2510206.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor:	IBM Corporation
JVM Version:	IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91K630156
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	B14011496-0010
Date of Calibration:	30-Jul-2015
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.7.1-4db18c59-20150211
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 72 due to a known inconsistency in processor reporting with this Java version.

.

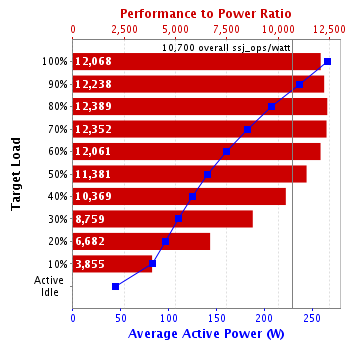

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	266	21.6
90%	237	21.7
80%	208	21.6
70%	183	21.6
60%	160	21.4
50%	141	21.3
40%	125	21.2
30%	110	21.2
20%	96.6	21.3
10%	83.2	21.2
Active Idle	44.8	21.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.2	101

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
