Huawei Technologies Co., Ltd Fusion Server RH2288H V3 ssj_ops@100% = 3,206,810
ssj_ops@100% per JVM = 267,234
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 25, 2015
Hardware Availability: May-2015 Software Availability: Jun-2013 Publication: Sep 25, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,179,350
Calibration 2     3,219,784
Calibration 3     3,214,508
ssj_ops@calibrated=3,217,146
100% 99.7% 3,217,146 3,206,810
90% 90.0% 2,895,431 2,894,971
80% 79.9% 2,573,717 2,572,036
70% 70.1% 2,252,002 2,254,438
60% 60.0% 1,930,288 1,929,809
50% 49.8% 1,608,573 1,603,131
40% 40.1% 1,286,858 1,291,620
30% 30.0% 965,144 965,645
20% 20.1% 643,429 645,694
10% 10.0% 321,715 320,790
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server RH2288H V3
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.3GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2133P ECC RDIMM; slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Huawei P/N 02131167
Disk Drive: 1 x 200GB SSD 2.5" SATA Huawei P/N 02310YCY
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller Huawei P/N 03022CKQ
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1500m -Xms1775m -Xmx1775m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads4 -Xgc:preferredHeapBase=0x80000000
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3F,FC0,3F000]
JVM Instances: 12
JVM Initial Heap (MB): 1775
JVM Maximum Heap (MB): 1775
JVM Address Bits: 64
Boot Firmware Version: V138
Management Firmware Version: 1.51
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-BQK6LSOI50I.001 270,833
WIN-BQK6LSOI50I.002 268,538
WIN-BQK6LSOI50I.003 269,392
WIN-BQK6LSOI50I.004 267,466
WIN-BQK6LSOI50I.005 265,687
WIN-BQK6LSOI50I.006 268,200
WIN-BQK6LSOI50I.007 262,153
WIN-BQK6LSOI50I.008 267,142
WIN-BQK6LSOI50I.009 271,380
WIN-BQK6LSOI50I.010 263,280
WIN-BQK6LSOI50I.011 267,024
WIN-BQK6LSOI50I.012 265,714
ssj_ops@100% 3,206,810
ssj_ops@100% per JVM 267,234
Graph of per-instance results

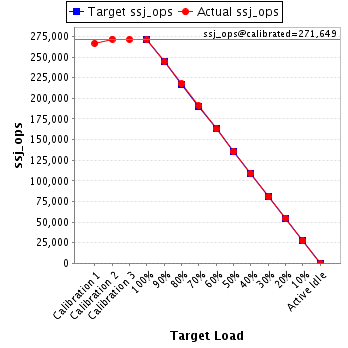

JVM 'WIN-BQK6LSOI50I.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     266,744
Calibration 2     271,809
Calibration 3     271,489
ssj_ops@calibrated=271,649
100% 99.7% 271,649 270,833
90% 90.0% 244,484 244,488
80% 80.1% 217,319 217,517
70% 70.3% 190,154 190,886
60% 60.0% 162,989 162,904
50% 50.0% 135,824 135,753
40% 40.1% 108,659 108,937
30% 29.7% 81,495 80,762
20% 20.2% 54,330 54,835
10% 10.0% 27,165 27,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     265,834
Calibration 2     269,834
Calibration 3     269,963
ssj_ops@calibrated=269,898
100% 99.5% 269,898 268,538
90% 89.9% 242,908 242,563
80% 80.0% 215,919 216,020
70% 70.2% 188,929 189,598
60% 60.0% 161,939 161,835
50% 50.2% 134,949 135,583
40% 40.1% 107,959 108,221
30% 29.9% 80,969 80,761
20% 19.8% 53,980 53,566
10% 10.0% 26,990 26,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     266,095
Calibration 2     271,092
Calibration 3     269,880
ssj_ops@calibrated=270,486
100% 99.6% 270,486 269,392
90% 90.0% 243,437 243,360
80% 80.1% 216,389 216,734
70% 69.9% 189,340 189,152
60% 60.1% 162,292 162,523
50% 49.8% 135,243 134,818
40% 40.0% 108,194 108,260
30% 30.1% 81,146 81,385
20% 19.8% 54,097 53,662
10% 9.9% 27,049 26,895
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     266,155
Calibration 2     269,046
Calibration 3     268,456
ssj_ops@calibrated=268,751
100% 99.5% 268,751 267,466
90% 89.4% 241,876 240,386
80% 80.0% 215,001 215,065
70% 70.0% 188,126 188,011
60% 60.3% 161,251 162,051
50% 49.5% 134,376 133,158
40% 39.9% 107,500 107,266
30% 30.1% 80,625 80,867
20% 20.3% 53,750 54,530
10% 10.1% 26,875 27,031
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     262,674
Calibration 2     265,422
Calibration 3     266,461
ssj_ops@calibrated=265,942
100% 99.9% 265,942 265,687
90% 89.5% 239,348 237,958
80% 79.8% 212,754 212,289
70% 70.0% 186,159 186,034
60% 59.9% 159,565 159,367
50% 49.8% 132,971 132,410
40% 40.0% 106,377 106,382
30% 30.0% 79,783 79,858
20% 20.0% 53,188 53,114
10% 9.9% 26,594 26,377
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     265,061
Calibration 2     269,410
Calibration 3     268,721
ssj_ops@calibrated=269,066
100% 99.7% 269,066 268,200
90% 90.0% 242,159 242,046
80% 80.3% 215,253 215,981
70% 69.6% 188,346 187,375
60% 59.9% 161,439 161,297
50% 50.0% 134,533 134,506
40% 40.3% 107,626 108,500
30% 29.9% 80,720 80,426
20% 19.7% 53,813 53,063
10% 10.1% 26,907 27,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     265,104
Calibration 2     264,470
Calibration 3     263,225
ssj_ops@calibrated=263,848
100% 99.4% 263,848 262,153
90% 90.3% 237,463 238,215
80% 79.8% 211,078 210,565
70% 70.3% 184,693 185,481
60% 59.9% 158,309 157,954
50% 49.7% 131,924 131,235
40% 40.5% 105,539 106,733
30% 30.2% 79,154 79,621
20% 20.4% 52,770 53,912
10% 9.8% 26,385 25,865
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     262,674
Calibration 2     267,268
Calibration 3     266,624
ssj_ops@calibrated=266,946
100% 100.1% 266,946 267,142
90% 90.1% 240,251 240,582
80% 79.6% 213,557 212,470
70% 70.5% 186,862 188,148
60% 59.9% 160,168 159,957
50% 49.8% 133,473 132,920
40% 40.3% 106,778 107,496
30% 30.0% 80,084 80,200
20% 20.2% 53,389 53,814
10% 9.9% 26,695 26,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     269,455
Calibration 2     272,457
Calibration 3     271,592
ssj_ops@calibrated=272,025
100% 99.8% 272,025 271,380
90% 90.7% 244,822 246,637
80% 79.5% 217,620 216,135
70% 70.0% 190,417 190,324
60% 59.8% 163,215 162,599
50% 50.0% 136,012 135,989
40% 40.6% 108,810 110,355
30% 30.0% 81,607 81,647
20% 20.0% 54,405 54,443
10% 9.9% 27,202 26,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

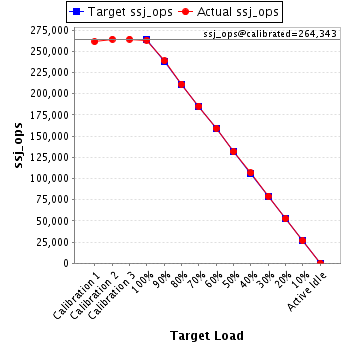

JVM 'WIN-BQK6LSOI50I.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     261,478
Calibration 2     264,312
Calibration 3     264,374
ssj_ops@calibrated=264,343
100% 99.6% 264,343 263,280
90% 90.3% 237,908 238,768
80% 80.0% 211,474 211,385
70% 70.1% 185,040 185,369
60% 60.3% 158,606 159,282
50% 49.8% 132,171 131,718
40% 40.3% 105,737 106,534
30% 30.0% 79,303 79,245
20% 19.9% 52,869 52,554
10% 10.1% 26,434 26,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

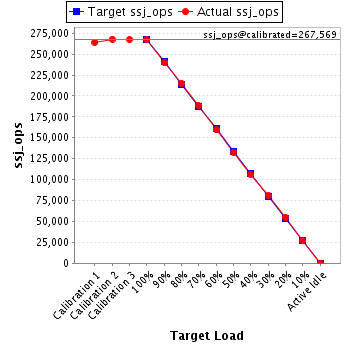

JVM 'WIN-BQK6LSOI50I.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     264,429
Calibration 2     267,900
Calibration 3     267,237
ssj_ops@calibrated=267,569
100% 99.8% 267,569 267,024
90% 89.6% 240,812 239,734
80% 80.3% 214,055 214,980
70% 70.3% 187,298 188,175
60% 59.6% 160,541 159,597
50% 49.6% 133,784 132,754
40% 39.8% 107,027 106,622
30% 30.2% 80,271 80,767
20% 20.3% 53,514 54,286
10% 10.0% 26,757 26,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BQK6LSOI50I.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     263,647
Calibration 2     266,764
Calibration 3     266,486
ssj_ops@calibrated=266,625
100% 99.7% 266,625 265,714
90% 90.1% 239,962 240,233
80% 79.8% 213,300 212,897
70% 69.7% 186,637 185,886
60% 60.2% 159,975 160,444
50% 49.6% 133,312 132,287
40% 39.9% 106,650 106,312
30% 30.0% 79,987 80,107
20% 20.2% 53,325 53,915
10% 10.0% 26,662 26,589
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
