NEC Corporation Express5800/A1080a-D | SPECpower_ssj2008 = 1,069 overall ssj_ops/watt | ||||
Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Multi Node |
Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 5, 2010 |
Hardware Availability: | May-2010 | Software Availability: | May-2009 | Publication: | Jul 28, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

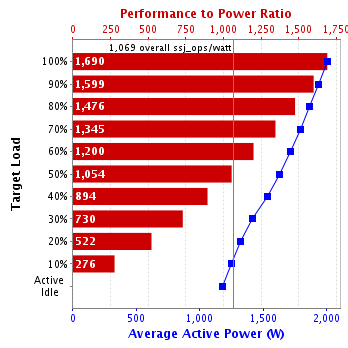

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 98.6% | 3,385,385 | 2,003 | 1,690 |
90% | 90.1% | 3,093,154 | 1,934 | 1,599 |
80% | 80.0% | 2,749,151 | 1,863 | 1,476 |
70% | 70.2% | 2,410,547 | 1,792 | 1,345 |
60% | 59.9% | 2,057,038 | 1,714 | 1,200 |
50% | 50.0% | 1,716,118 | 1,628 | 1,054 |
40% | 40.0% | 1,373,590 | 1,536 | 894 |
30% | 30.1% | 1,032,561 | 1,415 | 730 |
20% | 20.1% | 689,537 | 1,322 | 522 |
10% | 10.0% | 344,738 | 1,247 | 276 |
Active Idle | 0 | 1,178 | 0 | |
∑ssj_ops / ∑power = | 1,069 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
2 | 8 | 64 | 128 | 128 | 2 | 32 |
Set Identifier: | sut |
Set Description: | Express5800/A1080a-D (Intel Xeon X7560, 2.26 GHz) |
# of Identical Nodes: | 2 |
Comment: | None |
Hardware per Node | |
---|---|
Hardware Vendor: | NEC Corporation |
Model: | Express5800/A1080a-D |
Form Factor: | Other |
CPU Name: | Intel Xeon X7560 |
CPU Characteristics: | Octa-Core, 2.26 GHz, 24 MB L3 Cache |
CPU Frequency (MHz): | 2266 |
CPU(s) Enabled: | 32 cores, 4 chips, 8 cores/chip |
Hardware Threads: | 64 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 24 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 64 |
# and size of DIMM: | 16 x 4096 MB |
Memory Details: | 4GB 2Rx4 PC3-8500R ECC CL7; slots DIMM#1-DIMM#4 populated on each PMM (Processor Memory Module) |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 300GB 10krpm HDD 2.5inch SAS |
Disk Controller: | 6Gbps SAS RAID Controller for Embedded HDD/SSD |
# and type of Network Interface Cards (NICs) Installed: | 1 x Integrated Intel 82576 Gigabit Dual Port Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software per Node | |
---|---|
Power Management: | Power saver |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
OS Version: | SP2 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64) |
JVM Command-line Options: | -Xms3700m -Xmx3700m -Xns3300m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k |
JVM Affinity: | start /affinity [F,F0,....,F00000000000000,F000000000000000] |
JVM Instances: | 16 |
JVM Initial Heap (MB): | 3700 |
JVM Maximum Heap (MB): | 3700 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 1.31 |
Management Firmware Version: | 1.1.1.8 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | NEC Corporation |
Model: | Express5800/R120a-2 |
CPU Description: | Intel Xeon X5550 |
Memory amount (GB): | 4 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server 2008 Standard Edition |
JVM Vendor: | Oracle Corporation |
JVM Version: | BEA JRockit(R) (build R27.6.5-32_o-121899-1.6.0_14-20091001-2107-windows-ia32, compiled mode) |
CCS Version: | 1.2.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H928025 |
Connectivity: | RS-232C |
Input Connection: | Default |
Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
Accredited by: | JQA (Japan Quality Assurance Organization) |
Calibration Label: | 150-92562 |
Date of Calibration: | 8-Sep-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.10-511c8daa |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.30.2.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 2,003 | 21.9 |
90% | 1,934 | 22.0 |
80% | 1,863 | 22.0 |
70% | 1,792 | 21.9 |
60% | 1,714 | 21.9 |
50% | 1,628 | 21.9 |
40% | 1,536 | 21.8 |
30% | 1,415 | 21.8 |
20% | 1,322 | 21.7 |
10% | 1,247 | 21.7 |
Active Idle | 1,178 | 21.6 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
202V / 50 Hz / 1 phase / 2 wires | 21.6 | 52 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 3,373,121 | ||
Calibration 2 | 3,435,124 | ||
Calibration 3 | 3,433,650 | ||
ssj_ops@calibrated=3,434,387 | |||
100% | 98.6% | 3,434,387 | 3,385,385 |
90% | 90.1% | 3,090,948 | 3,093,154 |
80% | 80.0% | 2,747,509 | 2,749,151 |
70% | 70.2% | 2,404,071 | 2,410,547 |
60% | 59.9% | 2,060,632 | 2,057,038 |
50% | 50.0% | 1,717,193 | 1,716,118 |
40% | 40.0% | 1,373,755 | 1,373,590 |
30% | 30.1% | 1,030,316 | 1,032,561 |
20% | 20.1% | 686,877 | 689,537 |
10% | 10.0% | 343,439 | 344,738 |
Active Idle | 0 | 0 |
