SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/A1080a-D | SPECpower_ssj2008 = 1,069 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Multi Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 5, 2010 |
| Hardware Availability: | May-2010 | Software Availability: | May-2009 | Publication: | Jul 28, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

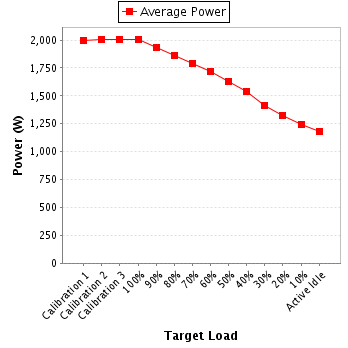

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,995 | 21.7 |
| Calibration 2 | 2,008 | 21.8 |
| Calibration 3 | 2,007 | 21.9 |
| 100% | 2,003 | 21.9 |
| 90% | 1,934 | 22.0 |
| 80% | 1,863 | 22.0 |
| 70% | 1,792 | 21.9 |
| 60% | 1,714 | 21.9 |
| 50% | 1,628 | 21.9 |
| 40% | 1,536 | 21.8 |
| 30% | 1,415 | 21.8 |
| 20% | 1,322 | 21.7 |
| 10% | 1,247 | 21.7 |
| Active Idle | 1,178 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928025 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-92562 |
| Date of Calibration: | 8-Sep-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 199 | 300.0 | 10.1 | 20.0 | 0.990 | 1,995 | 0.4% |
| Calibration 2 | 199 | 300.0 | 10.2 | 20.0 | 0.990 | 2,008 | 0.4% |
| Calibration 3 | 199 | 300.0 | 10.2 | 20.0 | 0.990 | 2,007 | 0.4% |
| 100% | 199 | 300.0 | 10.2 | 20.0 | 0.990 | 2,003 | 0.4% |
| 90% | 199 | 300.0 | 9.81 | 20.0 | 0.990 | 1,934 | 0.4% |
| 80% | 199 | 300.0 | 9.44 | 20.0 | 0.990 | 1,863 | 0.5% |
| 70% | 200 | 300.0 | 9.08 | 20.0 | 0.989 | 1,792 | 0.5% |
| 60% | 199 | 300.0 | 8.70 | 20.0 | 0.988 | 1,714 | 0.5% |
| 50% | 200 | 300.0 | 8.26 | 10.0 | 0.988 | 1,628 | 0.3% |
| 40% | 200 | 300.0 | 7.79 | 10.0 | 0.987 | 1,536 | 0.3% |
| 30% | 200 | 300.0 | 7.17 | 10.0 | 0.986 | 1,415 | 0.3% |
| 20% | 200 | 300.0 | 6.70 | 10.0 | 0.985 | 1,322 | 0.4% |
| 10% | 200 | 300.0 | 6.32 | 10.0 | 0.984 | 1,247 | 0.4% |
| Active Idle | 201 | 300.0 | 5.97 | 10.0 | 0.984 | 1,178 | 0.4% |
