Lenovo Global Technology ThinkSystem SD530 ssj_ops@100% = 19,563,206
ssj_ops@100% per Host = 4,890,802
ssj_ops@100% per JVM = 87,336
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Jul 4, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,483,503
Calibration 2     20,333,568
Calibration 3     19,655,663
ssj_ops@calibrated=19,994,615
100% 97.8% 19,994,615 19,563,206
90% 90.0% 17,995,154 17,995,753
80% 80.0% 15,995,692 15,995,160
70% 70.0% 13,996,231 13,988,227
60% 60.0% 11,996,769 11,991,902
50% 50.0% 9,997,308 9,995,529
40% 40.0% 7,997,846 7,998,520
30% 30.0% 5,998,385 6,002,957
20% 20.0% 3,998,923 3,993,109
10% 10.0% 1,999,462 2,001,936
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 224 448 768 4 224
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem SD530
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: Lenovo P/N SP50L09213
Network Switch: Extreme Summit X670V
Network Switch Details: 48-PORT Extreme Summit X670V
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch did not measure for Power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N 7N47A00129)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE113J
Management Firmware Version: TEI305U
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Host Instance Summary
Host ssj_ops@100%
WIN-ALA9S7C0506 4,894,907
WIN-H8DJ9I5IVIE 4,890,292
WIN-KJ6CVEIJLCP 4,883,688
WIN-LURFL3EF7CQ 4,894,319
ssj_ops@100% 19,563,206
ssj_ops@100% per Host 4,890,802
ssj_ops@100% per JVM 87,336

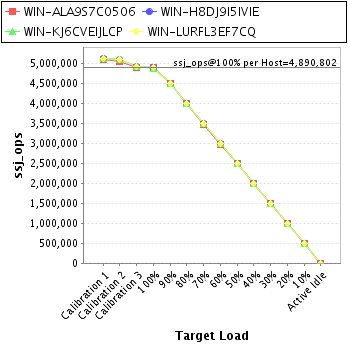

Graph of per-host results
Host 'WIN-ALA9S7C0506' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,109,883
Calibration 2     5,046,766
Calibration 3     4,910,262
ssj_ops@calibrated=4,978,514
100% 98.3% 4,978,514 4,894,907
90% 90.1% 4,480,663 4,487,043
80% 80.1% 3,982,811 3,986,253
70% 69.9% 3,484,960 3,479,629
60% 59.9% 2,987,108 2,983,375
50% 50.1% 2,489,257 2,496,517
40% 40.1% 1,991,406 1,995,850
30% 30.1% 1,493,554 1,497,923
20% 20.0% 995,703 996,110
10% 10.0% 497,851 497,800
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-H8DJ9I5IVIE' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,131,709
Calibration 2     5,092,186
Calibration 3     4,915,820
ssj_ops@calibrated=5,004,003
100% 97.7% 5,004,003 4,890,292
90% 90.0% 4,503,603 4,502,712
80% 80.1% 4,003,202 4,006,670
70% 70.0% 3,502,802 3,500,622
60% 60.0% 3,002,402 3,000,089
50% 50.0% 2,502,001 2,500,349
40% 40.0% 2,001,601 2,000,844
30% 30.0% 1,501,201 1,501,178
20% 20.0% 1,000,801 998,454
10% 10.0% 500,400 498,934
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-KJ6CVEIJLCP' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,123,098
Calibration 2     5,090,430
Calibration 3     4,911,153
ssj_ops@calibrated=5,000,792
100% 97.7% 5,000,792 4,883,688
90% 89.9% 4,500,713 4,495,823
80% 80.0% 4,000,633 4,000,302
70% 70.1% 3,500,554 3,503,790
60% 60.0% 3,000,475 3,000,298
50% 49.9% 2,500,396 2,497,141
40% 40.0% 2,000,317 1,999,108
30% 30.0% 1,500,238 1,500,000
20% 19.9% 1,000,158 997,177
10% 10.0% 500,079 500,771
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-LURFL3EF7CQ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,118,814
Calibration 2     5,104,184
Calibration 3     4,918,428
ssj_ops@calibrated=5,011,306
100% 97.7% 5,011,306 4,894,319
90% 90.0% 4,510,176 4,510,175
80% 79.9% 4,009,045 4,001,935
70% 69.9% 3,507,914 3,504,186
60% 60.0% 3,006,784 3,008,140
50% 49.9% 2,505,653 2,501,522
40% 40.0% 2,004,523 2,002,718
30% 30.0% 1,503,392 1,503,856
20% 20.0% 1,002,261 1,001,367
10% 10.1% 501,131 504,432
Active Idle   0 0

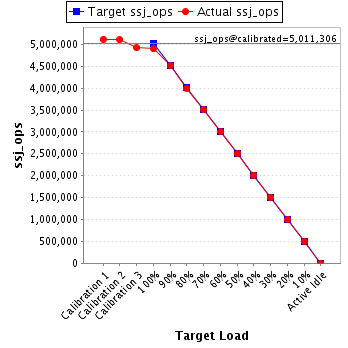

Graph of results
See the Host Performance Report for additional details.
