Lenovo Global Technology ThinkSystem SD530 ssj_ops@100% = 4,894,319
ssj_ops@100% per JVM = 87,399
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Jul 4, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,118,814
Calibration 2     5,104,184
Calibration 3     4,918,428
ssj_ops@calibrated=5,011,306
100% 97.7% 5,011,306 4,894,319
90% 90.0% 4,510,176 4,510,175
80% 79.9% 4,009,045 4,001,935
70% 69.9% 3,507,914 3,504,186
60% 60.0% 3,006,784 3,008,140
50% 49.9% 2,505,653 2,501,522
40% 40.0% 2,004,523 2,002,718
30% 30.0% 1,503,392 1,503,856
20% 20.0% 1,002,261 1,001,367
10% 10.1% 501,131 504,432
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N 7N47A00129)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE113J
Management Firmware Version: TEI305U
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-LURFL3EF7CQ.001 86,846
WIN-LURFL3EF7CQ.002 88,223
WIN-LURFL3EF7CQ.003 87,058
WIN-LURFL3EF7CQ.004 86,831
WIN-LURFL3EF7CQ.005 88,554
WIN-LURFL3EF7CQ.006 86,601
WIN-LURFL3EF7CQ.007 87,364
WIN-LURFL3EF7CQ.008 88,228
WIN-LURFL3EF7CQ.009 88,810
WIN-LURFL3EF7CQ.010 86,623
WIN-LURFL3EF7CQ.011 87,446
WIN-LURFL3EF7CQ.012 88,654
WIN-LURFL3EF7CQ.013 87,400
WIN-LURFL3EF7CQ.014 87,742
WIN-LURFL3EF7CQ.015 87,614
WIN-LURFL3EF7CQ.016 88,404
WIN-LURFL3EF7CQ.017 87,189
WIN-LURFL3EF7CQ.018 88,710
WIN-LURFL3EF7CQ.019 87,419
WIN-LURFL3EF7CQ.020 89,278
WIN-LURFL3EF7CQ.021 85,877
WIN-LURFL3EF7CQ.022 86,926
WIN-LURFL3EF7CQ.023 87,132
WIN-LURFL3EF7CQ.024 87,053
WIN-LURFL3EF7CQ.025 88,688
WIN-LURFL3EF7CQ.026 87,797
WIN-LURFL3EF7CQ.027 87,854
WIN-LURFL3EF7CQ.028 86,546
WIN-LURFL3EF7CQ.029 78,270
WIN-LURFL3EF7CQ.030 85,390
WIN-LURFL3EF7CQ.031 87,621
WIN-LURFL3EF7CQ.032 87,496
WIN-LURFL3EF7CQ.033 88,580
WIN-LURFL3EF7CQ.034 88,974
WIN-LURFL3EF7CQ.035 87,066
WIN-LURFL3EF7CQ.036 88,892
WIN-LURFL3EF7CQ.037 88,555
WIN-LURFL3EF7CQ.038 85,880
WIN-LURFL3EF7CQ.039 88,741
WIN-LURFL3EF7CQ.040 86,355
WIN-LURFL3EF7CQ.041 87,635
WIN-LURFL3EF7CQ.042 88,456
WIN-LURFL3EF7CQ.043 87,565
WIN-LURFL3EF7CQ.044 88,455
WIN-LURFL3EF7CQ.045 87,336
WIN-LURFL3EF7CQ.046 87,516
WIN-LURFL3EF7CQ.047 85,567
WIN-LURFL3EF7CQ.048 87,548
WIN-LURFL3EF7CQ.049 87,999
WIN-LURFL3EF7CQ.050 87,093
WIN-LURFL3EF7CQ.051 87,680
WIN-LURFL3EF7CQ.052 87,532
WIN-LURFL3EF7CQ.053 87,115
WIN-LURFL3EF7CQ.054 87,197
WIN-LURFL3EF7CQ.055 87,731
WIN-LURFL3EF7CQ.056 87,211
ssj_ops@100% 4,894,319
ssj_ops@100% per JVM 87,399

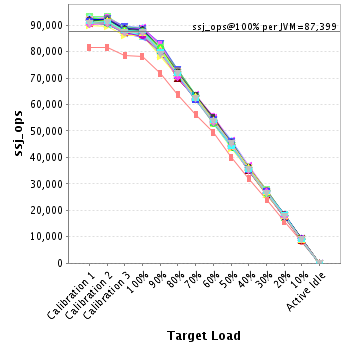

Graph of per-instance results
JVM 'WIN-LURFL3EF7CQ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,932
Calibration 2     90,440
Calibration 3     87,461
ssj_ops@calibrated=88,951
100% 97.6% 88,951 86,846
90% 89.7% 80,056 79,820
80% 80.4% 71,161 71,525
70% 69.9% 62,266 62,169
60% 59.8% 53,371 53,180
50% 50.9% 44,475 45,260
40% 39.5% 35,580 35,133
30% 29.4% 26,685 26,174
20% 19.5% 17,790 17,312
10% 10.1% 8,895 8,983
Active Idle   0 0
Graph of results

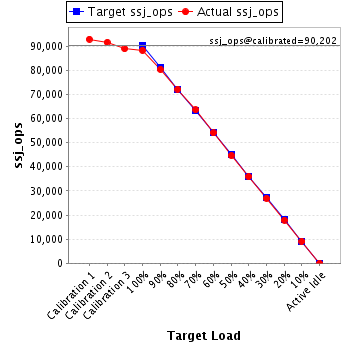

JVM 'WIN-LURFL3EF7CQ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,870
Calibration 2     91,569
Calibration 3     88,835
ssj_ops@calibrated=90,202
100% 97.8% 90,202 88,223
90% 89.1% 81,182 80,362
80% 80.0% 72,162 72,138
70% 70.5% 63,141 63,549
60% 59.9% 54,121 53,998
50% 49.5% 45,101 44,610
40% 39.8% 36,081 35,917
30% 29.9% 27,061 26,964
20% 19.9% 18,040 17,920
10% 10.0% 9,020 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,461
Calibration 2     90,648
Calibration 3     87,629
ssj_ops@calibrated=89,138
100% 97.7% 89,138 87,058
90% 89.9% 80,224 80,140
80% 80.3% 71,311 71,534
70% 70.4% 62,397 62,727
60% 59.9% 53,483 53,397
50% 50.7% 44,569 45,232
40% 40.8% 35,655 36,326
30% 30.1% 26,741 26,793
20% 19.4% 17,828 17,260
10% 9.9% 8,914 8,798
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,993
Calibration 2     91,621
Calibration 3     88,248
ssj_ops@calibrated=89,934
100% 96.5% 89,934 86,831
90% 90.5% 80,941 81,407
80% 78.9% 71,948 70,975
70% 69.5% 62,954 62,501
60% 59.7% 53,961 53,705
50% 49.4% 44,967 44,393
40% 39.3% 35,974 35,335
30% 30.2% 26,980 27,191
20% 20.2% 17,987 18,170
10% 10.2% 8,993 9,133
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,763
Calibration 2     91,256
Calibration 3     89,056
ssj_ops@calibrated=90,156
100% 98.2% 90,156 88,554
90% 90.4% 81,141 81,502
80% 81.0% 72,125 73,037
70% 70.2% 63,109 63,312
60% 60.6% 54,094 54,614
50% 49.4% 45,078 44,551
40% 40.0% 36,063 36,092
30% 30.0% 27,047 27,082
20% 20.3% 18,031 18,338
10% 10.0% 9,016 8,983
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,810
Calibration 2     90,995
Calibration 3     87,920
ssj_ops@calibrated=89,457
100% 96.8% 89,457 86,601
90% 89.9% 80,512 80,403
80% 78.8% 71,566 70,462
70% 69.6% 62,620 62,274
60% 59.6% 53,674 53,306
50% 49.5% 44,729 44,282
40% 39.7% 35,783 35,504
30% 30.2% 26,837 27,032
20% 20.2% 17,891 18,045
10% 10.1% 8,946 8,991
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,853
Calibration 2     90,901
Calibration 3     87,748
ssj_ops@calibrated=89,324
100% 97.8% 89,324 87,364
90% 90.6% 80,392 80,954
80% 80.3% 71,459 71,698
70% 69.1% 62,527 61,698
60% 59.8% 53,595 53,384
50% 50.3% 44,662 44,887
40% 40.4% 35,730 36,110
30% 30.7% 26,797 27,413
20% 20.0% 17,865 17,875
10% 10.3% 8,932 9,238
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,754
Calibration 2     91,668
Calibration 3     88,136
ssj_ops@calibrated=89,902
100% 98.1% 89,902 88,228
90% 89.4% 80,912 80,416
80% 79.2% 71,922 71,160
70% 70.0% 62,931 62,893
60% 59.7% 53,941 53,636
50% 50.0% 44,951 44,984
40% 40.2% 35,961 36,126
30% 30.1% 26,971 27,078
20% 19.8% 17,980 17,777
10% 10.1% 8,990 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,636
Calibration 2     92,046
Calibration 3     89,128
ssj_ops@calibrated=90,587
100% 98.0% 90,587 88,810
90% 90.5% 81,528 81,956
80% 79.4% 72,470 71,891
70% 70.0% 63,411 63,454
60% 60.4% 54,352 54,710
50% 49.5% 45,294 44,860
40% 40.1% 36,235 36,343
30% 29.9% 27,176 27,047
20% 20.3% 18,117 18,428
10% 9.8% 9,059 8,883
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,711
Calibration 2     90,211
Calibration 3     87,190
ssj_ops@calibrated=88,701
100% 97.7% 88,701 86,623
90% 90.6% 79,831 80,358
80% 80.0% 70,961 70,958
70% 69.9% 62,091 62,032
60% 60.5% 53,220 53,686
50% 49.9% 44,350 44,227
40% 40.7% 35,480 36,131
30% 29.9% 26,610 26,493
20% 19.6% 17,740 17,358
10% 10.3% 8,870 9,169
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,483
Calibration 2     90,842
Calibration 3     87,456
ssj_ops@calibrated=89,149
100% 98.1% 89,149 87,446
90% 89.4% 80,234 79,689
80% 79.4% 71,319 70,746
70% 69.6% 62,405 62,006
60% 59.7% 53,490 53,198
50% 49.2% 44,575 43,832
40% 40.0% 35,660 35,682
30% 29.9% 26,745 26,688
20% 20.0% 17,830 17,864
10% 10.2% 8,915 9,095
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,976
Calibration 2     91,512
Calibration 3     88,124
ssj_ops@calibrated=89,818
100% 98.7% 89,818 88,654
90% 90.3% 80,836 81,061
80% 79.4% 71,854 71,307
70% 69.9% 62,872 62,796
60% 60.7% 53,891 54,539
50% 49.0% 44,909 44,006
40% 40.6% 35,927 36,491
30% 29.6% 26,945 26,616
20% 19.5% 17,964 17,541
10% 10.3% 8,982 9,283
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,149
Calibration 2     91,181
Calibration 3     87,264
ssj_ops@calibrated=89,222
100% 98.0% 89,222 87,400
90% 88.6% 80,300 79,018
80% 80.1% 71,378 71,507
70% 69.9% 62,456 62,407
60% 59.6% 53,533 53,185
50% 50.4% 44,611 44,964
40% 39.6% 35,689 35,319
30% 30.9% 26,767 27,532
20% 20.4% 17,844 18,173
10% 10.1% 8,922 8,979
Active Idle   0 0
Graph of results

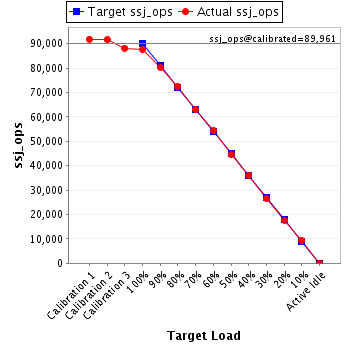

JVM 'WIN-LURFL3EF7CQ.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,894
Calibration 2     91,698
Calibration 3     88,223
ssj_ops@calibrated=89,961
100% 97.5% 89,961 87,742
90% 89.4% 80,965 80,421
80% 80.6% 71,969 72,541
70% 69.9% 62,973 62,926
60% 60.4% 53,976 54,307
50% 49.5% 44,980 44,506
40% 40.2% 35,984 36,173
30% 29.5% 26,988 26,565
20% 19.7% 17,992 17,712
10% 10.4% 8,996 9,365
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,704
Calibration 2     91,257
Calibration 3     87,559
ssj_ops@calibrated=89,408
100% 98.0% 89,408 87,614
90% 89.6% 80,467 80,091
80% 79.5% 71,526 71,068
70% 70.4% 62,586 62,953
60% 60.4% 53,645 53,980
50% 50.2% 44,704 44,889
40% 40.2% 35,763 35,901
30% 29.6% 26,822 26,461
20% 20.2% 17,882 18,018
10% 10.0% 8,941 8,961
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,725
Calibration 2     91,496
Calibration 3     88,146
ssj_ops@calibrated=89,821
100% 98.4% 89,821 88,404
90% 89.4% 80,839 80,321
80% 79.5% 71,857 71,433
70% 69.4% 62,875 62,301
60% 60.3% 53,893 54,185
50% 50.4% 44,911 45,236
40% 40.2% 35,928 36,095
30% 29.9% 26,946 26,900
20% 20.1% 17,964 18,044
10% 10.0% 8,982 8,995
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,709
Calibration 2     90,689
Calibration 3     87,435
ssj_ops@calibrated=89,062
100% 97.9% 89,062 87,189
90% 90.8% 80,156 80,839
80% 80.6% 71,250 71,800
70% 70.4% 62,343 62,669
60% 59.9% 53,437 53,346
50% 49.7% 44,531 44,306
40% 39.7% 35,625 35,394
30% 30.2% 26,719 26,874
20% 19.9% 17,812 17,708
10% 10.1% 8,906 9,015
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,564
Calibration 2     92,241
Calibration 3     88,905
ssj_ops@calibrated=90,573
100% 97.9% 90,573 88,710
90% 89.2% 81,516 80,788
80% 80.8% 72,459 73,220
70% 69.5% 63,401 62,968
60% 59.7% 54,344 54,054
50% 50.3% 45,287 45,601
40% 40.1% 36,229 36,358
30% 30.3% 27,172 27,420
20% 20.0% 18,115 18,070
10% 10.2% 9,057 9,275
Active Idle   0 0

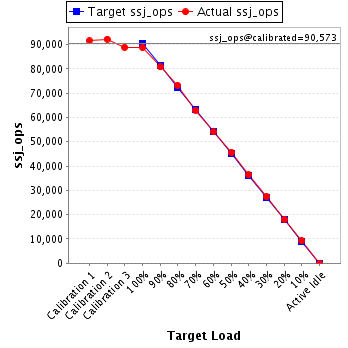

Graph of results
JVM 'WIN-LURFL3EF7CQ.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,500
Calibration 2     90,984
Calibration 3     87,488
ssj_ops@calibrated=89,236
100% 98.0% 89,236 87,419
90% 89.7% 80,312 80,014
80% 79.5% 71,389 70,987
70% 69.6% 62,465 62,093
60% 59.2% 53,542 52,816
50% 49.3% 44,618 43,957
40% 40.6% 35,694 36,243
30% 30.2% 26,771 26,922
20% 20.2% 17,847 18,069
10% 10.3% 8,924 9,174
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,229
Calibration 2     92,869
Calibration 3     89,468
ssj_ops@calibrated=91,168
100% 97.9% 91,168 89,278
90% 90.9% 82,051 82,836
80% 78.8% 72,935 71,842
70% 69.9% 63,818 63,769
60% 60.2% 54,701 54,901
50% 51.0% 45,584 46,540
40% 40.6% 36,467 37,000
30% 30.3% 27,350 27,627
20% 19.5% 18,234 17,819
10% 10.1% 9,117 9,223
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,041
Calibration 2     90,583
Calibration 3     87,437
ssj_ops@calibrated=89,010
100% 96.5% 89,010 85,877
90% 89.0% 80,109 79,259
80% 79.8% 71,208 71,025
70% 70.7% 62,307 62,887
60% 60.4% 53,406 53,730
50% 50.6% 44,505 45,042
40% 40.3% 35,604 35,842
30% 30.1% 26,703 26,820
20% 20.4% 17,802 18,116
10% 10.2% 8,901 9,091
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,650
Calibration 2     90,240
Calibration 3     86,895
ssj_ops@calibrated=88,568
100% 98.1% 88,568 86,926
90% 89.3% 79,711 79,062
80% 79.8% 70,854 70,712
70% 70.0% 61,997 62,002
60% 60.0% 53,141 53,168
50% 49.7% 44,284 43,996
40% 40.0% 35,427 35,470
30% 29.8% 26,570 26,433
20% 20.1% 17,714 17,804
10% 9.4% 8,857 8,366
Active Idle   0 0

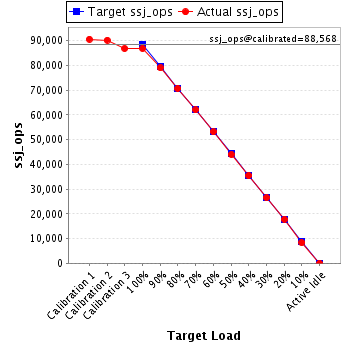

Graph of results
JVM 'WIN-LURFL3EF7CQ.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,108
Calibration 2     90,335
Calibration 3     87,127
ssj_ops@calibrated=88,731
100% 98.2% 88,731 87,132
90% 90.6% 79,858 80,397
80% 78.9% 70,985 69,996
70% 70.7% 62,112 62,771
60% 61.3% 53,239 54,368
50% 50.3% 44,366 44,604
40% 39.5% 35,493 35,041
30% 29.2% 26,619 25,935
20% 20.3% 17,746 18,034
10% 10.3% 8,873 9,095
Active Idle   0 0

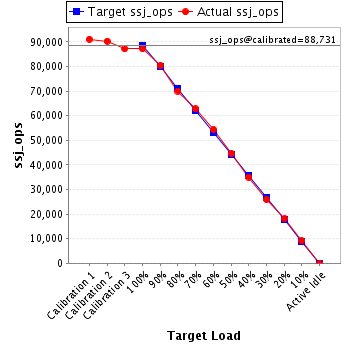

Graph of results
JVM 'WIN-LURFL3EF7CQ.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,077
Calibration 2     91,228
Calibration 3     88,614
ssj_ops@calibrated=89,921
100% 96.8% 89,921 87,053
90% 89.8% 80,929 80,756
80% 80.4% 71,936 72,326
70% 69.3% 62,944 62,280
60% 60.2% 53,952 54,094
50% 50.0% 44,960 44,928
40% 39.2% 35,968 35,291
30% 30.4% 26,976 27,381
20% 20.1% 17,984 18,049
10% 10.2% 8,992 9,196
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,971
Calibration 2     91,810
Calibration 3     88,747
ssj_ops@calibrated=90,279
100% 98.2% 90,279 88,688
90% 91.0% 81,251 82,121
80% 80.2% 72,223 72,433
70% 69.7% 63,195 62,966
60% 60.6% 54,167 54,667
50% 49.6% 45,139 44,804
40% 40.0% 36,111 36,098
30% 29.3% 27,084 26,424
20% 20.0% 18,056 18,068
10% 10.2% 9,028 9,175
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,343
Calibration 2     90,617
Calibration 3     87,775
ssj_ops@calibrated=89,196
100% 98.4% 89,196 87,797
90% 90.1% 80,277 80,395
80% 79.1% 71,357 70,571
70% 70.3% 62,437 62,748
60% 59.8% 53,518 53,378
50% 49.8% 44,598 44,415
40% 39.4% 35,679 35,176
30% 29.8% 26,759 26,591
20% 20.0% 17,839 17,860
10% 10.3% 8,920 9,188
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,955
Calibration 2     91,299
Calibration 3     88,016
ssj_ops@calibrated=89,657
100% 98.0% 89,657 87,854
90% 90.7% 80,691 81,330
80% 79.5% 71,726 71,261
70% 70.0% 62,760 62,803
60% 59.9% 53,794 53,669
50% 49.7% 44,829 44,592
40% 40.2% 35,863 36,031
30% 29.8% 26,897 26,723
20% 19.6% 17,931 17,607
10% 9.9% 8,966 8,862
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,371
Calibration 2     91,101
Calibration 3     88,192
ssj_ops@calibrated=89,646
100% 96.5% 89,646 86,546
90% 90.1% 80,682 80,778
80% 79.4% 71,717 71,154
70% 70.6% 62,752 63,279
60% 60.2% 53,788 53,962
50% 49.9% 44,823 44,702
40% 39.4% 35,859 35,312
30% 30.5% 26,894 27,320
20% 20.1% 17,929 18,054
10% 9.8% 8,965 8,820
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,451
Calibration 2     81,567
Calibration 3     78,555
ssj_ops@calibrated=80,061
100% 97.8% 80,061 78,270
90% 89.6% 72,055 71,759
80% 79.5% 64,049 63,684
70% 70.1% 56,043 56,093
60% 61.5% 48,037 49,257
50% 49.8% 40,030 39,833
40% 39.9% 32,024 31,920
30% 30.2% 24,018 24,171
20% 19.8% 16,012 15,889
10% 10.3% 8,006 8,266
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,635
Calibration 2     90,828
Calibration 3     86,943
ssj_ops@calibrated=88,885
100% 96.1% 88,885 85,390
90% 90.4% 79,997 80,311
80% 79.9% 71,108 70,993
70% 69.8% 62,220 62,055
60% 59.5% 53,331 52,919
50% 49.9% 44,443 44,356
40% 39.6% 35,554 35,192
30% 29.8% 26,666 26,519
20% 20.4% 17,777 18,093
10% 9.9% 8,889 8,787
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,250
Calibration 2     93,306
Calibration 3     89,245
ssj_ops@calibrated=91,276
100% 96.0% 91,276 87,621
90% 90.7% 82,148 82,818
80% 80.3% 73,020 73,275
70% 69.1% 63,893 63,116
60% 59.4% 54,765 54,236
50% 49.7% 45,638 45,324
40% 39.7% 36,510 36,269
30% 30.3% 27,383 27,695
20% 19.5% 18,255 17,799
10% 10.0% 9,128 9,108
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,063
Calibration 2     91,340
Calibration 3     87,557
ssj_ops@calibrated=89,448
100% 97.8% 89,448 87,496
90% 90.4% 80,504 80,902
80% 80.7% 71,559 72,220
70% 69.5% 62,614 62,183
60% 59.6% 53,669 53,289
50% 49.6% 44,724 44,336
40% 39.9% 35,779 35,709
30% 30.0% 26,835 26,849
20% 19.7% 17,890 17,622
10% 10.1% 8,945 9,033
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,793
Calibration 2     92,709
Calibration 3     89,148
ssj_ops@calibrated=90,928
100% 97.4% 90,928 88,580
90% 90.2% 81,836 82,008
80% 79.6% 72,743 72,343
70% 69.9% 63,650 63,581
60% 60.9% 54,557 55,356
50% 48.8% 45,464 44,342
40% 40.0% 36,371 36,327
30% 30.2% 27,279 27,501
20% 19.7% 18,186 17,895
10% 9.8% 9,093 8,923
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,790
Calibration 2     92,507
Calibration 3     89,506
ssj_ops@calibrated=91,007
100% 97.8% 91,007 88,974
90% 88.9% 81,906 80,936
80% 79.4% 72,805 72,280
70% 69.6% 63,705 63,322
60% 60.0% 54,604 54,626
50% 51.0% 45,503 46,430
40% 40.2% 36,403 36,569
30% 29.6% 27,302 26,957
20% 19.9% 18,201 18,112
10% 10.1% 9,101 9,166
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,261
Calibration 2     90,549
Calibration 3     87,482
ssj_ops@calibrated=89,016
100% 97.8% 89,016 87,066
90% 90.5% 80,114 80,600
80% 79.5% 71,213 70,793
70% 70.9% 62,311 63,141
60% 59.6% 53,409 53,013
50% 49.5% 44,508 44,088
40% 40.0% 35,606 35,618
30% 29.9% 26,705 26,599
20% 20.3% 17,803 18,061
10% 10.2% 8,902 9,041
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,553
Calibration 2     92,500
Calibration 3     89,412
ssj_ops@calibrated=90,956
100% 97.7% 90,956 88,892
90% 91.1% 81,860 82,859
80% 80.5% 72,765 73,202
70% 69.7% 63,669 63,404
60% 59.6% 54,573 54,245
50% 50.4% 45,478 45,858
40% 39.9% 36,382 36,278
30% 29.8% 27,287 27,072
20% 20.0% 18,191 18,195
10% 9.6% 9,096 8,766
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,869
Calibration 2     92,282
Calibration 3     89,128
ssj_ops@calibrated=90,705
100% 97.6% 90,705 88,555
90% 89.3% 81,634 80,989
80% 80.6% 72,564 73,075
70% 70.3% 63,493 63,790
60% 59.6% 54,423 54,088
50% 50.3% 45,352 45,630
40% 39.4% 36,282 35,702
30% 30.7% 27,211 27,820
20% 20.0% 18,141 18,160
10% 10.1% 9,070 9,191
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,701
Calibration 2     89,461
Calibration 3     86,145
ssj_ops@calibrated=87,803
100% 97.8% 87,803 85,880
90% 88.8% 79,023 78,005
80% 80.6% 70,243 70,743
70% 70.8% 61,462 62,206
60% 60.0% 52,682 52,689
50% 49.4% 43,902 43,351
40% 40.3% 35,121 35,413
30% 29.4% 26,341 25,803
20% 20.1% 17,561 17,656
10% 10.1% 8,780 8,882
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,454
Calibration 2     92,743
Calibration 3     88,643
ssj_ops@calibrated=90,693
100% 97.8% 90,693 88,741
90% 91.1% 81,624 82,618
80% 79.0% 72,554 71,638
70% 69.1% 63,485 62,631
60% 61.3% 54,416 55,598
50% 49.8% 45,347 45,176
40% 39.9% 36,277 36,211
30% 30.4% 27,208 27,576
20% 19.5% 18,139 17,649
10% 10.3% 9,069 9,358
Active Idle   0 0

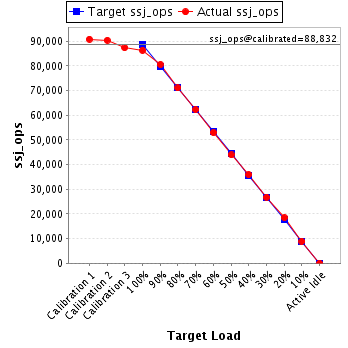

Graph of results
JVM 'WIN-LURFL3EF7CQ.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,828
Calibration 2     90,382
Calibration 3     87,282
ssj_ops@calibrated=88,832
100% 97.2% 88,832 86,355
90% 90.7% 79,949 80,553
80% 80.0% 71,066 71,054
70% 70.1% 62,183 62,296
60% 59.6% 53,299 52,965
50% 49.5% 44,416 43,931
40% 40.5% 35,533 35,972
30% 30.2% 26,650 26,799
20% 20.7% 17,766 18,431
10% 10.0% 8,883 8,862
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,004
Calibration 2     91,350
Calibration 3     87,972
ssj_ops@calibrated=89,661
100% 97.7% 89,661 87,635
90% 90.5% 80,695 81,142
80% 80.8% 71,729 72,473
70% 69.0% 62,762 61,872
60% 59.7% 53,796 53,488
50% 49.3% 44,830 44,194
40% 40.2% 35,864 36,081
30% 29.8% 26,898 26,722
20% 19.6% 17,932 17,554
10% 10.1% 8,966 9,065
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,708
Calibration 2     92,674
Calibration 3     88,866
ssj_ops@calibrated=90,770
100% 97.5% 90,770 88,456
90% 89.5% 81,693 81,257
80% 80.0% 72,616 72,661
70% 69.6% 63,539 63,213
60% 59.3% 54,462 53,788
50% 50.3% 45,385 45,646
40% 39.1% 36,308 35,463
30% 30.2% 27,231 27,385
20% 20.1% 18,154 18,253
10% 10.0% 9,077 9,100
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,338
Calibration 2     91,052
Calibration 3     87,781
ssj_ops@calibrated=89,417
100% 97.9% 89,417 87,565
90% 90.2% 80,475 80,630
80% 80.4% 71,533 71,859
70% 69.9% 62,592 62,478
60% 60.0% 53,650 53,640
50% 49.9% 44,708 44,634
40% 40.3% 35,767 36,043
30% 30.1% 26,825 26,943
20% 20.3% 17,883 18,124
10% 9.7% 8,942 8,695
Active Idle   0 0

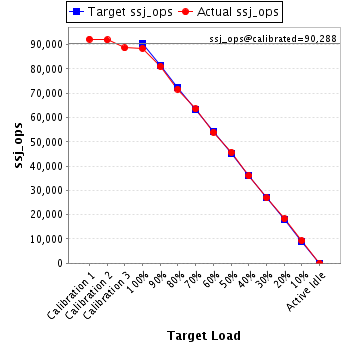

Graph of results
JVM 'WIN-LURFL3EF7CQ.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,264
Calibration 2     91,933
Calibration 3     88,642
ssj_ops@calibrated=90,288
100% 98.0% 90,288 88,455
90% 89.8% 81,259 81,046
80% 79.4% 72,230 71,657
70% 70.3% 63,201 63,516
60% 59.8% 54,173 53,951
50% 50.6% 45,144 45,670
40% 39.8% 36,115 35,968
30% 29.8% 27,086 26,887
20% 20.3% 18,058 18,299
10% 10.3% 9,029 9,308
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,646
Calibration 2     91,629
Calibration 3     87,653
ssj_ops@calibrated=89,641
100% 97.4% 89,641 87,336
90% 90.2% 80,677 80,870
80% 80.3% 71,713 71,982
70% 70.0% 62,749 62,713
60% 59.9% 53,785 53,725
50% 50.6% 44,820 45,395
40% 40.2% 35,856 36,027
30% 29.8% 26,892 26,669
20% 19.6% 17,928 17,611
10% 10.1% 8,964 9,069
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,816
Calibration 2     91,240
Calibration 3     87,773
ssj_ops@calibrated=89,506
100% 97.8% 89,506 87,516
90% 89.3% 80,556 79,967
80% 79.8% 71,605 71,386
70% 69.2% 62,655 61,914
60% 60.5% 53,704 54,134
50% 49.3% 44,753 44,162
40% 40.1% 35,803 35,909
30% 30.4% 26,852 27,252
20% 19.9% 17,901 17,816
10% 10.1% 8,951 9,012
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,906
Calibration 2     90,691
Calibration 3     87,343
ssj_ops@calibrated=89,017
100% 96.1% 89,017 85,567
90% 89.4% 80,115 79,600
80% 79.7% 71,214 70,951
70% 70.0% 62,312 62,301
60% 59.9% 53,410 53,358
50% 50.1% 44,509 44,579
40% 40.2% 35,607 35,764
30% 29.8% 26,705 26,523
20% 20.0% 17,803 17,816
10% 10.1% 8,902 8,988
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,288
Calibration 2     91,276
Calibration 3     87,599
ssj_ops@calibrated=89,438
100% 97.9% 89,438 87,548
90% 89.9% 80,494 80,443
80% 80.5% 71,550 71,965
70% 70.9% 62,606 63,438
60% 59.5% 53,663 53,239
50% 49.8% 44,719 44,565
40% 40.2% 35,775 35,929
30% 30.1% 26,831 26,961
20% 20.2% 17,888 18,024
10% 10.2% 8,944 9,150
Active Idle   0 0

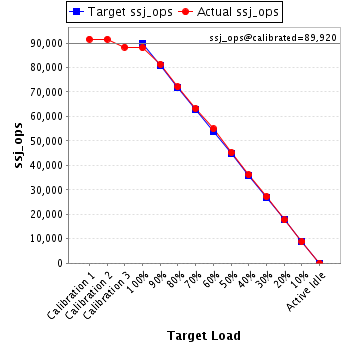

Graph of results
JVM 'WIN-LURFL3EF7CQ.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,573
Calibration 2     91,525
Calibration 3     88,315
ssj_ops@calibrated=89,920
100% 97.9% 89,920 87,999
90% 90.4% 80,928 81,313
80% 80.2% 71,936 72,093
70% 70.4% 62,944 63,299
60% 61.1% 53,952 54,899
50% 50.3% 44,960 45,248
40% 40.2% 35,968 36,175
30% 30.3% 26,976 27,216
20% 19.7% 17,984 17,687
10% 9.8% 8,992 8,854
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,730
Calibration 2     90,829
Calibration 3     87,248
ssj_ops@calibrated=89,038
100% 97.8% 89,038 87,093
90% 90.9% 80,135 80,913
80% 79.7% 71,231 70,991
70% 70.0% 62,327 62,304
60% 59.7% 53,423 53,129
50% 49.9% 44,519 44,408
40% 39.6% 35,615 35,261
30% 30.0% 26,712 26,732
20% 19.8% 17,808 17,668
10% 9.7% 8,904 8,666
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,187
Calibration 2     90,925
Calibration 3     88,007
ssj_ops@calibrated=89,466
100% 98.0% 89,466 87,680
90% 90.2% 80,519 80,686
80% 79.2% 71,573 70,828
70% 69.0% 62,626 61,714
60% 60.3% 53,680 53,912
50% 50.1% 44,733 44,823
40% 39.8% 35,786 35,591
30% 30.3% 26,840 27,148
20% 20.3% 17,893 18,185
10% 10.1% 8,947 8,998
Active Idle   0 0

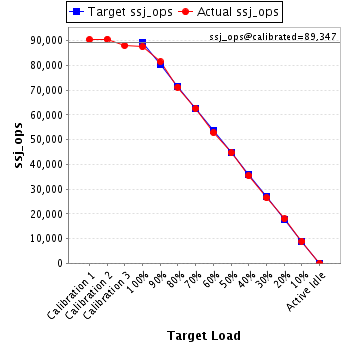

Graph of results
JVM 'WIN-LURFL3EF7CQ.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,472
Calibration 2     90,647
Calibration 3     88,047
ssj_ops@calibrated=89,347
100% 98.0% 89,347 87,532
90% 91.2% 80,412 81,499
80% 79.7% 71,478 71,232
70% 70.1% 62,543 62,624
60% 59.1% 53,608 52,828
50% 50.0% 44,674 44,706
40% 39.6% 35,739 35,389
30% 29.6% 26,804 26,470
20% 20.1% 17,869 17,931
10% 9.9% 8,935 8,866
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,116
Calibration 2     91,867
Calibration 3     87,492
ssj_ops@calibrated=89,679
100% 97.1% 89,679 87,115
90% 90.2% 80,712 80,880
80% 79.9% 71,744 71,678
70% 70.3% 62,776 63,081
60% 60.3% 53,808 54,105
50% 50.5% 44,840 45,247
40% 40.2% 35,872 36,089
30% 30.2% 26,904 27,062
20% 20.1% 17,936 18,023
10% 10.1% 8,968 9,028
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,141
Calibration 2     90,745
Calibration 3     87,211
ssj_ops@calibrated=88,978
100% 98.0% 88,978 87,197
90% 90.0% 80,080 80,058
80% 79.1% 71,183 70,375
70% 70.1% 62,285 62,409
60% 59.9% 53,387 53,294
50% 49.8% 44,489 44,352
40% 39.5% 35,591 35,167
30% 30.3% 26,693 26,942
20% 20.0% 17,796 17,765
10% 10.2% 8,898 9,100
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,085
Calibration 2     91,342
Calibration 3     87,949
ssj_ops@calibrated=89,645
100% 97.9% 89,645 87,731
90% 89.4% 80,681 80,104
80% 79.7% 71,716 71,461
70% 69.1% 62,752 61,988
60% 59.8% 53,787 53,639
50% 49.0% 44,823 43,952
40% 39.4% 35,858 35,340
30% 29.9% 26,894 26,778
20% 20.6% 17,929 18,428
10% 9.7% 8,965 8,679
Active Idle   0 0
Graph of results
JVM 'WIN-LURFL3EF7CQ.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,657
Calibration 2     90,948
Calibration 3     87,260
ssj_ops@calibrated=89,104
100% 97.9% 89,104 87,211
90% 88.6% 80,194 78,916
80% 80.5% 71,283 71,735
70% 69.9% 62,373 62,272
60% 60.1% 53,463 53,571
50% 50.6% 44,552 45,081
40% 39.7% 35,642 35,406
30% 29.5% 26,731 26,304
20% 19.7% 17,821 17,525
10% 10.1% 8,910 9,012
Active Idle   0 0
Graph of results
