Lenovo Global Technology ThinkSystem SD530 ssj_ops@100% = 4,883,688
ssj_ops@100% per JVM = 87,209
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Jul 4, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,123,098
Calibration 2     5,090,430
Calibration 3     4,911,153
ssj_ops@calibrated=5,000,792
100% 97.7% 5,000,792 4,883,688
90% 89.9% 4,500,713 4,495,823
80% 80.0% 4,000,633 4,000,302
70% 70.1% 3,500,554 3,503,790
60% 60.0% 3,000,475 3,000,298
50% 49.9% 2,500,396 2,497,141
40% 40.0% 2,000,317 1,999,108
30% 30.0% 1,500,238 1,500,000
20% 19.9% 1,000,158 997,177
10% 10.0% 500,079 500,771
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N 7N47A00129)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE113J
Management Firmware Version: TEI305U
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KJ6CVEIJLCP.001 88,411
WIN-KJ6CVEIJLCP.002 88,205
WIN-KJ6CVEIJLCP.003 87,642
WIN-KJ6CVEIJLCP.004 86,610
WIN-KJ6CVEIJLCP.005 87,501
WIN-KJ6CVEIJLCP.006 87,063
WIN-KJ6CVEIJLCP.007 87,635
WIN-KJ6CVEIJLCP.008 87,507
WIN-KJ6CVEIJLCP.009 87,826
WIN-KJ6CVEIJLCP.010 87,074
WIN-KJ6CVEIJLCP.011 86,744
WIN-KJ6CVEIJLCP.012 86,122
WIN-KJ6CVEIJLCP.013 87,308
WIN-KJ6CVEIJLCP.014 86,504
WIN-KJ6CVEIJLCP.015 87,749
WIN-KJ6CVEIJLCP.016 87,456
WIN-KJ6CVEIJLCP.017 86,341
WIN-KJ6CVEIJLCP.018 86,529
WIN-KJ6CVEIJLCP.019 86,631
WIN-KJ6CVEIJLCP.020 88,900
WIN-KJ6CVEIJLCP.021 88,163
WIN-KJ6CVEIJLCP.022 87,160
WIN-KJ6CVEIJLCP.023 89,193
WIN-KJ6CVEIJLCP.024 89,539
WIN-KJ6CVEIJLCP.025 87,984
WIN-KJ6CVEIJLCP.026 86,016
WIN-KJ6CVEIJLCP.027 86,001
WIN-KJ6CVEIJLCP.028 87,522
WIN-KJ6CVEIJLCP.029 79,139
WIN-KJ6CVEIJLCP.030 87,613
WIN-KJ6CVEIJLCP.031 88,648
WIN-KJ6CVEIJLCP.032 86,634
WIN-KJ6CVEIJLCP.033 88,353
WIN-KJ6CVEIJLCP.034 87,682
WIN-KJ6CVEIJLCP.035 87,789
WIN-KJ6CVEIJLCP.036 87,901
WIN-KJ6CVEIJLCP.037 87,001
WIN-KJ6CVEIJLCP.038 87,620
WIN-KJ6CVEIJLCP.039 85,119
WIN-KJ6CVEIJLCP.040 86,365
WIN-KJ6CVEIJLCP.041 87,417
WIN-KJ6CVEIJLCP.042 86,585
WIN-KJ6CVEIJLCP.043 87,233
WIN-KJ6CVEIJLCP.044 85,455
WIN-KJ6CVEIJLCP.045 87,587
WIN-KJ6CVEIJLCP.046 87,735
WIN-KJ6CVEIJLCP.047 84,828
WIN-KJ6CVEIJLCP.048 87,389
WIN-KJ6CVEIJLCP.049 87,361
WIN-KJ6CVEIJLCP.050 87,391
WIN-KJ6CVEIJLCP.051 89,397
WIN-KJ6CVEIJLCP.052 88,030
WIN-KJ6CVEIJLCP.053 88,455
WIN-KJ6CVEIJLCP.054 84,902
WIN-KJ6CVEIJLCP.055 86,981
WIN-KJ6CVEIJLCP.056 89,737
ssj_ops@100% 4,883,688
ssj_ops@100% per JVM 87,209

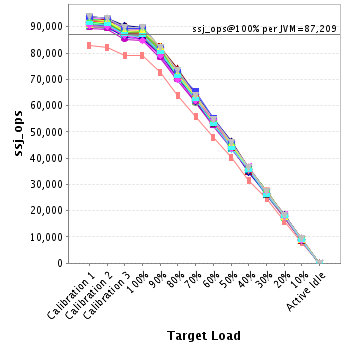

Graph of per-instance results

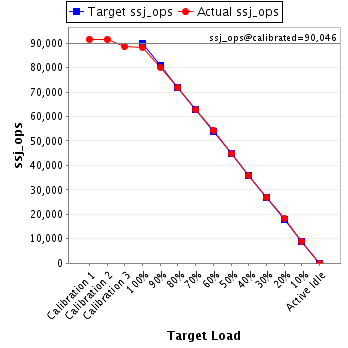

JVM 'WIN-KJ6CVEIJLCP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,638
Calibration 2     91,522
Calibration 3     88,570
ssj_ops@calibrated=90,046
100% 98.2% 90,046 88,411
90% 89.1% 81,041 80,221
80% 79.8% 72,037 71,874
70% 69.6% 63,032 62,678
60% 60.5% 54,028 54,442
50% 49.7% 45,023 44,731
40% 39.8% 36,018 35,827
30% 30.1% 27,014 27,093
20% 20.3% 18,009 18,303
10% 9.9% 9,005 8,940
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,820
Calibration 2     91,091
Calibration 3     88,365
ssj_ops@calibrated=89,728
100% 98.3% 89,728 88,205
90% 90.5% 80,755 81,205
80% 80.0% 71,782 71,765
70% 69.8% 62,810 62,666
60% 60.0% 53,837 53,875
50% 49.9% 44,864 44,775
40% 40.7% 35,891 36,557
30% 30.5% 26,918 27,408
20% 19.1% 17,946 17,165
10% 9.9% 8,973 8,916
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,266
Calibration 2     91,073
Calibration 3     88,049
ssj_ops@calibrated=89,561
100% 97.9% 89,561 87,642
90% 89.4% 80,605 80,063
80% 80.0% 71,649 71,612
70% 69.8% 62,693 62,544
60% 60.7% 53,737 54,329
50% 50.3% 44,780 45,030
40% 40.1% 35,824 35,944
30% 30.6% 26,868 27,383
20% 20.2% 17,912 18,065
10% 10.2% 8,956 9,112
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,194
Calibration 2     91,718
Calibration 3     88,364
ssj_ops@calibrated=90,041
100% 96.2% 90,041 86,610
90% 89.8% 81,037 80,855
80% 79.8% 72,033 71,875
70% 70.4% 63,029 63,344
60% 60.2% 54,025 54,240
50% 50.5% 45,021 45,465
40% 39.9% 36,016 35,970
30% 30.2% 27,012 27,214
20% 19.4% 18,008 17,424
10% 10.1% 9,004 9,108
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,451
Calibration 2     90,493
Calibration 3     87,777
ssj_ops@calibrated=89,135
100% 98.2% 89,135 87,501
90% 89.9% 80,222 80,170
80% 80.1% 71,308 71,423
70% 70.4% 62,395 62,790
60% 59.7% 53,481 53,194
50% 50.4% 44,568 44,913
40% 40.0% 35,654 35,663
30% 30.2% 26,741 26,919
20% 20.3% 17,827 18,108
10% 10.5% 8,914 9,317
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,866
Calibration 2     90,015
Calibration 3     87,163
ssj_ops@calibrated=88,589
100% 98.3% 88,589 87,063
90% 89.6% 79,730 79,389
80% 80.7% 70,871 71,527
70% 70.0% 62,012 62,043
60% 59.8% 53,153 52,938
50% 49.0% 44,294 43,375
40% 40.5% 35,436 35,847
30% 30.3% 26,577 26,874
20% 20.3% 17,718 17,978
10% 9.9% 8,859 8,803
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,923
Calibration 2     89,923
Calibration 3     87,684
ssj_ops@calibrated=88,804
100% 98.7% 88,804 87,635
90% 89.7% 79,923 79,699
80% 80.1% 71,043 71,102
70% 69.4% 62,163 61,606
60% 59.9% 53,282 53,168
50% 49.8% 44,402 44,184
40% 39.4% 35,521 34,953
30% 30.0% 26,641 26,661
20% 20.1% 17,761 17,872
10% 10.3% 8,880 9,154
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,356
Calibration 2     90,472
Calibration 3     87,972
ssj_ops@calibrated=89,222
100% 98.1% 89,222 87,507
90% 90.5% 80,300 80,720
80% 79.1% 71,378 70,583
70% 70.6% 62,455 62,962
60% 60.1% 53,533 53,606
50% 50.5% 44,611 45,078
40% 40.6% 35,689 36,210
30% 29.6% 26,767 26,399
20% 20.1% 17,844 17,958
10% 10.0% 8,922 8,940
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,815
Calibration 2     92,487
Calibration 3     89,941
ssj_ops@calibrated=91,214
100% 96.3% 91,214 87,826
90% 90.6% 82,093 82,635
80% 79.3% 72,971 72,369
70% 69.4% 63,850 63,261
60% 59.8% 54,728 54,542
50% 49.2% 45,607 44,900
40% 39.1% 36,486 35,689
30% 30.2% 27,364 27,551
20% 19.7% 18,243 17,964
10% 10.3% 9,121 9,350
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,580
Calibration 2     90,730
Calibration 3     87,668
ssj_ops@calibrated=89,199
100% 97.6% 89,199 87,074
90% 89.5% 80,279 79,876
80% 79.7% 71,359 71,066
70% 71.2% 62,439 63,531
60% 59.5% 53,520 53,045
50% 49.1% 44,600 43,787
40% 39.7% 35,680 35,378
30% 29.9% 26,760 26,712
20% 19.7% 17,840 17,561
10% 9.8% 8,920 8,762
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,183
Calibration 2     90,202
Calibration 3     86,877
ssj_ops@calibrated=88,540
100% 98.0% 88,540 86,744
90% 90.4% 79,686 80,067
80% 80.1% 70,832 70,884
70% 70.4% 61,978 62,338
60% 59.6% 53,124 52,752
50% 49.7% 44,270 44,046
40% 40.1% 35,416 35,470
30% 29.7% 26,562 26,267
20% 19.5% 17,708 17,262
10% 10.1% 8,854 8,932
Active Idle   0 0
Graph of results

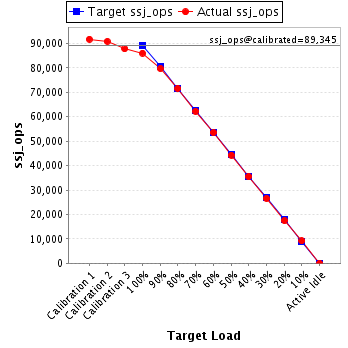

JVM 'WIN-KJ6CVEIJLCP.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,805
Calibration 2     90,907
Calibration 3     87,783
ssj_ops@calibrated=89,345
100% 96.4% 89,345 86,122
90% 89.3% 80,410 79,748
80% 80.2% 71,476 71,617
70% 69.7% 62,541 62,299
60% 59.9% 53,607 53,554
50% 49.6% 44,672 44,299
40% 39.7% 35,738 35,486
30% 29.7% 26,803 26,574
20% 19.5% 17,869 17,404
10% 10.3% 8,934 9,186
Active Idle   0 0
Graph of results

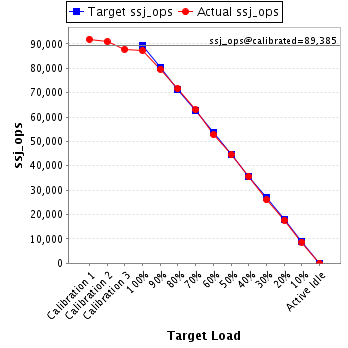

JVM 'WIN-KJ6CVEIJLCP.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,972
Calibration 2     90,952
Calibration 3     87,817
ssj_ops@calibrated=89,385
100% 97.7% 89,385 87,308
90% 89.1% 80,446 79,682
80% 80.2% 71,508 71,673
70% 70.5% 62,569 63,012
60% 59.1% 53,631 52,814
50% 49.8% 44,692 44,526
40% 39.9% 35,754 35,628
30% 29.1% 26,815 25,983
20% 19.8% 17,877 17,702
10% 9.8% 8,938 8,725
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,682
Calibration 2     89,833
Calibration 3     86,732
ssj_ops@calibrated=88,282
100% 98.0% 88,282 86,504
90% 89.3% 79,454 78,876
80% 80.1% 70,626 70,755
70% 69.4% 61,798 61,254
60% 59.8% 52,969 52,751
50% 50.5% 44,141 44,589
40% 39.9% 35,313 35,185
30% 30.3% 26,485 26,758
20% 20.4% 17,656 17,979
10% 10.3% 8,828 9,108
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,011
Calibration 2     90,974
Calibration 3     87,742
ssj_ops@calibrated=89,358
100% 98.2% 89,358 87,749
90% 90.3% 80,422 80,706
80% 80.7% 71,486 72,093
70% 70.0% 62,551 62,517
60% 60.3% 53,615 53,882
50% 50.0% 44,679 44,724
40% 40.5% 35,743 36,162
30% 29.5% 26,807 26,335
20% 20.4% 17,872 18,201
10% 10.2% 8,936 9,091
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,615
Calibration 2     91,790
Calibration 3     87,849
ssj_ops@calibrated=89,819
100% 97.4% 89,819 87,456
90% 90.1% 80,837 80,913
80% 79.5% 71,855 71,408
70% 70.7% 62,874 63,481
60% 59.8% 53,892 53,725
50% 49.2% 44,910 44,171
40% 40.6% 35,928 36,442
30% 30.4% 26,946 27,320
20% 19.3% 17,964 17,299
10% 10.2% 8,982 9,121
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,207
Calibration 2     89,508
Calibration 3     86,665
ssj_ops@calibrated=88,087
100% 98.0% 88,087 86,341
90% 89.5% 79,278 78,844
80% 79.5% 70,469 70,041
70% 69.7% 61,661 61,409
60% 60.2% 52,852 53,051
50% 49.8% 44,043 43,867
40% 39.9% 35,235 35,112
30% 29.5% 26,426 25,960
20% 19.8% 17,617 17,439
10% 9.9% 8,809 8,679
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,974
Calibration 2     89,588
Calibration 3     87,036
ssj_ops@calibrated=88,312
100% 98.0% 88,312 86,529
90% 90.8% 79,481 80,220
80% 81.0% 70,650 71,551
70% 69.8% 61,818 61,628
60% 60.0% 52,987 53,017
50% 49.6% 44,156 43,768
40% 40.2% 35,325 35,489
30% 30.0% 26,494 26,513
20% 19.9% 17,662 17,598
10% 10.0% 8,831 8,804
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,170
Calibration 2     89,823
Calibration 3     86,995
ssj_ops@calibrated=88,409
100% 98.0% 88,409 86,631
90% 89.4% 79,568 79,059
80% 80.5% 70,727 71,142
70% 70.3% 61,886 62,194
60% 59.7% 53,045 52,795
50% 50.2% 44,204 44,395
40% 40.5% 35,363 35,823
30% 30.1% 26,523 26,632
20% 19.5% 17,682 17,282
10% 9.8% 8,841 8,700
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,715
Calibration 2     91,082
Calibration 3     88,902
ssj_ops@calibrated=89,992
100% 98.8% 89,992 88,900
90% 89.8% 80,993 80,795
80% 80.3% 71,994 72,230
70% 68.9% 62,994 62,002
60% 59.7% 53,995 53,686
50% 49.9% 44,996 44,914
40% 40.8% 35,997 36,752
30% 30.1% 26,998 27,081
20% 20.6% 17,998 18,529
10% 9.8% 8,999 8,825
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,086
Calibration 2     91,015
Calibration 3     88,658
ssj_ops@calibrated=89,836
100% 98.1% 89,836 88,163
90% 89.7% 80,853 80,546
80% 80.2% 71,869 72,051
70% 69.3% 62,885 62,294
60% 59.5% 53,902 53,496
50% 50.4% 44,918 45,280
40% 39.6% 35,935 35,534
30% 30.2% 26,951 27,140
20% 20.3% 17,967 18,235
10% 9.9% 8,984 8,871
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,574
Calibration 2     90,765
Calibration 3     87,958
ssj_ops@calibrated=89,361
100% 97.5% 89,361 87,160
90% 90.5% 80,425 80,877
80% 80.2% 71,489 71,660
70% 69.6% 62,553 62,173
60% 60.8% 53,617 54,367
50% 49.6% 44,681 44,324
40% 39.6% 35,745 35,365
30% 30.4% 26,808 27,156
20% 20.3% 17,872 18,161
10% 10.1% 8,936 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,808
Calibration 2     92,521
Calibration 3     89,711
ssj_ops@calibrated=91,116
100% 97.9% 91,116 89,193
90% 90.0% 82,004 81,975
80% 81.1% 72,893 73,929
70% 70.3% 63,781 64,058
60% 60.1% 54,670 54,801
50% 50.8% 45,558 46,309
40% 39.8% 36,446 36,267
30% 30.1% 27,335 27,407
20% 19.8% 18,223 18,053
10% 10.4% 9,112 9,481
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,829
Calibration 2     93,103
Calibration 3     90,418
ssj_ops@calibrated=91,760
100% 97.6% 91,760 89,539
90% 89.6% 82,584 82,186
80% 79.2% 73,408 72,651
70% 70.0% 64,232 64,198
60% 60.1% 55,056 55,110
50% 50.6% 45,880 46,416
40% 39.5% 36,704 36,235
30% 29.1% 27,528 26,720
20% 20.2% 18,352 18,507
10% 10.0% 9,176 9,175
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,859
Calibration 2     91,253
Calibration 3     88,513
ssj_ops@calibrated=89,883
100% 97.9% 89,883 87,984
90% 89.1% 80,895 80,076
80% 80.7% 71,906 72,538
70% 70.4% 62,918 63,280
60% 59.5% 53,930 53,485
50% 50.4% 44,942 45,339
40% 40.4% 35,953 36,348
30% 29.9% 26,965 26,846
20% 19.9% 17,977 17,890
10% 10.1% 8,988 9,037
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,286
Calibration 2     90,426
Calibration 3     87,719
ssj_ops@calibrated=89,073
100% 96.6% 89,073 86,016
90% 90.1% 80,165 80,285
80% 79.1% 71,258 70,488
70% 70.2% 62,351 62,499
60% 59.9% 53,444 53,385
50% 50.3% 44,536 44,817
40% 40.2% 35,629 35,841
30% 29.7% 26,722 26,494
20% 19.8% 17,815 17,646
10% 9.8% 8,907 8,763
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,662
Calibration 2     91,215
Calibration 3     88,104
ssj_ops@calibrated=89,659
100% 95.9% 89,659 86,001
90% 89.7% 80,693 80,392
80% 80.9% 71,727 72,551
70% 70.0% 62,761 62,793
60% 60.1% 53,795 53,878
50% 50.1% 44,830 44,897
40% 40.0% 35,864 35,845
30% 30.1% 26,898 26,965
20% 19.8% 17,932 17,736
10% 9.9% 8,966 8,850
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,833
Calibration 2     91,514
Calibration 3     87,542
ssj_ops@calibrated=89,528
100% 97.8% 89,528 87,522
90% 89.3% 80,575 79,967
80% 80.4% 71,622 72,018
70% 70.0% 62,670 62,653
60% 59.6% 53,717 53,350
50% 49.5% 44,764 44,359
40% 39.8% 35,811 35,620
30% 29.2% 26,858 26,101
20% 20.4% 17,906 18,297
10% 10.1% 8,953 9,079
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,859
Calibration 2     82,142
Calibration 3     79,218
ssj_ops@calibrated=80,680
100% 98.1% 80,680 79,139
90% 89.8% 72,612 72,453
80% 79.2% 64,544 63,898
70% 69.0% 56,476 55,657
60% 59.5% 48,408 47,987
50% 50.0% 40,340 40,324
40% 39.3% 32,272 31,670
30% 30.6% 24,204 24,669
20% 19.8% 16,136 15,991
10% 9.8% 8,068 7,884
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,399
Calibration 2     90,709
Calibration 3     87,908
ssj_ops@calibrated=89,308
100% 98.1% 89,308 87,613
90% 89.4% 80,377 79,810
80% 80.1% 71,447 71,509
70% 69.9% 62,516 62,466
60% 61.3% 53,585 54,771
50% 50.1% 44,654 44,735
40% 40.7% 35,723 36,335
30% 30.4% 26,792 27,182
20% 19.3% 17,862 17,273
10% 10.0% 8,931 8,892
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,595
Calibration 2     92,064
Calibration 3     89,097
ssj_ops@calibrated=90,580
100% 97.9% 90,580 88,648
90% 90.7% 81,522 82,177
80% 78.7% 72,464 71,313
70% 70.8% 63,406 64,164
60% 60.0% 54,348 54,331
50% 50.1% 45,290 45,422
40% 39.9% 36,232 36,124
30% 29.7% 27,174 26,911
20% 20.2% 18,116 18,268
10% 9.8% 9,058 8,912
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,775
Calibration 2     90,229
Calibration 3     86,988
ssj_ops@calibrated=88,608
100% 97.8% 88,608 86,634
90% 89.5% 79,747 79,262
80% 79.7% 70,886 70,635
70% 69.0% 62,026 61,122
60% 60.8% 53,165 53,835
50% 50.2% 44,304 44,450
40% 40.5% 35,443 35,900
30% 30.1% 26,582 26,653
20% 19.9% 17,722 17,632
10% 9.7% 8,861 8,608
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,118
Calibration 2     92,965
Calibration 3     88,777
ssj_ops@calibrated=90,871
100% 97.2% 90,871 88,353
90% 89.4% 81,783 81,223
80% 80.5% 72,696 73,173
70% 69.9% 63,609 63,492
60% 60.3% 54,522 54,814
50% 50.2% 45,435 45,583
40% 40.3% 36,348 36,598
30% 29.7% 27,261 26,962
20% 19.8% 18,174 17,995
10% 10.2% 9,087 9,250
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,250
Calibration 2     90,917
Calibration 3     88,288
ssj_ops@calibrated=89,603
100% 97.9% 89,603 87,682
90% 89.8% 80,643 80,437
80% 79.5% 71,682 71,237
70% 69.1% 62,722 61,916
60% 60.5% 53,762 54,207
50% 49.9% 44,801 44,693
40% 39.7% 35,841 35,594
30% 29.9% 26,881 26,799
20% 19.8% 17,921 17,775
10% 9.8% 8,960 8,737
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,040
Calibration 2     91,814
Calibration 3     88,013
ssj_ops@calibrated=89,914
100% 97.6% 89,914 87,789
90% 90.8% 80,922 81,610
80% 79.7% 71,931 71,681
70% 70.6% 62,940 63,435
60% 59.4% 53,948 53,373
50% 49.8% 44,957 44,803
40% 40.1% 35,966 36,041
30% 29.7% 26,974 26,685
20% 19.0% 17,983 17,113
10% 9.9% 8,991 8,866
Active Idle   0 0

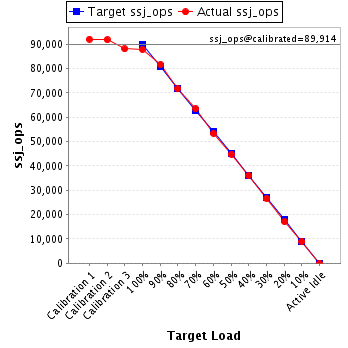

Graph of results
JVM 'WIN-KJ6CVEIJLCP.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,815
Calibration 2     90,743
Calibration 3     87,612
ssj_ops@calibrated=89,177
100% 98.6% 89,177 87,901
90% 90.2% 80,260 80,438
80% 80.6% 71,342 71,894
70% 70.8% 62,424 63,158
60% 59.8% 53,506 53,321
50% 51.0% 44,589 45,505
40% 39.8% 35,671 35,496
30% 30.0% 26,753 26,740
20% 20.0% 17,835 17,803
10% 10.1% 8,918 9,029
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,950
Calibration 2     91,803
Calibration 3     88,643
ssj_ops@calibrated=90,223
100% 96.4% 90,223 87,001
90% 89.8% 81,201 81,044
80% 81.0% 72,178 73,038
70% 70.4% 63,156 63,537
60% 59.4% 54,134 53,555
50% 49.5% 45,111 44,693
40% 40.3% 36,089 36,320
30% 29.6% 27,067 26,749
20% 19.7% 18,045 17,799
10% 10.0% 9,022 9,050
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,038
Calibration 2     92,293
Calibration 3     87,934
ssj_ops@calibrated=90,113
100% 97.2% 90,113 87,620
90% 89.6% 81,102 80,726
80% 80.0% 72,091 72,090
70% 69.9% 63,079 63,001
60% 60.4% 54,068 54,389
50% 49.6% 45,057 44,736
40% 39.9% 36,045 35,943
30% 29.9% 27,034 26,980
20% 20.0% 18,023 18,037
10% 9.9% 9,011 8,937
Active Idle   0 0

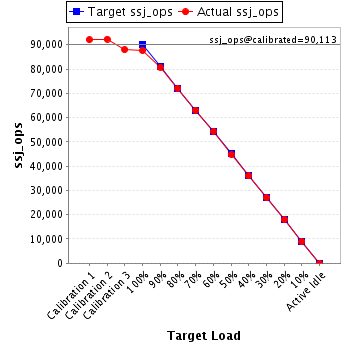

Graph of results
JVM 'WIN-KJ6CVEIJLCP.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,714
Calibration 2     90,142
Calibration 3     87,141
ssj_ops@calibrated=88,642
100% 96.0% 88,642 85,119
90% 89.6% 79,777 79,423
80% 80.2% 70,913 71,092
70% 69.8% 62,049 61,869
60% 59.8% 53,185 53,025
50% 50.0% 44,321 44,350
40% 40.0% 35,457 35,489
30% 29.7% 26,592 26,291
20% 20.2% 17,728 17,907
10% 9.9% 8,864 8,775
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,817
Calibration 2     90,154
Calibration 3     86,799
ssj_ops@calibrated=88,477
100% 97.6% 88,477 86,365
90% 90.1% 79,629 79,692
80% 79.2% 70,781 70,036
70% 70.1% 61,934 62,027
60% 59.4% 53,086 52,555
50% 49.5% 44,238 43,761
40% 39.8% 35,391 35,232
30% 30.2% 26,543 26,690
20% 20.1% 17,695 17,806
10% 10.0% 8,848 8,846
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,873
Calibration 2     91,209
Calibration 3     87,693
ssj_ops@calibrated=89,451
100% 97.7% 89,451 87,417
90% 90.0% 80,506 80,545
80% 80.5% 71,561 72,049
70% 70.7% 62,616 63,254
60% 59.7% 53,671 53,378
50% 49.8% 44,726 44,518
40% 40.0% 35,780 35,773
30% 30.8% 26,835 27,545
20% 19.8% 17,890 17,741
10% 10.0% 8,945 8,904
Active Idle   0 0

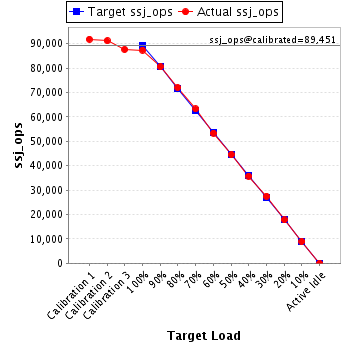

Graph of results
JVM 'WIN-KJ6CVEIJLCP.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,112
Calibration 2     89,743
Calibration 3     86,932
ssj_ops@calibrated=88,338
100% 98.0% 88,338 86,585
90% 89.4% 79,504 79,012
80% 80.4% 70,670 70,988
70% 69.4% 61,836 61,343
60% 59.6% 53,003 52,665
50% 50.5% 44,169 44,624
40% 40.1% 35,335 35,467
30% 29.6% 26,501 26,188
20% 20.3% 17,668 17,914
10% 10.0% 8,834 8,831
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,141
Calibration 2     91,054
Calibration 3     87,301
ssj_ops@calibrated=89,178
100% 97.8% 89,178 87,233
90% 90.7% 80,260 80,909
80% 79.6% 71,342 70,971
70% 71.1% 62,424 63,369
60% 59.7% 53,507 53,200
50% 49.4% 44,589 44,041
40% 39.0% 35,671 34,766
30% 30.5% 26,753 27,195
20% 19.8% 17,836 17,701
10% 9.9% 8,918 8,796
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,677
Calibration 2     90,129
Calibration 3     85,856
ssj_ops@calibrated=87,993
100% 97.1% 87,993 85,455
90% 89.9% 79,193 79,128
80% 80.5% 70,394 70,803
70% 69.9% 61,595 61,503
60% 60.6% 52,796 53,340
50% 50.3% 43,996 44,238
40% 39.3% 35,197 34,570
30% 30.1% 26,398 26,492
20% 20.6% 17,599 18,142
10% 10.1% 8,799 8,879
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,411
Calibration 2     91,285
Calibration 3     87,787
ssj_ops@calibrated=89,536
100% 97.8% 89,536 87,587
90% 90.4% 80,582 80,926
80% 79.9% 71,629 71,574
70% 70.2% 62,675 62,842
60% 60.3% 53,722 53,997
50% 50.0% 44,768 44,745
40% 40.2% 35,814 36,023
30% 30.8% 26,861 27,533
20% 20.0% 17,907 17,910
10% 9.8% 8,954 8,775
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,405
Calibration 2     91,390
Calibration 3     87,925
ssj_ops@calibrated=89,657
100% 97.9% 89,657 87,735
90% 90.5% 80,691 81,160
80% 79.0% 71,726 70,838
70% 70.5% 62,760 63,205
60% 61.3% 53,794 54,950
50% 49.4% 44,829 44,333
40% 39.3% 35,863 35,229
30% 30.3% 26,897 27,197
20% 20.1% 17,931 18,003
10% 10.3% 8,966 9,216
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,382
Calibration 2     89,042
Calibration 3     85,077
ssj_ops@calibrated=87,060
100% 97.4% 87,060 84,828
90% 89.6% 78,354 78,036
80% 80.0% 69,648 69,632
70% 70.5% 60,942 61,356
60% 59.8% 52,236 52,039
50% 50.3% 43,530 43,814
40% 40.7% 34,824 35,390
30% 30.3% 26,118 26,411
20% 19.8% 17,412 17,237
10% 10.0% 8,706 8,688
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,622
Calibration 2     90,683
Calibration 3     87,161
ssj_ops@calibrated=88,922
100% 98.3% 88,922 87,389
90% 89.8% 80,030 79,890
80% 81.0% 71,138 72,015
70% 69.9% 62,245 62,165
60% 60.3% 53,353 53,587
50% 49.1% 44,461 43,638
40% 39.9% 35,569 35,499
30% 30.0% 26,677 26,691
20% 20.1% 17,784 17,870
10% 10.0% 8,892 8,879
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,986
Calibration 2     91,293
Calibration 3     87,621
ssj_ops@calibrated=89,457
100% 97.7% 89,457 87,361
90% 90.0% 80,512 80,495
80% 79.4% 71,566 70,989
70% 69.7% 62,620 62,350
60% 59.4% 53,674 53,111
50% 50.2% 44,729 44,884
40% 40.2% 35,783 35,952
30% 29.4% 26,837 26,291
20% 20.1% 17,891 17,974
10% 9.9% 8,946 8,821
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,809
Calibration 2     91,686
Calibration 3     87,677
ssj_ops@calibrated=89,681
100% 97.4% 89,681 87,391
90% 89.6% 80,713 80,398
80% 79.9% 71,745 71,638
70% 70.5% 62,777 63,268
60% 60.1% 53,809 53,921
50% 49.7% 44,841 44,608
40% 39.6% 35,873 35,489
30% 29.8% 26,904 26,683
20% 19.9% 17,936 17,824
10% 10.1% 8,968 9,075
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,798
Calibration 2     93,061
Calibration 3     89,203
ssj_ops@calibrated=91,132
100% 98.1% 91,132 89,397
90% 90.1% 82,019 82,111
80% 79.6% 72,906 72,533
70% 71.8% 63,792 65,421
60% 60.3% 54,679 54,943
50% 50.4% 45,566 45,897
40% 39.4% 36,453 35,943
30% 30.1% 27,340 27,397
20% 19.6% 18,226 17,870
10% 9.8% 9,113 8,904
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,618
Calibration 2     91,767
Calibration 3     87,953
ssj_ops@calibrated=89,860
100% 98.0% 89,860 88,030
90% 90.3% 80,874 81,106
80% 79.5% 71,888 71,416
70% 69.6% 62,902 62,541
60% 60.0% 53,916 53,921
50% 49.7% 44,930 44,655
40% 39.9% 35,944 35,886
30% 30.5% 26,958 27,440
20% 19.9% 17,972 17,887
10% 10.4% 8,986 9,341
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,893
Calibration 2     91,942
Calibration 3     88,191
ssj_ops@calibrated=90,066
100% 98.2% 90,066 88,455
90% 91.4% 81,060 82,301
80% 79.9% 72,053 71,938
70% 70.5% 63,046 63,491
60% 59.4% 54,040 53,483
50% 50.1% 45,033 45,150
40% 40.1% 36,027 36,095
30% 30.3% 27,020 27,292
20% 19.9% 18,013 17,949
10% 10.2% 9,007 9,196
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,627
Calibration 2     89,970
Calibration 3     86,845
ssj_ops@calibrated=88,408
100% 96.0% 88,408 84,902
90% 89.3% 79,567 78,977
80% 79.2% 70,726 70,033
70% 70.1% 61,885 61,992
60% 62.0% 53,045 54,811
50% 49.5% 44,204 43,792
40% 40.3% 35,363 35,664
30% 30.0% 26,522 26,513
20% 20.2% 17,682 17,819
10% 9.9% 8,841 8,767
Active Idle   0 0

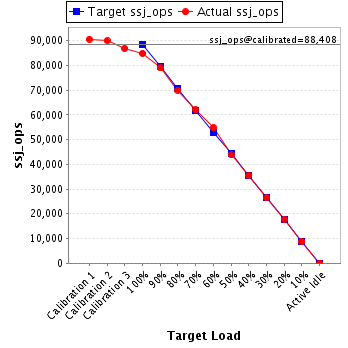

Graph of results
JVM 'WIN-KJ6CVEIJLCP.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,243
Calibration 2     90,965
Calibration 3     87,165
ssj_ops@calibrated=89,065
100% 97.7% 89,065 86,981
90% 90.1% 80,158 80,221
80% 80.2% 71,252 71,424
70% 70.0% 62,345 62,358
60% 59.5% 53,439 52,985
50% 49.4% 44,532 43,967
40% 40.0% 35,626 35,611
30% 29.3% 26,719 26,112
20% 20.3% 17,813 18,066
10% 9.7% 8,906 8,671
Active Idle   0 0
Graph of results
JVM 'WIN-KJ6CVEIJLCP.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,951
Calibration 2     93,244
Calibration 3     89,775
ssj_ops@calibrated=91,509
100% 98.1% 91,509 89,737
90% 89.9% 82,358 82,262
80% 80.2% 73,208 73,392
70% 69.9% 64,057 63,983
60% 59.6% 54,906 54,526
50% 50.2% 45,755 45,904
40% 39.7% 36,604 36,371
30% 29.8% 27,453 27,241
20% 19.9% 18,302 18,254
10% 10.2% 9,151 9,350
Active Idle   0 0

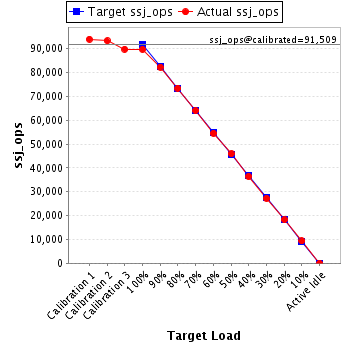

Graph of results
