Dell Inc. PowerEdge M520 ssj_ops@100% = 20,832,566
ssj_ops@100% per Host = 1,302,035
ssj_ops@100% per JVM = 81,377
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,966,591
Calibration 2     20,982,450
Calibration 3     20,993,027
ssj_ops@calibrated=20,987,738
100% 99.3% 20,987,738 20,832,566
90% 89.9% 18,888,965 18,865,713
80% 80.0% 16,790,191 16,784,719
70% 70.0% 14,691,417 14,696,102
60% 60.0% 12,592,643 12,584,048
50% 50.0% 10,493,869 10,491,019
40% 40.0% 8,395,095 8,396,565
30% 30.0% 6,296,322 6,303,203
20% 20.0% 4,197,548 4,194,431
10% 10.0% 2,098,774 2,097,178
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 256 512 384 16 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000e
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 2700
Power Supply Details: Dell PN G803N
Network Switch: Dell PowerConnect 6248
Network Switch Details: 48 Port 1Gb Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: Dell M1000e Chassis Management Controller, Dell 16-Port Gigabit Ethernet Pass-Through Module
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
M520-01 1,304,388
M520-02 1,306,925
M520-03 1,302,467
M520-04 1,298,213
M520-05 1,302,670
M520-06 1,307,232
M520-07 1,310,695
M520-08 1,304,543
M520-09 1,292,459
M520-10 1,309,454
M520-11 1,310,632
M520-12 1,292,503
M520-13 1,299,063
M520-14 1,302,583
M520-15 1,298,493
M520-16 1,290,246
ssj_ops@100% 20,832,566
ssj_ops@100% per Host 1,302,035
ssj_ops@100% per JVM 81,377
Graph of per-host results
Host 'M520-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,309,619
Calibration 2     1,312,960
Calibration 3     1,314,103
ssj_ops@calibrated=1,313,531
100% 99.3% 1,313,531 1,304,388
90% 89.9% 1,182,178 1,180,734
80% 80.2% 1,050,825 1,053,856
70% 70.0% 919,472 919,228
60% 60.1% 788,119 789,089
50% 50.2% 656,766 659,555
40% 39.9% 525,413 523,797
30% 30.2% 394,059 396,396
20% 20.1% 262,706 264,238
10% 10.0% 131,353 131,016
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,317,569
Calibration 2     1,314,638
Calibration 3     1,315,710
ssj_ops@calibrated=1,315,174
100% 99.4% 1,315,174 1,306,925
90% 89.8% 1,183,657 1,181,252
80% 79.8% 1,052,139 1,049,853
70% 70.0% 920,622 920,166
60% 59.9% 789,104 787,562
50% 49.7% 657,587 653,745
40% 40.0% 526,070 525,938
30% 30.0% 394,552 394,969
20% 19.9% 263,035 261,375
10% 10.0% 131,517 131,661
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,316,552
Calibration 2     1,315,307
Calibration 3     1,314,221
ssj_ops@calibrated=1,314,764
100% 99.1% 1,314,764 1,302,467
90% 90.0% 1,183,288 1,183,771
80% 80.0% 1,051,811 1,051,388
70% 70.2% 920,335 922,500
60% 60.2% 788,859 790,920
50% 49.9% 657,382 656,114
40% 40.0% 525,906 526,444
30% 30.3% 394,429 398,469
20% 20.0% 262,953 262,448
10% 10.0% 131,476 131,614
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,301,683
Calibration 2     1,306,935
Calibration 3     1,304,589
ssj_ops@calibrated=1,305,762
100% 99.4% 1,305,762 1,298,213
90% 89.5% 1,175,186 1,168,211
80% 80.0% 1,044,609 1,044,660
70% 70.0% 914,033 913,480
60% 60.0% 783,457 783,797
50% 50.1% 652,881 654,048
40% 40.0% 522,305 522,837
30% 29.8% 391,729 389,702
20% 20.0% 261,152 261,363
10% 10.0% 130,576 130,888
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,307,367
Calibration 2     1,311,722
Calibration 3     1,313,148
ssj_ops@calibrated=1,312,435
100% 99.3% 1,312,435 1,302,670
90% 89.8% 1,181,191 1,178,658
80% 79.9% 1,049,948 1,048,893
70% 70.0% 918,704 919,009
60% 60.1% 787,461 788,788
50% 50.0% 656,217 656,616
40% 40.1% 524,974 526,590
30% 30.0% 393,730 393,390
20% 20.0% 262,487 262,157
10% 9.9% 131,243 130,297
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-06' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,312,269
Calibration 2     1,313,732
Calibration 3     1,313,807
ssj_ops@calibrated=1,313,770
100% 99.5% 1,313,770 1,307,232
90% 90.0% 1,182,393 1,182,265
80% 79.9% 1,051,016 1,049,272
70% 70.0% 919,639 919,009
60% 59.7% 788,262 784,427
50% 50.3% 656,885 660,206
40% 40.0% 525,508 524,991
30% 29.9% 394,131 392,906
20% 20.0% 262,754 262,144
10% 9.9% 131,377 130,346
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-07' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,315,129
Calibration 2     1,319,332
Calibration 3     1,322,239
ssj_ops@calibrated=1,320,785
100% 99.2% 1,320,785 1,310,695
90% 90.0% 1,188,707 1,188,490
80% 80.3% 1,056,628 1,060,930
70% 70.1% 924,550 926,002
60% 59.9% 792,471 791,130
50% 49.8% 660,393 657,189
40% 39.8% 528,314 526,303
30% 30.1% 396,236 397,295
20% 20.0% 264,157 263,728
10% 10.1% 132,079 132,808
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-08' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,312,376
Calibration 2     1,316,236
Calibration 3     1,316,601
ssj_ops@calibrated=1,316,419
100% 99.1% 1,316,419 1,304,543
90% 90.0% 1,184,777 1,184,748
80% 79.9% 1,053,135 1,052,325
70% 70.0% 921,493 921,673
60% 59.9% 789,851 788,431
50% 50.1% 658,209 659,336
40% 40.3% 526,567 530,258
30% 30.1% 394,926 395,805
20% 20.0% 263,284 262,992
10% 10.0% 131,642 131,686
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-09' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,307,107
Calibration 2     1,302,284
Calibration 3     1,300,957
ssj_ops@calibrated=1,301,621
100% 99.3% 1,301,621 1,292,459
90% 90.1% 1,171,459 1,173,118
80% 80.0% 1,041,297 1,041,418
70% 69.9% 911,134 909,550
60% 59.9% 780,972 780,167
50% 50.1% 650,810 651,674
40% 39.9% 520,648 518,796
30% 30.0% 390,486 390,966
20% 19.9% 260,324 258,622
10% 9.9% 130,162 129,243
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,316,144
Calibration 2     1,317,834
Calibration 3     1,320,474
ssj_ops@calibrated=1,319,154
100% 99.3% 1,319,154 1,309,454
90% 89.9% 1,187,239 1,186,537
80% 79.9% 1,055,323 1,054,581
70% 69.8% 923,408 920,170
60% 59.9% 791,492 790,608
50% 49.8% 659,577 656,980
40% 40.1% 527,662 528,595
30% 30.2% 395,746 397,785
20% 20.0% 263,831 263,345
10% 10.0% 131,915 132,168
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,322,009
Calibration 2     1,321,409
Calibration 3     1,325,900
ssj_ops@calibrated=1,323,655
100% 99.0% 1,323,655 1,310,632
90% 90.0% 1,191,289 1,191,160
80% 79.9% 1,058,924 1,057,661
70% 70.1% 926,558 927,843
60% 60.1% 794,193 794,922
50% 49.8% 661,827 659,113
40% 39.8% 529,462 527,471
30% 29.9% 397,096 396,098
20% 20.0% 264,731 264,670
10% 10.0% 132,365 132,637
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,302,222
Calibration 2     1,304,157
Calibration 3     1,303,045
ssj_ops@calibrated=1,303,601
100% 99.1% 1,303,601 1,292,503
90% 89.8% 1,173,241 1,170,807
80% 79.9% 1,042,881 1,041,449
70% 69.7% 912,520 908,708
60% 60.0% 782,160 782,294
50% 50.2% 651,800 654,015
40% 40.1% 521,440 522,205
30% 30.0% 391,080 391,012
20% 20.0% 260,720 261,240
10% 10.0% 130,360 130,006
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

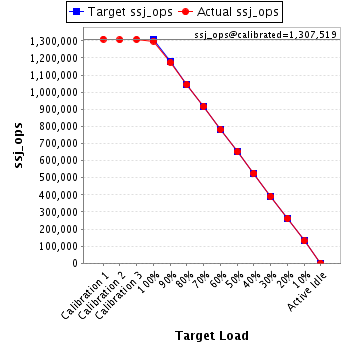

Host 'M520-13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,309,945
Calibration 2     1,306,082
Calibration 3     1,308,955
ssj_ops@calibrated=1,307,519
100% 99.4% 1,307,519 1,299,063
90% 89.7% 1,176,767 1,173,218
80% 79.8% 1,046,015 1,043,943
70% 70.2% 915,263 917,237
60% 59.7% 784,511 780,207
50% 49.9% 653,759 652,199
40% 40.1% 523,007 524,621
30% 29.9% 392,256 391,100
20% 20.0% 261,504 261,536
10% 10.0% 130,752 130,936
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,309,142
Calibration 2     1,312,939
Calibration 3     1,312,581
ssj_ops@calibrated=1,312,760
100% 99.2% 1,312,760 1,302,583
90% 89.8% 1,181,484 1,179,356
80% 79.9% 1,050,208 1,049,429
70% 70.1% 918,932 920,541
60% 60.0% 787,656 787,275
50% 50.1% 656,380 657,891
40% 39.8% 525,104 522,824
30% 30.1% 393,828 394,866
20% 19.9% 262,552 260,973
10% 10.0% 131,276 131,667
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-15' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,308,557
Calibration 2     1,305,885
Calibration 3     1,306,215
ssj_ops@calibrated=1,306,050
100% 99.4% 1,306,050 1,298,493
90% 89.7% 1,175,445 1,171,837
80% 80.0% 1,044,840 1,044,477
70% 70.4% 914,235 919,652
60% 59.9% 783,630 782,773
50% 50.1% 653,025 653,713
40% 40.3% 522,420 525,861
30% 30.0% 391,815 391,878
20% 20.2% 261,210 263,381
10% 10.0% 130,605 130,584
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-16' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,298,903
Calibration 2     1,300,998
Calibration 3     1,300,482
ssj_ops@calibrated=1,300,740
100% 99.2% 1,300,740 1,290,246
90% 90.1% 1,170,666 1,171,550
80% 80.0% 1,040,592 1,040,583
70% 70.1% 910,518 911,332
60% 60.1% 780,444 781,657
50% 49.9% 650,370 648,626
40% 39.9% 520,296 519,035
30% 30.0% 390,222 390,564
20% 20.0% 260,148 260,220
10% 10.0% 130,074 129,620
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
