Dell Inc. PowerEdge M520 ssj_ops@100% = 1,299,063
ssj_ops@100% per JVM = 81,191
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,309,945
Calibration 2     1,306,082
Calibration 3     1,308,955
ssj_ops@calibrated=1,307,519
100% 99.4% 1,307,519 1,299,063
90% 89.7% 1,176,767 1,173,218
80% 79.8% 1,046,015 1,043,943
70% 70.2% 915,263 917,237
60% 59.7% 784,511 780,207
50% 49.9% 653,759 652,199
40% 40.1% 523,007 524,621
30% 29.9% 392,256 391,100
20% 20.0% 261,504 261,536
10% 10.0% 130,752 130,936
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-13.001 82,092
M520-13.002 81,515
M520-13.003 82,894
M520-13.004 81,383
M520-13.005 81,080
M520-13.006 81,253
M520-13.007 80,670
M520-13.008 81,689
M520-13.009 80,667
M520-13.010 80,382
M520-13.011 80,866
M520-13.012 80,867
M520-13.013 80,590
M520-13.014 80,825
M520-13.015 81,141
M520-13.016 81,148
ssj_ops@100% 1,299,063
ssj_ops@100% per JVM 81,191

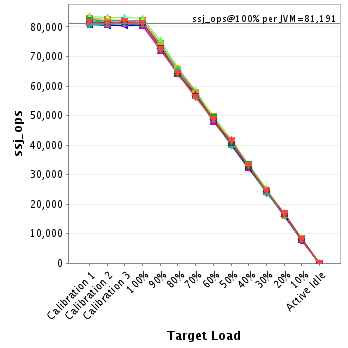

Graph of per-instance results
JVM 'M520-13.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,835
Calibration 2     82,625
Calibration 3     82,265
ssj_ops@calibrated=82,445
100% 99.6% 82,445 82,092
90% 90.4% 74,201 74,492
80% 79.7% 65,956 65,742
70% 70.2% 57,712 57,850
60% 60.1% 49,467 49,541
50% 50.4% 41,223 41,538
40% 40.2% 32,978 33,146
30% 29.6% 24,734 24,444
20% 20.3% 16,489 16,756
10% 10.1% 8,245 8,287
Active Idle   0 0
Graph of results
JVM 'M520-13.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,590
Calibration 2     82,028
Calibration 3     82,299
ssj_ops@calibrated=82,163
100% 99.2% 82,163 81,515
90% 88.8% 73,947 73,000
80% 79.5% 65,731 65,357
70% 69.9% 57,514 57,399
60% 59.2% 49,298 48,623
50% 49.5% 41,082 40,675
40% 40.1% 32,865 32,922
30% 30.4% 24,649 24,993
20% 19.9% 16,433 16,328
10% 10.2% 8,216 8,356
Active Idle   0 0
Graph of results
JVM 'M520-13.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,605
Calibration 2     83,115
Calibration 3     83,245
ssj_ops@calibrated=83,180
100% 99.7% 83,180 82,894
90% 90.5% 74,862 75,287
80% 79.7% 66,544 66,324
70% 70.2% 58,226 58,406
60% 59.9% 49,908 49,854
50% 50.4% 41,590 41,957
40% 40.3% 33,272 33,519
30% 30.3% 24,954 25,206
20% 20.0% 16,636 16,664
10% 10.0% 8,318 8,279
Active Idle   0 0
Graph of results
JVM 'M520-13.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,478
Calibration 2     82,417
Calibration 3     82,328
ssj_ops@calibrated=82,373
100% 98.8% 82,373 81,383
90% 89.2% 74,135 73,506
80% 80.5% 65,898 66,330
70% 70.4% 57,661 58,019
60% 59.7% 49,424 49,211
50% 50.4% 41,186 41,547
40% 39.7% 32,949 32,729
30% 30.3% 24,712 24,966
20% 19.5% 16,475 16,102
10% 10.0% 8,237 8,270
Active Idle   0 0
Graph of results
JVM 'M520-13.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,633
Calibration 2     81,657
Calibration 3     82,354
ssj_ops@calibrated=82,006
100% 98.9% 82,006 81,080
90% 89.8% 73,805 73,663
80% 80.6% 65,604 66,123
70% 71.0% 57,404 58,223
60% 58.9% 49,203 48,339
50% 49.8% 41,003 40,866
40% 39.6% 32,802 32,481
30% 30.0% 24,602 24,607
20% 19.5% 16,401 15,987
10% 9.9% 8,201 8,099
Active Idle   0 0
Graph of results
JVM 'M520-13.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,323
Calibration 2     81,606
Calibration 3     82,031
ssj_ops@calibrated=81,819
100% 99.3% 81,819 81,253
90% 89.1% 73,637 72,901
80% 80.1% 65,455 65,499
70% 69.6% 57,273 56,930
60% 59.8% 49,091 48,907
50% 49.5% 40,909 40,502
40% 40.2% 32,727 32,918
30% 29.9% 24,546 24,431
20% 19.6% 16,364 16,043
10% 9.8% 8,182 8,029
Active Idle   0 0
Graph of results
JVM 'M520-13.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,591
Calibration 2     81,073
Calibration 3     81,559
ssj_ops@calibrated=81,316
100% 99.2% 81,316 80,670
90% 90.4% 73,184 73,473
80% 79.7% 65,053 64,839
70% 69.3% 56,921 56,346
60% 59.1% 48,790 48,046
50% 50.1% 40,658 40,736
40% 40.0% 32,526 32,493
30% 29.7% 24,395 24,173
20% 20.1% 16,263 16,304
10% 9.8% 8,132 7,972
Active Idle   0 0
Graph of results
JVM 'M520-13.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,409
Calibration 2     82,095
Calibration 3     82,329
ssj_ops@calibrated=82,212
100% 99.4% 82,212 81,689
90% 89.8% 73,991 73,846
80% 79.3% 65,770 65,221
70% 70.8% 57,548 58,192
60% 59.3% 49,327 48,771
50% 49.7% 41,106 40,885
40% 39.6% 32,885 32,558
30% 29.5% 24,664 24,233
20% 20.0% 16,442 16,467
10% 10.2% 8,221 8,366
Active Idle   0 0
Graph of results
JVM 'M520-13.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,872
Calibration 2     81,046
Calibration 3     81,127
ssj_ops@calibrated=81,086
100% 99.5% 81,086 80,667
90% 89.9% 72,978 72,933
80% 80.3% 64,869 65,098
70% 71.1% 56,760 57,638
60% 59.4% 48,652 48,133
50% 49.7% 40,543 40,330
40% 40.6% 32,434 32,933
30% 30.3% 24,326 24,553
20% 20.1% 16,217 16,272
10% 9.6% 8,109 7,775
Active Idle   0 0
Graph of results
JVM 'M520-13.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,873
Calibration 2     80,610
Calibration 3     80,612
ssj_ops@calibrated=80,611
100% 99.7% 80,611 80,382
90% 90.3% 72,550 72,767
80% 79.9% 64,489 64,410
70% 70.6% 56,428 56,950
60% 60.3% 48,366 48,584
50% 49.5% 40,305 39,868
40% 39.6% 32,244 31,950
30% 30.0% 24,183 24,217
20% 19.6% 16,122 15,808
10% 10.0% 8,061 8,092
Active Idle   0 0
Graph of results
JVM 'M520-13.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,065
Calibration 2     81,568
Calibration 3     81,449
ssj_ops@calibrated=81,508
100% 99.2% 81,508 80,866
90% 89.6% 73,357 73,004
80% 79.5% 65,207 64,769
70% 69.7% 57,056 56,811
60% 60.6% 48,905 49,434
50% 49.5% 40,754 40,321
40% 41.1% 32,603 33,477
30% 29.7% 24,452 24,246
20% 20.4% 16,302 16,663
10% 10.4% 8,151 8,495
Active Idle   0 0
Graph of results
JVM 'M520-13.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,145
Calibration 2     81,797
Calibration 3     81,685
ssj_ops@calibrated=81,741
100% 98.9% 81,741 80,867
90% 90.3% 73,567 73,838
80% 80.8% 65,393 66,057
70% 70.6% 57,219 57,748
60% 59.4% 49,045 48,547
50% 49.4% 40,871 40,345
40% 40.1% 32,697 32,800
30% 30.1% 24,522 24,571
20% 19.7% 16,348 16,062
10% 10.4% 8,174 8,462
Active Idle   0 0
Graph of results
JVM 'M520-13.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,618
Calibration 2     80,954
Calibration 3     81,215
ssj_ops@calibrated=81,085
100% 99.4% 81,085 80,590
90% 88.7% 72,976 71,935
80% 79.9% 64,868 64,751
70% 70.5% 56,759 57,128
60% 59.4% 48,651 48,150
50% 51.2% 40,542 41,541
40% 40.0% 32,434 32,402
30% 29.9% 24,325 24,252
20% 20.6% 16,217 16,717
10% 9.8% 8,108 7,958
Active Idle   0 0
Graph of results
JVM 'M520-13.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,685
Calibration 2     80,955
Calibration 3     81,224
ssj_ops@calibrated=81,089
100% 99.7% 81,089 80,825
90% 89.7% 72,980 72,721
80% 80.6% 64,872 65,359
70% 69.5% 56,763 56,350
60% 60.2% 48,654 48,822
50% 49.0% 40,545 39,736
40% 40.3% 32,436 32,708
30% 29.2% 24,327 23,668
20% 20.3% 16,218 16,477
10% 9.9% 8,109 8,049
Active Idle   0 0
Graph of results
JVM 'M520-13.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,688
Calibration 2     81,390
Calibration 3     81,440
ssj_ops@calibrated=81,415
100% 99.7% 81,415 81,141
90% 90.1% 73,274 73,317
80% 78.4% 65,132 63,808
70% 70.0% 56,991 56,983
60% 59.8% 48,849 48,720
50% 49.4% 40,708 40,248
40% 39.8% 32,566 32,410
30% 29.9% 24,425 24,318
20% 20.1% 16,283 16,346
10% 10.3% 8,142 8,363
Active Idle   0 0
Graph of results
JVM 'M520-13.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,535
Calibration 2     81,145
Calibration 3     81,794
ssj_ops@calibrated=81,470
100% 99.6% 81,470 81,148
90% 89.0% 73,323 72,535
80% 78.9% 65,176 64,255
70% 69.1% 57,029 56,263
60% 59.6% 48,882 48,526
50% 50.5% 40,735 41,103
40% 40.7% 32,588 33,175
30% 29.7% 24,441 24,224
20% 20.3% 16,294 16,539
10% 9.9% 8,147 8,083
Active Idle   0 0
Graph of results
