Dell Inc. PowerEdge M520 ssj_ops@100% = 1,304,543
ssj_ops@100% per JVM = 81,534
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,312,376
Calibration 2     1,316,236
Calibration 3     1,316,601
ssj_ops@calibrated=1,316,419
100% 99.1% 1,316,419 1,304,543
90% 90.0% 1,184,777 1,184,748
80% 79.9% 1,053,135 1,052,325
70% 70.0% 921,493 921,673
60% 59.9% 789,851 788,431
50% 50.1% 658,209 659,336
40% 40.3% 526,567 530,258
30% 30.1% 394,926 395,805
20% 20.0% 263,284 262,992
10% 10.0% 131,642 131,686
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-08.001 81,392
M520-08.002 81,320
M520-08.003 83,254
M520-08.004 80,461
M520-08.005 81,850
M520-08.006 81,676
M520-08.007 82,250
M520-08.008 81,837
M520-08.009 82,119
M520-08.010 81,204
M520-08.011 80,786
M520-08.012 81,277
M520-08.013 81,439
M520-08.014 80,755
M520-08.015 80,448
M520-08.016 82,474
ssj_ops@100% 1,304,543
ssj_ops@100% per JVM 81,534

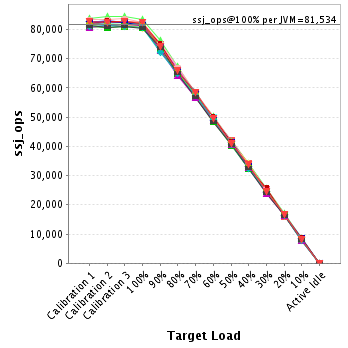

Graph of per-instance results
JVM 'M520-08.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,787
Calibration 2     82,834
Calibration 3     82,580
ssj_ops@calibrated=82,707
100% 98.4% 82,707 81,392
90% 90.4% 74,436 74,776
80% 78.9% 66,166 65,248
70% 69.5% 57,895 57,444
60% 59.8% 49,624 49,423
50% 50.6% 41,353 41,878
40% 41.1% 33,083 34,001
30% 30.3% 24,812 25,073
20% 19.5% 16,541 16,160
10% 10.1% 8,271 8,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,473
Calibration 2     82,894
Calibration 3     82,322
ssj_ops@calibrated=82,608
100% 98.4% 82,608 81,320
90% 89.9% 74,347 74,227
80% 80.3% 66,087 66,318
70% 69.5% 57,826 57,403
60% 60.1% 49,565 49,651
50% 50.1% 41,304 41,375
40% 40.5% 33,043 33,493
30% 29.9% 24,782 24,682
20% 20.0% 16,522 16,528
10% 9.9% 8,261 8,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,733
Calibration 2     84,331
Calibration 3     84,483
ssj_ops@calibrated=84,407
100% 98.6% 84,407 83,254
90% 90.5% 75,967 76,371
80% 79.8% 67,526 67,396
70% 68.7% 59,085 57,946
60% 59.6% 50,644 50,301
50% 49.2% 42,204 41,537
40% 40.6% 33,763 34,270
30% 30.2% 25,322 25,487
20% 20.3% 16,881 17,095
10% 10.0% 8,441 8,479
Active Idle   0 0

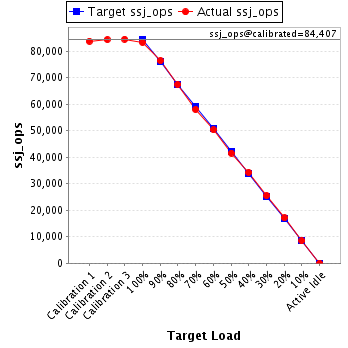

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,868
Calibration 2     81,965
Calibration 3     81,806
ssj_ops@calibrated=81,886
100% 98.3% 81,886 80,461
90% 90.7% 73,697 74,277
80% 80.6% 65,508 66,004
70% 70.1% 57,320 57,366
60% 59.1% 49,131 48,434
50% 50.3% 40,943 41,162
40% 41.6% 32,754 34,079
30% 30.1% 24,566 24,608
20% 19.9% 16,377 16,318
10% 9.9% 8,189 8,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,213
Calibration 2     82,529
Calibration 3     82,728
ssj_ops@calibrated=82,629
100% 99.1% 82,629 81,850
90% 89.7% 74,366 74,122
80% 81.0% 66,103 66,926
70% 69.6% 57,840 57,472
60% 60.5% 49,577 49,957
50% 50.5% 41,314 41,746
40% 40.3% 33,051 33,298
30% 30.7% 24,789 25,351
20% 19.9% 16,526 16,427
10% 10.1% 8,263 8,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,809
Calibration 2     82,163
Calibration 3     82,425
ssj_ops@calibrated=82,294
100% 99.2% 82,294 81,676
90% 89.5% 74,064 73,685
80% 79.3% 65,835 65,249
70% 69.8% 57,606 57,419
60% 60.5% 49,376 49,803
50% 49.9% 41,147 41,056
40% 39.5% 32,918 32,543
30% 29.9% 24,688 24,595
20% 19.7% 16,459 16,174
10% 10.1% 8,229 8,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,439
Calibration 2     83,563
Calibration 3     83,855
ssj_ops@calibrated=83,709
100% 98.3% 83,709 82,250
90% 89.9% 75,338 75,283
80% 80.3% 66,967 67,202
70% 69.9% 58,596 58,480
60% 60.0% 50,225 50,199
50% 50.0% 41,854 41,830
40% 39.6% 33,484 33,177
30% 30.4% 25,113 25,460
20% 19.8% 16,742 16,543
10% 10.0% 8,371 8,361
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,782
Calibration 2     82,539
Calibration 3     82,572
ssj_ops@calibrated=82,556
100% 99.1% 82,556 81,837
90% 89.4% 74,300 73,782
80% 79.5% 66,045 65,612
70% 71.1% 57,789 58,703
60% 59.1% 49,533 48,800
50% 50.5% 41,278 41,669
40% 40.3% 33,022 33,242
30% 29.6% 24,767 24,424
20% 20.4% 16,511 16,846
10% 10.6% 8,256 8,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,025
Calibration 2     82,658
Calibration 3     82,635
ssj_ops@calibrated=82,647
100% 99.4% 82,647 82,119
90% 90.6% 74,382 74,911
80% 79.7% 66,117 65,841
70% 70.0% 57,853 57,853
60% 60.3% 49,588 49,832
50% 50.0% 41,323 41,341
40% 39.5% 33,059 32,614
30% 31.0% 24,794 25,646
20% 19.7% 16,529 16,322
10% 10.2% 8,265 8,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,637
Calibration 2     82,278
Calibration 3     82,475
ssj_ops@calibrated=82,377
100% 98.6% 82,377 81,204
90% 89.8% 74,139 73,993
80% 80.1% 65,901 66,003
70% 70.4% 57,664 57,994
60% 59.4% 49,426 48,956
50% 50.3% 41,188 41,453
40% 40.1% 32,951 33,007
30% 29.6% 24,713 24,353
20% 19.9% 16,475 16,432
10% 10.2% 8,238 8,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,067
Calibration 2     80,693
Calibration 3     81,025
ssj_ops@calibrated=80,859
100% 99.9% 80,859 80,786
90% 89.9% 72,773 72,694
80% 80.4% 64,687 64,998
70% 69.9% 56,601 56,559
60% 60.0% 48,515 48,495
50% 50.0% 40,430 40,460
40% 40.1% 32,344 32,442
30% 30.2% 24,258 24,438
20% 20.0% 16,172 16,183
10% 9.8% 8,086 7,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,655
Calibration 2     81,862
Calibration 3     81,065
ssj_ops@calibrated=81,464
100% 99.8% 81,464 81,277
90% 90.6% 73,318 73,772
80% 80.2% 65,171 65,305
70% 71.0% 57,025 57,849
60% 59.8% 48,878 48,714
50% 50.4% 40,732 41,082
40% 40.1% 32,586 32,656
30% 30.3% 24,439 24,693
20% 20.1% 16,293 16,399
10% 9.9% 8,146 8,044
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,711
Calibration 2     81,495
Calibration 3     81,533
ssj_ops@calibrated=81,514
100% 99.9% 81,514 81,439
90% 89.1% 73,363 72,654
80% 78.8% 65,211 64,222
70% 69.5% 57,060 56,689
60% 59.9% 48,908 48,807
50% 49.7% 40,757 40,507
40% 40.0% 32,606 32,621
30% 29.5% 24,454 24,012
20% 19.9% 16,303 16,249
10% 9.6% 8,151 7,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,122
Calibration 2     81,282
Calibration 3     81,113
ssj_ops@calibrated=81,198
100% 99.5% 81,198 80,755
90% 89.0% 73,078 72,274
80% 80.0% 64,958 64,939
70% 70.7% 56,838 57,372
60% 60.7% 48,719 49,324
50% 50.0% 40,599 40,638
40% 40.1% 32,479 32,525
30% 30.2% 24,359 24,506
20% 20.2% 16,240 16,366
10% 9.6% 8,120 7,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,323
Calibration 2     80,807
Calibration 3     81,093
ssj_ops@calibrated=80,950
100% 99.4% 80,950 80,448
90% 91.1% 72,855 73,774
80% 80.2% 64,760 64,947
70% 70.2% 56,665 56,813
60% 59.7% 48,570 48,310
50% 50.2% 40,475 40,604
40% 40.1% 32,380 32,440
30% 29.6% 24,285 23,948
20% 20.1% 16,190 16,284
10% 10.0% 8,095 8,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-08.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,730
Calibration 2     82,343
Calibration 3     82,890
ssj_ops@calibrated=82,616
100% 99.8% 82,616 82,474
90% 89.8% 74,355 74,153
80% 80.0% 66,093 66,115
70% 70.6% 57,832 58,312
60% 59.8% 49,570 49,424
50% 49.6% 41,308 40,997
40% 41.0% 33,047 33,851
30% 29.7% 24,785 24,530
20% 20.2% 16,523 16,666
10% 9.9% 8,262 8,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
