Hitachi, Ltd. BS2000 Server Blade E55A2 ssj_ops@100% = 7,437,040
ssj_ops@100% per Host = 929,630
ssj_ops@100% per JVM = 154,938
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 20, 2011
Hardware Availability: Feb-2011 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,472,218
Calibration 2     7,468,499
Calibration 3     7,476,993
ssj_ops@calibrated=7,472,746
100% 99.5% 7,472,746 7,437,040
90% 89.9% 6,725,472 6,719,104
80% 80.0% 5,978,197 5,975,662
70% 70.1% 5,230,922 5,236,415
60% 60.0% 4,483,648 4,482,832
50% 49.9% 3,736,373 3,731,512
40% 40.0% 2,989,098 2,990,605
30% 30.1% 2,241,824 2,247,516
20% 19.9% 1,494,549 1,490,046
10% 10.0% 747,275 747,300
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
8 16 96 192 192 8 48
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Server Chassis BS2000A
Form Factor: 10U
Power Supply Quantity and Rating (W): 1 x 4000
Power Supply Details: FUJI ELECTRIC HI-TECH CORP. SWR400001-2U
Network Switch: 1
Network Switch Details: Hitachi GV-BE2LSW1N1
KVM Switch: N/A
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware per Node
Hardware Vendor: Hitachi, Ltd.
Model: BS2000 Server Blade E55A2
Form Factor: Blade
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600R ECC CL9; slots A0, B0, C0, D0, E0 and F0 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 2 x 147GB 10K rpm 6Gbps SAS 2.5 (Hitachi P/N:GV-UH21472N1)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 03-48
Management Firmware Version: 03-89
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64 bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
WIN-6QD39I4BFKJ 928,917
WIN-7T2LA1IMD13 929,821
WIN-A0NVTV13DF0 927,061
WIN-EKL7D85UAFE 932,082
WIN-J6O0JNMR6FF 926,746
WIN-N6VV5TJFAF6 932,284
WIN-UENIRSNOORB 934,062
WIN-V7H2LRQS4UU 926,067
ssj_ops@100% 7,437,040
ssj_ops@100% per Host 929,630
ssj_ops@100% per JVM 154,938

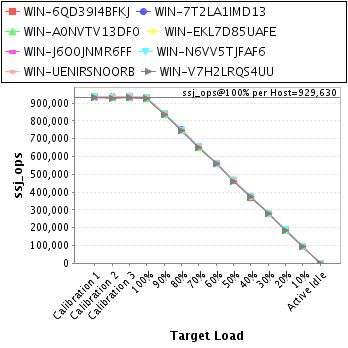

Graph of per-host results
Host 'WIN-6QD39I4BFKJ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     931,555
Calibration 2     930,636
Calibration 3     934,392
ssj_ops@calibrated=932,514
100% 99.6% 932,514 928,917
90% 89.6% 839,263 835,419
80% 80.3% 746,011 748,459
70% 70.3% 652,760 655,181
60% 60.0% 559,508 559,794
50% 49.9% 466,257 465,620
40% 39.9% 373,006 371,875
30% 30.1% 279,754 280,826
20% 20.1% 186,503 187,075
10% 10.0% 93,251 93,291
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-7T2LA1IMD13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,144
Calibration 2     935,033
Calibration 3     937,287
ssj_ops@calibrated=936,160
100% 99.3% 936,160 929,821
90% 90.2% 842,544 844,058
80% 80.1% 748,928 750,027
70% 70.0% 655,312 655,500
60% 59.7% 561,696 559,142
50% 49.8% 468,080 466,652
40% 39.9% 374,464 373,078
30% 30.1% 280,848 281,737
20% 20.1% 187,232 187,859
10% 10.0% 93,616 93,445
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-A0NVTV13DF0' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     930,324
Calibration 2     931,085
Calibration 3     934,132
ssj_ops@calibrated=932,608
100% 99.4% 932,608 927,061
90% 89.9% 839,347 838,416
80% 80.1% 746,087 746,632
70% 70.0% 652,826 652,806
60% 60.0% 559,565 559,118
50% 50.3% 466,304 468,680
40% 40.1% 373,043 373,937
30% 30.0% 279,782 279,761
20% 19.7% 186,522 184,079
10% 10.0% 93,261 93,080
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-EKL7D85UAFE' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     934,601
Calibration 2     937,151
Calibration 3     937,652
ssj_ops@calibrated=937,402
100% 99.4% 937,402 932,082
90% 89.7% 843,661 841,027
80% 79.7% 749,921 746,939
70% 70.1% 656,181 656,968
60% 60.1% 562,441 562,948
50% 49.8% 468,701 466,513
40% 39.9% 374,961 374,034
30% 30.0% 281,220 281,514
20% 19.9% 187,480 186,890
10% 10.0% 93,740 94,100
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-J6O0JNMR6FF' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     930,866
Calibration 2     934,277
Calibration 3     929,784
ssj_ops@calibrated=932,030
100% 99.4% 932,030 926,746
90% 90.2% 838,827 840,822
80% 80.1% 745,624 746,775
70% 69.9% 652,421 651,140
60% 60.2% 559,218 560,797
50% 50.0% 466,015 466,416
40% 40.0% 372,812 372,851
30% 30.1% 279,609 280,352
20% 19.9% 186,406 185,914
10% 10.0% 93,203 92,925
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-N6VV5TJFAF6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     939,150
Calibration 2     934,481
Calibration 3     935,244
ssj_ops@calibrated=934,862
100% 99.7% 934,862 932,284
90% 89.9% 841,376 840,822
80% 79.7% 747,890 745,404
70% 70.2% 654,404 656,111
60% 59.9% 560,917 559,742
50% 50.0% 467,431 467,878
40% 40.1% 373,945 375,082
30% 30.0% 280,459 280,669
20% 20.0% 186,972 187,013
10% 10.0% 93,486 93,942
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-UENIRSNOORB' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     936,721
Calibration 2     937,130
Calibration 3     938,484
ssj_ops@calibrated=937,807
100% 99.6% 937,807 934,062
90% 90.0% 844,026 844,264
80% 79.7% 750,245 747,354
70% 70.2% 656,465 658,256
60% 60.1% 562,684 563,186
50% 50.0% 468,903 468,678
40% 40.2% 375,123 376,831
30% 30.2% 281,342 283,589
20% 19.9% 187,561 186,539
10% 10.0% 93,781 93,862
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-V7H2LRQS4UU' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     933,857
Calibration 2     928,707
Calibration 3     930,019
ssj_ops@calibrated=929,363
100% 99.6% 929,363 926,067
90% 89.8% 836,426 834,277
80% 80.1% 743,490 744,071
70% 70.0% 650,554 650,453
60% 60.1% 557,618 558,106
50% 49.6% 464,681 461,074
40% 40.1% 371,745 372,916
30% 30.0% 278,809 279,069
20% 19.9% 185,873 184,678
10% 10.0% 92,936 92,655
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
