Hitachi, Ltd. BS2000 Server Blade E55A2 ssj_ops@100% = 926,067
ssj_ops@100% per JVM = 154,344
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 20, 2011
Hardware Availability: Feb-2011 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     933,857
Calibration 2     928,707
Calibration 3     930,019
ssj_ops@calibrated=929,363
100% 99.6% 929,363 926,067
90% 89.8% 836,426 834,277
80% 80.1% 743,490 744,071
70% 70.0% 650,554 650,453
60% 60.1% 557,618 558,106
50% 49.6% 464,681 461,074
40% 40.1% 371,745 372,916
30% 30.0% 278,809 279,069
20% 19.9% 185,873 184,678
10% 10.0% 92,936 92,655
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: BS2000 Server Blade E55A2
Form Factor: Blade
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600R ECC CL9; slots A0, B0, C0, D0, E0 and F0 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 2 x 147GB 10K rpm 6Gbps SAS 2.5 (Hitachi P/N:GV-UH21472N1)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 03-48
Management Firmware Version: 03-89
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64 bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-V7H2LRQS4UU.001 154,895
WIN-V7H2LRQS4UU.002 152,125
WIN-V7H2LRQS4UU.003 155,255
WIN-V7H2LRQS4UU.004 152,941
WIN-V7H2LRQS4UU.005 154,733
WIN-V7H2LRQS4UU.006 156,119
ssj_ops@100% 926,067
ssj_ops@100% per JVM 154,344

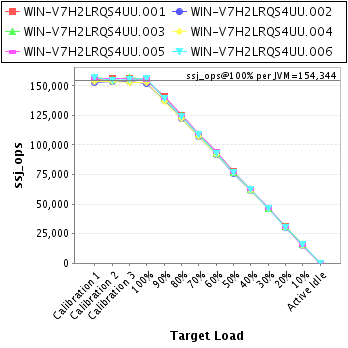

Graph of per-instance results
JVM 'WIN-V7H2LRQS4UU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,588
Calibration 2     155,814
Calibration 3     155,884
ssj_ops@calibrated=155,849
100% 99.4% 155,849 154,895
90% 90.4% 140,264 140,907
80% 80.3% 124,679 125,109
70% 69.6% 109,094 108,469
60% 60.3% 93,509 93,968
50% 49.6% 77,925 77,373
40% 40.2% 62,340 62,675
30% 29.9% 46,755 46,657
20% 20.1% 31,170 31,273
10% 10.2% 15,585 15,838
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V7H2LRQS4UU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,229
Calibration 2     153,263
Calibration 3     153,400
ssj_ops@calibrated=153,331
100% 99.2% 153,331 152,125
90% 89.9% 137,998 137,852
80% 79.7% 122,665 122,141
70% 69.8% 107,332 107,095
60% 59.7% 91,999 91,533
50% 49.6% 76,666 76,127
40% 40.0% 61,333 61,407
30% 30.3% 45,999 46,450
20% 19.9% 30,666 30,472
10% 10.0% 15,333 15,382
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V7H2LRQS4UU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,315
Calibration 2     155,372
Calibration 3     156,658
ssj_ops@calibrated=156,015
100% 99.5% 156,015 155,255
90% 89.3% 140,413 139,270
80% 80.3% 124,812 125,209
70% 69.6% 109,210 108,590
60% 59.4% 93,609 92,687
50% 49.2% 78,007 76,793
40% 40.1% 62,406 62,490
30% 29.7% 46,804 46,337
20% 20.0% 31,203 31,197
10% 9.9% 15,601 15,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V7H2LRQS4UU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,091
Calibration 2     153,393
Calibration 3     152,449
ssj_ops@calibrated=152,921
100% 100.0% 152,921 152,941
90% 89.6% 137,629 136,995
80% 79.8% 122,337 122,014
70% 70.3% 107,045 107,562
60% 60.2% 91,753 92,043
50% 50.4% 76,460 77,009
40% 40.1% 61,168 61,301
30% 30.4% 45,876 46,460
20% 19.9% 30,584 30,470
10% 9.9% 15,292 15,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V7H2LRQS4UU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,609
Calibration 2     155,940
Calibration 3     156,155
ssj_ops@calibrated=156,047
100% 99.2% 156,047 154,733
90% 89.7% 140,443 140,043
80% 80.4% 124,838 125,438
70% 70.6% 109,233 110,130
60% 60.7% 93,628 94,725
50% 49.4% 78,024 77,145
40% 40.0% 62,419 62,452
30% 30.1% 46,814 46,915
20% 19.6% 31,209 30,632
10% 9.9% 15,605 15,384
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-V7H2LRQS4UU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,025
Calibration 2     154,925
Calibration 3     155,473
ssj_ops@calibrated=155,199
100% 100.6% 155,199 156,119
90% 89.7% 139,679 139,209
80% 80.0% 124,159 124,160
70% 70.0% 108,639 108,607
60% 60.0% 93,120 93,150
50% 49.4% 77,600 76,628
40% 40.3% 62,080 62,591
30% 29.8% 46,560 46,251
20% 19.7% 31,040 30,634
10% 10.0% 15,520 15,514
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
