Hitachi, Ltd. BS2000 Server Blade E55A2 ssj_ops@100% = 927,061
ssj_ops@100% per JVM = 154,510
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 20, 2011
Hardware Availability: Feb-2011 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     930,324
Calibration 2     931,085
Calibration 3     934,132
ssj_ops@calibrated=932,608
100% 99.4% 932,608 927,061
90% 89.9% 839,347 838,416
80% 80.1% 746,087 746,632
70% 70.0% 652,826 652,806
60% 60.0% 559,565 559,118
50% 50.3% 466,304 468,680
40% 40.1% 373,043 373,937
30% 30.0% 279,782 279,761
20% 19.7% 186,522 184,079
10% 10.0% 93,261 93,080
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: BS2000 Server Blade E55A2
Form Factor: Blade
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600R ECC CL9; slots A0, B0, C0, D0, E0 and F0 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 2 x 147GB 10K rpm 6Gbps SAS 2.5 (Hitachi P/N:GV-UH21472N1)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 03-48
Management Firmware Version: 03-89
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64 bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-A0NVTV13DF0.001 152,968
WIN-A0NVTV13DF0.002 153,168
WIN-A0NVTV13DF0.003 157,510
WIN-A0NVTV13DF0.004 151,636
WIN-A0NVTV13DF0.005 153,939
WIN-A0NVTV13DF0.006 157,840
ssj_ops@100% 927,061
ssj_ops@100% per JVM 154,510

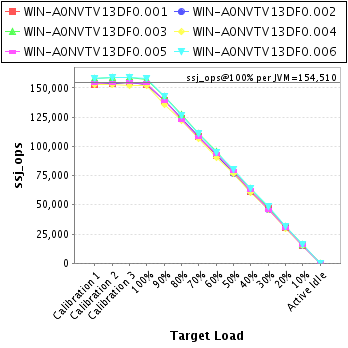

Graph of per-instance results
JVM 'WIN-A0NVTV13DF0.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,941
Calibration 2     153,399
Calibration 3     154,301
ssj_ops@calibrated=153,850
100% 99.4% 153,850 152,968
90% 90.3% 138,465 138,980
80% 80.5% 123,080 123,858
70% 70.4% 107,695 108,277
60% 60.0% 92,310 92,249
50% 50.5% 76,925 77,722
40% 39.8% 61,540 61,185
30% 30.4% 46,155 46,783
20% 19.8% 30,770 30,418
10% 9.9% 15,385 15,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A0NVTV13DF0.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,882
Calibration 2     153,556
Calibration 3     154,776
ssj_ops@calibrated=154,166
100% 99.4% 154,166 153,168
90% 90.3% 138,749 139,193
80% 80.5% 123,333 124,090
70% 70.2% 107,916 108,155
60% 60.3% 92,500 92,898
50% 49.9% 77,083 76,855
40% 40.0% 61,666 61,607
30% 29.7% 46,250 45,783
20% 19.8% 30,833 30,581
10% 9.9% 15,417 15,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A0NVTV13DF0.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,236
Calibration 2     158,502
Calibration 3     158,578
ssj_ops@calibrated=158,540
100% 99.4% 158,540 157,510
90% 89.9% 142,686 142,566
80% 80.1% 126,832 126,913
70% 70.2% 110,978 111,368
60% 60.1% 95,124 95,237
50% 49.4% 79,270 78,361
40% 40.4% 63,416 64,109
30% 29.8% 47,562 47,311
20% 19.7% 31,708 31,238
10% 10.0% 15,854 15,849
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A0NVTV13DF0.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,738
Calibration 2     152,467
Calibration 3     152,364
ssj_ops@calibrated=152,416
100% 99.5% 152,416 151,636
90% 89.2% 137,174 135,994
80% 80.4% 121,933 122,474
70% 70.0% 106,691 106,655
60% 59.4% 91,449 90,605
50% 50.3% 76,208 76,601
40% 39.8% 60,966 60,604
30% 29.9% 45,725 45,607
20% 19.7% 30,483 29,954
10% 10.1% 15,242 15,371
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A0NVTV13DF0.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,789
Calibration 2     154,544
Calibration 3     154,981
ssj_ops@calibrated=154,763
100% 99.5% 154,763 153,939
90% 89.7% 139,286 138,799
80% 79.2% 123,810 122,589
70% 69.6% 108,334 107,702
60% 60.6% 92,858 93,802
50% 50.9% 77,381 78,780
40% 40.4% 61,905 62,449
30% 29.7% 46,429 45,976
20% 19.6% 30,953 30,395
10% 10.0% 15,476 15,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A0NVTV13DF0.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,738
Calibration 2     158,616
Calibration 3     159,132
ssj_ops@calibrated=158,874
100% 99.3% 158,874 157,840
90% 89.9% 142,986 142,884
80% 79.8% 127,099 126,708
70% 69.6% 111,212 110,649
60% 59.4% 95,324 94,326
50% 50.6% 79,437 80,360
40% 40.3% 63,549 63,984
30% 30.4% 47,662 48,301
20% 19.8% 31,775 31,492
10% 10.0% 15,887 15,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
