Hitachi, Ltd. BS2000 Server Blade E55A2 SPECpower_ssj2008 = 2,059 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 20, 2011
Hardware Availability: Feb-2011 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 7,437,040 2,507 2,967
90% 89.9% 6,719,104 2,354 2,855
80% 80.0% 5,975,662 2,212 2,702
70% 70.1% 5,236,415 2,057 2,546
60% 60.0% 4,482,832 1,900 2,359
50% 49.9% 3,731,512 1,770 2,108
40% 40.0% 2,990,605 1,664 1,797
30% 30.1% 2,247,516 1,570 1,431
20% 19.9% 1,490,046 1,479 1,007
10% 10.0% 747,300 1,379 542
Active Idle 0 1,048 0
∑ssj_ops / ∑power = 2,059

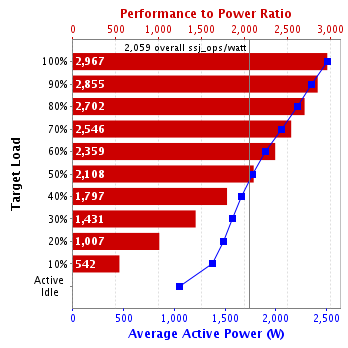

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
8 16 96 192 192 8 48
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Server Chassis BS2000A
Form Factor: 10U
Power Supply Quantity and Rating (W): 1 x 4000
Power Supply Details: FUJI ELECTRIC HI-TECH CORP. SWR400001-2U
Network Switch: 1
Network Switch Details: Hitachi GV-BE2LSW1N1
KVM Switch: N/A
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware per Node
Hardware Vendor: Hitachi, Ltd.
Model: BS2000 Server Blade E55A2
Form Factor: Blade
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600R ECC CL9; slots A0, B0, C0, D0, E0 and F0 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 2 x 147GB 10K rpm 6Gbps SAS 2.5 (Hitachi P/N:GV-UH21472N1)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 03-48
Management Firmware Version: 03-89
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64 bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/SS10(DK)
CPU Description: Intel Pentium G6950
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2008 Enterprise 32-bit SP1
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_17-b04)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K7947164
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Tchnology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B103687
Date of Calibration: 24-Sep-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.02.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 2,507 21.8
90% 2,354 21.9
80% 2,212 22.0
70% 2,057 22.0
60% 1,900 21.9
50% 1,770 21.8
40% 1,664 21.7
30% 1,570 21.6
20% 1,479 21.5
10% 1,379 21.4
Active Idle 1,048 21.2
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 21.2 105
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,472,218
Calibration 2     7,468,499
Calibration 3     7,476,993
ssj_ops@calibrated=7,472,746
100% 99.5% 7,472,746 7,437,040
90% 89.9% 6,725,472 6,719,104
80% 80.0% 5,978,197 5,975,662
70% 70.1% 5,230,922 5,236,415
60% 60.0% 4,483,648 4,482,832
50% 49.9% 3,736,373 3,731,512
40% 40.0% 2,989,098 2,990,605
30% 30.1% 2,241,824 2,247,516
20% 19.9% 1,494,549 1,490,046
10% 10.0% 747,275 747,300
Active Idle   0 0

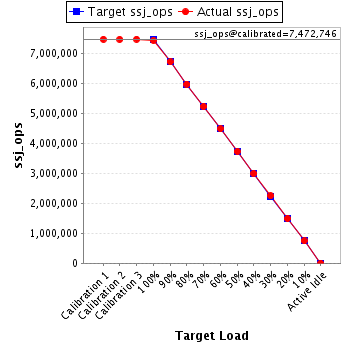

Graph of results
See the Aggregate Performance Report for additional details.
