Hitachi, Ltd. BS2000 Server Blade E55A2 SPECpower_ssj2008 = 2,059 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 20, 2011
Hardware Availability: Feb-2011 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,488 20.9
Calibration 2 2,508 21.1
Calibration 3 2,513 21.4
100% 2,507 21.8
90% 2,354 21.9
80% 2,212 22.0
70% 2,057 22.0
60% 1,900 21.9
50% 1,770 21.8
40% 1,664 21.7
30% 1,570 21.6
20% 1,479 21.5
10% 1,379 21.4
Active Idle 1,048 21.2

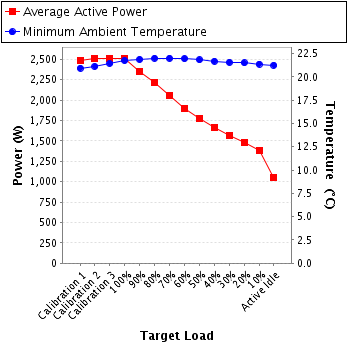

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K7947164
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Tchnology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B103687
Date of Calibration: 24-Sep-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.02.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 201 300.0 12.4 20.0 0.997 2,488 0.4%
Calibration 2 201 300.0 12.5 20.0 0.997 2,508 0.4%
Calibration 3 201 300.0 12.5 20.0 0.997 2,513 0.4%
100% 201 300.0 12.5 20.0 0.997 2,507 0.4%
90% 202 300.0 11.7 20.0 0.997 2,354 0.4%
80% 202 300.0 11.0 20.0 0.996 2,212 0.4%
70% 202 300.0 10.2 20.0 0.996 2,057 0.4%
60% 202 300.0 9.44 20.0 0.995 1,900 0.4%
50% 203 300.0 8.78 20.0 0.994 1,770 0.5%
40% 201 300.0 8.34 20.0 0.994 1,664 0.5%
30% 201 300.0 7.87 20.0 0.993 1,570 0.5%
20% 201 300.0 7.43 20.0 0.992 1,479 0.5%
10% 202 300.0 6.90 20.0 0.991 1,379 0.6%
Active Idle 202 300.0 5.26 20.0 0.985 1,048 0.7%

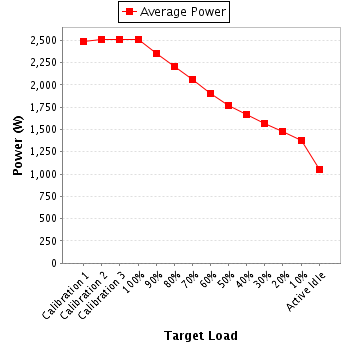

Power details for pwr1
