Hewlett-Packard Company ProLiant DL585 G5 (2.70GHz, AMD Opteron 8384) SPECpower_ssj2008 = 763 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX Test Date: Oct 21, 2008
Hardware Availability: Nov-2008 Software Availability: Apr-2008 Publication: Dec 4, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.2% 622,890 521 1,196
90% 90.2% 572,318 501 1,142
80% 80.1% 508,260 480 1,058
70% 70.2% 445,466 459 970
60% 59.8% 379,359 437 868
50% 49.9% 316,764 417 759
40% 39.9% 253,455 398 636
30% 30.3% 192,198 381 505
20% 19.7% 125,305 351 357
10% 10.0% 63,329 313 202
Active Idle 0 299 0
∑ssj_ops / ∑power = 763

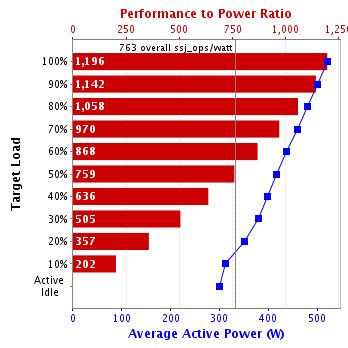

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL585 G5 (2.70GHz, AMD Opteron 8384)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL585 G5 (2.70GHz, AMD Opteron 8384)
Form Factor: --
CPU Name: AMD Opteron 8384
CPU Characteristics: 2.7GHz, 6 MB L3 shared
CPU Frequency (MHz): 2700
CPU(s) Enabled: 16 cores, 4 chips, 4 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: PC2-6400P CL5; slots 1,2,9,10,17,18, 25 and 26 populated
Power Supply Quantity and Rating (W): 1 x 1300
Power Supply Details: HP part #348114-001
Disk Drive: 1 x 120 GB 5.4 K RPM 2.5" SATA
Disk Controller: HP Smart Array P400/256 PCIe
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i NIC
NICs Enabled in Firmware / OS / Connected: 2/2/2
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: Used "start /AFFINITY" "0xF","0xF0","0xF00","0xF000" CPU masks.
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 2
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45371
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 816347
Date of Calibration: 20-Dec-2007
PTDaemon Host System: Controller
PTDaemon Host OS: Windows 2003 R2 Enterprise Edition
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: Controller
PTDaemon Host OS: Windows 2003 R2 Enterprise Edition
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 521 22.2
90% 501 22.2
80% 480 22.2
70% 459 22.2
60% 437 22.2
50% 417 22.2
40% 398 22.2
30% 381 22.2
20% 351 22.2
10% 313 22.2
Active Idle 299 22.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.2 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     637,763
Calibration 2     634,841
Calibration 3     634,220
ssj_ops@calibrated=634,531
100% 98.2% 634,531 622,890
90% 90.2% 571,078 572,318
80% 80.1% 507,625 508,260
70% 70.2% 444,171 445,466
60% 59.8% 380,718 379,359
50% 49.9% 317,265 316,764
40% 39.9% 253,812 253,455
30% 30.3% 190,359 192,198
20% 19.7% 126,906 125,305
10% 10.0% 63,453 63,329
Active Idle   0 0
Graph of results
