SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL585 G5 (2.70GHz, AMD Opteron 8384) | SPECpower_ssj2008 = 763 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Oct 21, 2008 |
| Hardware Availability: | Nov-2008 | Software Availability: | Apr-2008 | Publication: | Dec 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

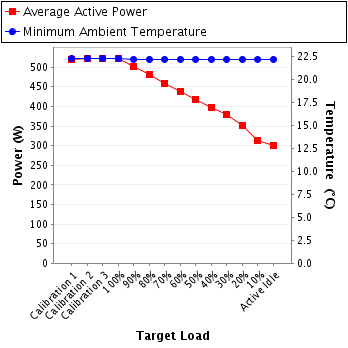

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 520 | 22.3 |
| Calibration 2 | 522 | 22.3 |
| Calibration 3 | 523 | 22.3 |
| 100% | 521 | 22.2 |
| 90% | 501 | 22.2 |
| 80% | 480 | 22.2 |
| 70% | 459 | 22.2 |
| 60% | 437 | 22.2 |
| 50% | 417 | 22.2 |
| 40% | 398 | 22.2 |
| 30% | 381 | 22.2 |
| 20% | 351 | 22.2 |
| 10% | 313 | 22.2 |
| Active Idle | 299 | 22.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB45371 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 816347 |
| Date of Calibration: | 20-Dec-2007 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows 2003 R2 Enterprise Edition |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows 2003 R2 Enterprise Edition |
| Setup Description: | -- |

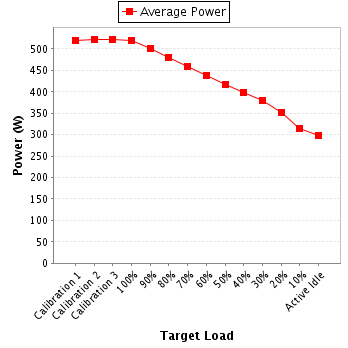

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300 | 2.51 | 5 | 0.991 | 520 | -- |
| Calibration 2 | 209 | 300 | 2.51 | 5 | 0.993 | 522 | -- |
| Calibration 3 | 210 | 300 | 2.51 | 5 | 0.993 | 523 | -- |
| 100% | 209 | 300 | 2.51 | 5 | 0.993 | 521 | -- |
| 90% | 209 | 300 | 2.42 | 5 | 0.991 | 501 | -- |
| 80% | 209 | 300 | 2.32 | 5 | 0.989 | 480 | -- |
| 70% | 209 | 300 | 2.22 | 5 | 0.986 | 459 | -- |
| 60% | 210 | 300 | 2.12 | 5 | 0.983 | 437 | -- |
| 50% | 209 | 300 | 2.03 | 5 | 0.982 | 417 | -- |
| 40% | 209 | 300 | 1.94 | 5 | 0.981 | 398 | -- |
| 30% | 209 | 300 | 1.85 | 5 | 0.981 | 381 | -- |
| 20% | 209 | 300 | 1.71 | 5 | 0.978 | 351 | -- |
| 10% | 210 | 300 | 1.53 | 5 | 0.975 | 313 | -- |
| Active Idle | 210 | 300 | 1.47 | 5 | 0.969 | 299 | -- |
