Lenovo Global Technology ThinkSystem SR860 V3 SPECpower_ssj2008 = 14,306 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 4, 2024
Hardware Availability: Sep-2023 Software Availability: Jan-2024 Publication: Apr 9, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 30,518,987 1,902 16,045
90% 90.0% 27,640,053 1,874 14,752
80% 79.6% 24,465,706 1,476 16,579
70% 69.3% 21,276,770 1,182 18,005
60% 59.9% 18,386,094 1,067 17,231
50% 50.0% 15,347,354 950 16,160
40% 40.0% 12,278,319 851 14,436
30% 30.0% 9,220,826 758 12,158
20% 20.0% 6,149,685 667 9,221
10% 10.0% 3,066,904 570 5,385
Active Idle 0 473 0
∑ssj_ops / ∑power = 14,306

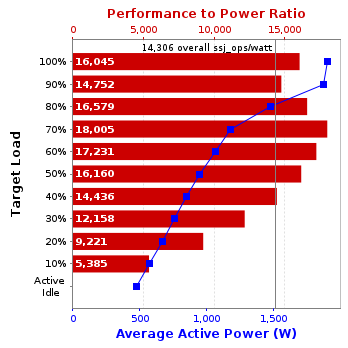

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V3
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 240 cores, 4 chips, 60 cores/chip
Hardware Threads: 480 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 1024
# and size of DIMM: 32 x 32 GB
Memory Details: 32 x 32GB 2Rx8 PC5-4800B-R ; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30, 32, 33, 35, 37, 39, 42, 44, 46, 48, 49, 51, 53, 55, 58, 60, 62 and 64 populated
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: Lenovo P/N:4P57A78359
Disk Drive: 1 x 480GB M.2 SSD P/N:4XB7A82636 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 1GbE RJ45 4-port OCP P/N:4XC7A08235
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 240
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: RSE108G
Management Firmware Version: RSX308J
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR650
CPU Description: 2 x Intel Xeon Gold 5218
Memory amount (GB): 768
Software
Operating System (OS): Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.2268)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1 PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,902 23.9
90% 1,874 23.9
80% 1,476 23.9
70% 1,182 23.9
60% 1,067 23.6
50% 950 23.4
40% 851 23.6
30% 758 23.9
20% 667 23.9
10% 570 23.8
Active Idle 473 23.8
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 23.4 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     29,737,996
Calibration 2     30,638,965
Calibration 3     30,797,418
ssj_ops@calibrated=30,718,192
100% 99.4% 30,718,192 30,518,987
90% 90.0% 27,646,372 27,640,053
80% 79.6% 24,574,553 24,465,706
70% 69.3% 21,502,734 21,276,770
60% 59.9% 18,430,915 18,386,094
50% 50.0% 15,359,096 15,347,354
40% 40.0% 12,287,277 12,278,319
30% 30.0% 9,215,457 9,220,826
20% 20.0% 6,143,638 6,149,685
10% 10.0% 3,071,819 3,066,904
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
