SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SR860 V3 | SPECpower_ssj2008 = 14,306 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Mar 4, 2024 |
| Hardware Availability: | Sep-2023 | Software Availability: | Jan-2024 | Publication: | Apr 9, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

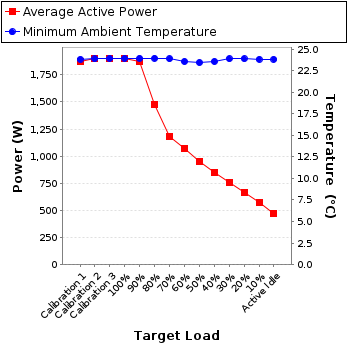

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,870 | 23.8 |
| Calibration 2 | 1,898 | 23.9 |
| Calibration 3 | 1,903 | 23.9 |
| 100% | 1,902 | 23.9 |
| 90% | 1,874 | 23.9 |
| 80% | 1,476 | 23.9 |
| 70% | 1,182 | 23.9 |
| 60% | 1,067 | 23.6 |
| 50% | 950 | 23.4 |
| 40% | 851 | 23.6 |
| 30% | 758 | 23.9 |
| 20% | 667 | 23.9 |
| 10% | 570 | 23.8 |
| Active Idle | 473 | 23.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17023E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
| Calibration Label: | J202308266858A-0003 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 218 | 300.0 | 8.61 | 10.0 | 0.997 | 1,870 | 0.2% |
| Calibration 2 | 218 | 300.0 | 8.73 | 10.0 | 0.997 | 1,898 | 0.2% |
| Calibration 3 | 218 | 300.0 | 8.76 | 10.0 | 0.997 | 1,903 | 0.2% |
| 100% | 218 | 300.0 | 8.75 | 10.0 | 0.997 | 1,902 | 0.2% |
| 90% | 218 | 300.0 | 8.62 | 10.0 | 0.997 | 1,874 | 0.2% |
| 80% | 218 | 300.0 | 6.79 | 10.0 | 0.996 | 1,476 | 0.2% |
| 70% | 219 | 300.0 | 5.45 | 10.0 | 0.992 | 1,182 | 0.3% |
| 60% | 219 | 300.0 | 4.93 | 10.0 | 0.989 | 1,067 | 0.3% |
| 50% | 219 | 300.0 | 4.39 | 10.0 | 0.988 | 950 | 0.3% |
| 40% | 219 | 300.0 | 3.94 | 5.0 | 0.986 | 851 | 0.2% |
| 30% | 219 | 300.0 | 3.52 | 5.0 | 0.984 | 758 | 0.2% |
| 20% | 219 | 300.0 | 3.11 | 5.0 | 0.981 | 667 | 0.3% |
| 10% | 219 | 300.0 | 2.66 | 5.0 | 0.978 | 570 | 0.3% |
| Active Idle | 219 | 300.0 | 2.22 | 5.0 | 0.974 | 473 | 0.3% |
