Lenovo Global Technology ThinkEdge SE360 V2 | SPECpower_ssj2008 = 8,565 overall ssj_ops/watt | ||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jan 29, 2024 |
Hardware Availability: | Dec-2023 | Software Availability: | Jan-2024 | Publication: | Mar 1, 2024 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

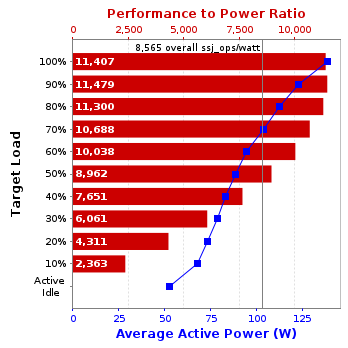

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.6% | 1,580,623 | 139 | 11,407 |
90% | 88.9% | 1,410,299 | 123 | 11,479 |
80% | 80.0% | 1,268,980 | 112 | 11,300 |
70% | 69.9% | 1,108,266 | 104 | 10,688 |
60% | 59.9% | 949,745 | 94.6 | 10,038 |
50% | 50.0% | 793,115 | 88.5 | 8,962 |
40% | 40.0% | 635,066 | 83.0 | 7,651 |
30% | 30.0% | 475,694 | 78.5 | 6,061 |
20% | 20.0% | 316,541 | 73.4 | 4,311 |
10% | 10.1% | 159,963 | 67.7 | 2,363 |
Active Idle | 0 | 52.4 | 0 | |
∑ssj_ops / ∑power = | 8,565 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | 'SUT' |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | ThinkEdge SE360 V2 |
Form Factor: | 2U |
CPU Name: | Intel(R) Xeon(R) D-2775TE CPU @ 2.00GHz |
CPU Characteristics: | 16-Core, 2.00GHz, 25MB L3 Cache |
CPU Frequency (MHz): | 2000 |
CPU(s) Enabled: | 16 cores, 1 chip, 16 cores/chip |
Hardware Threads: | 32 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 1280 KB I+D on chip per core |
Tertiary Cache: | 25 MB I+D off chip per chip |
Other Cache: | None |
Memory Amount (GB): | 64 |
# and size of DIMM: | 4 x 16 GB |
Memory Details: | 4 x 16GB 2Rx8 PC4-3200AA-RE2; slots 1 to 4 populated |
Power Supply Quantity and Rating (W): | 1 x 300 |
Power Supply Details: | Lenovo P/N:4X27A88607 |
Disk Drive: | 1 x 480GB M.2 SSD P/N:4XB7A83139 |
Disk Controller: | Integrated NVME controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 1GbE 4-Port RJ45 Ethernet Adapter |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2022 Datacenter |
OS Version: | Version 21H2 (OS Build 20348.2227) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode) |
JVM Command-line Options: | -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 |
JVM Affinity: | start /NODE [0] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000] |
JVM Instances: | 16 |
JVM Initial Heap (MB): | 2048 |
JVM Maximum Heap (MB): | 2048 |
JVM Address Bits: | 64 |
Boot Firmware Version: | IYE106R |
Management Firmware Version: | IYX322X |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | KB5034129 |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | ThinkSystem SR645 |
CPU Description: | 2 x AMD EPYC 7763 2.45GHz |
Memory amount (GB): | 512 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.1217) |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode) |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA, Inc. |
Model: | WT310E |
Serial Number: | C3UD17023E |
Connectivity: | USB |
Input Connection: | Default |
Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
Calibration Label: | J202308266858A-0003 |
Date of Calibration: | 16-Oct-2023 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.11.0-a4047d62-20231205 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International, Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 50 mm in front of SUT main intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 139 | 23.9 |
90% | 123 | 24.0 |
80% | 112 | 24.0 |
70% | 104 | 24.0 |
60% | 94.6 | 24.1 |
50% | 88.5 | 24.3 |
40% | 83.0 | 24.4 |
30% | 78.5 | 24.2 |
20% | 73.4 | 24.1 |
10% | 67.7 | 23.8 |
Active Idle | 52.4 | 23.0 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
220V / 50 Hz / 1 phase / 2 wires | 23.0 | 43 |

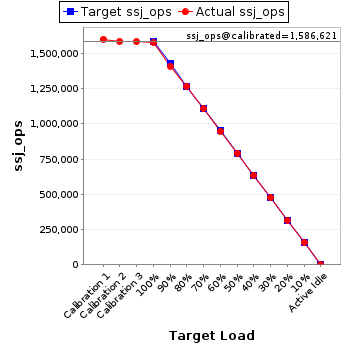

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,602,424 | ||
Calibration 2 | 1,587,564 | ||
Calibration 3 | 1,585,678 | ||
ssj_ops@calibrated=1,586,621 | |||
100% | 99.6% | 1,586,621 | 1,580,623 |
90% | 88.9% | 1,427,959 | 1,410,299 |
80% | 80.0% | 1,269,297 | 1,268,980 |
70% | 69.9% | 1,110,635 | 1,108,266 |
60% | 59.9% | 951,973 | 949,745 |
50% | 50.0% | 793,311 | 793,115 |
40% | 40.0% | 634,648 | 635,066 |
30% | 30.0% | 475,986 | 475,694 |
20% | 20.0% | 317,324 | 316,541 |
10% | 10.1% | 158,662 | 159,963 |
Active Idle | 0 | 0 |
