Lenovo Global Technology ThinkEdge SE360 V2 | SPECpower_ssj2008 = 8,565 overall ssj_ops/watt | ||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jan 29, 2024 |
Hardware Availability: | Dec-2023 | Software Availability: | Jan-2024 | Publication: | Mar 1, 2024 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

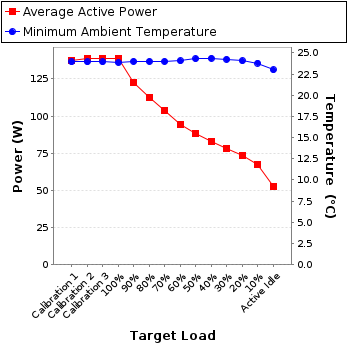

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 138 | 23.9 |
Calibration 2 | 139 | 23.9 |
Calibration 3 | 139 | 23.9 |
100% | 139 | 23.9 |
90% | 123 | 24.0 |
80% | 112 | 24.0 |
70% | 104 | 24.0 |
60% | 94.6 | 24.1 |
50% | 88.5 | 24.3 |
40% | 83.0 | 24.4 |
30% | 78.5 | 24.2 |
20% | 73.4 | 24.1 |
10% | 67.7 | 23.8 |
Active Idle | 52.4 | 23.0 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA, Inc. |
Model: | WT310E |
Serial Number: | C3UD17023E |
Connectivity: | USB |
Input Connection: | Default |
Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
Calibration Label: | J202308266858A-0003 |
Date of Calibration: | 16-Oct-2023 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.11.0-a4047d62-20231205 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International, Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 50 mm in front of SUT main intake |

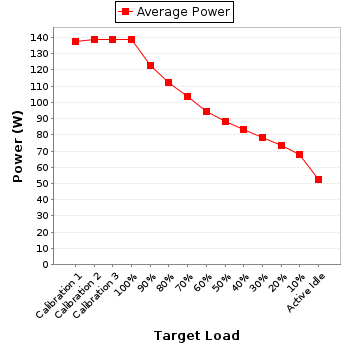

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 220 | 300.0 | 0.682 | 1.0 | 0.919 | 138 | 0.3% |
Calibration 2 | 219 | 300.0 | 0.687 | 1.0 | 0.920 | 139 | 0.3% |
Calibration 3 | 220 | 300.0 | 0.688 | 1.0 | 0.920 | 139 | 0.3% |
100% | 220 | 300.0 | 0.686 | 1.0 | 0.920 | 139 | 0.3% |
90% | 220 | 300.0 | 0.610 | 1.0 | 0.917 | 123 | 0.3% |
80% | 220 | 300.0 | 0.560 | 1.0 | 0.913 | 112 | 0.3% |
70% | 220 | 300.0 | 0.522 | 1.0 | 0.904 | 104 | 0.3% |
60% | 220 | 300.0 | 0.482 | 1.0 | 0.894 | 94.6 | 0.3% |
50% | 220 | 300.0 | 0.455 | 1.0 | 0.886 | 88.5 | 0.4% |
40% | 220 | 300.0 | 0.430 | 1.0 | 0.878 | 83.0 | 0.4% |
30% | 220 | 300.0 | 0.410 | 1.0 | 0.872 | 78.5 | 0.4% |
20% | 220 | 300.0 | 0.387 | 1.0 | 0.864 | 73.4 | 0.4% |
10% | 220 | 300.0 | 0.361 | 1.0 | 0.853 | 67.7 | 0.4% |
Active Idle | 220 | 300.0 | 0.295 | 0.5 | 0.807 | 52.4 | 0.4% |
