Lenovo Global Technology ThinkSystem SD530 V3 ssj_ops@100% = 34,229,913
ssj_ops@100% per Host = 8,557,478
ssj_ops@100% per JVM = 133,711
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 16, 2024
Hardware Availability: Mar-2024 Software Availability: Jan-2024 Publication: Feb 16, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     34,647,708
Calibration 2     34,334,934
Calibration 3     34,277,889
ssj_ops@calibrated=34,306,412
100% 99.8% 34,306,412 34,229,913
90% 91.4% 30,875,770 31,350,518
80% 80.4% 27,445,129 27,575,061
70% 70.0% 24,014,488 24,024,804
60% 60.0% 20,583,847 20,593,262
50% 50.0% 17,153,206 17,139,635
40% 40.0% 13,722,565 13,724,575
30% 30.0% 10,291,923 10,292,387
20% 20.0% 6,861,282 6,858,493
10% 10.0% 3,430,641 3,424,140
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 256 512 1,024 4 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem SD530 V3
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 2700
Power Supply Details: Lenovo
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530 V3
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-4800; slots 1 to 8 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE[0-1] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE113F
Management Firmware Version: USX335C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
WIN-AE4QENU6B75 8,558,025
WIN-B1JR5I5AHQQ 8,556,563
WIN-QKBL1DI75TG 8,559,211
WIN-R1IO8FMLLN3 8,556,114
ssj_ops@100% 34,229,913
ssj_ops@100% per Host 8,557,478
ssj_ops@100% per JVM 133,711

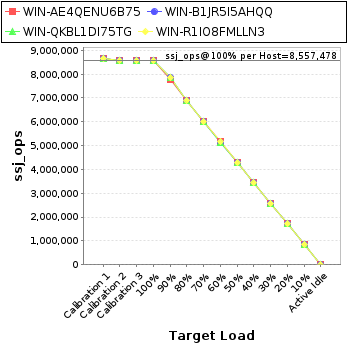

Graph of per-host results
Host 'WIN-AE4QENU6B75' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,664,016
Calibration 2     8,587,587
Calibration 3     8,571,984
ssj_ops@calibrated=8,579,786
100% 99.7% 8,579,786 8,558,025
90% 90.7% 7,721,807 7,782,708
80% 80.4% 6,863,828 6,897,600
70% 70.0% 6,005,850 6,003,618
60% 60.0% 5,147,871 5,150,305
50% 50.0% 4,289,893 4,288,581
40% 40.0% 3,431,914 3,430,775
30% 30.0% 2,573,936 2,574,187
20% 19.9% 1,715,957 1,711,393
10% 10.0% 857,979 856,349
Active Idle   0 0

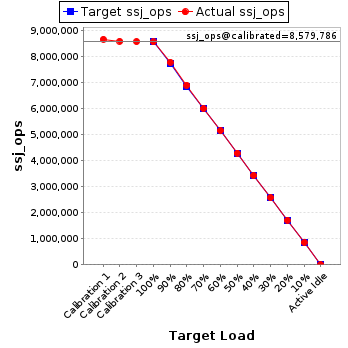

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-B1JR5I5AHQQ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,658,067
Calibration 2     8,584,344
Calibration 3     8,568,245
ssj_ops@calibrated=8,576,295
100% 99.8% 8,576,295 8,556,563
90% 91.8% 7,718,665 7,876,857
80% 80.4% 6,861,036 6,893,138
70% 70.1% 6,003,406 6,015,966
60% 60.0% 5,145,777 5,145,320
50% 50.0% 4,288,147 4,284,413
40% 40.0% 3,430,518 3,428,490
30% 30.0% 2,572,888 2,576,171
20% 20.0% 1,715,259 1,716,756
10% 10.0% 857,629 858,166
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-QKBL1DI75TG' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,662,448
Calibration 2     8,582,924
Calibration 3     8,568,553
ssj_ops@calibrated=8,575,738
100% 99.8% 8,575,738 8,559,211
90% 91.5% 7,718,164 7,846,904
80% 80.2% 6,860,591 6,877,019
70% 70.0% 6,003,017 6,004,023
60% 60.0% 5,145,443 5,145,648
50% 50.0% 4,287,869 4,285,879
40% 40.0% 3,430,295 3,432,590
30% 30.0% 2,572,721 2,572,155
20% 20.0% 1,715,148 1,716,220
10% 10.0% 857,574 855,737
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-R1IO8FMLLN3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,663,176
Calibration 2     8,580,080
Calibration 3     8,569,107
ssj_ops@calibrated=8,574,593
100% 99.8% 8,574,593 8,556,114
90% 91.5% 7,717,134 7,844,048
80% 80.6% 6,859,675 6,907,304
70% 70.0% 6,002,215 6,001,197
60% 60.1% 5,144,756 5,151,989
50% 49.9% 4,287,297 4,280,763
40% 40.0% 3,429,837 3,432,721
30% 30.0% 2,572,378 2,569,874
20% 20.0% 1,714,919 1,714,124
10% 10.0% 857,459 853,888
Active Idle   0 0

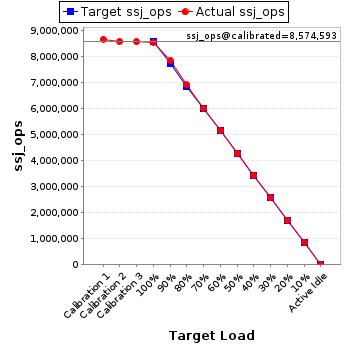

Graph of results
See the Host Performance Report for additional details.
